BIM_MGT_101 Autodesk Certified Professional in BIM Management for Building Design Free Practice Exam Questions (2026 Updated)

A mandatory multidisciplinary review session is the strongest method for ensuring that contributors understand the BEP rather than merely receive it. The session allows the BIM manager to explain model ownership, coordination procedures, file structures, software requirements, information exchanges, quality-control responsibilities, naming conventions, issue workflows, and escalation processes. It also enables each discipline to identify ambiguities and confirm acceptance before implementation begins.

Following review and approval, the BEP should be retained as the official controlled project document in the Common Data Environment. This provides an accessible reference and establishes the approved baseline against which later revisions can be tracked.

Uploading a live copy to a shared folder is necessary for accessibility, but distribution alone does not demonstrate that participants understand their obligations. Including the BEP in the contract provides formal status but does not replace operational onboarding. Email signatures confirm receipt or acknowledgment, not comprehension, and can lead to disconnected copies outside the controlled document environment.

The best process combines formal review, multidisciplinary approval, controlled publication, and ongoing accessibility. Among the available choices, option B most completely addresses understanding, agreement, and official document control.

Reference topics: BIM Execution Plan onboarding; multidisciplinary review; roles and responsibilities; controlled documentation; Common Data Environment; approval and revision management.

The revised BEP must be distributed to every party whose work or information access is governed by it, including consultants already modelling, late-onboarding participants, and relevant external stakeholders. Formal distribution with confirmation of receipt establishes that each organization has received the current requirements and understands its modelling scope, coordination obligations, information exchanges, approval responsibilities, and communication procedures.

The controlled copy should also be stored in the project’s Common Data Environment. Uploading it to the shared data-management location provides centralized access, version history, revision traceability, and a consistent source of truth. The BIM manager must verify that each stakeholder has appropriate folder permissions rather than assuming that uploading the document automatically makes it accessible.

Issuing the BEP only to newly onboarded consultants would leave existing participants working under obsolete requirements. A contractual addendum may be required when the revision changes contractual obligations, but it is not automatically the correct mechanism for routine distribution management. Delaying access until construction coordination would undermine design-stage coordination and prevent external stakeholders from following the approved procedures.

Reference topics: BEP distribution; document control; Common Data Environment; version management; stakeholder access; receipt confirmation; project onboarding.

===============

Because the same model opens successfully for every other team member, the central or cloud-hosted model is unlikely to be the primary cause. The failure is isolated to one workstation or user profile. After the model itself has already been audited and compacted, the most appropriate next action is to clear that user’s local collaboration cache and allow Revit to rebuild the locally stored model data during the next connection attempt.

Cloud-workshared Revit models rely on locally cached information to reduce transfer time and support synchronization. A damaged, incomplete, or obsolete cache can prevent one user from opening a model even though the authoritative cloud version remains healthy. Re-creating the local cache is therefore a targeted and proportionate troubleshooting step.

A hardware upgrade is not justified without evidence of insufficient memory, storage, graphics capability, or processor resources. Rolling the model back would affect the entire team and could discard valid work despite the model opening normally for other users. Republishing the model also fails to address a user-specific local condition and may unnecessarily alter the project’s delivery state.

Reference topics: Revit cloud-worksharing troubleshooting; collaboration cache management; user-specific model access; audit and compact; fault isolation; Autodesk cloud-model workflows.

===============

The Model Element Table and LOD matrix define the required progression of geometry and information at the element level. They establish which party is responsible for each model element, the stage at which it must be developed, the required geometric maturity, and the associated non-graphical data needed for coordination, procurement, construction, and asset handover.

This element-specific structure is essential when the owner’s facilities-management system requires defined asset fields and consistent information formats. It prevents teams from assuming that visual completeness automatically means data completeness. For example, an equipment object may appear adequately modelled but still lack classification, manufacturer, serial-number, maintainability, warranty, or commissioning information.

A Master Information Delivery Plan is useful for scheduling broader information exchanges, but it normally operates at the deliverable or task-team level rather than defining detailed information requirements for individual model-element categories. Naming protocols and authoring standards govern production consistency but do not specify who develops each asset and to what information level. A quantity-takeoff checklist is too narrow.

The Model Element Table and LOD matrix therefore provide the clearest mechanism for assigning element ownership and defining required geometry and information through handover.

Reference topics: Model Element Table; LOD matrix; level of information need; asset-data requirements; element responsibility; facilities-management handover.

===============

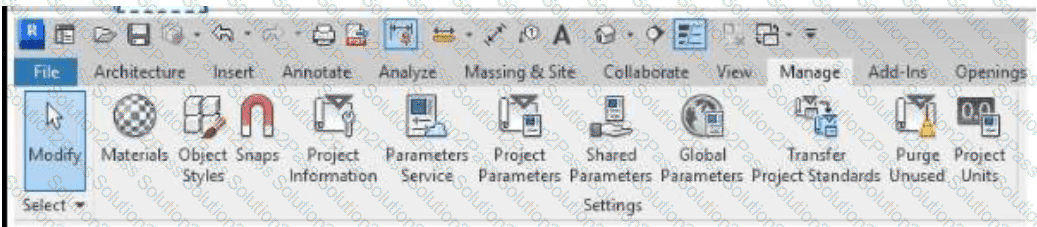

Parameters Service

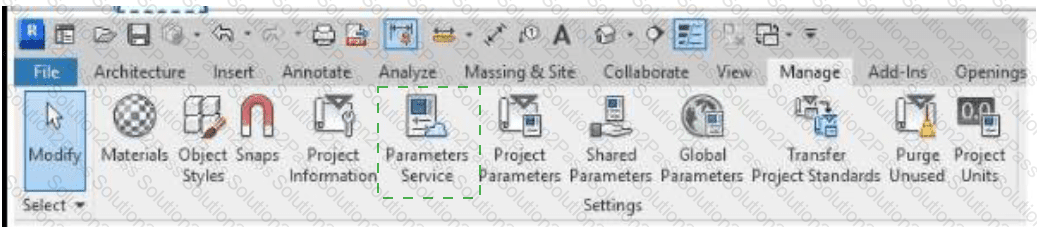

The team member should select Parameters Service on the Manage ribbon. The exhibit specifically shows this tool between Project Information and Project Parameters. The Parameters Service provides a centralized method for accessing and applying approved parameter definitions that have been made available to the organization. Because the BIM manager has already extracted the client’s custom shared parameters into that service, the project team should consume those controlled definitions from the same source.

This workflow supports parameter governance by reducing the risk of users creating duplicate parameters with similar names, selecting outdated shared-parameter definitions, or introducing parameters with incompatible identifiers, data types, disciplines, or grouping. A shared parameter is not defined solely by its displayed name; its underlying definition must remain consistent for reliable scheduling, tagging, filtering, exporting, and cross-project data exchange.

The Project Parameters tool is used to create or bind parameter definitions within a project, but it is not the designated interface for retrieving the organization’s centrally managed definitions in this scenario. The Shared Parameters command manages conventional shared-parameter files, while Global Parameters control design relationships inside a project and do not serve this data-standardization purpose.

Reference topics: Parameters Service; shared-parameter governance; centralized BIM standards; parameter consistency; project data requirements; reusable corporate content.

===============

Repositioning the authoritative civil site resource relative to the established building model and then publishing the revised positional relationship is the least disruptive approach. At Design Development, multiple disciplines may already have linked the building model, established views, placed annotations, configured worksets, and coordinated systems around its current internal geometry. Physically moving all building elements would therefore create extensive risk, including displaced annotations, broken constraints, altered links, and inconsistent consultant coordination.

Publishing the updated position preserves the controlled relationship between the project model and the site resource without requiring each discipline to relocate its authored geometry manually. The revised coordinate relationship can then be distributed through the established shared-coordinate workflow.

Specify Coordinates at Point is not appropriate merely because a setback changed; it can redefine the project’s coordinate basis based on an isolated point rather than maintaining the managed relationship with the civil reference. Resetting coordinates and reacquiring them is substantially more disruptive because it discards the existing shared-coordinate relationship and can affect every connected model. Moving all model elements is the highest-risk option because it changes design geometry rather than correcting the external positional reference.

Reference topics: Shared coordinates; civil-site coordination; Publish Coordinates; model positioning; geolocation governance; change management during design development.

===============

A country-specific Mechanical Equipment family template should use the measurement system and unit formatting expected in the target market. This includes the appropriate conventions for dimensions, flow, pressure, power, temperature, electrical values, and other discipline-specific quantities. Establishing units in the template ensures that family authors enter, interpret, test, and document parameter values consistently from the beginning of content development.

Object Styles govern the graphical representation of family categories and subcategories; they do not translate the family into a country’s official language. Parameter classification as Type or Instance must be determined according to the intended behavior of each value. For example, manufacturer and nominal-capacity information may be type-based, while asset identifiers or installation-specific values may be instance-based. Setting every parameter to Instance would therefore produce poorly structured content.

Project Location concerns geographical and environmental project settings and is not the principal country-standard setting for a reusable equipment family. A family template is intended to be loaded into many projects, so its numerical conventions must align with the regional standards under which the content will be authored and used.

Reference topics: Revit family-template standards; regional content development; project and family units; mechanical equipment parameters; corporate content libraries.

===============

Warnings should be managed through structured triage rather than treated as one undifferentiated backlog. The BIM manager should demonstrate how the Revit Warnings dialog groups recurring conditions by warning type, allowing the team to identify high-volume patterns and understand their underlying causes. Examples include duplicate instances, overlapping elements, disconnected systems, room-separation conflicts, and constraints that are no longer satisfied.

The team should then classify warnings according to severity, coordination impact, data integrity, and performance risk. Critical warnings should be corrected first, while lower-risk conditions should be documented and reviewed against the project’s agreed warning-management standard. Teaching users how to select affected elements, use Show , review contextual information, and research the relevant Revit behaviour creates sustainable capability rather than dependency on the BIM manager.

Bulk deletion is unsafe because the affected elements may be valid design content. Ignoring every warning through an add-in conceals model-health problems without resolving them. Creating a cloud issue for each individual warning would generate excessive administrative noise and is not an appropriate substitute for native model-quality management.

Reference topics: Revit warning management; model-health training; warning categorization; quality-control procedures; team capability development.

===============

Separate discipline templates are appropriate because architectural, structural, and MEP teams require different categories, systems, schedules, content libraries, view configurations, and documentation workflows. However, the templates must share a controlled set of cross-discipline standards. These include compatible project units, coordinated title blocks, agreed project and shared parameters, naming conventions, and relevant view-template settings.

Shared parameters are especially important because they provide consistent data definitions for schedules, tags, model checking, COBie or asset-data delivery, and exchanges between disciplines. Coordinated title blocks ensure that project information, sheet data, and client-required fields are displayed consistently. Common units prevent interpretation and conversion errors, while aligned view standards improve coordination and document review.

Allowing every discipline to create its own levels, grids, parameters, and naming practices would introduce incompatible reference systems and undermine federation. Blank templates create repetitive setup work and increase the likelihood of omissions. A single universal template is also inefficient because discipline-specific tools and content differ substantially; it often becomes oversized and difficult to govern.

The correct strategy is therefore discipline-specific templates built on a common corporate and project-standard foundation.

Reference topics: Revit template governance; corporate BIM standards; shared parameters; project units; title blocks; multidisciplinary coordination.

===============

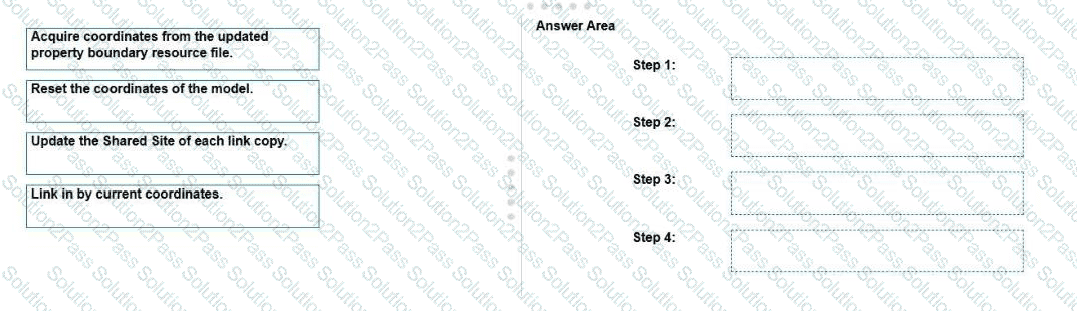

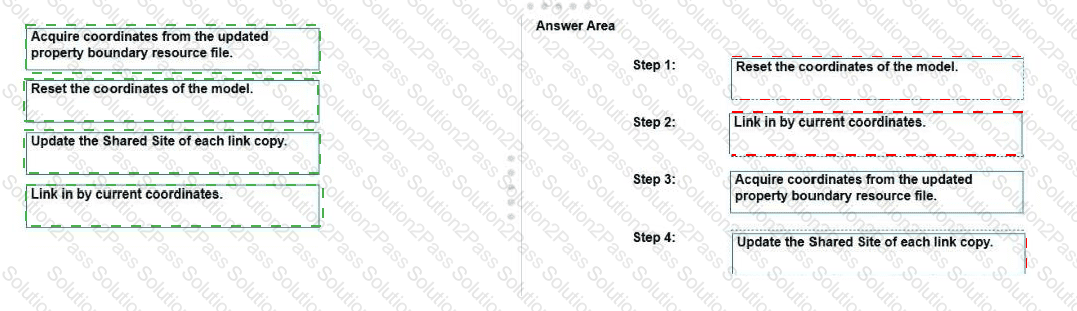

Step 1: Reset the coordinates of the model.

Step 2: Link in by current coordinates.

Step 3: Acquire coordinates from the updated property boundary resource file.

Step 4: Update the Shared Site of each link copy.

The existing shared-coordinate relationship must first be cleared because the authoritative civil background now contains revised GIS positioning. Resetting the model coordinates removes the obsolete relationship and prepares the architectural model to establish a new shared-coordinate system without physically moving its authored building geometry.

The updated property-boundary or civil resource is then linked using its current positioning so that it can serve as the authoritative coordinate source. Once the updated reference is correctly positioned, the architectural model acquires coordinates from that file. Acquiring coordinates transfers the civil model’s survey-coordinate definition into the host while preserving the architectural model’s internal origin and local modelling arrangement.

The final step is to update the Shared Site assigned to each duplicated building-link instance. This is necessary because multiple copies of the same building model may occupy different campus locations or orientations. Each link instance must reference the appropriate named site position so that the copies remain correctly placed after the revised GIS coordinate system is adopted.

Changing link sites before updating the host coordinate framework would apply positions against outdated coordinate data and could displace the campus federation.

Reference topics: Shared coordinates; Acquire Coordinates; named Shared Sites; campus model assembly; GIS and civil-reference updates; duplicated Revit links.

===============

Revit phase mapping is specifically intended to reconcile differences between phase structures in a host model and a linked Revit model. The BIM manager should map Phase 1 in the structural link to Existing in the architectural host and map Phase 2 to New Construction . Revit can then interpret the linked elements’ phase-created and phase-demolished conditions in the context of the host view.

This preserves the structural consultant’s internal phase definitions and avoids altering a model controlled by another discipline. It also produces consistent display behaviour across host views using phase filters such as Show Previous + Demo, Show Complete, or other project-specific configurations.

A Visibility/Graphics override can alter how an entire link or category appears, but it does not correctly translate the underlying phase relationships. Renaming or restructuring the phases directly in the consultant’s model is unnecessary and may disrupt that firm’s documentation. A host view template can control link-display settings, but it cannot substitute for correct phase correspondence where the two files use different phase names or phase structures.

Phase mapping is therefore the controlled, non-destructive coordination mechanism for this scenario.

Reference topics: Revit phase mapping; linked-model display; phase filters; demolition views; host and consultant model coordination; multidisciplinary phase standards.

===============

Software version and build information is essential because Revit models are not backward-compatible. Opening and saving a model in a newer release upgrades it, potentially preventing teams using an earlier version from accessing the file. Build differences can also matter where hotfixes or updates affect cloud worksharing, interoperability, stability, or specific model functions.

Required add-ins are equally important. A model or workflow may depend on third-party tools for data validation, content placement, exports, parameter management, automation, or specialized object handling. If contributors lack the approved add-in or use incompatible versions, they may be unable to reproduce required processes or may generate inconsistent deliverables.

Project units and shared coordinates are critical for modelling and spatial coordination, but they are project-configuration issues rather than the most direct determinants of digital-tool compatibility. Graphic standards govern presentation and documentation consistency but do not determine whether the model and workflow can be operated within the organization’s technology environment.

The kickoff should therefore confirm the approved software release, build, update policy, required add-ins, licensing, installation procedures, and testing responsibilities before production begins.

Reference topics: Software compatibility; Revit version management; approved builds; add-in governance; technology assessment; project kickoff; fast-track mobilization.

===============

The project requires a structured delivery plan that assigns responsibility and timing for each information exchange. The plan must define what information is required, which task team produces it, who verifies and authorizes it, the required format, the delivery milestone, and the receiving party. This is particularly important where design packages overlap and asset-data requirements must develop alongside spatial coordination rather than being added retrospectively.

A task information-delivery plan provides detailed commitments at the team level, while the consolidated information-delivery plan coordinates those commitments across the project. Together they align model production, structured data, coordination submissions, review periods, and final handover requirements.

Allowing each discipline to determine its own formats independently would produce inconsistent data structures and make late consolidation expensive and unreliable. Naming conventions are necessary but represent only one small component of information management. Postponing asset information until construction creates a high risk of missing parameters, unassigned responsibilities, incomplete records, and extensive rework.

The delivery strategy must therefore be established early and integrated with the design programme, BIM Execution Plan, client information requirements, and quality-assurance process.

Reference topics: Task Information Delivery Plans; Master Information Delivery Planning; information-exchange requirements; asset-data handover; structured data; responsibility matrices; delivery milestones.

The timing of the performance degradation strongly indicates that one or more recently distributed links, or their access paths, should be isolated before undertaking invasive model changes. Opening the project through Specify Worksets allows the BIM manager to control which worksets are loaded. Where Revit links are assigned to dedicated worksets, the manager can initially close those worksets, assess baseline performance, and then load them selectively. If the model performs normally with linked-model worksets closed, the investigation has established a defensible connection between the slowdown and the updated external references.

The Manage Links dialog should then be reviewed for link status, saved paths, path type, file availability, and unexpected network or cloud locations. A valid link may still degrade access when it resolves through an inaccessible, high-latency, or inconsistent location.

Flattening linked geometry is not a standard Revit troubleshooting operation. Removing and recreating every link is unnecessarily destructive and can compromise positioning, visibility overrides, and coordination settings. Consultant warnings may warrant separate health reviews, but indiscriminately fixing every warning is neither an efficient first diagnostic step nor normally within the host team’s model authority.

Reference topics: Linked-model troubleshooting; workset loading; Manage Links; model-performance isolation; distributed-file validation; Revit model health.

===============

A prospective fabricator who is not a project member should receive information through a controlled external-sharing process rather than being granted ordinary project-folder access. Enabling public sharing permits authorized files to be distributed externally, while a transmittal creates a formal record of what was issued, when it was issued, and to whom.

The BIM manager should select only the documents required for the bidding process, confirm that external sharing is permitted by the project’s information-governance procedures, and establish any applicable expiration, download, or access controls. A transmittal also provides a traceable issue package and reduces ambiguity regarding which file versions formed the basis of the recipient’s bid.

Setting folder permissions to Everyone generally applies to eligible users within the project environment; it does not provide a properly controlled method for distributing information to unknown external parties. Audit and Compact is a Revit model-maintenance operation unrelated to access. Centralizing a model and creating local files concerns traditional worksharing and would be inappropriate for bidders who are not authorized project contributors.

External sharing must remain limited, deliberate, and auditable.

Reference topics: Public file sharing; transmittals; non-member access; external bidding packages; Common Data Environment security; controlled information exchange.

===============

Before information is issued outside the delivery team, the BIM manager must establish exactly what the recipient is authorized and required to use. This means validating the estimator’s defined purpose, required data fields, permitted model content, exchange format, access level, and downstream-use restrictions. Once that scope is confirmed, the BIM manager can produce a controlled deliverable containing quantities and location metadata while excluding unnecessary proprietary geometry, design-development information, linked disciplines, embedded intellectual property, or confidential parameters.

Exporting PDFs does not satisfy the stated requirement because a cost estimator requires structured quantity and location information rather than static graphical documentation. Checking email size is a transmission issue, not an information-governance control. Converting the package to 2D may remove useful model intelligence and still does not establish whether the recipient is entitled to receive the remaining information.

The governing principle is proportional information exchange: provide the information necessary for the authorized BIM use and no more. Permissions and file format must reinforce that boundary. The BIM manager should then validate the resulting package before transmission and document the exchange according to the project’s information-delivery protocol.

Reference topics: Data-management planning; information exchange requirements; model permissions; authorized BIM uses; external information distribution; risk-controlled model sharing.

===============
