RVT_ELEC_01101 Autodesk Certified Professional in Revit for Electrical Design Free Practice Exam Questions (2025 Updated)

In Revit Electrical Design workflows, when a designer wishes to add a parameter to a lighting fixture schedule without editing the families themselves, the proper approach is to use a Project Parameter.

The Revit MEP documentation clearly explains:

“To add a custom field to a schedule, you can create a custom parameter using the Parameter Properties dialog. Under Parameter Type, select Project parameter.”

This method links the parameter directly to the project and to all instances of the specified category (in this case, Lighting Fixtures), allowing it to appear in the schedule automatically without requiring any modification to the family files (.RFA).

In contrast:

Family Parameters apply only within the family file and are not schedulable across multiple families.

Global Parameters control dimensional or relational constraints, not schedule data.

Reporting Parameters are read-only and extract model information; they cannot be manually added to schedules.

Revit’s scheduling workflow defines this process:

“On the Fields tab of the Sheet List Properties dialog, click Add Parameter… Under Parameter Type, select Project parameter.”

This same mechanism applies to lighting fixture schedules, as schedules and sheet lists share parameter structures in Revit. The new project parameter can then be sorted, filtered, and displayed in the schedule view for documentation or tagging purposes.

In Autodesk Revit Electrical Design, lighting control systems such as single-pole, three-way, and four-way switches are managed using Switch Systems. These systems logically connect lighting devices (switches) to the lighting fixtures they control. For multiple switches (like three-way configurations) to be part of the same control circuit, they must share the same Switch ID value.

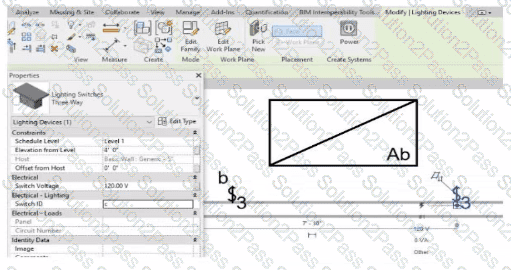

In the exhibit, the electrical designer is attempting to add a three-way switch to the existing switch system labeled “b”, but Revit does not allow it. The reason is that the Switch ID parameter of the new switch does not match the Switch ID of the system it is intended to join.

The Switch ID acts as the unique identifier that links all switches controlling the same group of fixtures. If the IDs differ (for example, “b3” versus “b”), Revit interprets them as belonging to separate systems and prevents them from being grouped together.

The Autodesk Revit MEP User’s Guide – Electrical Systems: Lighting and Switch Systems explains this clearly:

“Switch systems are organized by Switch ID. All switches controlling the same lighting circuit must have identical Switch ID values. Revit will not allow a switch to be added to an existing system if its Switch ID does not match that system’s identifier.”

To fix this, the designer must:

1️⃣ Select the three-way switch.

2️⃣ In the Properties palette, locate the Switch ID parameter.

3️⃣ Change its value to match the target switch system’s ID (in this case, “b”).

Once both switches share the same Switch ID, Revit will successfully include them in the same Switch System.

In Autodesk Revit MEP, the Electrical Settings dialog box contains project-wide configuration parameters that affect all electrical systems, including Cable Tray Settings. This dialog allows users to control annotation scales, fitting symbols, and text size for documentation purposes.

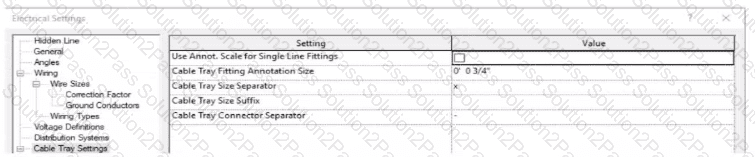

The option labeled “Use Annot. Scale for Single Line Fittings” determines whether the cable tray fittings’ annotation graphics automatically scale according to the view’s annotation scale. When this box is checked, the annotation symbol size for fittings adjusts proportionally to the scale of the view.

Similarly, “Cable Tray Fitting Annotation Size” defines the annotation size for cable tray fittings in single-line representations (schematic views or simplified plan representations). Changing this parameter (for instance, from ¾” to ⅛”) modifies the visual representation globally for all cable tray fittings in the project, since the Electrical Settings dialog is a project-wide configuration, not a per-instance or per-view override.

According to the Autodesk Revit MEP User’s Guide (Electrical Systems – Cable Trays):

“Electrical settings define how cable trays and conduit are displayed throughout the project. Any change made to these settings, such as annotation size or use of annotation scaling, affects all related fittings and components in the project model.”

Therefore, once the designer checks the box for Use Annot. Scale for Single Line Fittings and changes the Cable Tray Fitting Annotation Size to 1/8” (3 mm), all cable tray fittings across the entire project will update to reflect these new settings.

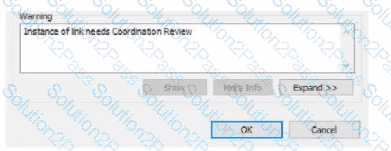

The warning message shown — “Instance of link needs Coordination Review” — appears when Revit detects a modification in a monitored element within a linked model, typically during a coordination workflow between architectural and MEP (electrical, mechanical, plumbing) disciplines.

According to the Revit MEP User’s Guide (Chapter 46 “Copy/Monitor and Coordination Review”):

“When a monitored element changes in the linked model, Revit displays a warning message indicating that the instance of the link needs Coordination Review. You can use the Coordination Review tool to accept, reject, or postpone the change.”

This mechanism ensures synchronization between linked models. For example, if the architectural ceiling or wall that hosts electrical elements (such as lighting fixtures or devices) is modified, moved, or deleted, Revit triggers this alert in the workshared MEP model.

The Smithsonian Facilities Template Guide further emphasizes:

“Coordination Review identifies monitored elements whose hosts or geometry have changed in a linked model. The designer must review these to maintain design consistency.”

Hence, the warning does not indicate a clash or interference (Option A), nor a coordination message created manually in the architectural model (Option B), but specifically a change in a monitored element in the linked architectural model (Option D).

In Autodesk Revit, particularly for electrical and MEP design disciplines using a workshared model, the command “Reload Latest” allows a designer to see changes made by other users without saving or publishing their own work to the central model. This tool ensures that while the designer continues to work locally, their environment stays updated with the latest modifications made by colleagues.

According to the Autodesk Revit MEP User Guide (Chapter 54 – Working in a Team), under the section Loading Updates from the Central Model, it states:

“As you work, you can see the changes other team members have made to the project after they have been synchronized with the central model. You can load updates from the central model without publishing your changes to the central model.

In your local file, click Collaborate tab ➤ Synchronize panel ➤ (Reload Latest).”

This confirms that the Reload Latest command refreshes your local file with any modifications from the central file that others have synchronized, but it does not send your local changes back. It is a critical feature for coordination in a team environment, especially when multiple designers—such as electrical, mechanical, and structural engineers—are contributing simultaneously to a shared BIM model.

By contrast:

A. Relinquish All Mine only releases ownership of elements but doesn’t update the local model.

C. Manage Worksets is for controlling visibility and editability of worksets.

D. Worksharing Display visually identifies ownership and status but doesn’t refresh model data.

Therefore, when an electrical designer needs to review updates from others (for example, when a lighting layout needs coordination with architectural ceiling adjustments), the proper workflow is to use Reload Latest, ensuring all new information from the central model appears instantly without saving or affecting their current unsaved edits.

In Autodesk Revit, Project Parameters are used to add custom fields that apply to multiple elements within a specific project file — such as views, sheets, or schedules. These parameters allow project teams to categorize, group, and sort information within the Project Browser or within schedules without editing families or external files.

As defined in the Revit MEP User’s Guide and Revit Structure Parameters Chapter:

“Project parameters are specific to a single project file. Information stored in project parameters cannot be shared with other projects. A project parameter can be used, for example, to categorize views within a project.”

This statement directly confirms that project parameters are the correct tool for sorting or grouping views in the Project Browser.

To organize elements (like views or sheets) by building, the designer can create a custom project parameter named “Building” and assign it to the View category. Once assigned, the parameter values (e.g., “Building A” or “Building B”) can be filled in for each view.

The Smithsonian Facilities Revit Template Guide further supports this:

“View purpose is a Revit project parameter, providing a means for users to organize the many views that may exist in a BIM.”

Thus, using a project parameter allows users to add a “Building” field to each view, enabling customized browser organization (e.g., group views by Building A, Building B, etc.) without requiring shared parameters or family editing.

C:\Users\Waqas Shahid\Desktop\Mudassir\Untitled.jpg

In Autodesk Revit Electrical Design, the Project Browser can be customized to organize views according to disciplines, levels, and view types using the Browser Organization Properties dialog box. This feature allows electrical designers to create structured view hierarchies that align with project standards and simplify navigation — especially in multidisciplinary projects.

According to the Revit MEP User’s Guide (Chapter 41 “Browser Organization and View Management”):

“Browser organization defines how project views are grouped and displayed in the Project Browser. You can customize sorting by Discipline, Level, View Type, or any parameter applicable to views.”

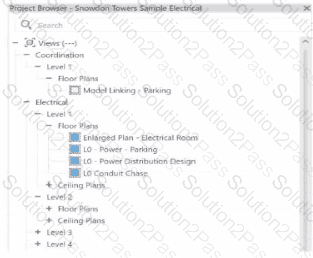

In the given exhibit, the Project Browser structure shows views grouped first by discipline (“Coordination,” “Electrical”), then by level (“Level 1,” “Level 2”), and finally by view type (e.g., “Floor Plans,” “Ceiling Plans”). This organization allows the electrical designer to isolate MEP-related views while maintaining logical grouping under each building level.

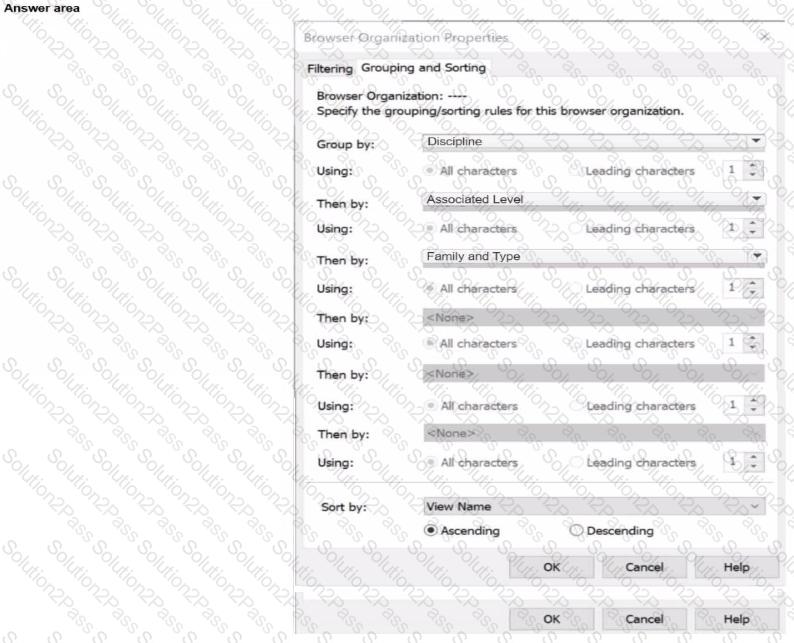

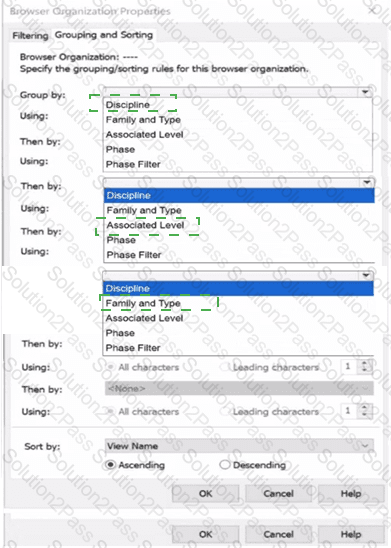

To achieve this layout, the designer must apply the following browser organization setup in the Browser Organization Properties dialog box:

1️⃣ Group by: Discipline – creates top-level folders such as Architectural, Structural, Electrical, etc.

2️⃣ Then by: Associated Level – organizes each discipline into subfolders based on floor levels (Level 1, Level 2, etc.).

3️⃣ Then by: Family and Type – further organizes the level folders into view categories (e.g., Floor Plans, Ceiling Plans).

This configuration is supported by the Smithsonian Facilities Revit Template User’s Guide:

“Grouping by Discipline, Level, and View Type provides logical organization for MEP coordination, facilitating efficient access to electrical floor and ceiling plan views.”

Sorting by View Name (Ascending) ensures consistent alphabetical listing under each category.

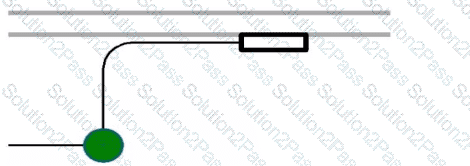

In Autodesk Revit MEP, conduit systems can be represented in plan views using either detailed or single-line symbology. The Single Line Symbology display setting is used for schematic or simplified representations — often in electrical riser or distribution diagrams.

The setting that controls whether conduits display in single-line or detailed form is found in the Type Properties of the conduit family, not in Object Styles or Electrical Settings. Specifically, it is accessed by selecting a conduit in the model and navigating to:

Properties Palette → Edit Type → Single Line Symbology

From there, users can define how fittings, rise/drop symbols, and conduits themselves are represented in single-line schematic mode. Adjusting this type parameter affects the graphical display for that conduit type throughout all applicable views where single-line graphics are used.

According to the Autodesk Revit MEP User’s Guide (Electrical Systems → Conduit Systems section):

“The conduit type properties define the graphical representation in single-line drawings. By editing the Single Line Symbology in the Type Properties dialog, designers control how the conduit and fittings appear in plan views.”

This parameter is especially important in electrical documentation where simplified representations are required for coordination and electrical diagrams.

When an electrical designer wants to schedule parameters from Generic Annotations, the correct method is to use a Note Block, not a generic schedule. Revit documentation defines this process clearly under Annotation Schedules (Note Blocks):

“Annotation schedules, or note blocks, list all instances of annotations that you can add using the Symbol tool.”

“Creating an Annotation Schedule (Note Block):

Load the generic annotation family or families into your project and place them where desired.

Click View tab ➤ Create panel ➤ Schedules drop-down ➤ Note Block.

In the New Note Block dialog, for Family, select a generic annotation.”

This extract confirms that when working with generic annotation families, Revit requires the use of a Note Block to extract and list their parameters in a schedule. Standard schedules such as Generic Model or Family schedules cannot access data from Generic Annotations since they are annotation-based, not model-based.

In Autodesk Revit Electrical Design, the Interference Check tool allows designers to detect physical conflicts between elements in the current model and linked models, ensuring coordination between architectural, structural, and MEP systems.

According to the Revit MEP User’s Guide (Chapter 45 “Interference Checking”):

“You can check for interferences between elements within a single project or between elements in the host project and linked models. In the Interference Check dialog box, you can specify categories from the current project and from linked Revit models.”

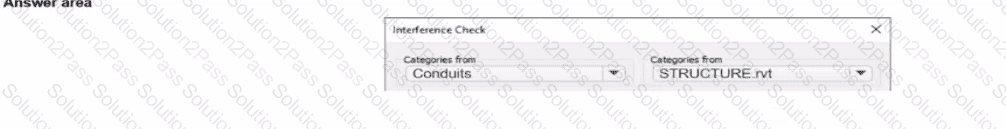

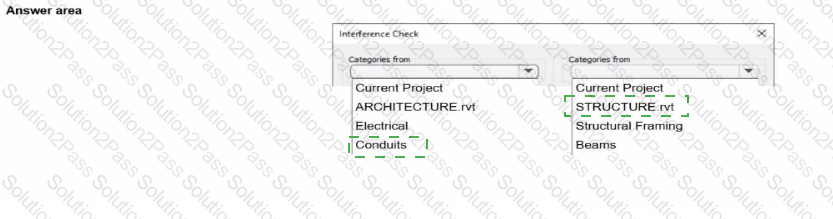

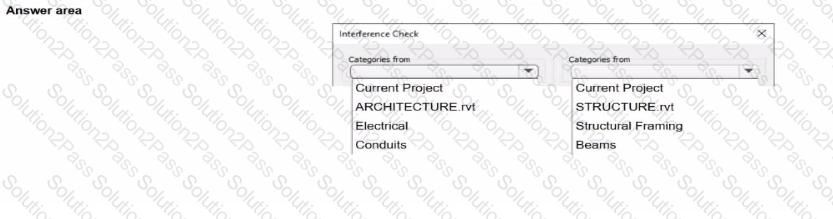

The dialog box shown in the image displays two selection lists:

The left-hand side represents categories from the current electrical project.

The right-hand side represents categories from the linked structural model (STRUCTURE.rvt).

Since the task is to check for clashes between conduits (electrical) and beams (structural), the designer should select:

“Conduits” under Categories from Current Project (the electrical model).

“Beams” under Categories from STRUCTURE.rvt (the linked structural model).

As the guide explains further:

“Interference checking identifies intersections or overlaps between the geometry of selected categories. For MEP users, this is commonly used to check for clashes between ducts, pipes, or conduits and architectural or structural elements.”

This process ensures early detection of coordination issues before construction documentation. The designer can then review results through Coordination Review, isolate elements in 3D, or tag affected areas for correction.

Incorrect Options:

Selecting both categories from the same model (e.g., Electrical and Conduits) would only check within that model.

Choosing unrelated linked files (e.g., ARCHITECTURE.rvt) would not detect clashes with the structural beams.

According to the Autodesk Revit MEP User’s Guide (Chapter 17 – Electrical Systems), when creating power and lighting circuits, Revit enforces specific compatibility rules to ensure the accuracy and integrity of electrical systems. The document explicitly states:

“Circuits connect similar electrical components to form an electrical system. Once created, you can edit circuits to add or remove components, connect a circuit to a panel, add wiring runs, and view circuit and panel properties… A component can be connected in a circuit if it is compatible with the other components in the circuit and if it has an available connector.”

Furthermore, it continues:

“When circuits are created for a power system, only compatible devices can be connected. All devices in a circuit must specify the same distribution system (voltage and number of poles). The distribution system can be specified by type parameters or instance parameters. When you create a circuit where all the devices have the distribution system specified as instance parameters, Revit MEP displays a Specify Circuit Information dialog where you can specify values for the number of poles and voltage prior to creating the circuit.”

Additionally, the documentation clarifies that circuits must exist within the same project model to maintain system logic and consistency. It explains that “circuits connect similar electrical components within a particular system,” which implicitly enforces that items must reside in the same model file. Revit’s data structure does not allow cross-model circuit connections, since circuit logic, load calculations, and panel assignments depend on shared model parameters and hosted relationships between electrical families.

Therefore, the two rules enforced by Revit when creating a power circuit are:

A. Items on the circuit must be in the same model.This ensures data integrity and consistency across electrical systems, as circuits cannot span multiple linked models.

C. Items on the circuit must be assigned the same voltage definition.This guarantees that only devices with matching voltage and pole configurations can be logically and electrically connected to the same circuit.

Other options, such as requiring apparent load values or association with transformers, are not mandatory for circuit creation—they are design considerations applied after circuits are established. Worksets (option D) manage collaboration, not circuit validity.

Verified Reference:

Autodesk Revit MEP 2011 User’s Guide, Chapter 17 “Electrical Systems,” Sections Creating Circuits and Creating Power and Lighting Circuits, pp. 461–463.

In Autodesk Revit MEP, when working with electrical circuits, Revit visually differentiates elements based on their circuit membership and active selection during the circuit editing process. In the Edit Circuit mode, the software highlights elements connected to the active circuit in full color (black), while other electrical devices not part of that same circuit appear in halftone (gray).

In the exhibit, one receptacle appears in black, while the other is shown in gray (halftone). This indicates that only one of the receptacles is currently included in the circuit being edited, while the other receptacle belongs to a different circuit or has not yet been assigned to any circuit.

According to the Autodesk Revit MEP User’s Guide (Electrical Systems – Circuits section):

“When editing a circuit, the components that belong to the selected circuit are highlighted in the active color, while other elements in the view appear in halftone. Devices that are not on the same circuit will not be shown as connected or editable until added to the current circuit.”

Therefore:

The black receptacle is the one actively included in the selected circuit.

The gray (halftone) receptacle is not on the same circuit and thus not active for editing.

This visual cue is Revit’s way of helping the designer distinguish between circuit connections when adding or managing electrical devices.

Discipline: Common

Type of Parameter: Yes/No

When an electrical designer is developing a panelboard family in Autodesk Revit and wants to control the visibility of an element—such as a clearance zone (typically used for equipment maintenance space, NEC 110.26 compliance, or access areas)—the correct method is to create a Family Parameter with a Yes/No (Boolean) value under the Common discipline.

According to the Revit MEP User’s Guide (Chapter 44 “Creating and Modifying Families”):

“Use a Yes/No parameter to control the visibility of geometry or symbolic lines in a family. When checked, the geometry displays in the project; when unchecked, it is hidden.”

This visibility control is typically applied to reference geometry such as safety clearance volumes or working spaces around electrical panels. These geometries are modeled within the family environment and linked to visibility parameters that the designer can toggle on or off in the Family Types dialog.

Additionally, the parameter must be created under the Common discipline, not Electrical or HVAC, because visibility controls are not discipline-specific—they apply to all Revit element types.

“Discipline defines the context of the parameter type. Visibility parameters are categorized under Common, as they are used across multiple disciplines.”

Step-by-step setup:

1️⃣ In the Family Editor, open the Family Types dialog.

2️⃣ Click Add Parameter → Name it Clearance Zone Visible.

3️⃣ Under Parameter Type, select Family Parameter.

4️⃣ Choose Discipline: Common and Type of Parameter: Yes/No.

5️⃣ Assign this parameter to the Visible checkbox of the clearance zone geometry.

This allows the designer to easily control whether the clearance zone appears in plan, elevation, or 3D views—useful for coordination and documentation.

Incorrect Options Explanation:

HVAC, Electrical, Energy: Used for discipline-specific parameters like voltage, airflow, or load calculations.

Text or Number: Would not allow toggling visibility.

Visible (as type): Refers to linking geometry visibility, not defining a parameter type itself.

In the exhibit, the Label Parameters for the electrical device tag are configured as follows:

A white background with black text AI-generated content may be incorrect.

This setup determines how the tag will display in Revit when applied to any device. Specifically:

The Panel parameter (P203 in this case) will be shown first.

A “/” separator follows because it’s assigned as the suffix for the Panel parameter.

The Circuit Number (2,4) is displayed immediately after the slash, with no extra spaces or line breaks.

Since the Break column is unchecked, the values will appear on one continuous line, not split across lines.

Revit documentation for tag creation confirms this behavior:

“When defining label parameters in a tag family, the Prefix and Suffix fields control text that appears before or after the parameter value, while the Break checkbox controls whether the text wraps to a new line.”

Therefore, when the tag is applied to a receptacle on panel P203 and circuit 2,4, the final formatted text will be:

P203/2,4

This corresponds exactly to option B, where the panel and circuit appear on the same line separated by a slash, with no spaces or line breaks.

In Autodesk Revit’s Electrical discipline, when electrical components such as panelboards are hosted incorrectly (for example, Panel B hosted to Panel A instead of a wall or level), the hosting relationship must be corrected by reassigning the work plane or host. This is essential because hosted electrical elements depend on the geometry or level of their host for placement, alignment, and coordination.

According to the Revit MEP User’s Guide (Chapter 45 “Work Planes and Element Hosting”):

“If a hosted element is placed incorrectly or the host has changed, use the Edit Work Plane or Pick New commands to redefine its host or work plane.”

Here’s how these two tools apply:

1️⃣ Pick New (Option A)

Located under the Work Plane panel on the Modify tab, this command allows you to select a new face or host (e.g., a wall, ceiling, or floor) for the existing component. It effectively reassigns the element’s host without deleting or recreating the element.

“Use Pick New to specify a different face or surface as the host for a component that was incorrectly placed.”

2️⃣ Edit Work Plane (Option E)

This command lets the designer redefine the reference level or named work plane to which an element is associated. For hosted electrical equipment (like lighting or panels), this ensures the object references the correct structural or architectural surface.

“To correct hosting errors, open Edit Work Plane from the Modify tab, and assign a new named plane, level, or face.”

Incorrect Options Explanation:

B. Edit Mounting value – changes only how the panel is mounted (e.g., recessed or surface), not the host itself.

C. Move command – repositions the element but does not change the hosting relationship.

D. Edit Host value – the “Host” parameter is read-only; it cannot be edited directly.

Thus, the correct methods to rehost Panel B from Panel A to the correct wall or work plane are through Pick New and Edit Work Plane, ensuring proper association and maintaining system connectivity.

The parameter “Lighting Calculation Luminaire Plane: Not Computed” in the Space Properties dialog appears when Revit cannot perform a lighting calculation because no valid lighting fixtures are present within that defined space.

According to the Autodesk Revit MEP User’s Guide (Chapter: Spaces and Lighting Analysis):

“Lighting calculations are performed based on the luminaire data available in the space. If no light fixtures are present, the parameter ‘Lighting Calculation Luminaire Plane’ displays as ‘Not Computed’. Revit requires at least one hosted or ceiling-mounted lighting fixture with a valid light source to calculate illumination.”

In this case, although the space has defined reflectance values (ceiling, wall, and floor) and a lighting calculation workplane height (2’-6”), Revit cannot compute the Luminaire Plane because the software has no lighting geometry to reference for the photometric analysis.

Explanation of incorrect options:

A. Missing IES file: This would cause inaccurate photometric output, but not “Not Computed.”

C. Lights not circuited: Circuiting affects load summaries, not lighting calculations.

D. Lights at different elevations: Revit still computes the average luminaire plane even with varied fixture heights.

Thus, the lighting calculation is not computed simply because no lighting fixtures are placed in the space.
