 The end-to-end ping between the office user PC and the AWS EC2 instance is not working because either the security group rules for the host VPC are blocking the ICMP traffic or the IPsec SA counters are showing errors or drops. To diagnose the loss of connectivity, the engineer should check both the security group rules and the IPsec SA counters. The network security group rules on the host VNET are not relevant because they apply to Azure, not AWS. The IPsec SA configuration on the Cisco VPN router and the AWS private virtual gateway are not likely to be the cause of the problem because the site-to-site VPN tunnel is already up and the site-to-site routing works correctly. References :=

Designing and Implementing Cloud Connectivity (ENCC, Track 1 of 5), Module 3: Configuring IPsec VPN from Cisco IOS XE to AWS, Lesson 3: Verify IPsec VPN Connectivity

Security for VPNs with IPsec Configuration Guide, Cisco IOS XE, Chapter: IPsec VPN Overview, Section: IPsec Security Association

AWS Documentation, User Guide for AWS VPN, Section: Security Groups for Your VPC

The bgp advertise-best-external command is used to enable the advertisement of the best external path to internal BGP peers. This command is useful when there are multiple exit points from the local AS to other ASes, and the local AS wants to use the closest exit point for each destination. By default, BGP only advertises the best path to its peers, and the best path is usually the one with the lowest IGP metric to the next hop. However, this may not be the optimal path for traffic leaving the local AS, as it may result in suboptimal hot-potato routing or MED oscillations. The bgp advertise-best-external command allows BGP to advertise the best external path, which is the path with the lowest MED among the paths from different neighboring ASes, in addition to the best path. This way, the internal BGP peers can choose the best exit point based on the MED value, rather than the IGP metric. In this scenario, ASBR1 is configured to receive additional paths from ASBR2, which is a route reflector. ASBR2 receivestwo paths for the same prefix from AS6500, one from ASBR3 and one from ASBR4. ASBR2 selects the best path based on the IGP metric to the next hop, and advertises it to ASBR1. However, this path may not be the best external path, as it may have a higher MED value than the other path. If the connection between ASBR1 and ASBR2 goes down, ASBR1 will not have any backup path to reach AS6500, as it does not know the other path from ASBR4. To prevent this situation, ASBR1 should be configured with the bgp advertise-best-external command, so that it can receive the best external path from ASBR2, along with the best path. This way, ASBR1 will have a backup path to reach AS6500, in case the primary path fails. References := IP Routing: BGP Configuration Guide - BGP Additional Paths … - Cisco, BGP Additional Paths

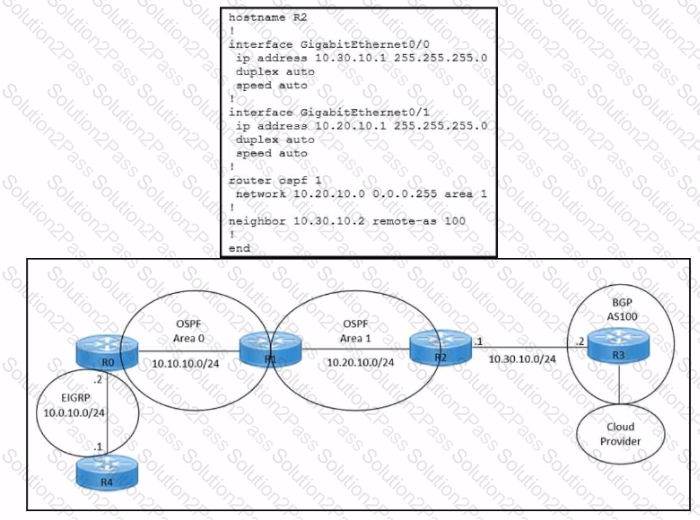

The command redistribute ospf 1 match external is missing on router R2. This command is needed to redistribute only the external OSPF routes into BGP. The external OSPF routes are those that are learned from another routing protocol or redistributed into OSPF. In this case, the 10.0.10.0/24 network is an external OSPF route, as it is redistributed from EIGRP into OSPF on router R1. The other commands are either already present or not relevant for this scenario. References :=

Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3: Implementing Cloud Connectivity, Lesson 3.1: Implementing IPsec VPN from Cisco IOS XE to AWS, Topic 3.1.2: Configure BGP on the Cisco IOS XE Router

Security for VPNs with IPsec Configuration Guide, Cisco IOS XE, Chapter: Configuring IPsec VPNs with Dynamic Routing Protocols, Section: Configuring BGP over IPsec VPNs

The process of configuring a Cisco SD-WAN Cloud Interconnect with Equinix involves several steps.

Ensure that you have UUIDs for the required number of Cisco SD WAN Virtual Edge instances that you want to deploy as Interconnect Gateways: This is the first step where you ensure that you have the necessary UUIDs for the Cisco SD-WAN Virtual Edge instances that you want to deploy.

Create the necessary network segments: After ensuring the availability of UUIDs, you create the necessary network segments.

Attach Cisco SD-WAN Virtual Edge to the Equinix device template: After setting up the network segments, you attach the Cisco SD-WAN Virtual Edge to the Equinix device template.

Create the Interconnect Gateway at the Equinix location that is closest to your SD-WAN branch location: Finally, you create the Interconnect Gateway at the Equinix location that is closest to your SD-WAN branch location.

References :=

[Cisco SD-WAN Cloud Interconnect with Equinix]

[Cisco SD-WAN Cloud OnRamp for CoLocation Deployment Guide]

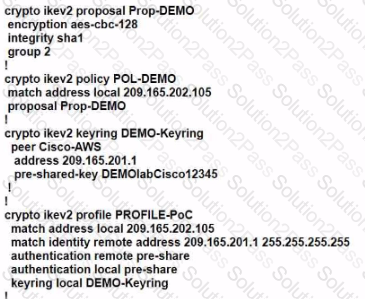

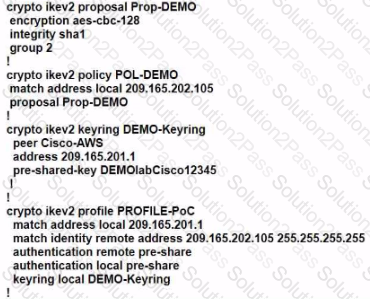

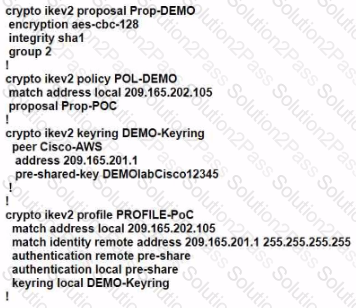

 Option C is the correct answer because it configures the IKEv2 profile with the correct match identity, authentication, and keyring parameters. It also configures the IPsecprofile with the correct transform set and lifetime parameters. Option A is incorrect because it does not specify the match identity remote address in the IKEv2 profile, which is required to match the AWS virtual private gateway IP address. Option B is incorrect because it does not specify the authentication pre-share in the IKEv2 profile, which is required to authenticate the IKEv2 peers using a pre-shared key. Option C also matches the configuration example provided by AWS1 and Cisco2 for setting up an IKEv2 IPsec site-to-site VPN between a Cisco IOS-XE router and an AWS virtual private gateway. References :=

1: AWS VPN Configuration Guide for Cisco IOS-XE

2: Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services

To redistribute OSPF internal routes into BGP, the engineer needs to configure two commands on router R2. The first command is router bgp 100, which enables BGP routing process and specifies the autonomous system number of 100. The second command is redistribute ospf 1 match internal external, which redistributes the routes from OSPF process 1 into BGP, and matches both internal and external OSPF routes. This way, the engineer can avoid introducing extra routes that are not part of OSPF process 1, such as the default route or the connected routes. References: = Designing and Implementing Cloud Connectivity (ENCC) v1.0, [ENCC: Configuring IPsec VPN from Cisco IOS XE to AWS], [Deploying Cisco IOS VTI-Based Point-to-Point IPsec VPNs]

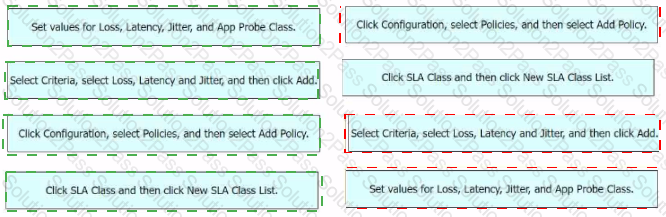

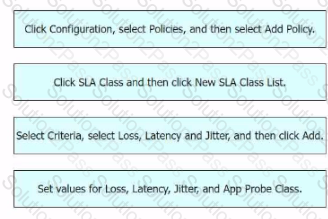

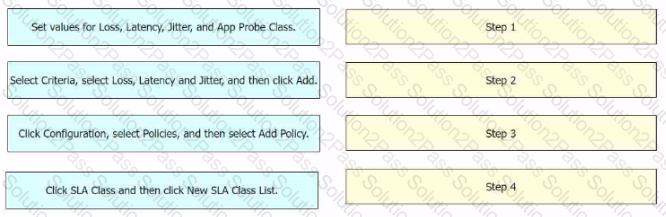

The process of configuring an SLA class to specify the maximum packet loss, packet latency, and jitter allowed on a connection using Cisco vManage involves several steps12.

Click Configuration, select Policies, and then select Add Policy: This is the first step where you navigate to the Policies section in the Configuration menu of Cisco vManage1.

Click SLA Class and then click New SLA Class List: In this step, you create a new SLA Class List1.

Select Criteria, select Loss, Latency and Jitter, and then click Add: After setting up the SLA Class List, you select the criteria for the SLA class. In this case, the criteria are Loss, Latency, and Jitter1.

Set values for Loss, Latency, Jitter, and App Probe Class: Finally, you set the values for Loss, Latency, Jitter, and App Probe Class1.

References :=

Information About Application-Aware Routing - Cisco

Policies Configuration Guide for vEdge Routers, Cisco SD-WAN Release 20

To enable the OMP advertisement of BGP routes for a specific VRF instance on a Cisco IOS XE SD-WAN device, the engineer must first configure the global address-family ipv4 and then enable bgp advertisement under the vrf definition. This will allow the device to advertise the BGP routes learned from the cloud provider to the OMP control plane, which will then distribute them to the other SD-WAN devices in the overlay network1

References := 1: Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3: Implementing Cloud Connectivity, Lesson 3: Configuring IPsec VPN from Cisco IOS XE to AWS, Topic: Configuring BGP on the Cisco IOS XE Device, Page 3-24.

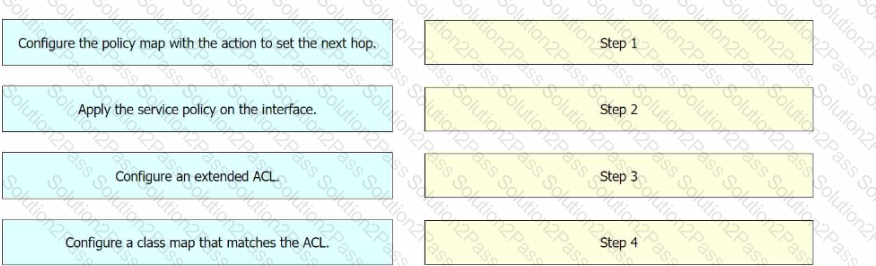

Enhanced Policy-Based Routing (ePBR) is used to direct packets that arrive at an interface to a specified next-hop. It is very useful in managing a large number of configured access lists more efficiently. In ePBR, the router drops the traffic packets if the next hop configured in the PBR policy is not reachable. To avoid packet loss in such scenarios, you must configure multiple next hops for each access control entry.

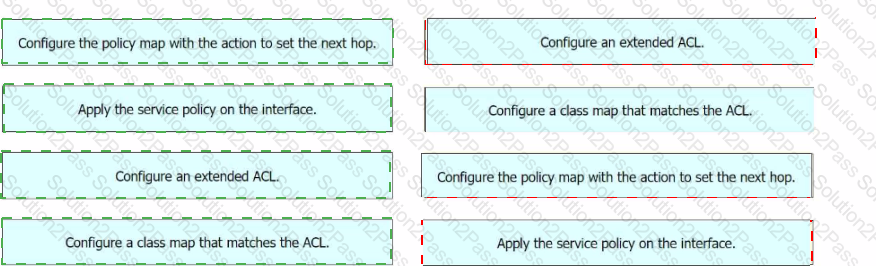

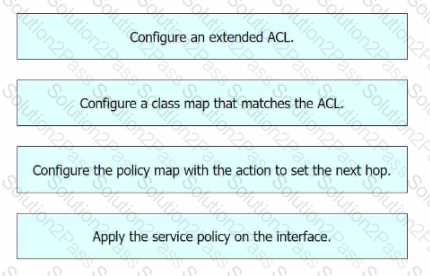

Here are the steps to configure ePBR for IPv4 using Cisco vManage:

Configure an extended ACL: This step involves defining the network or the host. For example, you can permit IPv4 traffic from any source to specific hosts.

Configure a class map that matches the ACL: Class maps match the parameters in the ACLs. For instance, you can create a class map of type traffic and match it with the previously created ACL.

Configure the policy map with the action to set the next hop: Policy maps with ePBR then take detailed actions based on the set statements configured. You can configure an ePBR policy map with the class map and set the next hop.

Apply the service policy on the interface: Finally, you apply the ePBR policy map to the interface. For example, you can apply the policy map to a GigabitEthernet interface.

References :=

Implementing Enhanced Policy Based Routing - Cisco

Cisco Catalyst SD-WAN Policies Configuration Guide, Cisco IOS XE

How to configure PBR - Cisco Community

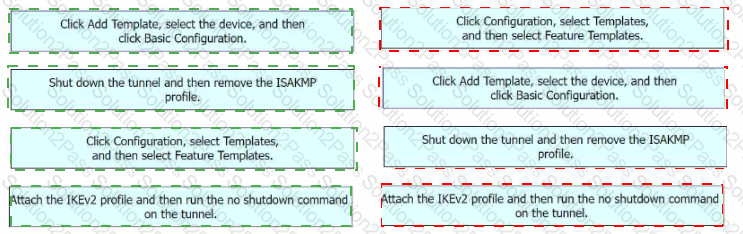

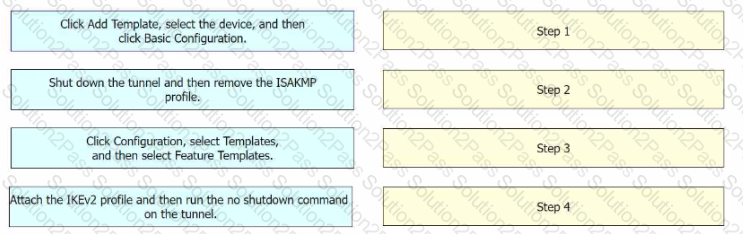

Step 1 = Click Configuration, select Templates, and then select Feature Templates. Step 2 = Click Add Template, select the device, and then click Basic Configuration. Step 3 = Shut down the tunnel and then remove the ISAKMP profile. Step 4 = Attach the IKEv2 profile and then run the no shutdown command on the tunnel.

The process of configuring a site-to-site IPsec VPN connection between an on-premises Cisco IOS XE router in Controller mode and AWS, and changing the IKE version from IKEv1 to IKEv2 in Cisco vManage involves several steps123.

Click Configuration, select Templates, and then select Feature Templates: This is the first step where you navigate to the Templates section in the Configuration menu of Cisco vManage1.

Click Add Template, select the device, and then click Basic Configuration: In this step, you add a new template for the device and proceed with the basic configuration1.

Shut down the tunnel and then remove the ISAKMP profile: Before changing the IKE version, you need to shut down the existing tunnel and remove the ISAKMP profile that is configured for IKEv12.

Attach the IKEv2 profile and then run the no shutdown command on the tunnel: Finally, you attach the newly created IKEv2 profile to the tunnel and bring the tunnel back up2.

References :=

Configuring Internet Key Exchange Version 2 (IKEv2) - Cisco

Switch from IKEv1 to IKEv2 on Cisco Routers - Cisco Community

Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community
