300-510 Cisco Implementing Cisco Service Provider Advanced Routing Solutions Free Practice Exam Questions (2025 Updated)

Refer to the exhibit.

A network operator is working to filter routes from being advertised that are covered under

an aggregate announcement. The receiving router of the aggregate announcement block is still getting some of the more specific routes plus the aggregate. Which configuration change ensures that only the aggregate is announced now and in the future if other networks are to be added?

Refer to the exhibit.

ISP_A in AS 635 has four BGP neighbors connected one-by-one, starting from AS 12 R1 has been configured with bgp deterministic-med and bgp additional-paths install to influence egress traffic After a recent reload of R10, all traffic was automatically re-routed via AS 87 A network engineer must correct the traffic flow and route the traffic via AS 101 Which configuration must the engineer apply to R1 to correct the problem without affecting the second BGP attribute?

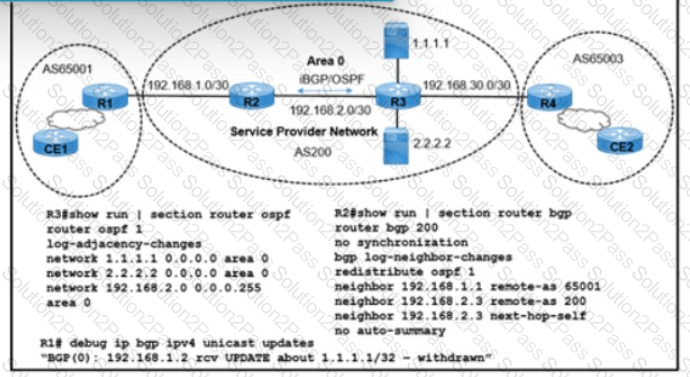

Refer to the exhibit. Users connected to an application on 1.1.1.1 via routers CE1 and CE2 are complaining of frequent disconnections. While troubleshooting the issue, a network engineer with an employee ID: 4333:96:916 determined that the application itself is working normally, but the link connected to the 1.1.1.1 application is flapping. The users on CE1 and CE2 are accessing applications on 2.2.2.2 without difficulty. Which action resolves the issue?

RPL has several fundamental capabilities that differ from those present in configurations oriented to traditional route maps Routing policy language introduces the notion of sets Which group of set types is valid in RPL?

A network engineer is troubleshooting OSPF multiareA. Which Cisco IOS XR feature should the engineer use in order to streamline OSPF issue?

Which cost is the default when redistributing routes from BGP to OSPF?

A network engineer is troubleshooting OSPF multiarea. Which Cisco IOS XR feature should the engineer use in order to streamline OSPF issue?

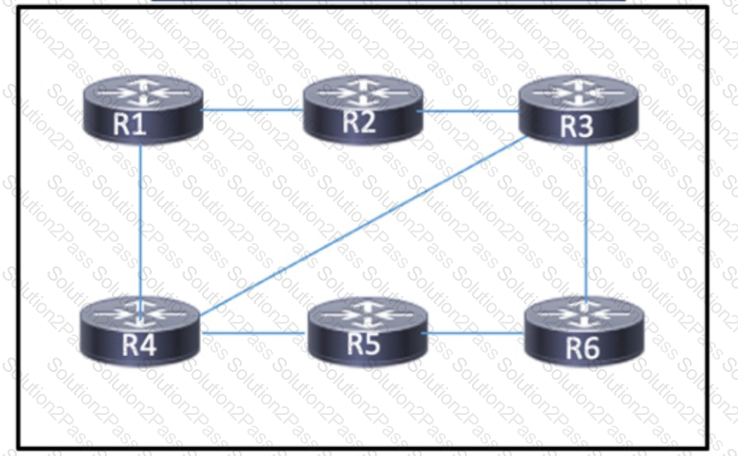

Refer to the exhibit.

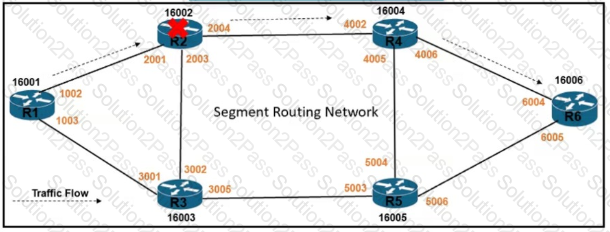

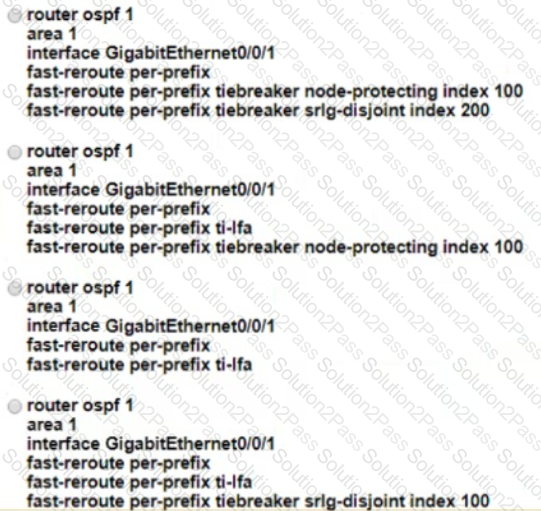

Traffic flow from router R1 to router R6 is delay-sensitive It must consider potential link-failure and node-failure conditions Which configuration must an engineer apply to router R1 to route traffic to router R6 if router R2 fails?

Refer to the exhibit.

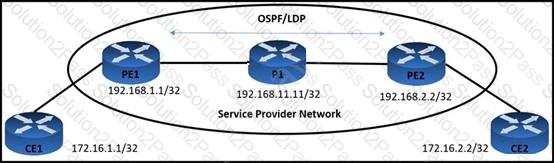

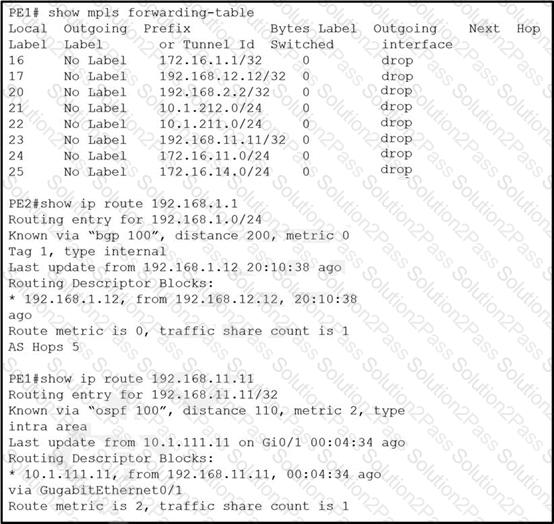

VPN users that are connected to PE routers are facing network issues. Traffic that originates from CE1 drops before reaching CE2. An engineer finds no outgoing traffic statistics on PE1 and PE2 routers toward CE devices and finds that the PE1 router is running the older software image. Which action must be implemented to resolve the issues?

After changing the IP address on an IOS XR router, an engineer cannot ping the new address Which step did the engineer forget to complete?

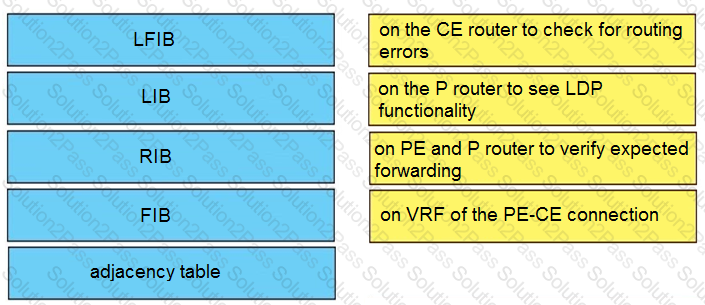

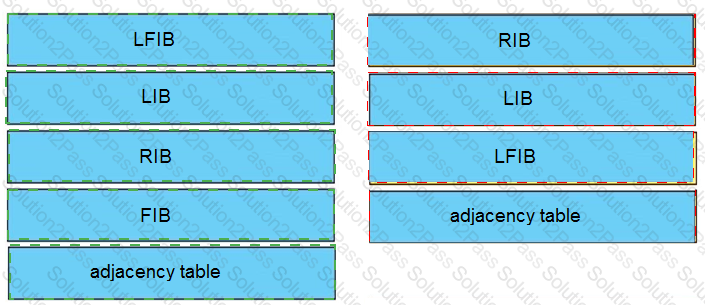

An engineer is troubleshooting end-to-end customer traffic across an MPLS VPN service provider network. Which tasks should the engineer use to solve the routing issues? Drag and drop the table types from the left onto the most useful troubleshooting tasks/router types on the right. (Not all options are used.)

Refer to the exhibit.

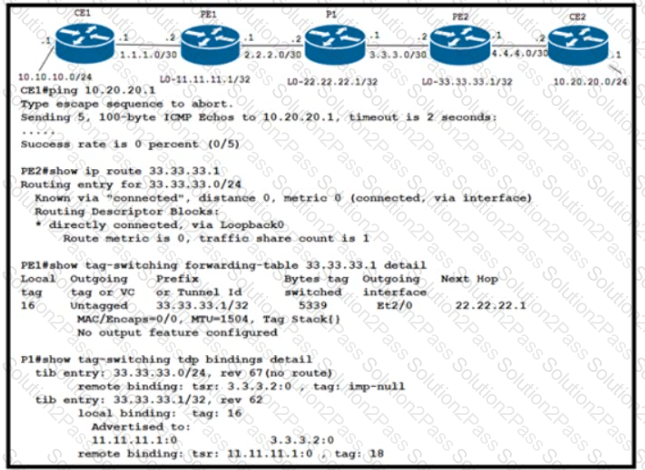

The network is situated at different locations on the customer site. The customer runs a mission-critical application behind CE2. which is connected over a 10 link to the local network of the customer After recent configuration changes to the P and PE routers, an LSP failure has occurred, causing connectivity issues. CE1 is unable to which the CE2 internal IP address Which action resolves this issue?

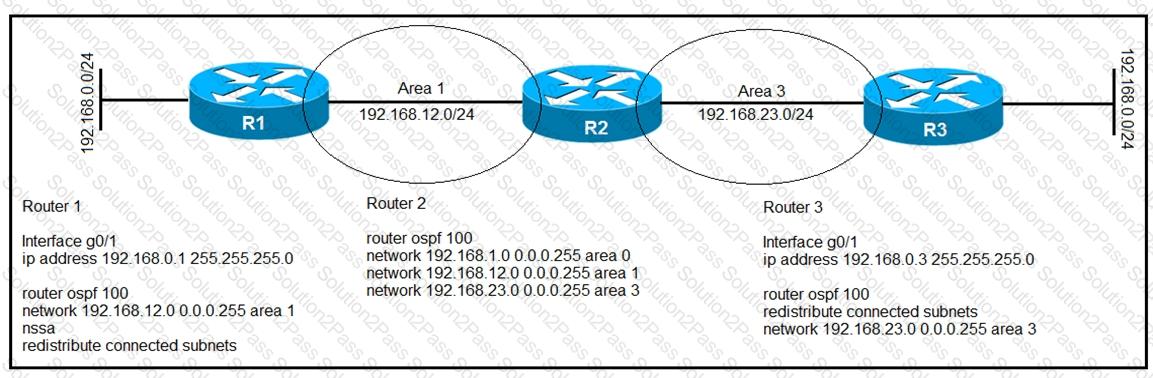

Refer to the exhibit.

After troubleshooting an OSPF adjacency issue, routers 1, 2, and 3 have formed OSPF

neighbor relationships. Which statement about the configuration is true?

NO: 170

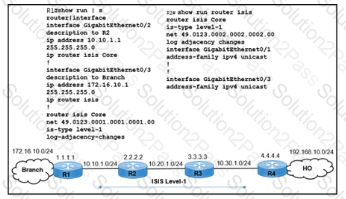

Refer to the exhibit. Users at the branch office on R1 reported issue with an application at the home office on R4. While troubleshooting the issue, a network engineer determined that

The branch-office users can connect to the home office.

The IS-IS adjacencies between R1 and R2 and R1 and the branch office are up.

Traffic from R1 to the R2 10.20.1.0/24 network is moving normally.

The application at the home office is experiencing packet drops on the connection to the Branch, and R3 cannot reach the R1 172.16.10.0/24 network.

Which action resolves the issues?

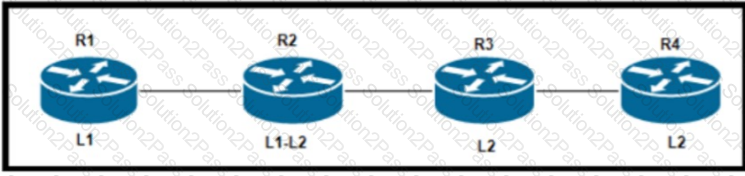

Refer to the exhibit.

The four routers in this network have formed adjacencies. Router R2 is an IS-IS level 1-2 router that connects to other areas, and the attach bit is set in the R2 level 1 LSP advertisements to R1. According to the network design, R2 should push level 2 routes from its routing table to the R1 routing table. However, R1 installed a default route in its routing table. Which action resolves this problem?

Refer to the exhibit.

IS-IS is the IGP for the network, where routers R1. R2 R3, and R4 are Level 1 routers in Area 12 and routers R5 and R6 are Level 2 routers m area 16 According to the network design router R1 must send traffic to R6 using R4 as its next hop To meet the requirement, a network engineer configured route filtering on R2 to prevent the route to R6 from being advertised from R2 However R1 is still using R2 as the next hop Which action must the engineer take to resolve the issue?

Which difference must an engineer consider when choosing whether to implement OSPF or IS-IS as the routing protocol on the network?

The ISP_A network is configured with PIMv2 with sparse mode. The engineering team at ISP_A must implement multicast support following RFC 5059 in the network. The RP priority will be 0, and the solution must require limited supervision from the operations team. Which action must the team take to meet the requirements?

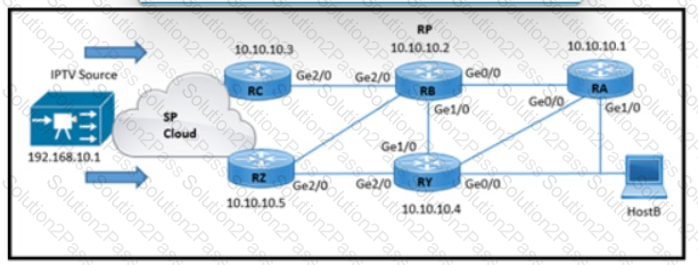

Refer to the exhibit. HostB receives an IPTV traffic stream from the multicast source at 192.168 10.1. When router RB is powered down, it impacts multicast traffic forwarding to downstream peers. The RA and RB routers reside in the same physical location. Which two configurations must be implemented so that HostB receives the multicast stream even when RB is powered down? (Choose two )
