300-640 Cisco Implementing Cisco Data Center AI Infrastructure (DCAI) Free Practice Exam Questions (2026 Updated)

NVIDIA NVLink is a high-bandwidth interconnect technology designed primarily to accelerate communication between GPUs. Within systems such as the Cisco UCS C885A M8 equipped with NVIDIA HGX H100 or H200 GPUs, NVLink creates a high-speed GPU interconnect that allows accelerator devices to exchange data substantially more efficiently than would be possible through conventional host-mediated communication paths.

Cisco specifically documents that the eight NVIDIA H200 SXM GPUs in the C885A M8 are interconnected through high-speed NVLink interconnects . Cisco positions this architecture for demanding workloads such as large language model training, fine-tuning, inference, and RAG, where frequent exchange of tensors, gradients, and intermediate values between GPUs can become a major performance constraint.

Option A concerns remote GPU access and resource virtualization, which require separate virtualization or orchestration technologies. Option B describes platform power and thermal management rather than interconnect functionality. Option C incorrectly characterizes NVLink as a secure external-storage transport; storage connectivity instead uses technologies such as Ethernet/RDMA, NVMe, GPUDirect Storage, or Fibre Channel depending on the architecture.

The defining examination concept is therefore direct, high-bandwidth, low-latency communication among GPUs within an accelerated computing platform.

Study Guide Reference: AI Infrastructure Components and Architecture — GPU architecture, GPU interconnects, compute performance, latency, and scalability.

===============

A high-performance Cisco UCS architecture normally uses redundant fabric interconnects to provide both high availability and aggregated bandwidth. Cisco documentation describes Fabric Interconnects as typically deployed as a pair, integrating UCS components into a highly available management and connectivity domain. Modern UCS X-Series connectivity can provide up to 200 Gbps aggregate unified-fabric bandwidth per compute node through dual 100-Gbps paths.

Option D therefore aligns with UCS architecture: dual fabrics eliminate the single point of failure associated with one Fabric Interconnect, while 100-Gbps connectivity supports high-throughput AI inference workloads. Port channels on uplinks provide bandwidth aggregation and link-level resiliency toward the upstream data center network.

Option A incorrectly limits the Fabric Interconnect to management traffic; UCS unified fabric carries production Ethernet, storage, and management-related connectivity. Option B bypasses the integrated UCS fabric architecture and unnecessarily separates management onto Catalyst infrastructure. Option C introduces both a single point of failure and a severe bandwidth constraint by using one FI and 10-Gbps links.

For AI inference, where throughput and deterministic latency directly influence application performance, redundant high-speed fabric design is the appropriate implementation.

Study Guide Reference: 3.0 AI Infrastructure Deployment and Data Management — 3.2 Configure high-performance compute and storage using Cisco UCS; 3.2.d LAN connectivity and vNIC policies.

===============

Cisco Intersight's automated OS installation workflow requires the operating-system installation media to be available through the Software Repository and an appropriate OS configuration source to supply unattended-install parameters. Cisco's UCS X-Series installation workflow first adds an OS image link to the Software Repository and subsequently selects an OS configuration file during the installation wizard.

The configuration file contains or exposes variables needed for unattended deployment, such as hostname, IP addressing, gateway, DNS configuration, credentials, and other operating-system installation parameters. Cisco also supports validated configuration templates for supported operating systems, depending on the deployment mode and OS version.

A firmware policy is not an OS-installation prerequisite; firmware lifecycle configuration is separate from installation of the guest operating system. A virtual KVM policy is likewise unnecessary for an unattended Cisco Mode installation.

A Server Configuration Utility can be relevant to certain Intersight installation workflows and older/standalone platform procedures, but the question specifically asks for the Cisco Mode prerequisite pair represented by the available choices. The combination of the OS image and operating-system configuration file is therefore the intended answer.

Study Guide Reference: AI Infrastructure Deployment and Data Management — Cisco Intersight automated provisioning, Software Repository, and operating-system deployment.

===============

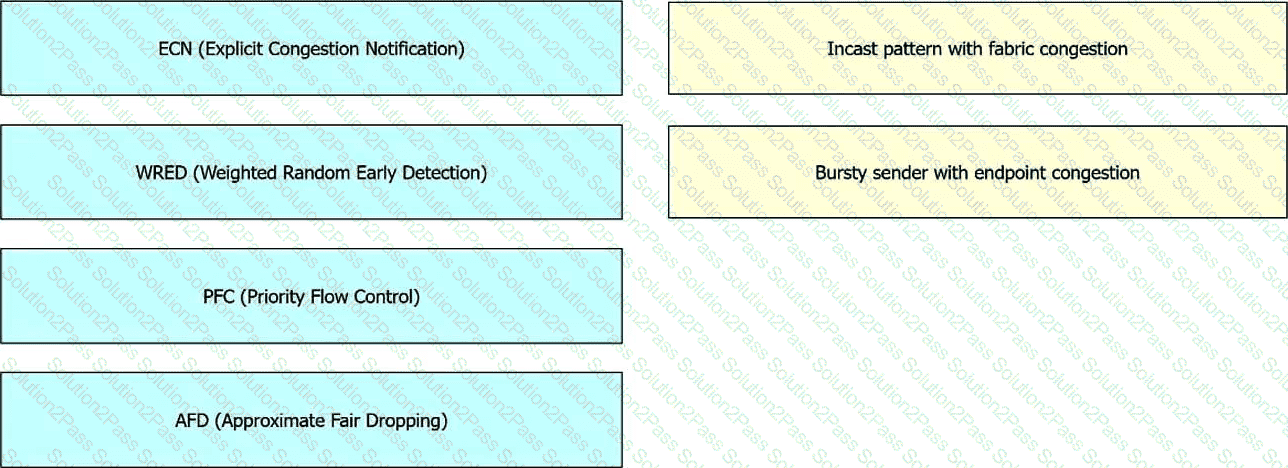

ECN (Explicit Congestion Notification)

PFC (Priority Flow Control)

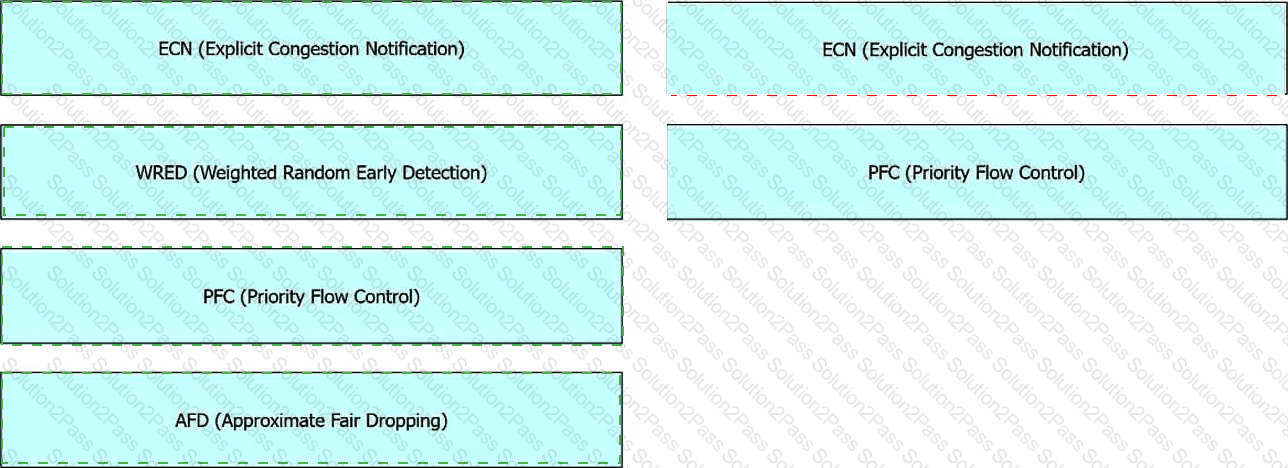

ECN and PFC address different congestion conditions in a RoCEv2 fabric and are intended to complement rather than replace each other. ECN is the appropriate mechanism for fabric-level congestion generated by incast patterns. When several GPU or storage senders simultaneously transmit toward the same destination, switch queues begin to build. ECN-capable switches mark packets rather than immediately dropping them, allowing the receiving endpoint to generate congestion feedback so the transmitting source can reduce its sending rate.

PFC provides hop-by-hop loss prevention for the designated lossless Ethernet priority. When an endpoint or downstream interface cannot accept a burst quickly enough and a queue approaches its configured threshold, PFC transmits pause frames for that specific priority. This temporarily stops upstream transmission and prevents packet loss.

Cisco's RoCEv2 designs combine ECN and PFC precisely because ECN provides proactive end-to-end congestion management while PFC acts as the protective mechanism when queue buildup becomes severe or occurs faster than endpoint rate adaptation can respond.

WRED can provide the queue-marking mechanism associated with ECN, but the requested logical congestion-control mechanism is ECN. AFD is not the corresponding RoCEv2 lossless mechanism for either description.

Study Guide Reference: AI Infrastructure Deployment and Data Management — congestion control, RoCEv2, ECN, PFC, QoS, and lossless Ethernet.

===============

Cisco Unified Edge directly matches the distributed branch deployment requirements. The Cisco UCS XE9305 chassis contains two Unified Edge Management Controllers, providing redundancy for the chassis management plane. Its XE130c M8 compute node supports up to 768 GB of memory , precisely matching the stated in-memory processing requirement, and supports optional GPU acceleration.

Operationally, Unified Edge is designed for highly distributed sites where qualified IT personnel may not be present. Cisco documents remote server launch with no onsite IT staff, zero-touch provisioning, fleet visibility, and automated lifecycle management through Cisco Intersight. Intersight provides SaaS-based infrastructure lifecycle operations across distributed Unified Edge systems.

Although X-Series Direct is also suitable for remote locations, the exact combination of dual management controllers, 768-GB memory capacity, remote server launch, and Unified Edge's edge-focused lifecycle capabilities uniquely identifies option C. C845A M8 and C240 rack servers provide substantial compute capabilities but do not match the integrated edge chassis and zero-touch operational model required by the scenario.

This is a classic DCAI compute-selection question in which architectural and operational requirements must be evaluated together rather than selecting solely by raw compute performance.

Study Guide Reference: 2.2 Evaluate compute deployment; 2.5 Evaluate hybrid AI deployment with distributed infrastructure.

===============

The surveillance workload creates a substantial persistent-capacity requirement across every location. Even at the stated minimum of ten cameras, each store generates approximately 240 GB per day and roughly 3.36 TB over fourteen days before considering filesystem overhead, redundancy, additional cameras, or growth. A scalable IP-based shared-storage architecture is therefore the appropriate option.

Cisco Unified Edge is designed around integrated high-speed Ethernet networking and supports network-accessible storage through standard IP mechanisms. Cisco's validated Unified Edge guidance describes network storage using protocols such as NFS and iSCSI , while explicitly noting that Fibre Channel is not validated in that design. Unified Edge also supports software-defined and distributed storage architectures carried over its Ethernet infrastructure.

Fibre Channel would introduce specialized SAN adapters, switches, cabling, and operational complexity that are generally inappropriate for a cost-sensitive, highly distributed retail edge. InfiniBand is optimized for specialized high-performance computing rather than economical video retention. Local storage could hold surveillance data at each store, but the question explicitly requires a centralized storage solution and long-term capacity that can be managed across locations.

IP-based shared storage therefore provides the best combination of scalability, standardization, cost efficiency, and Unified Edge compatibility.

Study Guide Reference: AI Infrastructure Components and Architecture — edge AI storage, IP storage, scalability, capacity, and deployment requirements.

===============

Natural language processing enables computer systems to interpret, analyze, transform, and generate human language. It operates on textual or spoken language and is foundational to applications such as speech recognition, transcription, conversational assistants, document intelligence, summarization, sentiment analysis, and information extraction. Consequently, converting human speech or written material into machine-processable, structured information is the function that best represents NLP in this question.

Cisco describes NLP-oriented technologies in its collaboration platforms through natural-language understanding, speech-to-text, transcription, translation, conversational AI, and question-answering capabilities. Cisco's AI workforce material also associates NLP engineering with text understanding, speech-to-text AI, semantic search, and language models.

Option A is a storage and compression function. Option C relates to networking, protocol processing, and authorization rather than natural-language interpretation. Option D represents data cleansing or deduplication and does not specifically require NLP.

Within the DCAI blueprint, this capability falls under the broader requirement to understand AI use cases and AI workload characteristics. The essential distinction is that NLP operates on human language and converts linguistic information into representations that applications can process programmatically.

Study Guide Reference: 1.0 AI Fundamentals and Applications — 1.3 Describe AI use cases.

===============

Congestion Notification Packets are control-feedback messages used by RoCEv2 congestion-management mechanisms. When a receiving endpoint observes an ECN-marked packet, it generates a CNP toward the sender, instructing the transmitting endpoint to reduce its transmission rate. Losing these packets would delay congestion response and allow queues to continue building.

Cisco's validated RoCEv2-over-VXLAN design explicitly states that CNP packets use DSCP 48 and are classified into a high-priority queue . In Cisco's example, ordinary RoCEv2 traffic is mapped to QoS group 3, while CNP is mapped to QoS group 7. Cisco further states that the high-priority classification ensures that CNP packets are not dropped in the network.

Traffic shaping in option A would regulate CNP transmission rather than guarantee timely feedback. Option C places CNP in the same potentially congested queue as the data traffic that generated the congestion, defeating the purpose of reliable feedback. Option D is also incorrect because PFC is intended to protect a lossless data priority; CNP itself should be forwarded through a high-priority queue and should not depend on pause behavior.

Study Guide Reference: AI Infrastructure Deployment and Data Management — RoCEv2, ECN, CNP, QoS classification, and congestion management.

===============

Cisco Intersight Fleet Management is designed specifically for large numbers of geographically distributed systems where infrastructure and workloads must be deployed consistently across remote sites. Cisco describes Fleet Management as providing location profiles and reusable Blueprints that support zero-touch provisioning of hardware and operating systems after devices are claimed in Intersight. This directly addresses the scenario's requirement to manage different branch-office locations and automate their OS installation and configuration at scale.

A fleet abstraction removes the operational burden of individually configuring every remote server. Administrators can define standardized site and workload characteristics centrally, then reproduce the configuration across distributed infrastructure with policy consistency. This is particularly valuable for edge AI, where hundreds or thousands of sites may host inference workloads without dedicated local IT personnel.

Domain management focuses on UCS domains rather than mass deployment across geographically distributed sites. Server management provides lifecycle operations for individual or grouped servers but does not provide the location-profile and Blueprint-based fleet abstraction requested. Chassis management controls chassis-level resources and therefore does not address workload rollout across numerous sites.

Study Guide Reference: AI Infrastructure Deployment and Data Management — Cisco Intersight deployment, orchestration, provisioning, and distributed AI infrastructure.

===============

Cisco AI PODs provide a prevalidated, integrated full-stack infrastructure platform for enterprise artificial intelligence. Cisco describes AI PODs as combining Cisco UCS compute, Cisco Nexus networking, accelerated GPUs, enterprise storage, management, orchestration, and supporting software into an architecture designed for the complete AI workload lifecycle. The supported workload spectrum explicitly includes model training, fine-tuning, and high-throughput inference.

Option D therefore captures both the architectural scope and workload intent. The principal value of AI POD is that organizations do not need to independently design and validate every server, accelerator, network, storage, and software dependency. Cisco supplies validated designs and modular scale-unit architectures that accelerate deployment while retaining enterprise operational characteristics.

Option A is too restrictive because AI POD is not merely cloud-native lifecycle software and its hardware scope extends far beyond compute. Option B incorrectly makes inferencing the primary focus; Cisco AI POD supports the complete AI lifecycle and can be purpose-built for training, inference, or mixed workloads. Option C understates the architecture by describing it merely as modular hardware components. Cisco explicitly characterizes AI POD as an integrated full-stack solution.

Study Guide Reference: AI Infrastructure Components and Architecture — Cisco AI infrastructure solutions, compute, networking, storage, GPU acceleration, and scalable architectures.

===============

A rail-optimized architecture is intentionally designed so that communication among corresponding GPU ranks within a single scalable unit can remain on the rail or leaf switches. This provides single-hop forwarding and avoids unnecessary traversal through spine switches, reducing latency for collective communication.

Spines become necessary when the deployment expands beyond one scalable unit. Cisco explicitly documents that multiple scalable units can be interconnected through leaf-and-spine switching. Traffic among GPUs inside one scalable unit benefits from rail-optimized single-hop communication, whereas traffic between GPUs located in different scalable units traverses the spine layer.

Therefore, option C precisely describes when spine switches provide architectural value: scaling the AI fabric beyond the boundaries of one scalable unit .

Option A is inaccurate because the rail design already provides the required local GPU bandwidth within the scalable unit; adding spines is not primarily intended to increase local rail bandwidth. Option B mischaracterizes the principal design purpose. Although additional topology can contribute to resiliency, spines are introduced fundamentally for interconnecting scalable units and enabling scale-out. Option D is also incorrect because increased buffering is not the architectural reason for introducing a spine tier.

Study Guide Reference: AI Infrastructure Components and Architecture — rail-optimized topology, scalable units, nonblocking network design, latency, and horizontal scaling.

===============

Cisco Nexus Hyperfabric's full-stack AI infrastructure integrates compute, GPU acceleration, high-performance networking, optional enterprise storage, and centralized cloud-based lifecycle management. Cisco identifies the principal components as the Nexus Hyperfabric cloud controller, Cisco 6000/Nexus switching platforms, Cisco UCS GPU/DPU servers equipped with NVIDIA accelerators, and optional Cisco UCS-based VAST storage.

Option C therefore contains the essential architecture: Cisco UCS servers with NVIDIA GPUs, Cisco switching, optional VAST Data storage, and cloud-managed networking .

Option A omits the cloud-controller architecture and does not specifically identify the NVIDIA-based accelerated compute model that characterizes the full-stack AI solution. Option B incorrectly describes cloud management as optional. Cloud-based fabric design, deployment, visibility, and lifecycle control are fundamental elements of Nexus Hyperfabric. Option D omits GPU compute entirely and reduces the solution to networking and software-defined storage, which does not represent the integrated AI stack.

Cisco's architecture is intended to reduce the complexity associated with constructing AI infrastructure manually. Validated cluster templates coordinate compute, networking, storage, optics, cabling, and lifecycle operations while aligning with NVIDIA enterprise AI reference architectures.

Study Guide Reference: AI Infrastructure Components and Architecture — Cisco Hyperfabric, GPU compute, AI networking, storage integration, scalability, and cloud management.

===============

The intended solution is Cisco Nexus Hyperfabric AI because it provides an integrated on-premises AI infrastructure managed through a cloud-hosted controller. Cisco's current reference architecture documents a configuration using 12 Cisco UCS C885A M8 servers with eight NVIDIA GPUs each, producing a 96-GPU cluster . The architecture uses Cisco Hyperfabric switching and is engineered for high-performance AI training and inference.

Cisco also states that the full-stack Hyperfabric AI infrastructure is aligned with NVIDIA Enterprise Reference Architecture requirements and uses a cloud controller to manage network design, deployment, monitoring, upgrades, troubleshooting, and scaling.

This eliminates option C because Nexus Dashboard is not the cloud-managed Hyperfabric full-stack architecture described. Option D incorrectly characterizes Intersight as the AI network-fabric controller; Intersight manages UCS infrastructure, whereas Nexus Hyperfabric provides the required cloud-managed network lifecycle.

The uploaded question specifically maps the 96-GPU requirement to the Small AI Cluster , and its source answer is A. Current Cisco public documentation confirms the 96-GPU Hyperfabric topology and cloud-managed NVIDIA-aligned architecture, although current product material presents scalable cluster templates more generally as small through extra-large.

Study Guide Reference: 3.3.c Hyperfabric; 2.1 network scalability; 2.2 GPU compute scalability.

The uploaded source marks C and D . GPU Memory Utilization in option D is clearly relevant: GPU memory pressure is a critical accelerator metric because model weights, activations, KV caches, tensors, and training state consume GPU-attached memory. Cisco AI monitoring material explicitly includes GPU memory utilization among the telemetry used for AI infrastructure visibility.

Option C, Active CPU Utilization , is useful as a supporting performance metric because AI workloads can become CPU-bound during data preprocessing, tokenization, orchestration, input-pipeline execution, or host-to-device preparation. A CPU bottleneck can therefore leave GPUs underutilized even when sufficient accelerator capacity exists.

However, the question as written has a notable construction issue: Cisco documentation treats GPU utilization itself as a principal metric for evaluating accelerator utilization, but that metric is absent from the available answer choices. Cisco current material explicitly identifies GPU utilization and GPU memory utilization as AI monitoring measurements.

Therefore, CD is retained because it is the answer supplied by the source , but the technically ideal metric pair would be GPU Utilization + GPU Memory Utilization if GPU Utilization were offered.

Study Guide Reference: AI Infrastructure Operations and Troubleshooting — GPU utilization, GPU memory utilization, host-resource bottlenecks, and AI performance monitoring.

===============

The thermal events are the strongest diagnostic indicator in the scenario and should direct troubleshooting toward the server's cooling environment before workload-level tuning . Excessive temperature can cause processor or accelerator thermal throttling, which directly produces intermittent performance degradation and latency spikes even when CPU, memory, GPU, and storage utilization otherwise appear normal.

Cisco's C-Series installation requirements emphasize correct airflow and specifically warn that obstructing server ventilation can cause overheating, higher fan speeds, and increased power consumption. Cisco's C885A M8 documentation, representative of modern AI-oriented UCS C-Series platforms, specifies twelve hot-swappable system fans for proper front-to-back cooling.

Therefore, the administrator should first inspect ambient temperature, cold-aisle/hot-aisle conditions, physical airflow, obstructions, and fan health. Any failed fan should be replaced promptly.

Option A is a sensible performance-analysis step when there is no stronger hardware fault indicator, but repeated thermal events make it secondary here. Storage inspection in option B is not supported by the symptoms. Option C focuses on power delivery, yet the event evidence specifically points toward thermal management rather than insufficient PSU capacity.

Troubleshooting should follow the fault evidence, beginning with the lowest-level physical condition that can explain the observed symptoms.

Study Guide Reference: AI Infrastructure Operations and Troubleshooting — UCS health monitoring, environmental faults, thermal conditions, and performance troubleshooting.

===============

Cisco Nexus Dashboard is the appropriate platform for operating and automating Cisco Nexus-based data center fabrics while retaining an NX-OS/CLI-oriented architecture. Nexus Dashboard Fabric Controller provides centralized provisioning, configuration management, automation, templates, monitoring, and lifecycle functions for Nexus fabrics. Cisco explicitly describes NDFC as the comprehensive automation and management platform for Cisco Nexus and MDS infrastructure.

The template requirement is also directly supported. Nexus Dashboard allows policies and configuration templates to be defined centrally and deployed consistently to one or multiple fabrics. For flow visibility, Nexus Dashboard can collect fabric telemetry and reconstruct traffic paths, including packets, drops, anomalies, and flow behavior across multiple switches.

Cisco Catalyst Center—formerly DNA Center—is primarily associated with enterprise campus and access networks rather than Nexus data center AI fabrics. Intersight specializes in compute and infrastructure lifecycle management, particularly UCS. Hyperfabric provides highly automated cloud-managed networking but deliberately abstracts much of the conventional CLI-centric operational model.

Nexus Dashboard therefore best satisfies both requirements: standardized network automation and detailed fabric-flow monitoring while remaining aligned with traditional Nexus operational practices.

Study Guide Reference: AI Infrastructure Deployment and Data Management — Cisco Nexus Dashboard, fabric automation, configuration templates, and telemetry.

===============

Priority Flow Control is a foundational mechanism used to provide lossless Ethernet behavior for RoCEv2. PFC operates on individual Ethernet priorities and allows a congested receiver or switch to pause transmission for the affected priority while permitting traffic in other classes to continue. Cisco's AI networking guidance explicitly states that PFC is enabled for RoCEv2 traffic to prevent packet drops caused by congestion.

This characteristic is critical for RDMA workloads because packet loss can trigger retransmission behavior and significantly degrade GPU collective communication performance. In an AI backend fabric, RoCEv2 is normally placed in a no-drop QoS class with PFC configured for that traffic class. ECN is commonly used alongside PFC to provide proactive congestion signaling, but PFC is the mechanism that directly prevents loss when buffers approach critical utilization.

Traffic shaping in option A may moderate burst rates but does not establish lossless transport. A high DSCP marking in option C provides classification and forwarding preference, not loss prevention. Weighted fair queuing in option D allocates scheduling bandwidth but also does not guarantee that packets will not be discarded during congestion.

Study Guide Reference: 3.1.a Congestion control mechanisms — PFC, ECN, ETS; 3.1.b RoCE/RoCEv2; 3.1.c QoS.

===============
