350-801 Cisco Implementing Cisco Collaboration Core Technologies (350-801 CLCOR) v2.0 Free Practice Exam Questions (2026 Updated)

Prepare effectively for your Cisco 350-801 Implementing Cisco Collaboration Core Technologies (350-801 CLCOR) v2.0 certification with our extensive collection of free, high-quality practice questions. Each question is designed to mirror the actual exam format and objectives, complete with comprehensive answers and detailed explanations. Our materials are regularly updated for 2026, ensuring you have the most current resources to build confidence and succeed on your first attempt.

Page: 6 / 8
Total 489 questions

Refer to the exhibit. An administrator is troubleshooting why outbound calls are failing across Cisco Unified Border Element and found that all outbound calls are matching incoming dial-peer 0 Which configuration resolves the issue?

A.

dial-peer voice 200 voip incoming uri from CUCM

B.

voice class uri CUCM sip hostipv4:10.14.204.140

C.

voice class uri CUCM sip pattern ipv4:10.14.204.180

D.

dial-peer voice 201 voip incoming uri from CUCM

Refer to the exhibit. Cisco Unified element is attempting to establish a call with Subcribers1, but the call fails. Cisco Unified Border Element then retries the same call with Subcribers2, and the call proceeds normally.

Which action resolves the issue?

A.

Verify that the correct calling search space is selected for the inbound Calls section

B.

Verify that the run on all active United CM Nodes checkbox is enabled

C.

Verify that the Significant Digits field for inbound Calls is set to All.

D.

Verify that the PSTN Access checkbox is enabled.

What is the maximum length of any phone number according to ITU recommendation E.164?

A.

10

B.

12

C.

15

D.

17

What is the purpose of Mobile and Remote Access with Cisco Jabber in the cisco UCM?

A.

to allow Cisco Jabber to register with Cisco UCM without trie use of a VPN from outside the corporate network

B.

to allow Cisco Jabber to register with Cisco UCM via a remote access VPN from a branch office

C.

to allow Cisco Jabber to register with Cisco UCM via a remote access VPN from outside the corporate network

D.

to allow Cisco Jabber to register with Cisco UCM via a site-to-srte VPN from a branch office

Webex calling customers can now avoid potential security risk by blocking spam or a phishing call What is a key characteristic of how Webex Calling determines if an incoming call is spam or fraud?

A.

It only identifies calls as spam if they are from international numbers

B.

It relies solely on a user-maintained block list

C.

It automatically flags any call that originates from an unknown or unlisted number

D.

It relies on the originating and terminating service providers to analyze call patterns and caller ID information

Refer to the exhibit A call from +1 613 555 1234 that is sent out through the Nice Gateways should result in a calling party of 001 613 555 1234 with the numbering type " international ' Which configuration accomplishes this goal?

A.

\+.001! pre-dot 1 international

B.

\+1.1 none pre-dot 001 international

C.

\+.! pre-dot 00 international

D.

613XXXXXXX none +011 internationa

What is the most important consideration when designing a QoS voice framework?

A.

bandwidth calculations

B.

codec selection

C.

speed propagation

D.

Layer 2 overhead consumption

During the Cisco IP Phone registration process, the TFTP download (ails. What are two reasons (or this issue? (Choose two.)

A.

The DNS server was not specified, which is needed to resolve the DHCP server IP address.

B.

Option 100 string was not specified, or an incorrect Option 100 string was specified.

C.

The Cisco IP Phone does not know the IP address of the TFTP server.

D.

The Cisco IP Phone does not know the IP address of any of the Cisco UCM Subscriber nodes.

E.

Option 150 string was not specified, or an incorrect Option 150 string was specified.

An engineer is asked to implement on-net/off-net call classification in Cisco UCM. Which two components are required to implement this configuration? (Choose two.)

A.

CTI route point

B.

SIP route patterns

C.

route group

D.

route pattern

E.

SIP trunk

A DTMF mismatch is occurring between an MGCP gateway registered FXS port and a Cisco Unified communications Manager SIP trunk. Which media resource can be leveraged to interwork this mismatch?

A.

Media Termination point

B.

Conference Bridge

C.

Annunciator

D.

Trust relay point

An engineer configures a new phone in Cisco UCM The phone boots and gets IP when it connects to the network, however the phone fails to register With CISCO UCM, The engineer observes that the phone has a status Rejected In CISCO UCM

What must be verified first ' Mien troubleshooting the issue?

A.

whether auto-registration is enabled in Cisco UCM

B.

whether the Initial Trust List and Certificate Trust List files on the phone are correct

C.

whether the phone ts in the correct VLAN

D.

whether the phone ' s MAC address is correct In Cisco UCM

Where in Cisco UCM is restrictions on audio bandwidth configured?

A.

location

B.

partition

C.

region

D.

serviceability

An engineer is configuring a Cisco IOS XE gateway to join three callers together in the same conversation. Which IOS XE media resource must the engineer configure to accomplish this goal?

A.

IOS XE Hardware MTP

B.

IOS XE Software MTP

C.

IOS XE Hardware Transcoder

D.

IOS XE Hardware Conference Bridge

Refer to the exhibit. Unanswered calls do not reach the voicemail associated with the phones Instead, callers receive the default greeting Which action fixes the configuration?

A.

Reboot Cisco Unity Connection.

B.

Check the box " Redirecting Diversion Header Delivery - Outbound " , then reset the trunk.

C.

Check the box ' Redirecting Diversion Header Delivery - Outbound " .

D.

Review the conversation manager logs on Cisco Unity Connection.

By default. IP phones upgrade their images using the HTTP Service from the TFTP Server integrated into one or more of the call processing platforms. Which Port / Transport Protocol does this service use?

A.

8080 / TCP

B.

6970 / UDP

C.

443 /TCP

D.

6970 / TCP

An engineer is trying to implement a new IP phone system in a company The phones connected to the internal network are reporting a status of " unknown " There is no firewall between the Cisco UCM and the phones What is a possible reason for the unknown status?

A.

Cisco Discovery Protocol is not enabled, and ping sweep is enabled

B.

DNS is not enabled for the phones

C.

DHCP option 150 is not set up correctly

D.

The IP phone management service is not enabled under Services

Which description of the function of call handlers in Cisco Unity Connection is true?

A.

They answer calls, take messages, and provide menus of options.

B.

They provide access to a corporate directory by playing an audio list that users and outside callers use to reach users and leave messages.

C.

They collect information from callers by playing a series of questions and recording the answers.

D.

They control outgoing calls by allowing you to specify the numbers that Cisco Unity Connection can dial to transfer calls, notify users of messages, and deliver faxes.

A Webex Calling customer recently dosed a small branch office and is planning to delete that location from their organization Which condition must be met before a location that contains users or workspaces configured for Webex Calling can be deleted?

A.

The Webex Calling icense must be removed from the users and workspaces

B.

The location must be renamed

C.

The location must be assigned to a workspace

D.

The location must be set as the default location

A Cisco IP Phone 7841 that is registered to a Cisco Unified Communications Manager with default configuration receives a call setup message. Which codec is negotiated when the SDP offer includes this line of text?

M=audio 498181 RTP/AVP 0 8 97

A.

G.711ulaw

B.

iLBC

C.

G.711alaw

D.

G.722

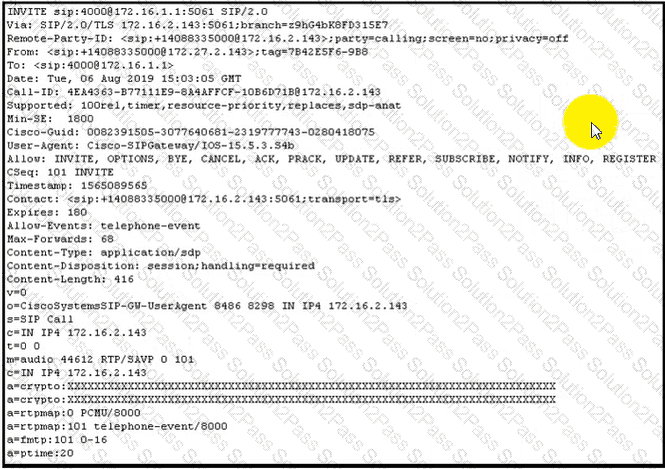

Refer to t he exhibit. Packets are being sent and received between an IP phone and Cisco UCM but the phone shows as Unregistered on the Cisco UCM Admin web page Which action must be taken next to resolve the issue?

A.

Check on the phone side because it is using an incorrect source port to connect with Cisco UCM server

B.

Check on Cisco UCM side because the CTL fie was not downloaded successfuly

C.

Check on the network to verify why the connectivity is not happening correctly

D.

Check on the phone side because It is attempting to register to an incorrect Cisco UCM server

Page: 6 / 8
Total 489 questions
