N10-009 CompTIA Network+ Certification Exam Free Practice Exam Questions (2025 Updated)

If the user cannot communicate with 192.168.10.1, they might be on a different subnet. Changing the subnet mask to 255.255.255.0 ensures the user and the file server are in the same subnet.

Breakdown of Options:

A. Changing the IPv4 address to 192.168.10.1 – This would conflict with the server's IP.

B. Changing the subnet mask to 255.255.255.0 – ✅ Correct answer. Ensures both the user and the server are on the same subnet.

C. Changing the DNS servers – DNS does not affect local network connectivity.

D. Changing the physical address – The MAC address does not impact subnet communication.

A signal power of -97dB indicates a very weak signal, which can cause connectivity issues and slow speeds. Splitters on a coaxial line can degrade the signal quality further, so removing them can help improve the signal strength and overall connection quality.

Signal Quality: Splitters can reduce the signal strength by dividing the signal among multiple lines, which can be detrimental when the signal is already weak.

Direct Connection: Ensuring a direct connection from the modem to the incoming line can maximize signal quality and reduce potential points of failure.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses troubleshooting connectivity issues and the impact of signal strength on network performance.

Cisco Networking Academy: Provides insights on maintaining optimal signal quality in network setups.

Network+ Certification All-in-One Exam Guide: Covers common network issues, including those related to signal degradation and ways to mitigate them.

Definition of MAC Flooding:

MAC flooding is an attack where a malicious actor sends numerous fake MAC addresses to a switch, overwhelming its CAM table. The CAM table stores MAC addresses and their associated ports for efficient traffic forwarding.

Impact of MAC Flooding:

CAM Table Overflow: When the CAM table is full, the switch cannot learn new MAC addresses and is forced to broadcast traffic to all ports, leading to a degraded network performance and potential data interception.

Switch Behavior: The switch operates in a fail-open mode, treating the network as a hub, which can be exploited for eavesdropping on traffic.

Comparison with Other Attacks:

ARP Spoofing: Involves sending false ARP (Address Resolution Protocol) messages to associate the attacker's MAC address with the IP address of another device.

Evil Twin: Involves creating a rogue wireless access point that mimics a legitimate one to intercept data.

DNS Poisoning: Involves corrupting the DNS cache with false information to redirect traffic to malicious sites.

Preventive Measures:

Port Security: Configure port security on switches to limit the number of MAC addresses per port, preventing CAM table overflow.

Network Segmentation: Use VLANs to segment network traffic and limit the impact of such attacks.

SNMPv3 is the version of the Simple Network Management Protocol that introduces security enhancements, including message integrity, authentication, and encryption. Unlike previous versions (v1 and v2c), SNMPv3 supports encrypted communication, ensuring that data is not transmitted in plaintext. This provides confidentiality and protects against eavesdropping and unauthorized access.References: CompTIA Network+ study materials.

To change where the outside DNS records are hosted, the network administrator needs to update the NS (Name Server) records at the domain registrar. NS records specify the authoritative name servers for a domain, directing where DNS queries should be sent.

NS (Name Server) Records: These records indicate the servers that are authoritative for a domain. Changing the NS records at the registrar points DNS resolution to the new hosting provider.

SOA (Start of Authority): Contains administrative information about the domain, including the primary name server.

PTR (Pointer) Records: Used for reverse DNS lookups, mapping IP addresses to domain names.

CNAME (Canonical Name) Records: Used to alias one domain name to another, not relevant for changing DNS hosting.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses DNS records, their purposes, and how to manage them.

Cisco Networking Academy: Provides training on DNS management and the role of different DNS record types.

Network+ Certification All-in-One Exam Guide: Explains DNS records and their configuration for domain management.

A UPS (Uninterruptible Power Supply) provides backup power to devices during a power outage, allowing for continuous operation and protecting against sudden shutdowns that could cause data loss or equipment damage. The document confirms:

“A UPS (Uninterruptible Power Supply) is essential for maintaining power to critical devices during an outage, protecting data and ensuring continuous operation until power is restored or a safe shutdown can be performed.”

Jumbo frames are Ethernet frames with a payload greater than the standard maximum transmission unit (MTU) of 1500 bytes. Configuring jumbo frames can reduce overhead and increase efficiency in storage networks by allowing more data to be sent in each frame, thus reducing the number of frames needed to transmit the same amount of data.

Reduced Overhead: By sending larger frames, the relative overhead for headers and acknowledgments is reduced.

Increased Efficiency: Larger frames mean fewer packets to process, leading to better utilization of network bandwidth and improved performance in high-throughput environments like storage networks.

Configuration: Requires support from all devices in the network path, including switches and network interface cards (NICs).

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Explains jumbo frames and their benefits in reducing network overhead.

Cisco Networking Academy: Provides training on network optimization techniques, including the use of jumbo frames.

Network+ Certification All-in-One Exam Guide: Covers advanced Ethernet features, including jumbo frames and their configuration for improved network performance.

NAT (Network Address Translation) helps hide internal IP addresses from external networks, adding a layer of security by preventing direct access to internal systems from the outside.

The Network layer (Layer 3 of the OSI model) can utilize the connectionless protocol IP (Internet Protocol) to send data packets independently without establishing a connection. This approach is typical for protocols like IP, which provide best-effort delivery rather than guaranteed delivery. The document explains:

“The OSI Network Layer is responsible for logical addressing and routing, and it can utilize connectionless protocols like IP to send packets without requiring a session setup. This layer does not guarantee packet delivery, relying on higher layers for error detection or correction if needed.”

Bottlenecking occurs when a device in the network (such as an IPS) cannot process traffic efficiently, resulting in a dramatic drop in throughput. The significant difference between the firewall's speed (48.8 Mbps down) and the end-user devices’ speeds (4.8 - 5.2 Mbps down) indicates a bottleneck caused by the IPS.

•Why not the other options?

•Packet loss (A) – Would typically cause connection timeouts, not just slow speeds.

•Channel overlap (C) – Affects only wireless networks, but the wired desktop is also experiencing slow speeds.

•Network congestion (D) – Would show fluctuations in both upload and download speeds, but upload speeds remain unaffected.

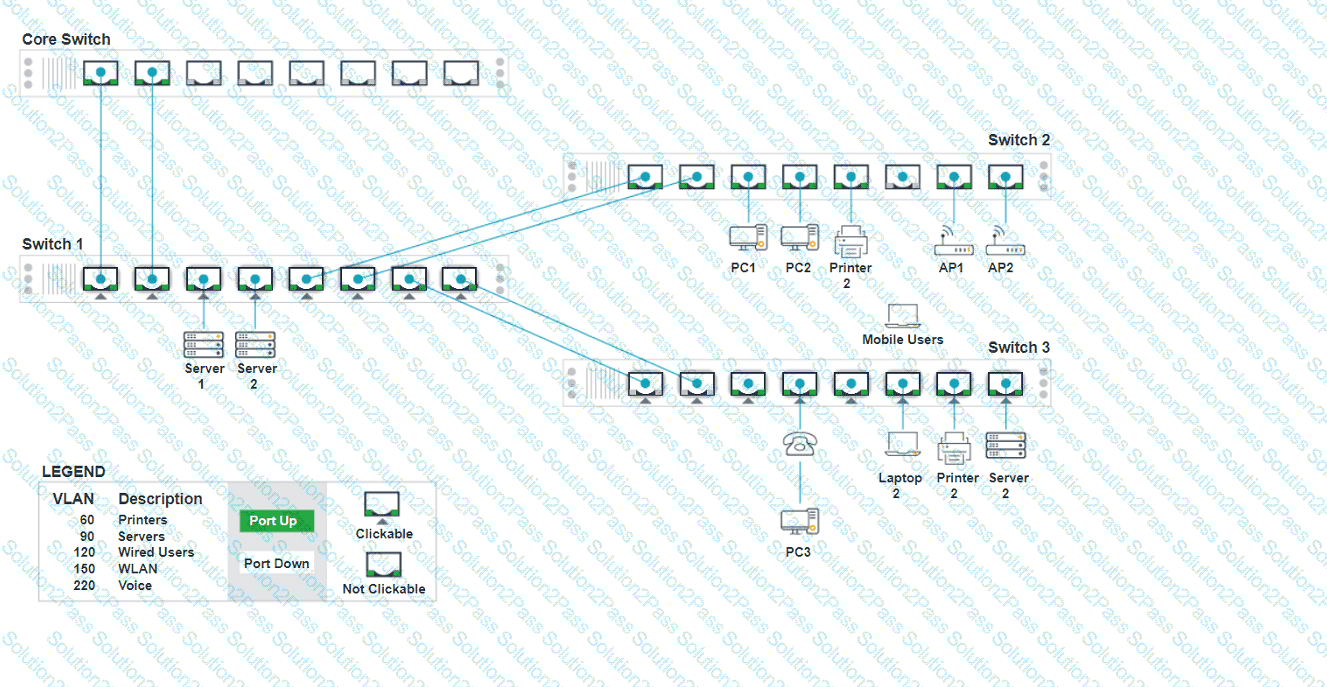

To provide a complete solution for configuring the access layer switches, let's proceed with the following steps:

Identify the correct VLANs for each device and port.

Enable necessary ports and disable unused ports.

Configure fault-tolerant connections between the switches.

Port 1 Configuration (Uplink to Core Switch)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220

Port 2 Configuration (Uplink to Core Switch)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220

Port 3 Configuration (Server Connection)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN90 (Servers)

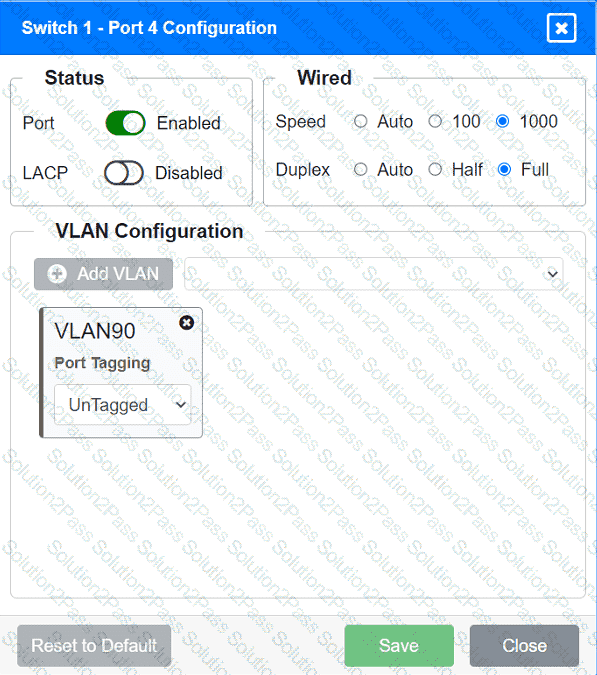

Port 4 Configuration (Server Connection)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN90 (Servers)

Port 5 Configuration (Wired Users and WLAN)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150

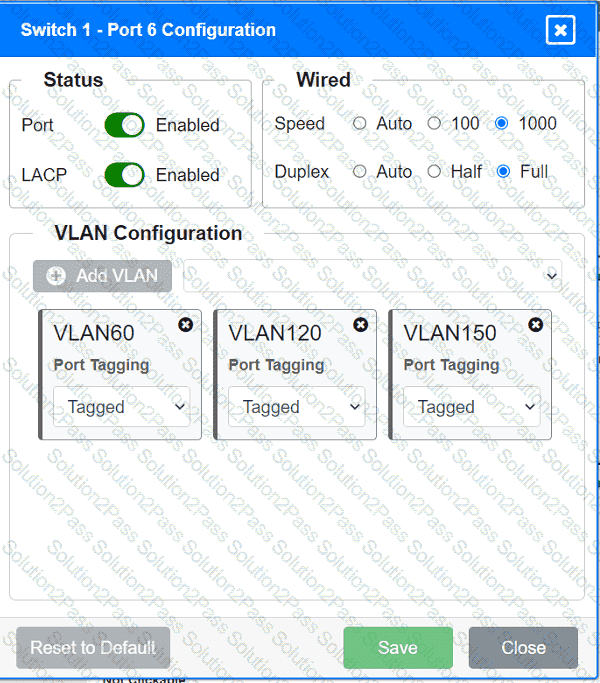

Port 6 Configuration (Wired Users and WLAN)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150

Port 7 Configuration (Voice and Wired Users)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220

Port 8 Configuration (Voice, Printers, and Wired Users)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220

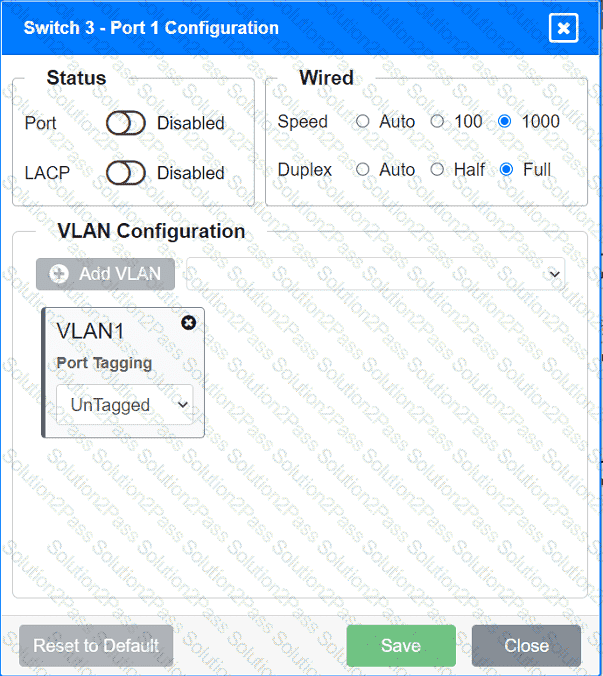

Port 1 Configuration (Unused)

Status: Disabled

LACP: Disabled

Port 2 Configuration (Unused)

Status: Disabled

LACP: Disabled

Port 3 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Port 4 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Port 5 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Port 6 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Port 7 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Ports 1 and 2 on Switch 1 are configured as trunk ports with VLAN tagging enabled for all necessary VLANs.

Ports 3 and 4 on Switch 1 are configured for server connections with VLAN 90 untagged.

Ports 5, 6, 7, and 8 on Switch 1 are configured for devices needing access to multiple VLANs.

Unused ports on Switch 3 are disabled.

Ports 3, 4, 5, 6, and 7 on Switch 3 are enabled for default VLAN1.

Core Switch Ports should be configured as needed for uplinks to Switch 1.

Ensure LACP is enabled for redundancy on trunk ports between switches.

By following these configurations, each device will access only its correctly associated network, unused switch ports will be disabled, and fault-tolerant connections will be established between the switches.

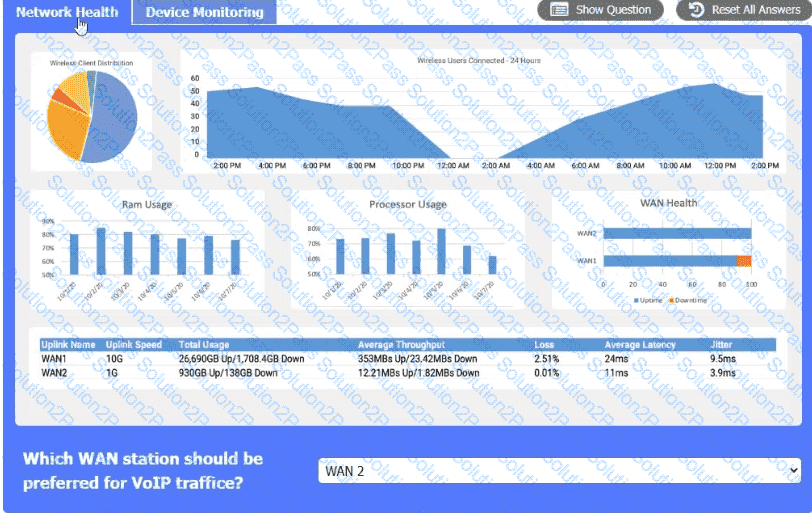

Network Health:

WAN 2 appears to have a lower average latency and loss percentage, which would make it the preferred WAN station for VoIP traffic. VoIP traffic requires low latency and packet loss to ensure good voice quality and reliability. WAN 1 seems to have higher RAM and processor usage, which could also affect the performance of VoIP traffic.

Here's the summary of the key metrics for WAN 1 and WAN 2 from the image provided:

WAN 1:

Uplink Speed: 10G

Total Usage: 26.969GB Up / 1.748GB Down

Average Throughput: 353MBps Up / 23.42MBps Down

Loss: 2.51%

Average Latency: 24ms

Jitter: 9.5ms

WAN 2:

Uplink Speed: 1G

Total Usage: 930GB Up / 138GB Down

Average Throughput: 12.21MBps Up / 1.82MBps Down

Loss: 0.01%

Average Latency: 11ms

Jitter: 3.9ms

For VoIP traffic, low latency and jitter are particularly important to ensure voice quality. While WAN 1 has higher bandwidth and throughput, it also has higher latency and jitter compared to WAN 2. However, WAN 2 has much lower loss, lower latency, and lower jitter, which are more favorable for VoIP traffic that is sensitive to delays and variation in packet arrival times.

Given this information, WAN 2 would generally be preferred for VoIP traffic due to its lower latency, lower jitter, and significantly lower loss percentage, despite its lower bandwidth compared to WAN 1. The high bandwidth of WAN 1 may be more suitable for other types of traffic that are less sensitive to latency and jitter, such as bulk data transfers.

Device Monitoring:

the device that is experiencing connectivity issues is the APP Server or Router 1, which has a status of Down. This means that the server is not responding to network requests or sending any data. You may want to check the physical connection, power supply, and configuration of the APP Server to troubleshoot the problem.

A screenshot of a computer AI-generated content may be incorrect.

Troubleshooting Methodology:

Confirming the Root Cause: After testing and confirming the theory, the next logical step is to address the issue by implementing a solution.

Implementation of the Solution:

Resolve the Issue: Implement the identified solution to rectify the problem. This step involves making necessary changes to the network configuration, replacing faulty hardware, or applying software patches.

Documentation: Document the solution and the steps taken to resolve the issue to provide a reference for future troubleshooting.

Comparison with Other Steps:

Determine Resolution Steps: This is part of the implementation process where specific actions are outlined, but the actual next step after testing is to implement those steps.

Duplicate the Problem in a Lab: This step is typically done earlier in the troubleshooting process to understand the problem, not after confirming the root cause.

Present the Theory for Approval: In some scenarios, presenting the theory might be necessary for major changes, but generally, once the root cause is confirmed, the solution should be implemented.

Final Verification:

After implementing the solution, it is important to verify that the issue is resolved and that normal operations are restored. This may involve monitoring the network and testing to ensure no further issues arise.

IPv4 addresses are divided into classes:

Class A: Supports 16,777,214 hosts (large enterprises).

Class B: Supports 65,534 hosts (medium to large networks).

Class C: Supports 254 hosts (small to medium networks).

Class D: Used for multicast, not for assigning IPs to hosts.

Step-by-step Calculation:

The network will have 150 users initially, with a projected growth of 10 users, totaling 160 users.

Each user has two devices, so 160 × 2 = 320 IP addresses needed.

A Class C subnet has 254 usable IPs by default, which is not sufficient.

A Class B subnet can support thousands of hosts, making it the most appropriate option.

Incorrect Options:

A. Class D: Reserved for multicast, not for host assignments.

C. Class A: Overkill for a network of this size.

D. Class C: Cannot support 320 hosts without subnetting, making Class B the best choice.

VLAN hopping is an attack where an attacker crafts packets with multiple VLAN tags, allowing them to traverse VLAN boundaries improperly. This can result in gaining unauthorized access to network segments that are supposed to be isolated. The other options do not involve the use of multiple network tags. MAC flooding aims to overwhelm a switch’s MAC address table, DNS spoofing involves forging DNS responses, and ARP poisoning involves sending fake ARP messages.

In disaster recovery, the first step after an incident is to conduct a thorough damage assessment to understand the extent of the damage and determine the next appropriate steps. This allows for informed decision-making during the recovery process. The document says:

“The first step after a disaster is to conduct a damage assessment. This involves evaluating the extent of damage to equipment, infrastructure, and data, forming the foundation for recovery efforts and prioritizing response actions.”

WPA3-Enterprise provides strong security and supports authentication using domain identities through a RADIUS server and 802.1X authentication. This is the best choice for a corporate environment requiring user-based authentication.

WPA3-Enterprise Benefits:

Uses 802.1X with EAP (Extensible Authentication Protocol) to authenticate users via a directory service (e.g., Active Directory).

Eliminates shared passwords (PSK) for authentication.

Provides strong encryption and resistance to brute-force attacks.

Incorrect Options:

A. Enable MAC Security:

MAC filtering is not secure because MAC addresses can be spoofed.

B. Generate a PSK for Each User:

Pre-shared keys (PSK) are used in WPA-Personal, not in an enterprise setting.

Does not scale well in corporate environments.

C. Implement WPS:

Wi-Fi Protected Setup (WPS) is a vulnerable security method meant for home users.

Not suitable for enterprise authentication.

A CNAME (Canonical Name) record is used in DNS to alias one domain name to another. This means that newapplication.comptia.org can be made to resolve to the same IP address as www.comptia.org by creating a CNAME record pointing newapplication.comptia.org to www.comptia.org. SOA (Start of Authority) is used for DNS zone information, MX (Mail Exchange) is for mail server records, and NS (Name Server) is for specifying authoritative DNS servers.

When a user connects to a VPN and experiences connectivity issues to an external server, the problem is often related to routing or network path issues.

E. tracert:

Traces the path packets take from the user's device to the destination server.

Helps determine if the traffic is being blocked or misrouted.

F. route print:

Displays the device's routing table.

Helps diagnose whether traffic is being sent to the VPN tunnel instead of the correct external server.

Incorrect Options:

A. nslookup: Used for resolving domain names to IPs (DNS troubleshooting), but this issue is likely routing-related.

B. tcpdump: Captures packets for deep packet analysis, not typically the first step in diagnosing a VPN-related access issue.

C. arp: Used for resolving local network MAC addresses, not relevant for external VPN issues.

D. dig: Like nslookup, used for DNS queries, but not useful for routing problems.
