To protect the vSAN storage against unauthorized access for both data on disk and in-flight, enable vSAN data-at-rest encryption and data-in-transit encryption. Follow these steps:

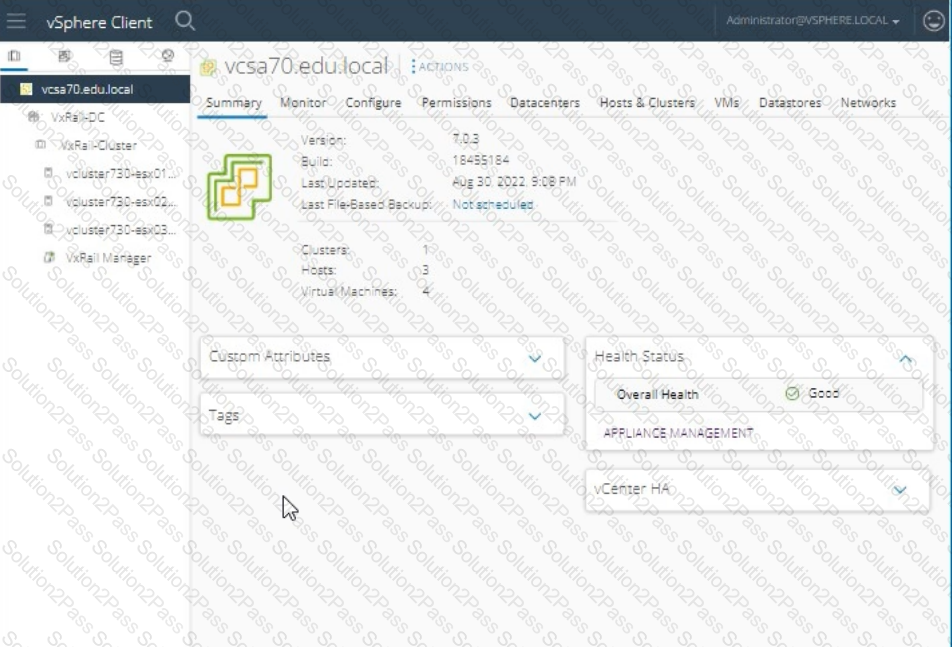

Log in to vSphere Client:

Open the vSphere Client.

Enter the username: administrator@vsphere.local.

Enter the password: VMw@r3!123.

Click Login.

Navigate to vSAN Cluster Settings:

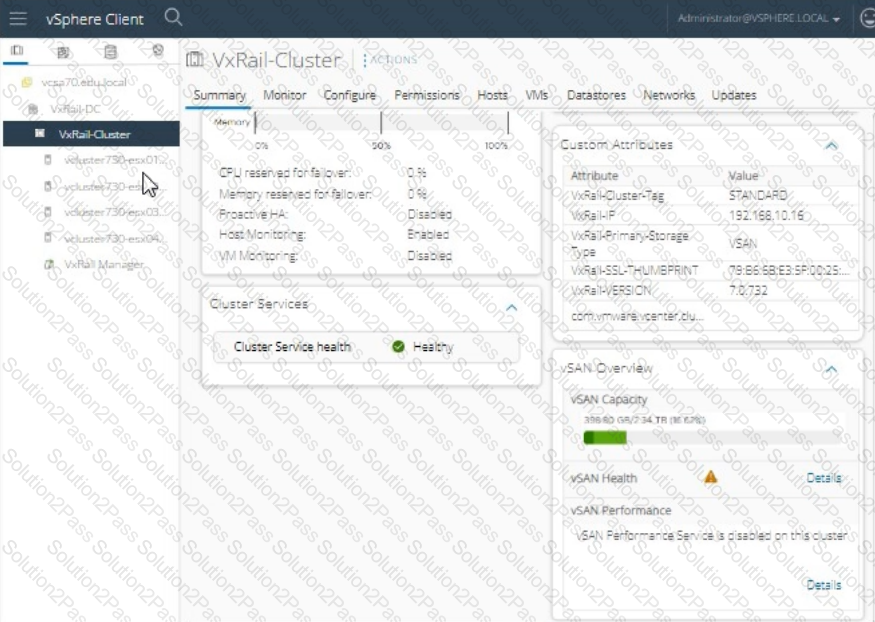

In the left-hand navigation pane, expand VxRail-DC and select VxRail-Cluster.

Click on the Configure tab.

Enable vSAN Data-at-Rest Encryption:

Under the vSAN section, select Services.

Click on Data-at-Rest Encryption.

Click Edit to configure encryption settings.

Ensure that the Enable Data-at-Rest Encryption checkbox is selected.

Choose the vSphere Native Key Provider that has already been configured.

Click Apply to enable data-at-rest encryption.

Enable vSAN Data-in-Transit Encryption:

Under the same vSAN section, select Services.

Click on Data-in-Transit Encryption.

Click Edit to configure encryption settings.

Ensure that the Enable Data-in-Transit Encryption checkbox is selected.

Click Apply to enable data-in-transit encryption.

Verify Configuration:

Return to the vSAN > Services section.

Ensure that both Data-at-Rest Encryption and Data-in-Transit Encryption are enabled and show as active.

Verify that there are no error messages indicating configuration issues.

Steps using the Simulator:

Login to vSphere Client:

Open the simulator and navigate to the vSphere Client interface.

Log in using the credentials:

Username: administrator@vsphere.local.

Password: VMw@r3!123.

Navigate to vSAN Settings:

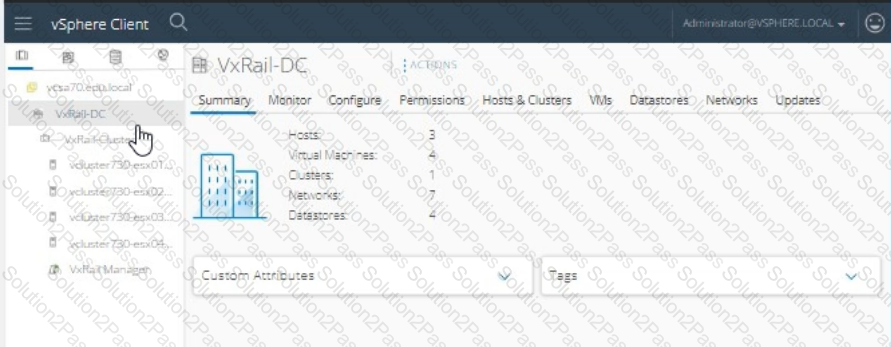

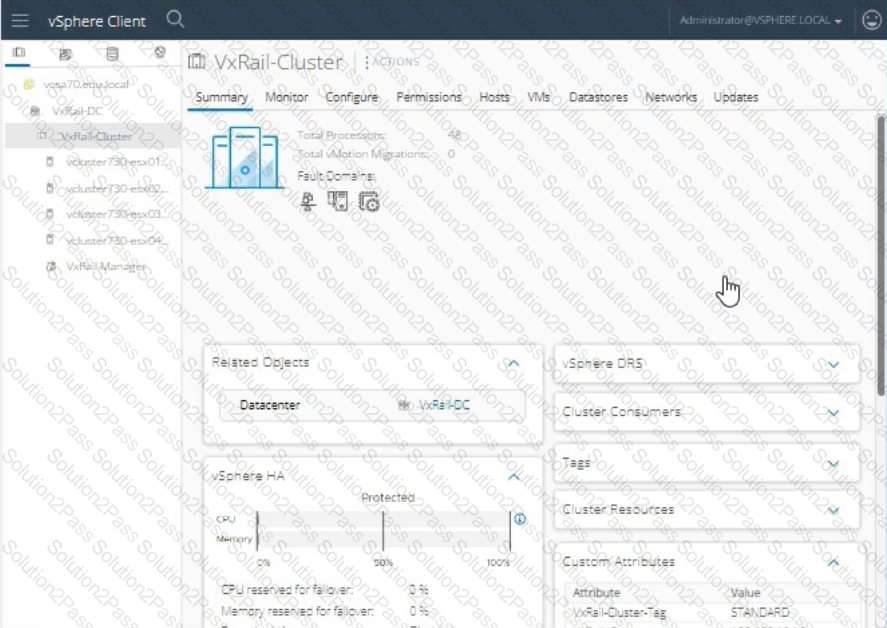

In the vSphere Client interface, expand VxRail-DC and select VxRail-Cluster.

Click on the Configure tab on the right.

Enable Data-at-Rest Encryption:

Under vSAN, click Services.

Find Data-at-Rest Encryption and click Edit.

Check the box for Enable Data-at-Rest Encryption.

Select the vSphere Native Key Provider.

Click Apply.

Enable Data-in-Transit Encryption:

Still under vSAN > Services, find Data-in-Transit Encryption and click Edit.

Check the box for Enable Data-in-Transit Encryption.

Click Apply.

Verification:

Check the status of both encryption services under vSAN > Services to ensure they are enabled and operational.

To prepare the system for maintenance mode and avoid unnecessary vSAN re-synchronization, follow these steps:

Log in to vSphere Client:

Open the vSphere Client.

Enter the username: administrator@vsphere.local.

Enter the password: VMw@r3!123.

Click Login.

Navigate to the Host:

In the vSphere Client interface, navigate to Hosts and Clusters.

Expand the VxRail-DC and then the VxRail-Cluster.

Select the Host for Maintenance:

Select the host you plan to put into maintenance mode (e.g., vcluster730-esx01.edu.local, vcluster730-esx02.edu.local, etc.).

Enter Maintenance Mode:

Right-click on the selected host and select Enter Maintenance Mode.

In the Enter Maintenance Mode window, you will have several options for vSAN data migration. To avoid unnecessary re-synchronization, choose Ensure Accessibility.

Ensure Accessibility: This option makes sure that the data remains accessible during maintenance but does not immediately trigger full data migration. It is the best choice to avoid unnecessary re-synchronization during a short maintenance window.

Confirm Maintenance Mode:

Click OK to confirm the selection and put the host into maintenance mode.

Verify the Host Status:

Monitor the status to ensure the host enters maintenance mode without triggering excessive re-synchronization.

To upgrade a VxRail cluster to the latest recommended version at a dark site (an environment without internet access), follow these steps:

Log in to VxRail Manager:

Open a web browser and navigate to the VxRail Manager URL.

Log in using the credentials:

Username: root

Password: VMw@r3!123.

Check Current Version and Compatibility:

Once logged in, navigate to the Dashboard to view the current version of VxRail.

Verify compatibility with the target upgrade version by reviewing the VxRail Release Notes or Upgrade Guide for your specific version.

Download Upgrade Bundle:

Since the site is dark, download the necessary upgrade bundle from Dell EMC’s support site using another system with internet access.

Save the upgrade bundle to a portable storage device (USB drive, external HDD, etc.).

Upload the Upgrade Bundle to VxRail Manager:

Connect the portable storage device to a local machine within the dark site.

In VxRail Manager, navigate to the Internet Upgrade section.

Select Local Upgrade and browse to the location of the upgrade bundle on your local machine.

Upload the upgrade bundle.

Perform the Upgrade:

After the bundle is uploaded, follow the on-screen prompts to begin the upgrade process.

The upgrade wizard will guide you through pre-upgrade checks, including verifying compatibility and ensuring cluster health.

Monitor the Upgrade Progress:

The upgrade process will take some time. Monitor the progress via the VxRail Manager interface.

Ensure there are no errors or issues reported during the upgrade.

Post-Upgrade Verification:

Once the upgrade is complete, verify that the VxRail Manager and vCenter report the new version correctly.

Check the health and status of the cluster to ensure all components are operational.

Steps using the Simulator:

Login to VxRail Manager:

Open the simulator and navigate to the VxRail Manager interface.

Use the provided credentials to log in:

Username: root

Password: VMw@r3!123.

Navigate to Upgrade Section:

In the VxRail Manager interface, click on Internet Upgrade or Software Upgrade.

Upload the Upgrade Bundle:

Select Local Upgrade.

Click Browse and select the upgrade bundle from your local machine.

Click Upload to start the upload process.

Initiate the Upgrade:

Once the upload is complete, follow the prompts to start the upgrade.

Confirm the pre-upgrade checks and proceed.

Monitor Upgrade Process:

Monitor the upgrade status in the VxRail Manager interface.

Wait for the upgrade to complete and ensure there are no issues.

Verify Upgrade Completion:

After the upgrade, verify the new version in the VxRail Manager dashboard.

Check the health status of the cluster to ensure everything is running smoothly.

To configure active-active teaming and set the failover order for the vSAN and vMotion port groups on a distributed switch using the vSphere Client, follow these steps:

Log in to vSphere Client:

Open the vSphere Client.

Enter the username: administrator@vsphere.local.

Enter the password: VMw@r3!123.

Click Login.

Navigate to Networking:

From the home screen, click on Networking in the left-hand navigation pane.

Select the Distributed Switch:

Locate and select the distributed switch that the vSAN and vMotion port groups are using.

Edit vSAN Port Group Settings:

Right-click on the vSAN port group and select Edit Settings.

In the Edit Settings window, click on Teaming and Failover.

Configure Active-Active Teaming for vSAN:

In the Teaming and Failover section, you will see the list of uplinks.

Ensure that both uplinks are set as Active Uplinks.

To do this, drag the uplinks from the Unused Uplinks or Standby Uplinks section to the Active Uplinks section if necessary.

Ensure that no uplinks are in the Standby Uplinks section (all should be in Active Uplinks).

Set Failover Order for vSAN:

Ensure the failover order is correctly set to use both uplinks for active-active teaming.

Click OK to save the changes.

Edit vMotion Port Group Settings:

Right-click on the vMotion port group and select Edit Settings.

In the Edit Settings window, click on Teaming and Failover.

Configure Active-Active Teaming for vMotion:

In the Teaming and Failover section, ensure that both uplinks are set as Active Uplinks.

Drag the uplinks from the Unused Uplinks or Standby Uplinks section to the Active Uplinks section if necessary.

Ensure that no uplinks are in the Standby Uplinks section (all should be in Active Uplinks).

Set Failover Order for vMotion:

Ensure the failover order is correctly set to use both uplinks for active-active teaming.

Click OK to save the changes.

Verify Configuration:

Check the Networking section to verify that the changes have been applied correctly and that both port groups are using active-active teaming with the appropriate failover order.

To enable the system LED on vcluster730-esx03.edu.local for identification in the physical rack, follow these steps:

Log in to vSphere Client:

Open the vSphere Client.

Enter the username: administrator@vsphere.local.

Enter the password: VMw@r3!123.

Click Login.

Navigate to the Host:

In the vSphere Client interface, navigate to the Hosts and Clusters view.

Expand the VxRail-DC and then the VxRail-Cluster.

Select the host named vcluster730-esx03.edu.local.

Access Host Actions:

Right-click on vcluster730-esx03.edu.local.

From the context menu, select Actions.

Enable System LED:

In the Actions menu, locate and select Enable LED or Turn On Locator LED (the exact wording might vary).

Confirm the action if prompted.

Verify LED Activation:

Check the physical rack to ensure that the system LED on vcluster730-esx03.edu.local is enabled and the node is easily identifiable.
