AppSync is a software that allows for application-consistent snapshots, which are crucial for ensuring that data is in a consistent state when a snapshot is taken. This is particularly important for applications that require a consistent set of data, like databases.

Application-Consistent Snapshots: AppSync enables the creation of application-consistent snapshots on XtremIO storage arrays. This means that the snapshots reflect the exact state of the application at the point in time when the snapshot was taken1.

Integration with VPLEX: When used with VPLEX, AppSync allows for these application-consistent snapshots to be taken even when the storage is virtualized behind VPLEX. This ensures that the benefits of both VPLEX virtualization and XtremIO’s powerful snapshot capabilities can be utilized together1.

Benefits for Application Owners: For application owners, this integration means that they can have confidence in the consistency of their data when using these snapshots for purposes such as development, testing, or backup and recovery1.

Operational Efficiency: The ability to take application-consistent snapshots on XtremIO with VPLEX in the data path simplifies operations. It allows for efficient use of storage resources and reduces the complexity of managing snapshots across different storage systems1.

Use Cases: This capability is particularly beneficial for environments running critical applications such as databases, where having consistent snapshots is essential for tasks like replication, data recovery, and testing1.

In summary, the key benefit of using AppSync with VPLEX and XtremIO is the ability to take application-consistent snapshots on XtremIO while VPLEX is in the data path, providing a reliable and efficient way to manage snapshots for critical applications.

During the VPLEX installation, metadata volumes play a critical role in the system’s operation. Here’s how the four 78 GB metadata volumes are utilized:

Meta-Volume Configuration: Two of the metadata volumes are mirrored to create the active meta-volume. This mirroring provides redundancy, ensuring that metadata, which is essential for the operation of VPLEX, is protected against single points of failure1.

Backup Meta-Volumes: The other two metadata volumes are used as backups for the meta-volume. They are used in an alternating fashion, which means that they can be rotated to maintain a fresh and consistent backup of the meta-volume1.

Importance of Metadata: The metadata in VPLEX contains information about the virtual volumes, mappings, and other configuration details that are crucial for the system’s virtualization capabilities1.

System Resilience: By having mirrored meta-volumes and alternating backup volumes, VPLEX ensures high availability and resilience, which is critical for maintaining continuous operations and data integrity1.

Operational Continuity: In the event of a failure or corruption of the active meta-volume, VPLEX can quickly switch to one of the backup volumes, minimizing downtime and maintaining operational continuity1.

In summary, the four 78 GB metadata volumes assigned to the VPLEX back-end ports during installation are used to create a mirrored meta-volume and provide alternating backups, ensuring system resilience and data integrity.

The correct order of steps to create and operate a custom monitor is:

Determine the type and frequency of statistics to collect.

Create a monitor.

Add one or more sinks to the monitor.

Collect statistics.

Gather monitoring files, or monitor output from the console.

To create and operate a custom monitor within the Dell VPLEX environment, follow these steps:

Determine the Type and Frequency of Statistics to Collect: Identify what statistics are relevant for your monitoring purposes and how frequently they should be collected. This will depend on the specific needs of your environment and the performance metrics you wish to track.

Create a Monitor: Using the VPLEX CLI or Unisphere for VPLEX, create a new monitor instance. Configure the monitor with the types of statistics you determined in the previous step.

Add One or More Sinks to the Monitor: Sinks are the destinations where the collected statistics will be sent. These could be files, databases, or external systems. Set up one or more sinks in the monitor configuration to ensure that the data is stored or transmitted as needed.

Collect Statistics: Start the monitor to begin collecting statistics. The monitor will gather data from the VPLEX system according to the type and frequency settings you have specified.

Gather Monitoring Files, or Monitor Output from the Console: After the statistics have been collected, retrieve the monitoring files from the specified sinks, or view the output directly from the console if real-time monitoring is configured.

These steps are based on the standard procedures for setting up and managing custom monitors in a Dell VPLEX environment, as detailed in the Dell EMC VPLEX documentation. By following these steps, you can effectively monitor the performance and health of your VPLEX system.

In the context of Dell VPLEX, a rebuild occurring on a volume is a condition that would prevent the expansion of that volume. This is because the system needs to ensure data integrity and consistency during the rebuild process before any changes to the volume size can be made.

Rebuild Process: A rebuild is a process where VPLEX re-synchronizes the data across the storage volumes, typically after a disk replacement or a failure1.

Volume Expansion: Expanding a volume involves increasing its size to accommodate more data. This process requires that the volume is in a stable state without any ongoing rebuild operations1.

Data Integrity: During a rebuild, the system is focused on restoring the correct data across the storage volumes. Attempting to expand a volume during this process could lead to data corruption or loss1.

System Restrictions: VPLEX systems have built-in mechanisms to prevent administrators from performing actions that could jeopardize the system’s stability or data integrity, such as expanding a volume during a rebuild1.

Post-Rebuild Expansion: Once the rebuild process is complete and the volume is fully synchronized, the administrator can then proceed with the volume expansion1.

In summary, a rebuild currently occurring on a volume is a condition that would prevent the expansion of that volume in a Dell VPLEX system. The system must first ensure that the rebuild process is completed successfully before allowing any changes to the volume’s size.

The storage-volume summary command in VPLEX is used to provide a summary of the storage volumes, including their operational status and health state. This command can be particularly useful when an administrator needs to troubleshoot performance issues with a virtual volume presented through a VPLEX Local cluster.

Command Usage: The storage-volume summary command is executed in the VPLEX CLI (Command Line Interface). It provides a high-level overview of the storage volumes, including their I/O status, operational status, and health state1.

Performance Troubleshooting: When performance issues are reported, it’s important to check the underlying storage volumes for any signs of degradation or operational problems that could be impacting the virtual volume’s performance1.

Health State Information: The command’s output includes the health state of the storage volumes, which can indicate if there are any degraded volumes or other issues that need to be addressed1.

Operational Status: The operational status provided by the command helps determine if the storage volumes are functioning correctly or if there are any issues that could be causing the reported performance problems1.

Further Investigation: If the storage-volume summary command reveals any issues with the underlying storage volumes, further investigation and corrective actions may be necessary to resolve the performance issues1.

In summary, the storage-volume summary command is the appropriate command to provide the underlying storage volume information when troubleshooting performance issues with a virtual volume in a VPLEX Local cluster.

For a company with a VPLEX Metro installation that wants to perform data mobility between clusters, the feature they should use is device mobility. This feature allows for the seamless movement of data across storage arrays without host disruption, ensuring uptime for business-critical applications1.

Device Mobility: Device mobility is the process of moving a virtualized storage device from one storage array to another within the VPLEX Metro environment. This is done without affecting the hosts’ access to the data1.

Seamless Data Movement: The unique implementation of distributed cache coherency in VPLEX allows the same data to be read/write accessible across two storage systems simultaneously, facilitating seamless data mobility1.

Non-Disruptive: One of the key advantages of using device mobility in VPLEX Metro is that it is non-disruptive. Hosts can continue to operate without any interruption while the data is being moved between clusters1.

Use Cases: Device mobility is particularly useful in scenarios such as tech refreshes, cloud mobility, consolidation, relocation, and more, where data needs to be moved without affecting the ongoing operations1.

Procedure: To initiate device mobility, the administrator would use the VPLEX CLI to execute commands that orchestrate the movement of the virtualized storage devices between the clusters1.

In summary, device mobility is the recommended feature for a company with VPLEX Metro to perform data mobility between clusters, providing a robust and efficient way to move data without disrupting host access.

In the context of performance monitoring, particularly for systems like Dell VPLEX, histograms are used to track latencies and display statistical data such as median, mode, percentiles, minimums, and maximums. The term “buckets” is often used to describe the segments within a histogram that categorize the latency data into ranges. Each bucket represents a range of latencies, and the number of events (or I/O operations) that fall into each latency range is counted and displayed.

Histograms in Monitoring: Histograms provide a visual representation of how data is distributed across different ranges of values, which is particularly useful for understanding the performance characteristics of a system like VPLEX.

Buckets Explained: Buckets within a histogram divide the entire range of collected data into discrete intervals. For latency tracking, these buckets might represent latency ranges such as 0-1 ms, 1-2 ms, etc.

Latency Tracking: By collecting latency data in buckets, administrators can quickly identify the distribution of latencies over time, pinpointing whether most I/O operations are fast, slow, or somewhere in between.

Minimums and Maximums: Histograms make it easy to see the minimum and maximum latencies experienced by the system, as well as the frequency of latencies within each bucket range.

Performance Analysis: This method of collecting and analyzing performance statistics is crucial for performance tuning and capacity planning, as it helps administrators understand the behavior of their storage systems under different workloads.

In summary, “buckets” are the correct answer when referring to the segments within a histogram that are used to collect and categorize latency data for performance monitoring purposes in systems like Dell VPLEX.

A storage view in Dell VPLEX is a construct that defines the visibility and access control of storage resources for hosts connected to the VPLEX system. The characteristics of a storage view are crucial for ensuring proper access and management of storage resources.

Initiator Access: An initiator, which is typically a host bus adapter (HBA) on a server, can be part of multiple storage views. This allows a single server to access different storage resources that may be segregated for organizational, performance, or security reasons1.

VPLEX FE Ports: VPLEX Front-End (FE) ports can be included in multiple storage views. This design allows for flexibility in connecting multiple hosts to various storage resources through the same FE port1.

Initiator and FE Port Pairing: While an initiator can be in multiple storage views and a VPLEX FE port can be part of multiple storage views, each specific initiator and FE port pair can only be in one storage view. This restriction ensures that a unique path is maintained between a host and its storage resources, which is important for managing access and avoiding conflicts1.

Storage View Configuration: When configuring a storage view, it is essential to correctly map the initiators to the VPLEX FE ports and assign the appropriate virtual volumes. This setup defines which hosts can access which storage volumes through which paths1.

Best Practices: It is recommended to follow Dell’s best practices for VPLEX storage views to ensure optimal performance, security, and manageability. These practices include proper zoning, LUN masking, and storage view management as outlined in Dell VPLEX documentation1.

In summary, the verified characteristics of a storage view in a Dell VPLEX environment are that an initiator can be in multiple storage views, a VPLEX FE port can be in multiple storage views, but each initiator and FE port pair can only be in one storage view. This configuration ensures that storage resources are properly allocated and managed within the VPLEX system.

To create a distributed device from specified local devices in a Dell VPLEX environment, the command used is ds dd create. This command is part of the VPLEX CLI and stands for “distributed storage - distributed device create”.

Identify Local Devices: Before creating a distributed device, you need to identify the local devices that will be part of the distributed device. These are typically volumes that are already provisioned and claimed by the VPLEX system1.

Use the ds dd create Command: Execute the ds dd create command in the VPLEX CLI, specifying the local devices that you want to include in the distributed device. The syntax for the command includes the names of the local devices and the name you want to assign to the distributed device1.

Command Execution: The command will initiate the creation of the distributed device, which involves pairing the specified local devices across the VPLEX clusters to create a single distributed volume that spans both clusters1.

Verification: After running the command, verify that the distributed device has been created successfully by using the ll /distributed-storage/distributed-devices/ command, which lists all the distributed devices in the system1.

Best Practices: It is important to follow the best practices for creating distributed devices as outlined in the Dell VPLEX Deploy Achievement documents. This includes ensuring that the local devices are properly configured and that the VPLEX clusters are in a healthy state before creating the distributed device1.

In summary, the ds dd create command is used to create a distributed device from specified local devices in a Dell VPLEX environment. This command is a fundamental part of managing distributed storage within VPLEX and is essential for achieving high availability and data mobility across clusters.

The VPLEX Cluster Witness communicates with each cluster using a VPN Tunnel over IP to the management servers. This method is used to provide the health check heartbeats required for monitoring the status of the clusters.

VPN Tunnel Creation: Initially, a VPN tunnel is established between the VPLEX Cluster Witness and each VPLEX cluster’s management server. This secure tunnel ensures that the communication for health checks is protected1.

Health Check Heartbeats: Through the VPN tunnel, the VPLEX Cluster Witness sends periodic health check heartbeats to each management server. These heartbeats are used to monitor the operational status of the clusters1.

Monitoring Cluster Health: The health check heartbeats are essential for the VPLEX Cluster Witness to determine the health of each cluster. If a heartbeat is missed, it may indicate a potential issue with the cluster1.

Failover Decisions: Based on the health check heartbeats, the VPLEX Cluster Witness can make informed decisions about failover actions if one of the clusters becomes unresponsive or encounters a failure1.

Configuration and Management: The configuration and management of the VPN tunnels and the health check mechanism are typically done through the VPLEX management console or CLI, following the best practices outlined in the Dell VPLEX Deploy Achievement documents1.

In summary, the VPLEX Cluster Witness uses a VPN Tunnel over IP to communicate with each cluster’s management server, providing the necessary health check heartbeats for continuous monitoring and ensuring high availability of the VPLEX system.

To increase data protection by converting a local RAID-0 virtual volume to a distributed virtual volume, the recommended method is to create a corresponding device on the remote cluster and then attach it as a mirror to the existing local device. This process effectively creates a distributed virtual volume that spans across both clusters.

Create a Device on the Remote Cluster: Start by creating a new device on the remote VPLEX cluster. This device should be of the same size as the local RAID-0 virtual volume and should not have a virtual volume associated with it1.

Attach as a Mirror: Once the remote device is created, attach it as a mirror to the local RAID-0 virtual volume. This operation is performed using the VPLEX CLI and will begin the process of mirroring the data from the local device to the remote device1.

Synchronization: After attaching the remote device as a mirror, the VPLEX system will synchronize the data between the local and remote devices. This ensures that both devices have identical data and are in a consistent state1.

Distributed Virtual Volume: Once the synchronization is complete, the local and remote devices together form a distributed virtual volume. This volume now has increased data protection because it is distributed across two different clusters1.

Verification: Verify that the distributed virtual volume is functioning correctly by checking its status and ensuring that it is accessible from both clusters1.

Best Practices: It is important to follow the best practices for creating and managing distributed virtual volumes as outlined in the Dell VPLEX Deploy Achievement documents. This includes proper planning, execution, and verification of the mirroring process1.

In summary, the recommended method to change a local RAID-0 virtual volume to a distributed virtual volume is to create a corresponding device on the remote cluster and attach it as a mirror, thereby forming a distributed virtual volume with increased data protection.

The maximum number of synchronous consistency groups supported by VPLEX is 256. This number is determined by the system’s capabilities and is designed to ensure optimal performance and manageability.

Consistency Groups: Consistency groups in VPLEX are used to group multiple virtual volumes together to ensure write-order fidelity, which is crucial for applications requiring transactional integrity12.

Synchronous Operations: Synchronous consistency groups are particularly important for environments where data must be kept consistent across geographically dispersed clusters in real-time12.

System Limitations: The limit of 256 synchronous consistency groups is set to balance the system’s performance with the need for data consistency. It ensures that the system can maintain the required performance levels while providing the data protection and availability features12.

Configuration and Management: Administrators must carefully plan and manage the consistency groups within the limits of the system to ensure that all critical data is protected and that the system operates efficiently12.

Documentation Reference: For detailed information on configuring and managing consistency groups, administrators should refer to the Dell VPLEX Deploy Achievement documents and best practice guides12.

In summary, the verified answer to the maximum number of synchronous consistency groups supported by VPLEX is 256. This limitation is part of the system design to ensure high availability and performance.

The VPLEX Mobility feature is designed to address various operational needs in a data center environment. Two of the most common use cases for this feature are Tech Refresh and Workload Rebalance.

Tech Refresh: The Tech Refresh use case involves using VPLEX to migrate data from older storage arrays to newer ones without disrupting the applications. This is crucial for organizations that need to update their storage infrastructure without downtime1.

Workload Rebalance: Workload Rebalance refers to the ability to move workloads across different storage systems to balance performance and capacity needs. VPLEX enables this by allowing data to be moved non-disruptively, ensuring continuous application availability1.

Operational Flexibility: VPLEX Mobility provides operational flexibility by enabling data to be moved within the same data center, across a campus, or within a geographical region. This capability is essential for dynamic environments where workload demands can change rapidly1.

Enhanced Resource Utilization: By leveraging VPLEX Mobility for Tech Refresh and Workload Rebalance, organizations can optimize resource utilization, reduce operational costs, and improve overall system performance1.

Best Practices: It is recommended to follow Dell’s best practices when using VPLEX Mobility features. This includes planning migrations during low-activity periods and ensuring that all systems are properly zoned and configured1.

In summary, the two common use cases of the VPLEX Mobility feature are Tech Refresh, which allows for seamless data migrations during technology upgrades, and Workload Rebalance, which facilitates the dynamic allocation of resources to meet changing workload demands.

The default subnet mask for a management server network, specifically for the network 128.221.252.0, is typically a subnet mask that allows for a small number of hosts, as management networks do not usually require a large number of IP addresses.

Subnet Mask Purpose: A subnet mask is used in IP networking to divide the IP address into a network and host identifier. The default subnet mask for a particular network depends on the class and configuration of the network1.

Management Server Network: For a management server network like 128.221.252.0, a common default subnet mask is 255.255.255.248. This subnet mask allows for up to 6 usable IP addresses, which is generally sufficient for management purposes1.

Network Configuration: The choice of subnet mask can affect the number of hosts that can be accommodated within a network. A subnet mask of 255.255.255.248 indicates a very small network, often used for specialized network segments such as management interfaces1.

Dell VPLEX Configuration: In the context of Dell VPLEX Deploy Achievement, the management server network would be configured with a subnet mask that supports the network architecture and design best practices as outlined in Dell’s documentation1.

Best Practices: It is important to follow the recommended settings and configurations provided in the Dell VPLEX Deploy Achievement documents to ensure proper network segmentation, security, and performance1.

In summary, the default subnet mask value for a management server network like 128.221.252.0 is typically 255.255.255.248, which aligns with the standard practices for configuring management networks in a Dell VPLEX environment.

EMC recommends specific best practices for connecting VPLEX to back-end storage arrays to ensure high availability and optimal performance. One of these best practices is that each VPLEX director should have four active paths to every back-end array storage volume.

Multiple Paths: Having multiple active paths from each VPLEX director to the storage volumes ensures that there is no single point of failure. If one path fails, the other paths can continue to provide connectivity1.

Load Balancing: Multiple paths also allow for load balancing of I/O operations across the different paths, which can improve performance and reduce the risk of bottlenecks1.

Path Redundancy: Path redundancy is crucial for maintaining continuous availability, especially in environments where the VPLEX is used for mission-critical applications1.

Configuration: The configuration of the paths should be done in accordance with EMC’s best practices, which include proper zoning and masking in the SAN environment1.

Documentation: Detailed guidelines and best practices for VPLEX SAN connectivity, including back-end array connections, are available in EMC’s documentation, which provides comprehensive instructions for setting up and managing these connections1.

In summary, EMC’s best practice for connecting VPLEX to back-end arrays is to ensure that each VPLEX director has four active paths to every back-end array storage volume. This setup provides the necessary redundancy and performance for a robust and reliable storage environment.

=========================

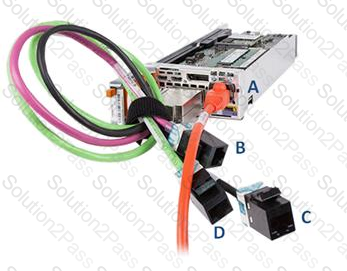

For connecting the MMCS-A to the customer management network in a Dell VPLEX system, it is essential to use the correct port that is designated for management traffic. According to the Dell EMC VPLEX documentation1, each MMCS (Management Module Control Station) has two network connections that connect to the customer’s network. One of these is used for system monitoring and remote connectivity for Dell Technologies Customer Support, and the other is for use by the Network Address Translation (NAT) Gateway.

In the context of the VS6 VPLEX cluster, the management ports are located on MMCS-A and MMCS-B, and both must be configured and connected to the customer network. MMCS-A is the management port that will be accessed for all management and monitoring purposes1. Therefore, the cable that should be connected to the customer management network is the one associated with MMCS-A.

Based on the information provided in the search results and the description of the image, the correct cable to connect to the customer management network for MMCS-A is indicated by the letter B in the exhibit. This connection is crucial for enabling management and monitoring access to the VPLEX system.
