D-VPX-OE-A-24 EMC Dell VPLEX Operate Achievement Free Practice Exam Questions (2025 Updated)

A VPLEX storage administrator can manage array-based attributes throughstorage tiers. This is part of the VPLEX’s ability to integrate with underlying storage arrays and leverage their native capabilities, such as tiering, to optimize performance and cost.

Here’s a detailed explanation:

Understanding Storage Tiers:Storage tiers are classifications of storage based on performance and cost. High-performance tiers use faster storage media like SSDs, while lower tiers might use traditional HDDs.

VPLEX Integration:VPLEX integrates with underlying storage arrays to manage these tiers. By doing so, it can place data on the appropriate tier based on performance requirements and other policies.

Managing Array-Based Attributes:Within the VPLEX, administrators can define policies that determine how data is placed across these tiers. This is done by managing array-based attributes that dictate tier placement.

Provisioning and Migration:Administrators can provision new volumes or migrate existing ones between tiers as needed, ensuring that the most frequently accessed data is on the highest-performing tiers.

Monitoring and Adjusting:VPLEX provides tools for monitoring performance and usage patterns, allowing administrators to adjust tiering policies and placements to optimize for current workloads.

Documentation and Training:For those seeking to understand the full capabilities and management procedures, Dell provides training and documentation, such as the VPLEX Operate Achievement, which covers these topics in detail123.

By managing storage tiers, VPLEX administrators can ensure that the storage infrastructure is used efficiently, balancing cost and performance effectively.

Volume expansion in Dell VPLEX is a process that allows for increasing the size of a virtual volume. However, certain conditions can prevent this operation from taking place:

Migration Occurring on the Volume: If there is an ongoing migration process involving the volume, it cannot be expanded until the migration is complete.This is because the volume’s data layout is being altered during migration, and any attempt to change its size could lead to data corruption or other issues1.

Consistency Group Membership: Whether or not a volume belongs to a consistency group does not directly prevent volume expansion. Consistency groups in VPLEX areused to ensure write-order fidelity across multiple volumes but do not restrict the expansion of individual volumes within the group.

Metadata Volume Backup: Backing up a metadata volume is a separate operation that does not interfere with the ability to expand a storage volume. Metadata backups are typically performed to preserve the configuration and state information of the VPLEX system.

Logging Volume Re-synchronization: While a logging volume in a re-synchronization state indicates that there is an ongoing process to align data across clusters or devices, it does not inherently prevent the expansion of a storage volume.

Therefore, the condition that would prevent volume expansion is when there is a migration occurring on the volume (OA).

Data mobility in VPLEX is used for various operations, including storage volume defragmentation. Here’s the explanation:

Data Mobility: This operation is designed to move data within the VPLEX system, which can include moving data from fragmented storage volumes to contiguous storage, effectively defragmenting the storage1.

Device Mobility: Device mobility is typically used for moving devices within the VPLEX cluster or across clusters but is not specifically for defragmentation purposes.

Virtual Volume Mobility: While virtual volume mobility can move virtual volumes within the VPLEX environment, it does not directly address storage volume defragmentation.

Extent Mobility: Extent mobility involves moving extents, which are segments of storage within a volume, but this is not the operation used specifically for defragmentation.

Defragmentation Process: During defragmentation, data mobility would be used to relocate data from fragmented extents to a set of contiguous extents, thereby optimizing the layout of the data on the physical storage and improving performance1.

VPLEX Administration Guides: For detailed procedures on how to perform data mobility operations, including defragmentation, administrators should refer to the VPLEX Administration Guides2.

By using data mobility operations, administrators can manage and optimize the storage within the VPLEX system, ensuring efficient use of resources and maintaining performance.

The report create-monitors command in Dell VPLEX is used to create custom monitors that can track a variety of performance metrics for different components of the VPLEX cluster. The command allows administrators to set up monitors for disks, ports, and volumes, which are essential elements of the VPLEX storage architecture.

Here’s a detailed explanation:

Disks:Monitors for disks can track performance metrics such as I/O rates, latency, and throughput, which are critical for assessing the health and efficiency of the physical storage.

Ports:Monitoring ports is crucial for understanding the performance of data transfer interfaces, including Fibre Channel and Ethernet ports, which facilitate communication and data movement within the VPLEX cluster and to external networks.

Volumes:Volumes, particularly virtual volumes, are logical storage units that administrators often need to monitor closely for performance metrics like read/write operations and response times to ensure optimal data access and processing.

Custom Monitor Creation:To create a custom monitor, an administrator would access the management server, use the VPLEX CLI, and implement commands to specify the name, period, statistics, and targets for the monitor1.

Monitor Management:After creating a monitor, administrators can add a file sink to direct the output to a CSV file for analysis.This file contains the collected data and is stored on the management server under the /var/log/VPlex/cli folder1.

Documentation Reference:For more detailed instructions and information on creating and managing monitors, administrators are encouraged to consult the VPLEX CLI and Admin Guides, which provide comprehensive guidance on these processes1.

By setting up these monitors, a storage administrator can gain valuable insights into the performance of their VPLEX cluster and make informed decisions to maintain or improve its efficiency and reliability.

A VPLEX device is a logical construct that represents storage in the VPLEX environment. The statement that applies to a VPLEX device is:

Application of a RAID Topology: A VPLEX device can have a RAID topology applied to one or more extents.This means that the VPLEX system can take multiple extents, which are segments of storage from an underlying array, and organize them into a RAID configuration for redundancy and performance purposes1.

Extent Definition: An extent in VPLEX is a contiguous range of block addresses presented to VPLEX from a storage volume.It is the basic unit of storage that VPLEX manages1.

Device Composition: A VPLEX device is composed of one or more extents.When these extents are combined and a RAID topology is applied, it creates a VPLEX device that can be presented as a virtual volume to hosts1.

RAID Topologies: VPLEX supports various RAID configurations, such as RAID-1 (mirroring) and RAID-C (concatenation), allowing for flexibility in how data is protected and accessed1.

VPLEX Virtualization: The VPLEX system virtualizes the storage from underlying arrays, allowing for the creation of these devices without being tied to the physical RAID configurations of the arrays themselves1.

By understanding the role of RAID topologies and extents in the creation of VPLEX devices, storage administrators can effectively manage and provision storage in a VPLEX environment.

In a VPLEX Metro cluster without a VPLEX Witness and with a static rule set to “cluster-2 detaches”, the result of a WAN COM failure would be as follows:

Delay Timer: Initially, VPLEX starts a delay timer upon detecting the WAN COM failure.This timer allows for a temporary network issue to be resolved without immediate impact on I/O operations1.

Suspension of I/O: While the delay timer is active, VPLEX suspends I/O to all distributed devices on both clusters to prevent data corruption and ensure data integrity1.

Resumption of I/O: If the WAN COM connectivity is not restored within the expiration period of the delay timer, VPLEX will resume I/O operations on Cluster-2, as per the static rule set.I/O will remain suspended on Cluster-1 to maintain a consistent data state and prevent a split-brain scenario1.

This process ensures that data remains consistent and available on at least one cluster in the event of a WAN COM failure, aligning with the predefined static rule set and maintaining the integrity of the VPLEX Metro cluster operations.

In GeoSynchrony 6.0, a feature concerning service account login to the VPlexcli is that the service account requires authentication to the Linux shell, and VPlexcli requires an RSA token. This two-factor authentication process enhances security by requiring both a password and a physical token.

Linux Shell Authentication: The service account must first authenticate to the Linux shell, which is the underlying operating system for VPLEX.This typically involves entering a username and password1.

VPlexcli Authentication: After gaining access to the Linux shell, the service account must then authenticate to the VPlexcli, which is the command-line interface for managing VPLEX.For this step, an RSA token is required, providing a second layer of security1.

RSA Token: An RSA token is a form of two-factor authentication that generates a time-sensitive, one-time-use code.This code must be provided in addition to the password to gain access to VPlexcli1.

Security Enhancement: The requirement for both shell authentication and an RSA token for VPlexcli access helps to prevent unauthorized access and ensures that only authenticated users can perform administrative tasks on the VPLEX system1.

Best Practices: This authentication process aligns with best practices for securing critical infrastructure, such as storage systems, by implementing multi-factor authentication to protect against potential security breaches1.

By requiring authentication to the Linux shell and an RSA token for VPlexcli, GeoSynchrony 6.0 ensures a secure environment for managing VPLEX systems.

Local and distributed mirroring in a VPLEX environment are managed at the device virtualization layer of the director IO stack. Here’s the explanation:

Device Virtualization Layer: This layer is responsible for the creation and management of virtualized storage devices in VPLEX. It abstracts the physical storage and presents it as virtual volumes that can be accessed by hosts.

Mirroring Management: Both local and distributed mirroring are configured at the device level.Local mirroring involves creating RAID-1 devices within the same VPLEX cluster, while distributed mirroring involves creating distributed devices across two VPLEX clusters12.

Coherent Cache: The coherent cache layer is involved in maintaining cache coherency across the VPLEX clusters but does not manage the mirroring of devices.

Storage View: The storage view layer is where hosts are mapped to virtual volumes. It does not manage the mirroring of devices but rather the access to them.

Storage Volume: The storage volume layer represents the physical storage volumes from backend arrays before they are virtualized by VPLEX. It is not the layer where mirroring is managed.

By managing mirroring at the device virtualization layer, VPLEX ensures that data is protected and available across multiple storage systems, providing high availability and disaster recovery capabilities.

When LUNs belonging to an ESXi cluster are encapsulated behind VPLEX, the information that must be shared with the ESXi administrator for them to re-discover the datastore and the RDM LUNs is the Virtual Volume VPD (Vital Product Data).

Virtual Volume VPD: The VPD for a virtual volume contains essential information about the volume, such as its identifier, which is used by the ESXi host to recognize and differentiate the volume1.

Re-Discovery Process: After encapsulation, the ESXi administrator will need to perform a rescan of the storage adapters on the ESXi hosts.During this rescan, the hosts use the VPD information to identify the newly encapsulated LUNs and re-discover the associated datastore and RDM LUNs1.

Datastore and RDM LUNs: Datastores are storage containers that hold virtual machine files, while RDM (Raw Device Mapping) LUNs allow a virtual machine to directly access a storage device.Both rely on unique identifiers to ensure correct access and operation within the ESXi environment1.

Sharing Information: The VPLEX administrator should provide the VPD information to the ESXi administrator, typically after the encapsulation process is complete and before the ESXi storage rescan is initiated1.

Ensuring Access: By sharing the correct VPD information, the ESXi administrator can ensure that the ESXi cluster correctly identifies and regains access to the encapsulated LUNs, maintaining the continuity of services and data availability1.

The sharing of the Virtual Volume VPD is a critical step in the process of LUN encapsulation behind VPLEX, ensuring that the ESXi cluster can successfully re-discover and utilize the datastore and RDM LUNs.

Questions no:Q29

In VPLEX, the type of statistic that provides an instantaneous value displaying CPU utilization and memory utilization is referred to as “counters.” These counters offer real-time metrics that reflect the current state of the system’s resources.

Counters: Counters are a type of statistic in VPLEX that provide immediate, real-time values for various system metrics, including CPU and memory utilization.They are used to monitor the current performance and resource usage of the VPLEX system1.

CPU Utilization: CPU utilization counters show the percentage of CPU resources currently being used by the VPLEX directors.This information is crucial for understanding the load on the system and for capacity planning1.

Memory Utilization: Memory utilization counters display the amount of RAM currently in use by the VPLEX system.This helps administrators monitor memory consumption and ensure that the system has enough memory to operate efficiently1.

Monitoring and Management: Counters are an essential tool for the ongoing monitoring and management of a VPLEX environment.They help administrators identify potential performance bottlenecks and take proactive measures to optimize system performance1.

Instantaneous Values: Unlike other statistics that may provide averages or aggregated data over a period, counters offer instantaneous snapshots of resource usage, making them ideal for real-time monitoring1.

By utilizing counters, VPLEX administrators can gain immediate insights into the system’s CPU and memory utilization, enabling them to maintain optimal performance and address issues as they arise.

A supported geometry for a VPLEX device is RAID-C, which stands for RAID Concatenation. RAID-C is a VPLEX-specific RAID configuration that concatenates multiple extents or devices to create a larger virtual volume.

RAID Concatenation (RAID-C): RAID-C is a VPLEX geometry that allows for the concatenation of multiple storage extents or devices.This configuration is used to create larger virtual volumes by combining smaller ones1.

Use of RAID-C: RAID-C is typically used when there is a need to expand storage capacity without the requirement for additional redundancy.It is a simple way to increase the size of a virtual volume by adding more storage to it1.

Advantages: The advantage of using RAID-C is that it allows for flexibility in storage provisioning and can be easily expanded as storage needs grow.It also enables the use of storage from different arrays1.

VPLEX Device Configuration: In the context of VPLEX, a device refers to a logical unit that can be presented to hosts.By using RAID-C geometry, VPLEX can present larger logical units that span across multiple physical storage arrays1.

Supported Geometries: VPLEX supports various RAID geometries, including RAID-0, RAID-1, and RAID-C, each serving different purposes and providing different levels of performance and protection1.

By utilizing RAID-C geometry, VPLEX administrators can manage storage more effectively, ensuring that they can meet the capacity requirements of their applications and services.

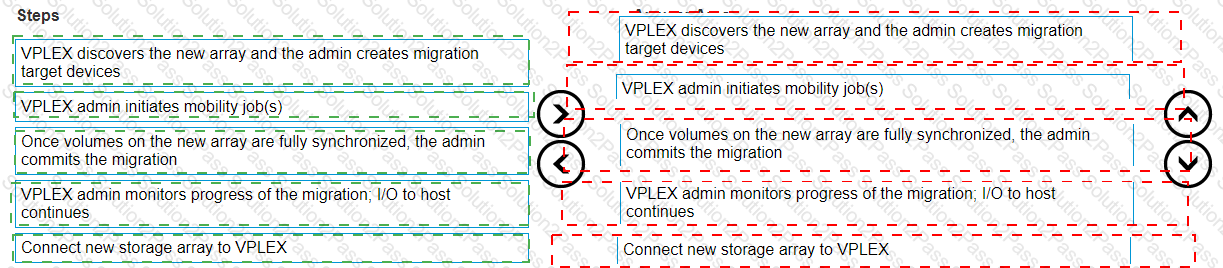

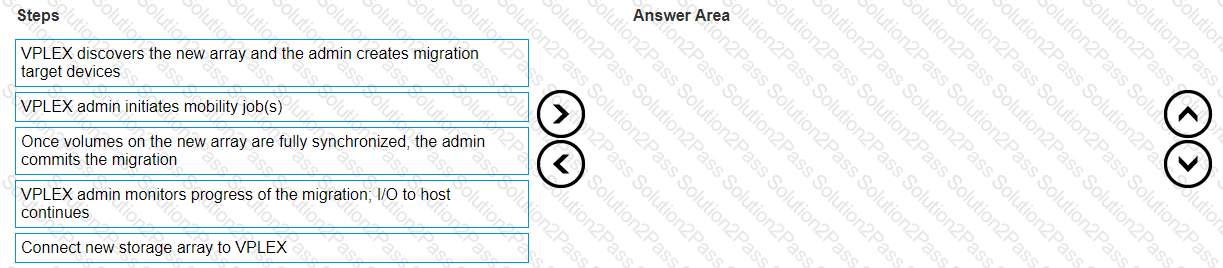

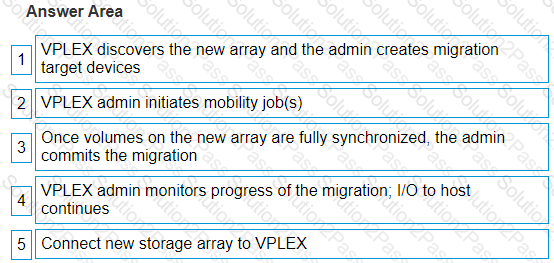

The correct order of steps to migrate from an old array to a new one without disruption using VPLEX is:

VPLEX discovers the new array and the admin creates migration target devices.

VPLEX admin initiates mobility job(s).

Once volumes on the new array are fully synchronized, the admin commits the migration.

VPLEX admin monitors progress of the migration; I/O to host continues.

Connect new storage array to VPLEX.

Discovery and Creation: The initial step involves VPLEX identifying the presence of a new storage array within its environment. Following this discovery, a system administrator is responsible for setting up migration target devices on this newly recognized array.

Initiation of Mobility Jobs: Subsequently, a system administrator must initiate mobility jobs through the VPLEX management interface, which facilitates data movement from the existing source storage to the target devices on the new array.

Synchronization and Commitment: After initiating mobility jobs, data synchronization between source and target arrays begins automatically. Once synchronization reaches completion, indicating that both arrays have identical data sets, an administrator must commit to finalizing this stage of migration.

Monitoring Migration Progress: Throughout this process, it’s crucial for an administrator to monitor ongoing operations ensuring that input/output operations continue uninterrupted for hosts accessing data during transition phases.

Connecting New Array: The final step involves integrating the newly populated storage array into production by connecting it with VPLEX systems thus completing migration.

In VPLEX, a storage volume is a logical representation of physical storage, and it can be divided into multiple extents.An extent is a contiguous range of block addresses within a storage volume that VPLEX manages as a single unit1.

Storage Volume: This is the physical storage presented to VPLEX from the backend storage arrays.It represents the total capacity available for use in VPLEX1.

Extent: An extent is a subset of a storage volume.It is a logical division within a storage volume that VPLEX uses to create virtual volumes1.

Division into Extents: A storage volume can be split into multiple extents, allowing for more granular management of storage resources.This is useful for creating multiple virtual volumes from a single storage volume1.

Virtual Volume Creation: Extents are used by VPLEX to create virtual volumes.By splitting a storage volume into extents, VPLEX can combine extents from different storage volumes to create a virtual volume1.

Management Flexibility: The ability to split a storage volume into multiple extents provides flexibility in storage management, enabling VPLEX to optimize storage utilization and performance1.

By splitting a storage volume into multiple extents, VPLEX can efficiently manage and allocate storage resources, creating virtual volumes that meet the specific needs of applications and workloads.

When considering the use of a VPLEX logging volume, it is important to note that a logging volume must be created on each VPLEX cluster before creating a distributed device. This is because logging volumes play a critical role in the VPLEX architecture by capturing write logs that are essential for data consistency and recovery processes.

Role of Logging Volumes: Logging volumes in VPLEX are used to store write logs that ensure data consistency across clusters, especially in distributed device configurations1.

Creation Before Distributed Devices: Before a distributed device can be created, which spans across clusters for high availability, logging volumes must exist on each cluster to handle the write logging required for the distributed device1.

VIAS and Automatic Provisioning: While VIAS (VPLEX Integrated Array Services) is a tool that simplifies storage provisioning tasks, and automatic provisioning can occur in certain scenarios, the creation of logging volumes is a prerequisite step that typically requires explicit action by the administrator before distributed devices are set up1.

Sequence of Operations: The sequence of operations is such that logging volumes are created first, providing the necessary infrastructure for capturing write logs, followed by the creation of distributed devices that will utilize these logging volumes1.

By ensuring that logging volumes are created on each VPLEX cluster prior to the creation of distributed devices, administrators can maintain the integrity and high availability of data within the VPLEX environment.

For VPLEX for All Flash (VAF), both the VS2 and VS6 models are recommended. Here’s why:

VS2 Model: The VS2 model is a previous generation of VPLEX hardware that supports all-flash configurations.It is designed to handle the high throughput and low latency requirements of all-flash storage1.

VS6 Model: The VS6 is the latest generation of VPLEX hardware, offering enhanced performance and scalability compared to the VS2.It is also suitable for all-flash environments and is designed to leverage the full capabilities of flash storage1.

Upgrade Path: Organizations with existing VS2 hardware can continue to use it for VAF, but they may consider upgrading to VS6 for improved performance and newer features.The VPLEX architecture allows for non-disruptive upgrades from VS2 to VS6, making it a future-proof solution1.

VPLEX Technology: Both VS2 and VS6 utilize VPLEX technology that virtualizes storage across multiple arrays, allowing for seamless data mobility and continuous availability.This technology is particularly beneficial in all-flash environments where performance and uptime are critical1.

Documentation: The Dell VPLEX Operate Achievement documents provide detailed information on the capabilities of both VS2 and VS6 models, including their suitability for VAF environments1.

By choosing either VS2 or VS6 models for VPLEX for All Flash, organizations can ensure they have a robust and high-performing storage virtualization platform that meets the demands of modern all-flash arrays.
