D-XTR-OE-A-24 EMC Dell XtremIO Operate Achievement Free Practice Exam Questions (2025 Updated)

When creating a volume on an XtremIO X2-S array, administrators have the option to assign tags.

Tags are used to organize and manage volumes more efficiently, allowing for better categorization and retrieval based on specific criteria.

This feature enhances the management capabilities within the XtremIO environment, facilitating easier identification and handling of storage resources.

References:

Dell XtremIO X2-S Configuration Guide

In a heterogeneous environment with multiple storage arrays connected to VMware vSphere, setting Disk.SchedQuantum to 64 is recommended.

This setting optimizes the scheduling of I/O requests and helps in balancing the load across different storage arrays.

Proper configuration of Disk.SchedQuantum enhances the performance and efficiency of the storage environment.

References:

VMware Best Practices for Storage

Dell XtremIO VMware Integration Guide

When dealing with misaligned partitions on XtremIO volumes after upgrading from Windows Server 2003 to Windows Server 2008, the following steps should be taken to realign the data:

Backup the Data: The first and most crucial step is to ensure that all data on the existing partitions is backed up. This is to prevent any data loss during the alignment process.

Run Diskpart: After backing up, use the Diskpart utility, which is a command-line disk partitioning tool that allows you to manage your disk’s partitions.

Recreate the Partition: With Diskpart, delete the existing misaligned partition and then create a new partition.When creating the new partition, ensure that it is aligned correctly, typically to a 1MB boundary, which is the default alignment for Windows Server 2008 and newer versions1.

Restore the Data: Once the new partition is created and aligned properly, restore the data from the backup to the newly aligned partition.

This process ensures that the partitions are aligned optimally for the XtremIO storage system, which can help improve performance and efficiency. It’s important to note that while tools like Disk Management and Mbralign can be used for managing partitions, they may not provide thenecessary functionality to realign existing partitions on Windows Server 2008.Therefore, using Diskpart is the recommended approach1.

Misalignment of data, particularly to the 4k boundaries, can significantly impact write operations on a Linux server connected to an XtremIO storage system. Here’s why:

Block Size Alignment: Modern storage systems, including SSDs used in XtremIO arrays, typically use a 4k (4096 bytes) block size for data storage1. This is the smallest unit of data that can be read or written to the storage.

Misalignment Issues: When data is misaligned, it means that the file system’s blocks do not line up with the storage device’s blocks.This misalignment can cause additional read-modify-write cycles, which can degrade performance and increase latency for write operations1.

Effect on Write Operations: If data is not aligned to the 4k boundaries, the storage system may need to perform extra work to handle the writes, as each write operation could span multiple physical blocks.This results in inefficient use of the storage array’s resources and can lead to reduced throughput and increased wear on the SSDs1.

Linux Server Configuration: On a Linux server, ensuring proper alignment is crucial for optimal performance. This can involve configuring the file system and partition alignment during the setup and using tools that can check and correct alignment issues.

In conclusion, misaligned data to the 4k boundaries (OA) is a non-optimal configuration that can have a significant effect on write operations on a Linux server connected to XtremIO.Proper alignment to the storage system’s block size is essential for maintaining high performance and longevity of the storage media1.

The maximum number of volumes allowed in an XtremIO Consistency Group is 512.

Consistency Groups ensure that multiple volumes can be managed and replicated together, maintaining data consistency across all included volumes.

This limit allows for efficient management and scalability of storage resources within the XtremIO environment.

References:

Dell XtremIO Configuration Guide

XtremIO Consistency Group Best Practices

The SuperCapacitor (SuperCap) in an XtremIO X2 NVRAM card is designed to provide power to the card in the event of a power failure.When there is a power failure, the SuperCap discharges to maintain power to the NVRAM card long enough to ensure that all data in transit is written to flash storage, preventing data loss1.

Here’s the sequence of events during a power failure:

Power Failure Detected: The system detects a loss of power to the NVRAM card.

SuperCap Discharge: The SuperCap begins to discharge, providing backup power to the NVRAM card.

Data Write: The NVRAM card uses the power from the SuperCap to write any data in transit to the SSDs in the storage array.

Data Secured: Once the data is safely written to the SSDs, the NVRAM card can safely shut down without risking data loss.

The SuperCap is a critical component that ensures data integrity during unexpected power interruptions. It is not used during normal operation (OB), after data is secured (OC), or when power is restored (OD).Its primary function is to protect data during power failures (OA)1.

7 Days:Given that 500 production volumes must be backed up four times a day using XtremIO’s Protection Copies feature, the system can store the read-only volumes for approximately 7 days before the oldest backups are deleted.

This calculation ensures that the array’s capacity is used efficiently while adhering to the backup policy requirements.

References:

Dell XtremIO Protection Copies Feature Guide

XtremIO Backup and Recovery Best Practices

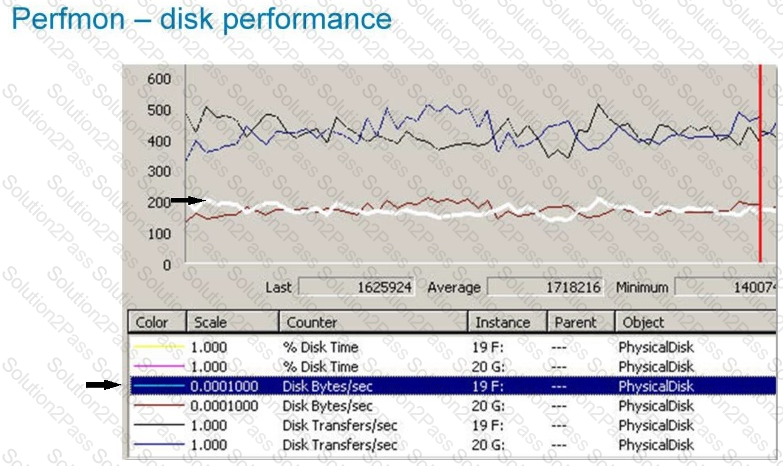

The transfer rate for disk 19F shown in the exhibit is 2 MB/s. The exhibit indicates that the scale for "Disk Bytes/sec" is set to 0.00010000. Given this scale, the displayed value of approximately 200 (in the highlighted blue line) corresponds to 200 x 0.00010000 MB/s, which equals 2 MB/s.

References:

Analysis of the exhibit data and the scale provided.

General understanding of performance monitoring metrics and their interpretations.

When creating a virtual disk for a VMware VM that will reside on a datastore provisioned from an XtremIO volume, it is generally recommended to use Thick Provisioned, Eager Zeroed disks for optimal performance and capacity usage. Here’s why:

Thick Provisioned, Eager Zeroed (OC): This type of disk allocation pre-allocates the entire size of the disk and zeroes out all the blocks at the time of creation.This can lead to better performance because all the space is allocated and ready for use, and there is no overhead associated with zeroing out blocks during write operations1.

Thick Provisioned, Lazy Zero (OA): While this also pre-allocates the entire disk size, it does not zero out the blocks until they are first written to.This can lead to potential performance degradation compared to Eager Zeroed disks when the blocks are zeroed on demand1.

Thin Provisioned (OB): Thin provisioning allocates disk space on demand rather than pre-allocating the entire disk size.While this can be more efficient in terms of capacity usage, it may not provide the same level of performance as Thick Provisioned, Eager Zeroed disks, especially in high I/O environments1.

Raw Device Mappings (OD): RDM allows a VM to directly access a LUN on the SAN.This is typically used for specific use cases that require direct access to the physical storage device and is not generally necessary for standard VM deployments1.

In summary, for ensuring proper performance and capacity usage, Thick Provisioned, Eager Zeroed (OC) is the recommended way to present the disk to the guest for a VMware VM running on vSphere 6.5 with an XtremIO volume1.

For Linux servers connected to an XtremIO cluster, the file systems that support the UNMAP command include Ext3, Ext4, and XFS. The UNMAP command allows these file systems to inform the storage array about blocks that are no longer in use, facilitating better space reclamation and efficiency in storage management.

References:

Dell EMC documentation on XtremIO configurations for Linux environments confirms the support for UNMAP with these specific file systems.

Linux kernel documentation also supports the use of UNMAP/TRIM operations with Ext3, Ext4, and XFS for storage optimization.

The XtremIO X2-S system allows for a minimum of 12 SSDs and a maximum of 36 SSDs per Disk Array Enclosure (DAE).

This flexibility in the number of SSDs per DAE allows for scalable storage configurations tailored to varying performance and capacity requirements.

References:

Dell XtremIO X2-S Technical Specifications

XtremIO Product Documentation

The default logical block size when creating an XtremIO volume is 4 KB.

This block size is optimized for performance and efficiency, ensuring that the storage array can handle small random I/O operations effectively.

Properly configured block sizes are essential for achieving optimal performance in high-demand storage environments.

References:

Dell XtremIO X2 Technical Specifications

XtremIO Volume Configuration Guide

A single XtremIO Management Server (XMS) can manage up to 8 X-Brick clusters.

For 20 XtremIO X1 clusters, the smallest number of XMS servers required to support the environment is 4.

Consolidating management operations to the minimum number of XMS servers helps in simplifying administration and monitoring tasks.

References:

Dell XtremIO XMS Configuration Guide

XtremIO Cluster Management Documentation

This ensures that the XMS can effectively communicate with and manage each cluster, regardless of their individual configurations or the specific features they are using.

Compatibility is crucial for the XMS to perform its functions across all clusters, which includes tasks such as monitoring, reporting, and executing management operations.If the XMS code version is not compatible with a particular cluster, it may not be able to manage it properly, leading to potential issues with performance, reliability, and data integrity1.

Therefore, before adding a new XtremIO cluster to an existing XMS setup, the systems administrator must verify that the XMS code version is compatible with the firmware version running on the new cluster, as well as the versions on all other clusters currently being managed.This step is a fundamental requirement to ensure seamless management and operation of the XtremIO storage environment1.

To create an iSCSI portal using the XtremIO X2 XMS WebUI, an administrator should navigate to Cluster Settings.

Within Cluster Settings, the configuration options for creating and managing iSCSI portals are available.

This is the starting point for setting up network configurations and ensuring the proper operation of iSCSI connections.

References:

Dell XtremIO X2 Configuration Guide

XtremIO XMS WebUI Documentation

When using XtremIO storage arrays for Oracle ASM disk groups, the recommended redundancy type is typically external redundancy.This is because XtremIO arrays are built with inherent data protection and redundancy features that eliminate the need for additional mirroring at the ASM level1.

External Redundancy: With external redundancy, Oracle ASM does not mirror data within the disk group. Instead, it relies on the underlying storage system to provideredundancy and data protection.XtremIO’s unique data protection scheme, XDP (XtremIO Data Protection), provides such redundancy1.

XtremIO Features: XtremIO arrays are designed with high levels of fault tolerance and include features like SSD failover and advanced error correction.These features ensure data integrity and availability, making external redundancy a suitable choice1.

Performance Considerations: Choosing external redundancy can also lead to better performance since it avoids the overhead of additional mirroring at the ASM level, which is unnecessary given XtremIO’s capabilities1.

Best Practices: Dell EMC recommends using external redundancy for ASM disk groups when using storage arrays like XtremIO that provide their own robust data protection mechanisms1.

In summary, for Oracle ASM disk groups using XtremIO storage arrays, external redundancy (OC) is the recommended setting, as it leverages the array’s built-in redundancy features and optimizes performance1.

If the email server is not receiving notifications for major severity issues, it is likely because alert definitions have not been defined.

Alert definitions specify the conditions under which notifications are sent, and without these, the system will not trigger email alerts.

Ensuring proper configuration of alert definitions is essential for timely notifications of critical events.

References:

Dell XtremIO Administration Guide

XtremIO Alerts Configuration Documentation
