DEE-1111 EMC Expert - PowerMax and VMAX All Flash Solutions Free Practice Exam Questions (2025 Updated)

The NDM Updates feature should be used to complete the migration and address the client’s concern. The NDM Updates feature is designed to help automate the process of moving applications across arrays requiring a short application downtime. It allows application migration from a VMAX (5876) array to a VMAX3 (5977), VMAX All Flash (5978), or PowerMax (5978) array1. It supports pre-sync data between arrays and then schedule downtime to do the cutover1. References: Dell EMC PowerMax and VMAX: Non-Disruptive Migration Best Practices and Operational Guide

The symstar halt command is used to write disable devices and synchronize SRDF data to remote sites in an SRDF/Star configuration. This command ensures that all sites have a consistent copy of data before switching the workload site from one site to another. Therefore, the symstar halt command should be used before the workload switch in case of a disaster at the workload site of an SRDF/Star configuration1

The user has been assigned the RemoteRep role only. The RemoteRep role allows users to create, manage, and delete SRDF device pairs, as well as view array information, masking objects, device information, and RBAC rules2. However, it does not allow users to create and delete SRDF groups, which requires the StorageAdmin role. Therefore, answer C is correct.

A, B, and D are incorrect because they do not match the user’s profile. SecurityAdmin (A) role allows users to manage security settings such as authentication methods, certificates, RBAC rules, and audit logs2. Auditor (B) role allows users to view array information and audit logs only2. LocalRep (D) role allows users to create, manage, and delete TimeFinder SnapVX sessions from a source device2. None of these roles allow users to create and delete SRDF device pairs.

The correct sequence of steps to configure and bring up an SRDF/Star environment is as follows:

Verify SRDF/Star control host connectivity and array settings. This step involves checking the network connectivity between the control host and the three arrays involved in the SRDF/Star configuration, as well as verifying the array settings such as RDF mode, RDF consistency, and RDF emulation. The control host is the host that runs the Solutions Enabler SYMCLI commands to manage the SRDF/Star configuration.The three arrays are the primary array, the secondary array, and the tertiary array.1

Enable SRDF/Star configuration. This step involves enabling the SRDF/Star feature on the primary array using the symstar enable command. This command also creates a STAR control device group on the primary array, which contains a single device that acts as a control point for the SRDF/Star configuration.The STAR control device group must have a unique name and number across all arrays.1

Add BCV devices to the SRDF/Star configuration. This step involves adding Business Continuance Volume (BCV) devices to the STAR control device group on the primary array using the symstar add bcv command. BCV devices are local copies of data that can be used for backup, restore, or testing purposes. BCV devices are required for SRDF/Star configurations to enable fast recovery in case of a disaster.The number of BCV devices must match the number of R1 devices in the SRDF/Star configuration.1

Create an SRDF/Star composite group and options file. This step involves creating an SRDF/Star composite group on the control host using the symstar create command. An SRDF/Star composite group is a logical grouping of devices that span across three arrays and have different SRDF roles: R11, R21, and R22. An R11 device is an R1 device that is paired with another R1 device in a different SRDF group. An R21 device is an R2 device that is paired with another R1 device in a different SRDF group. An R22 device is an R2 device that is paired with another R2 device in a different SRDF group.The symstar create command also creates an options file that contains various parameters for the SRDF/Star configuration, such as RDF mode, RDF consistency, RDF emulation, and bias setting.1

Perform the symstar setup operation and create composite groups on target sites. This step involves performing the symstar setup operation on the control host using the symstar setup command. This command establishes the SRDF/Star configuration by creating RDF pairs between devices in different arrays, creating RDF groups on each array, creating composite groups on each array, and synchronizing data across all devices.The symstar setup command also creates composite groups on the secondary and tertiary arrays using the same name and number as the composite group on the primary array.1

References:

Dell EMC Solutions Enabler 9.2 SRDF Family CLI User Guide

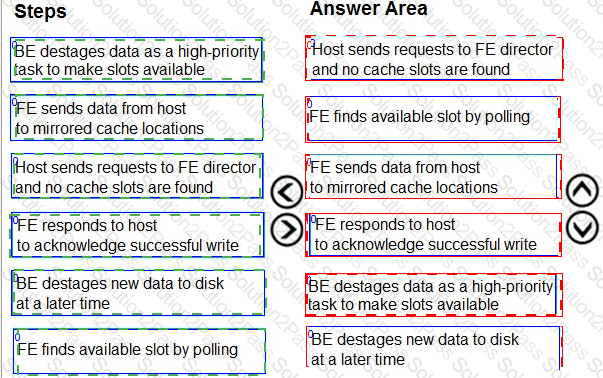

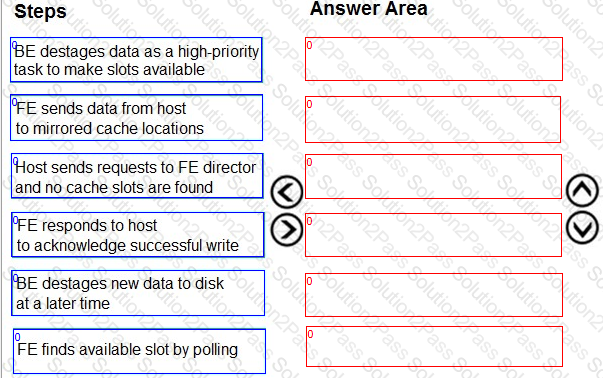

The correct sequence of actions that take place on a Write Miss is as follows:

Host sends requests to FE director and no cache slots are found.This happens when the cache is full or the desired cache slot is locked by another request1.

FE finds available slot by polling.This involves the FE director scanning the cache for an available slot or waiting for a slot to be freed by the BE director2.

FE sends data from host to mirrored cache locations.This involves the FE director writing the data from the host to two mirrored locations in the cache, one on each engine2.

FE responds to host to acknowledge successful write.This involves the FE director sending a signal to the host that the write operation is completed, even though the data is not yet written to disk2.

BE destages data as a high-priority task to make slots available.This involves the BE director flushing some of the existing write pending data from the cache to the disk, in order to free up some cache slots for new write requests2.

BE destages new data to disk at a later time.This involves the BE director writing the new data from the cache to the disk, according to the destaging algorithm and priority2.

Before configuring Access Control, the security administrator must define the User Access ID for the Admin User. This is a necessary step to ensure that the administrator has the necessary permissions to perform this operation.

PowerMax & VMAX All-Flash Storage Technical Documentation, Dell EMC PowerMax and VMAX All Flash: Embedded Management

When expanding the capacity of a three-brick PowerMax 8000 running PowerMaxOS 5978.444.444 configured with Flash Drives RAID 5 (7+1) with SCM drives, the minimum supported configuration is 1x RAID 5 (7+1) added to each brick. This ensures that each brick has additional capacity and maintains the balance of storage across all bricks2. References: Dell EMC PowerMax Family Product Guide PowerMaxOS, Dell PowerMax Family Site Planning Guide PowerMax 2000 and PowerMax 8000, POWERMAX FAMILY PowerMax 2000 and 8000 - Dell Technologies Partner Portal

In an SRDF/Metro Smart DR configuration, the Fault-Aware Witness gives a higher priority to Bias when selecting the winning array. The bias settings for the devices are used to determine the preferred winner in the event of a failure2. The preferred winner is the side that has priority when requesting the lock from the witness instance2. References: Dell EMC PowerMax and VMAX All Flash: SRDF/Metro Overview and Best Practices

 When the cache space fills up, I/O will be queued until an empty cache slot is available. This is because PowerMax operates as a cache-centric architecture, where all data is passed through cache before being stored on disk. Cache is used to buffer incoming and outgoing data, as well as to support various functions such as replication and data reduction. When cache is full, the array cannot accept any more data until some cache slots are freed up by flushing data to disk or invalidating stale data. Therefore, answer B is correct.

A, C, and D are incorrect because they do not describe what happens when cache space fills up. I/O will not be serviced at the speed of the destination device (A), as this would bypass the cache and degrade performance. Cache is not permanently flushed © or temporarily disabled (D), as this would result in data loss or corruption.

the maximum number of SCM RAID groups that can be added to a two-engine PowerMax 2000 would depend on various factors including the specific configuration of the system and the capacity requirements.

 In a SRDF/Metro deployment in a clustered host configuration, when the RDF link state is partitioned and the R1 side has full read/write capability to the application, the R2 device also has full read/write capability to the application. With SRDF/Metro, both R1 and R2 devices may then appear as a single virtual device across the two SRDF paired arrays for host presentation. With both the R1 and R2 devices being accessible, the host or hosts (in the case of a cluster) can read and write to both R1 and R2 devices with SRDF/Metro ensuring that each copy remains current, consistent, and addressing any write conflicts which may occur between the paired SRDF devices23. References: Dell EMC PowerMax and VMAX All Flash: SRDF/Metro Overview and Best Practices, Deploying Dell EMC SRDF/Metro Smart DR with Microsoft SQL Server for Physical and Virtual Environments

R11 devices are included in a Cascaded SRDF environment. In a cascaded SRDF configuration, the R1 device at the primary site is paired with an R11 device at the secondary site, which is then paired with an R2 device at the tertiary site2. References: NDM overview | Dell EMC PowerMax and VMAX: Non-Disruptive Migration Best Practices and Operational Guide | Dell Technologies Info Hub

 The most likely cause of this behavior is QFULL responses of the FA ports. When additional hosts are zoned to certain front-end adapters, the FA ports may not be able to handle the increased I/O requests, resulting in QFULL responses. This can cause non-linear variations in throughput and sometimes a drop in throughput of more than 20%. References: Dell EMC PowerMax: Service Levels for PowerMaxOS

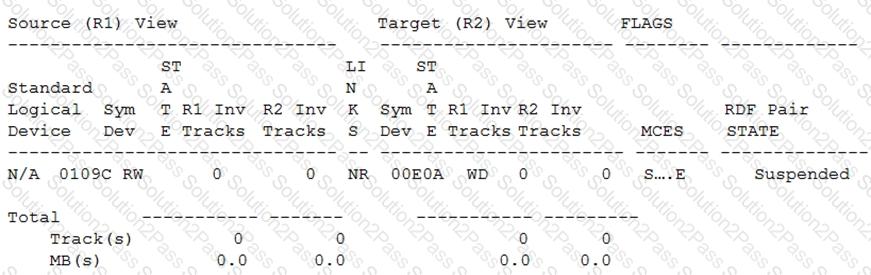

 The symrdf split command is used to suspend SRDF/A replication and make both R1 and R2 devices read/write enabled. This is useful for testing purposes or for creating point-in-time copies of data on both sides. The symrdf establish command can be used to resume SRDF/A replication after a split operation. The exhibit shows that both R1 and R2 devices are read/write enabled and have a Split status, which indicates that a symrdf split command was issued next2

 When maintenance tasks at the R1 data center require the array to be offline, a Swap operation should be executed on the Metro RDF pairs. This operation allows for a planned outage without affecting application I/O by swapping the roles of R1 and R2 devices.
