E20-555 EMC Isilon Solutions and Design Specialist Exam for Technology Architects Free Practice Exam Questions (2025 Updated)

-- Exhibit --

A large manufacturing company is an existing Isilon customer with a cluster consisting of four NL400 nodes with 4TB drives. The cluster is using N+2:1 protection level and the file system shows that it is 60% utilized. Home directories and file shares comprise 75% of the existing content and the remainder is inactive deep archive. The company has 1,000 employees using Windows and Mac clients participating in a single Active Directory (AD) forest.

During a meeting with the CIO and Director of IT you discuss the company’s recent acquisition – an engineering firm that specializes in Computer Aided Design (CAD). The engineering firm has 400 UNIX workstations that produce technical drawings which are currently stored on another vendor’s SAN solution. The all UNIX environment uses NIS for authentication and name resolution. They do not currently use DNS or LDAP. The engineering company has an old storage system that has been experiencing problems and the CIO would like you to migrate the data onto the Isilon cluster. The CIO would like to eliminate all tape and recover the data onto disk.

The CIO is concerned about security of the company’s intellectual property, especially with the rapid adoption of mobile devices and external cloud content sharing services such as DropBox, Egnyte, and SugarSync. They would like to implement an alternative that provides external file sharing and mobile device synchronization while maintaining security control over the company’s data.

The Director of IT reports that users are storing non-work related content on the Isilon cluster. They would like to limit the amount of capacity that each user can consume in their home directory and want to ensure you provide the capability to easily visualize which users are over their allotment.The company’s Windows users currently leverage Windows Shadow Copy to recover files that have been accidentally deleted. The IT department wants to ensure that Mac and incoming UNIX clients have the same functionality.

The Director of IT also mentions that users are reporting slow response times when browsing their home directories and shared folders. They are concerned that Isilon cannot scale to support their combined requirements.

-- Exhibit --

What steps would you recommend to the IT Director to allow for collaboration between the engineering company and the manufacturing company?

Which SmartConnect policies are used for workloads that have short lived connections such as HTTP and FTP?

A customer's cluster contains three X200 (24 GB RAM, 3 TB drives) nodes, and three X400 (48 GB RAM, 1 TB drives) nodes. All nodes are configured in a single pool. All data is protected at N+2. After upgrading OneFS to 7.0, the Isilon Web interface indicates that files are not fully protected.

What should be done to correct this situation?

A customer is inquiring about expanding their primary cluster consisting of six S-Series nodes in order to improve performance. They have a second cluster with 11 X-Series nodes. Both clusters leverage 1GbE, but the customer recently installed a 10GbE network that can be utilized. They also have multiple Fibre Channel SAN arrays in their environment.

They have a variety of workloads on each cluster and are in the process of determining which workloads belong on which cluster. They have discovered that one of the workloads- a SQL database that resides on the X-Series node cluster - is experiencing timeouts due to latency. The database vendor has suggested limiting latency to 5ms or less to eliminate these timeouts.

How do you advise the customer?

While validating the value (VTV) with a large educational customer, they have decided they would like to add a Disaster Recovery (DR) site to their existing Isilon environment. The existing cluster contains six X-Series nodes. They plan to have all workflows replicated to the DR site and both clusters will have identical shares, exports, and user authentication. The customer would like to test DR failover every six months by running their production environment from the DR site.

What would you recommend for the DR solution?

If SmartPools is unlicensed on a cluster, which features are NOT enabled?

A customer currently has 10 HPC nodes. They plan to purchase a 5-node Isilon X400 cluster for an HPC application running on Linux. They will persistent mount the Isilon cluster through NFSv3.

Which recommended configuration addresses the customer's requirements for high availability and throughput?

The data access pattern on a Gen 6 Isilon cluster in Concurrency. What describes this workload?

An Isilon has 6 X410 nodes and 4 NL410 nodes. How many job engine directors does the cluster have?

A customer created eight SyncIQ policies on a 6-node Isilon cluster. The policies all start at midnight. The customer is experiencing issues where several jobs are paused while others continue to run. This is delaying the overall replication of data.

What is the most likely reason for the pausing of some of the SyncIQ jobs?

Where does SmartCache stage its write cache?

What is the maximum volume or aggregate size that can be created with an Isilon Scale-Out NAS system?

A customer wants to add Unix users to their cluster, and requires that NFS access be fault-tolerant.

What would you recommend?

Which Isilon OneFS administration methods are enforced by RBAC?

How does Isilon SnapshotIQ use storage for snapshots?

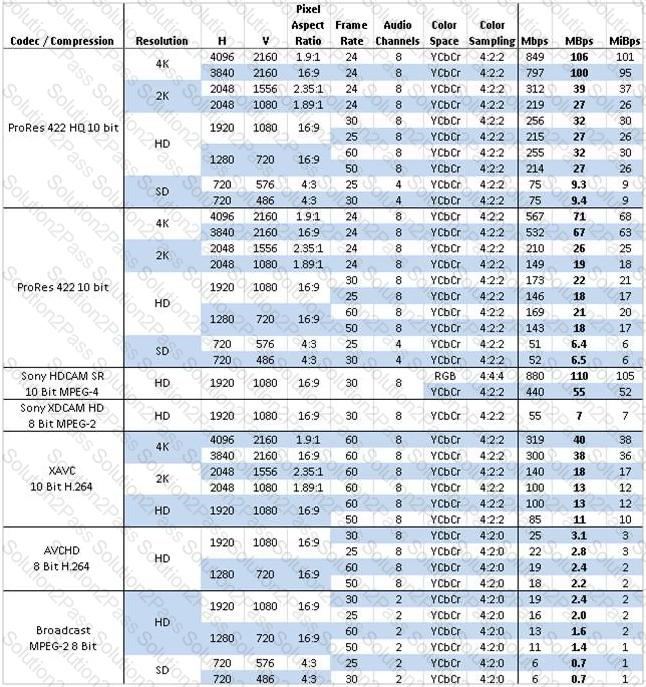

-- Exhibit --

A European Sports TV network is considering Isilon for their Media Edit Storage for their editing workloads. They are also considering Isilon for near-line media archiving.

The network receives XDCAM HD footage which is loaded onto their existing Transcoding Storage platform. New footage that needs to be edited will be transferred from their Transcoding Storage platform to the proposed Media Edit Storage platform at the rate of ten simultaneous XDCAM HD files via FTP. Edited files will be transferred back to the Transcoding Storage platform at the rate of ten simultaneous XDCAM HD files via FTP.

The network currently has 15 Final Cut Pro edit stations, 15 Avid edit stations. Proxy software will be used to allow Isilon to act as the storage for the Final Cut Pro and Avid media. Three of those edit stations will be performing content compositing as needed.

The network expects 70 hours of new content per week, and 50 hours of edited content per week. They intend to keep the new and edited content on the proposed Media Edit Storage as a performance tier for 30 days. They would like to retain all new and edited footage proposed Media Edit Storage as a near-line tier for two years.

In addition to the current workloads, the network expects to implement a new Media Asset Management (MAM) solution and has requested the Isilon cluster be capable of supporting 120 MBps read and 120 MBps write to support the MAM requirements.

-- Exhibit --

Refer to the exhibit.

Based on the described use of the cluster, which node combination is the appropriate choice for the customer’s requirements?

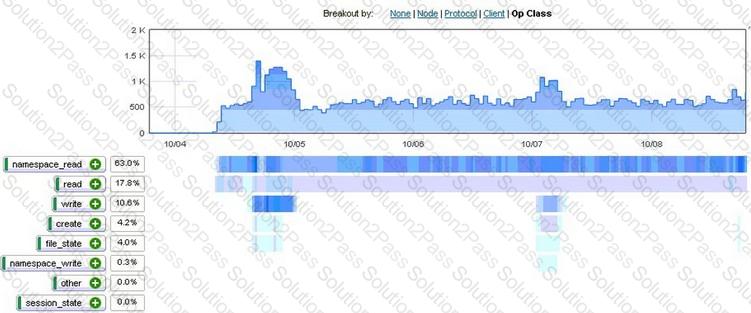

Refer to the exhibit.

A customer calls you and asks if you could come by and interpret their InsightIQ data. You see that namespace reads are 63% of the work load.

What would you recommend to help this cluster's namespace performance?

Your customer is moving from a Restaurant/Bar business model to a Restaurant/Casino business model. You are helping architect the upgrade of a current 4-node X200 48 TB Isilon cluster, with 65% utilized for their video surveillance operations.

They wish to achieve the following:

Upgrade from 1280 x 720 resolution, with a 15 days retention policy, to 2048 x 1536 resolution with a 30 days retention policy.

What is the minimum number of nodes of the same type will you need to add in order to meet the required changes and not exceed 70% raw capacity?

A customer is running OneFS 8.0 on an Isilon cluster consisting exclusively of NL400 nodes. The storage administrator recently heard that OneFS 8.1 provides journal vaulting. What should you advise the storage administrator?
