301b F5 LTM Specialist: Maintain & Troubleshoot Free Practice Exam Questions (2025 Updated)

Prepare effectively for your F5 301b LTM Specialist: Maintain & Troubleshoot certification with our extensive collection of free, high-quality practice questions. Each question is designed to mirror the actual exam format and objectives, complete with comprehensive answers and detailed explanations. Our materials are regularly updated for 2025, ensuring you have the most current resources to build confidence and succeed on your first attempt.

F5 301b Premium Access     Download Demo
Page: 2 / 4
Total 209 questions

-- Exhibit –

-- Exhibit --

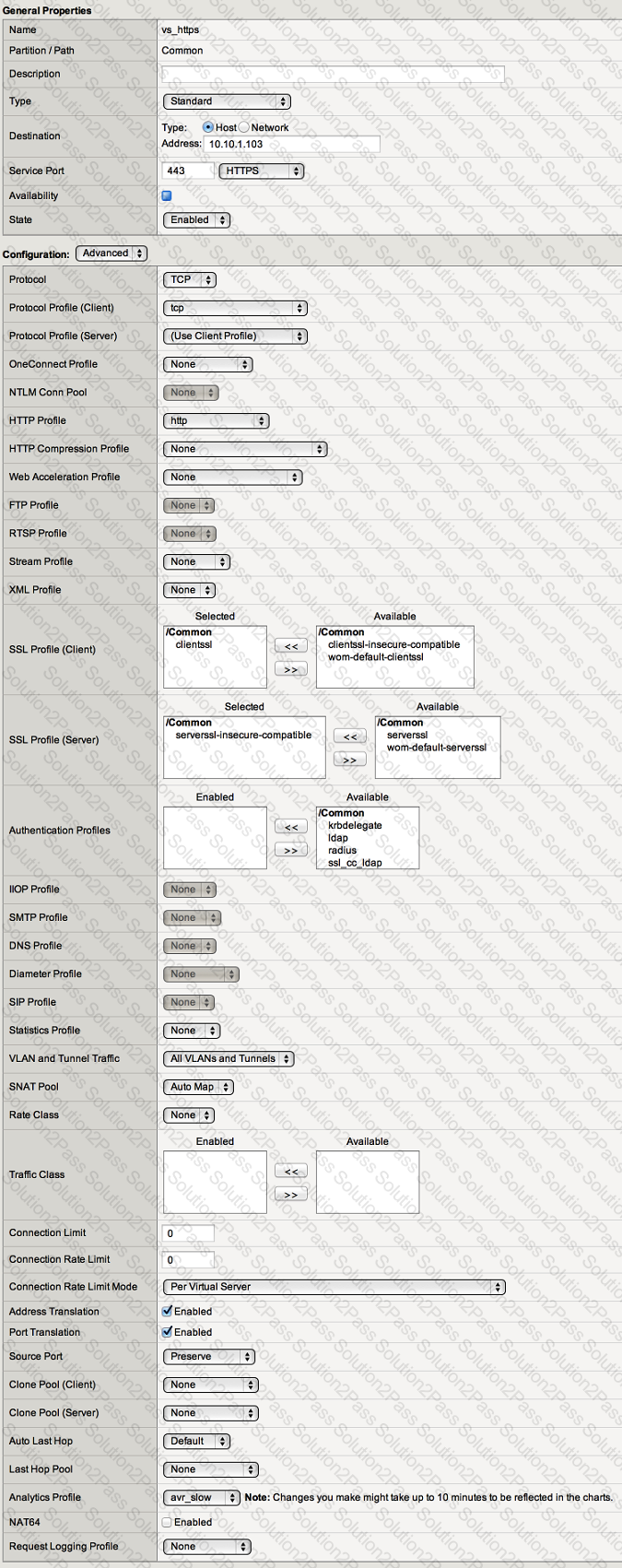

Refer to the exhibit.

An LTM Specialist is troubleshooting an issue with an application configured on an LTM device. The application works properly when accessed directly via the servers; however, it does not work when accessed via the LTM device. The virtual server, 192.168.1.211:443, is configured to SNAT using the address 192.168.1.144 and references a pool with the member 192.168.10.80:443. The virtual server has no Client or Server SSL profiles associated.

Which configuration change will allow the application to function through the virtual server?

A.

Change pool member port to 8443.

B.

Change virtual server port to 8443.

C.

Add SSL off-loading to the pool member.

D.

Add Client and Server SSL profiles to the virtual server.

A failover event is recorded in the log messages:

Jan 01 00:00:50 BIG-IP notice sod[5855]: 01140029:5: HA proc_running tmm fails action is go offline and down links.

Jan 01 00:00:50 BIG-IP notice sod[5855]: 010c0050:5: Sod requests links down.

Jan 01 00:00:50 BIG-IP notice sod[5855]: 010c0054:5: Offline for traffic group /Common/traffic-group-1.

Jan 01 00:00:50 BIG-IP notice sod[5855]: 010c003e:5: Offline

Jan 01 00:00:50 BIG-IP notice logger: /usr/bin/tmipsecd --tmmcount 4 ==> /usr/bin/bigstart stop racoon

Jan 01 00:00:50 BIG-IP info lacpd[5502]: 01160016:6: Failover event detected. (Switchboard failsafe disabled while offline)

Jan 01 00:00:51 BIG-IP err bcm56xxd[5296]: 012c0010:3: Failover event detected. Marking external interfaces down. bsx.c(3633)

Jan 01 00:00:51 BIG-IP info bcm56xxd[5296]: 012c0015:6: Link: 1.1 is DOWN

Jan 01 00:00:56 BIG-IP notice mcpd[5318]: 0107143c:5: Connection to CMI peer 10.0.0.3 has been removed

Jan 01 00:00:56 BIG-IP notice mcpd[5318]: 0107143a:5: CMI reconnect timer: enabled

Jan 01 00:00:56 BIG-IP notice mcpd[5318]: 01071431:5: Attempting to connect to CMI peer 10.0.0.3 port 6699

What is the cause of the failover?

A.

TMM failed, and VLAN fail-safe initiated the failover.

B.

TMM failed, and system fail-safe initiated the failover.

C.

Loss of connection to CMI peer 10.0.0.3 initiated the failover.

D.

A switchboard failure caused system fail-safe to initiate the failover.

-- Exhibit –

-- Exhibit --

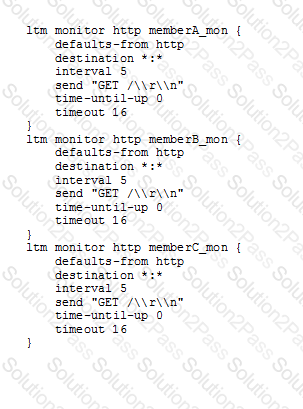

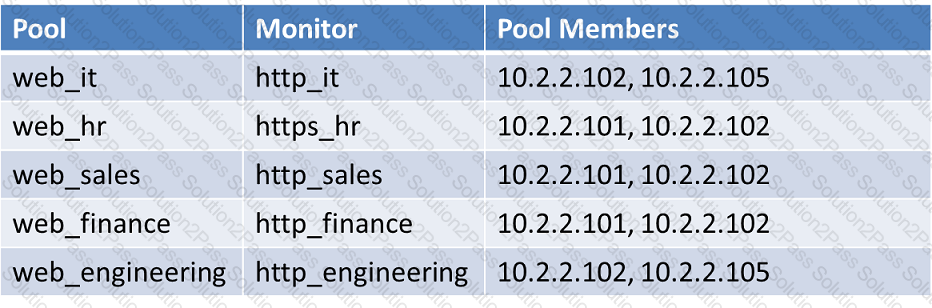

Refer to the exhibits.

Every monitor has the same Send String, Recv String, and an Alias of *:*. The LTM Specialist simplifies the configuration to minimize the number of monitors.

How many unique monitors remain?

A.

1

B.

2

C.

3

D.

4

E.

5

In preparation for a maintenance task, an LTM Specialist performs a "Force to Standby" on LTM device Unit 1. LTM device Unit 2 becomes active as expected. The maintenance task requires the reboot of Unit 1. Shortly after the reboot is complete, the LTM Specialist discovers that Unit 1 has become active and Unit 2 has returned to standby.

What would cause this behavior?

A.

Unit 1 is set with the redundancy state preference of active in devices groups.

B.

Unit 1 is set with the redundancy state preference of active in high availability.

C.

A traffic group is configured with Auto Failback, and Unit 1 is the default device.

D.

A device group is configured with Auto Failback, and Unit 1 is the default device.

A web application requires the client to provide the destination server and service identification.

Which HTTP header will supply this information?

A.

Host

B.

From

C.

Expect

D.

Connection

-- Exhibit –

-- Exhibit --

Refer to the exhibit.

An LTM Specialist is troubleshooting an HTTP monitor that is marking a pool member as down. Connecting to the pool member directly through a browser shows the application is up and functioning correctly.

How should the send string be modified to correct this issue?

A.

GET /\r\n\r\n

B.

GET / HTTP/1.0\r\n\r\n

C.

GET /\r\nHost: \r\n\r\n

D.

GET /\r\nHTTP/1.0\r\n\r\n

-- Exhibit –

-- Exhibit --

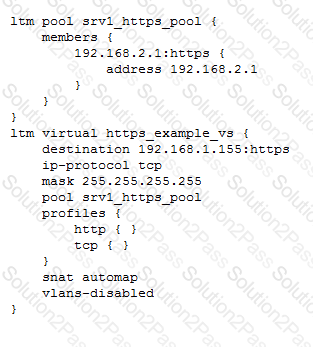

Refer to the exhibit.

An LTM Specialist is troubleshooting an issue with a new virtual server. When connecting through the virtual server, clients receive the message "The connection was reset" in the browser. Connections directly to the pool member show the application is functioning correctly.

What is the issue?

A.

The pool member is failing the monitor check.

B.

The pool member default gateway is set incorrectly.

C.

The virtual server is configured with the incorrect SNAT address.

D.

The virtual server is processing encrypted traffic as plain-text HTTP.

-- Exhibit –

-- Exhibit --

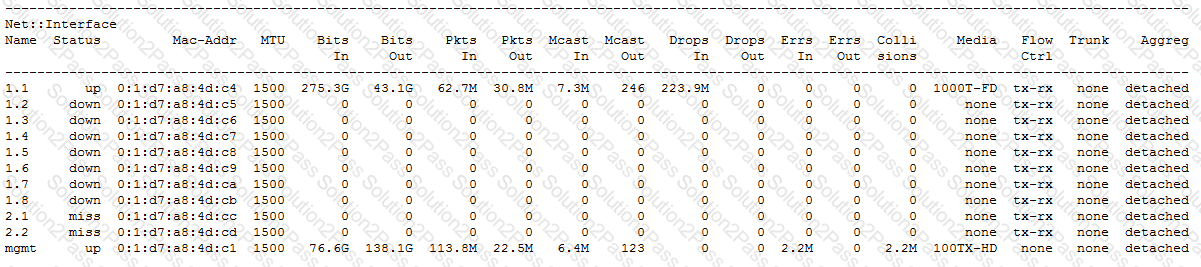

Refer to the exhibit.

Based on the output of the tmsh interface show command, what is the issue?

A.

There is a duplex mismatch on the management interface.

B.

Interfaces 2.1 and 2.2 are defective and need replacement.

C.

Flow Control is NOT configured on the management interface.

D.

There are too many drops on inbound traffic on interface 1.1.

An LTM Specialist wants to allow access to the Always On Management (AOM) from the network.

Which two methods should the LTM Specialist use to configure the AOM interface? (Choose two.)

A.

Configure the AOM IP from the front panel buttons and LCD.

B.

Choose the network configurator in the AOM menu on the serial port.

C.

Configure the AOM network address in the GUI under System>Platform.

D.

Log in to the Host via ssh, "ssh aom", and modify the network configuration file.

An LTM Specialist configures two LTM devices in a high-availability pair with trusts established and device groups configured properly using network failover. After several months, the LTM Specialist notices that changes made to one LTM device do NOT cause the synchronization status to update to "changes pending," and this device does NOT synchronize with the device group.

Which two steps should the LTM Specialist take to identify the issue? (Choose two.)

A.

Verify that NTP is synchronized.

B.

Verify the network connectivity between the devices.

C.

Verify that the devices are not using self-signed certificates.

D.

Verify that ConfigSync is using the management IP address.

E.

Verify that port lockdown on the ConfigSync interface is set to allow port 1026.

An LTM device is load balancing telnet and ssh applications in a client/server environment experiencing significant packet delay.

Which setting in the TCP profile should reduce the amount of packet delay?

A.

disable Bandwidth Delay

B.

disable Nagle's Algorithm

C.

enable Proxy Maximum Segment

D.

increase Maximum Segment Retransmissions

-- Exhibit –

-- Exhibit --

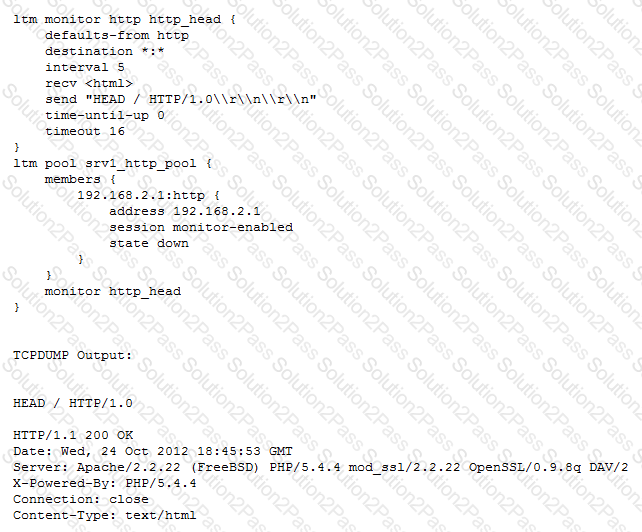

Refer to the exhibit.

An LTM Specialist is troubleshooting a new HTTP monitor on a pool. The pool member is functioning correctly when accessed directly through a browser, although the monitor is marking the member as down. As part of the troubleshooting, the LTM Specialist has captured the monitor traffic via tcpdump.

How should the LTM Specialist resolve this issue?

A.

Add the 'http' monitor to the pool.

B.

Add the 'icmp' monitor to the node.

C.

Modify the receive string to valid content.

D.

Correct the firewall rules on the pool member.

-- Exhibit –

-- Exhibit --

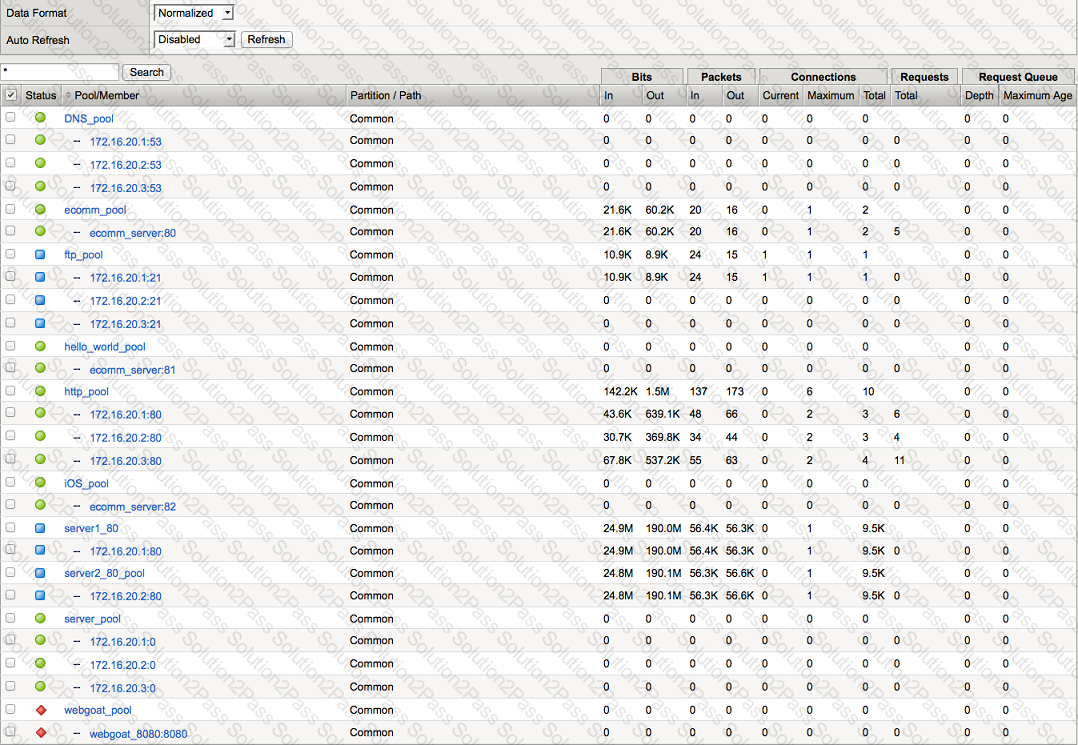

Refer to the exhibit.

Which pool can be removed without affecting client traffic?

A.

ftp_pool

B.

http_pool

C.

server1_80

D.

server_pool

A web application is meant to log the URI of the resource that responded to the client's initial Request-URI.

Which HTTP header will supply this information?

A.

Via

B.

Server

C.

Trailer

D.

Referer

An active/standby pair of LTM devices deployed with network failover are working as desired. After external personnel perform maintenance on the network, the LTM devices are active/active rather than active/standby. No changes were made on the LTM devices during the network maintenance.

Which two actions would help determine the cause of the malfunction? (Choose two.)

A.

checking that the configurations are synchronized

B.

checking the configuration of the VLAN used for failover

C.

checking the configuration of the VLAN used for mirroring

D.

checking the open ports in firewalls between the LTM devices

E.

checking synchronization of system clocks among the network devices

An LTM Specialist uploaded new releases .iso and .md5 files titled "BIGIP-FILENAME" via the GUI.

Which commands are run via the command line from the root directory to verify the integrity of the new .iso file?

A.

cd /var/shared/images

md5sum --check BIGIP-FILENAME.iso

B.

cd /shared/images

md5sum --check BIGIP-FILENAME.iso

C.

cd /var/shared/images

md5sum --check BIGIP-FILENAME.iso.md5

D.

cd /shared/images

md5sum --check BIGIP-FILENAME.iso.md5

A stand-alone LTM device is to be paired with a second LTM device to create an active/standby pair. The current stand-alone LTM device is in production and has several VLANs with floating IP addresses configured. The appropriate device service clustering (DSC) configurations are in place on both LTM devices.

Which two non-specific DSC settings should the LTM Specialist configure on the second LTM device to ensure no errors are reported when attempting to synchronize for the first time? (Choose two.)

A.

pools

B.

VLANs

C.

default route

D.

self IP addresses

There is a fault with an LTM device load balanced trading application that resides on directly connected VLAN vlan-301. The application virtual server is 10.0.0.1:80 with trading application backend servers on subnet 192.168.0.0/25. The LTM Specialist wants to save a packet capture with complete payload for external analysis.

Which command should the LTM Specialist execute on the LTM device command line interface?

A.

tcpdump -vvv -w /var/tmp/trace.cap 'net 192.168.0.0/25'

B.

tcpdump -vvv -s 0 -w /var/tmp/trace.cap 'net 192.168.0.0/25'

C.

tcpdump -vvv -nni vlan-301 -w /var/tmp/trace.cap 'net 192.168.0.0/25'

D.

tcpdump -vvv -s 0 -nni vlan-301 -w /var/tmp/trace.cap 'net 192.168.0.0/25'

-- Exhibit –

-- Exhibit --

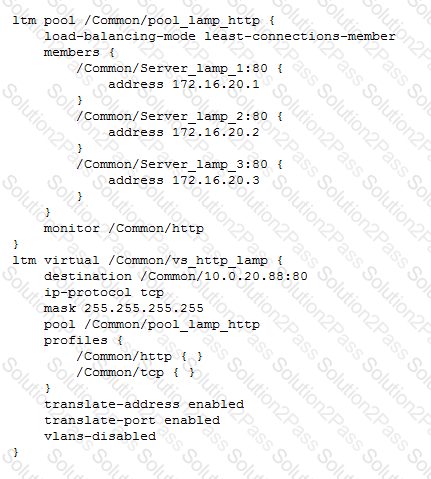

Refer to the exhibit.

Users report that a web application works incorrectly. Sometimes contextual data displayed on the web pages is accurate; other times it is inaccurate.

The LTM administrator looks at the connection table with a filter on one of the client IP addresses currently connected using the command "tmsh show sys connection cs-client-addr 10.0.20.1"

with the following results:

10.0.20.1:60048 10.0.20.88:80 10.0.20.1:60048 172.16.20.1:80 tcp 3 (tmm: 0)

10.0.20.1:60050 10.0.20.88:80 10.0.20.1:60050 172.16.20.3:80 tcp 3 (tmm: 0)

10.0.20.1:60047 10.0.20.88:80 10.0.20.1:60047 172.16.20.2:80 tcp 3 (tmm: 0)

10.0.20.1:60049 10.0.20.88:80 10.0.20.1:60049 172.16.20.1:80 tcp 3 (tmm: 0)

What is the solution to the problem?

A.

Synchronize the clock of the LTM device with NTP.

B.

Modify the load balancing method attached to the pool.

C.

Set up an HTTP cookie insert profile in the virtual server.

D.

Modify the setup of the monitor bound to the pool used by the application.

A new web application is hosted at www.example.net, but some clients are still pointing to the legacy web application at www.example.com.

Which iRule will allow clients referencing www.example.com to access the new application?

A.

when HTTP_REQUEST {

if {[HTTP::host] equals "www.example.*" }{

HTTP::redirect "http://www.example.net" }

}

B.

when HTTP_REQUEST {

if {[HTTP::host] equals "www.example.com" }{

HTTP::redirect "http://www.example.net" }

}

C.

when HTTP_DATA {

if {[HTTP::host] equals "www.example.*" }{

HTTP::redirect "http://www.example.net" }

}

D.

when HTTP_RESPONSE {

if {[HTTP::host] equals "www.example.com" }{

HTTP::redirect "http://www.example.net" }

}
