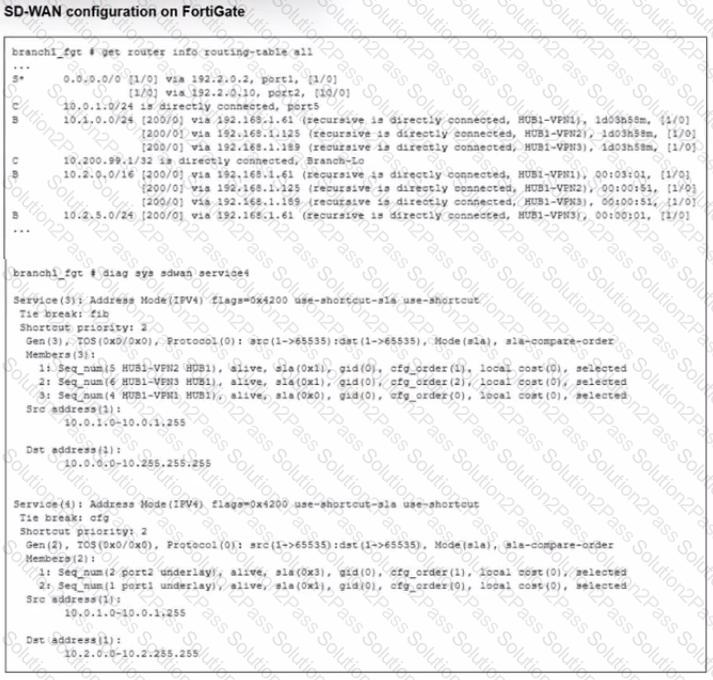

Traffic steering in Fortinet SD-WAN is based on defined rules and the corresponding outgoing interfaces. The exhibit (not shown here) would indicate that the traffic from the LAN subnet 10.0.1.0/24 to the server 10.2.5.254 is matched by SD-WAN rule 3 and sent out via the HUB1-VPN3 interface.

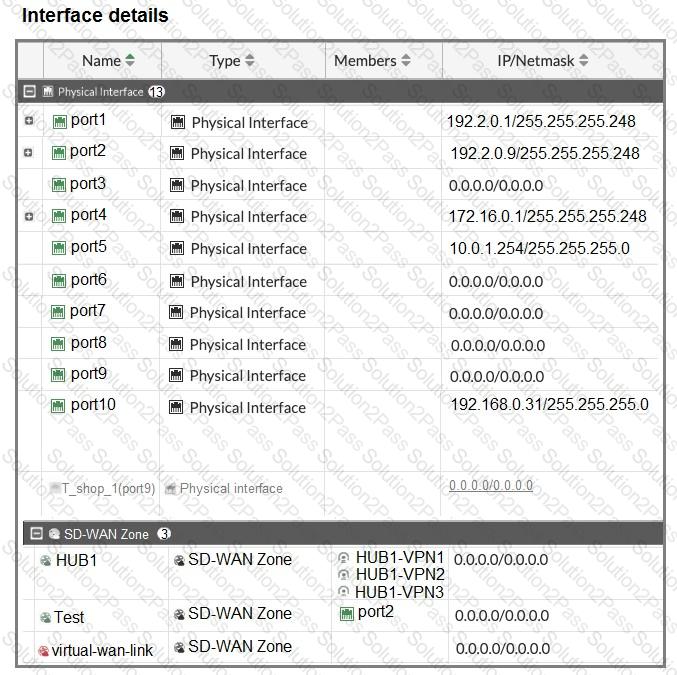

In the exhibits, port2 is already assigned to the SD-WAN zone named Test. An interface can only belong to a single SD-WAN zone, so before you can add both port1 and port2 into the new SD-WAN zone Underlay, you must first delete the SD-WAN Zone Test to free port2.

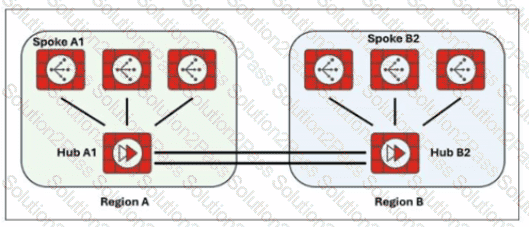

To allow spokes in different hub-and-spoke groups to establish ADVPN shortcuts, the hubs must be configured to forward and send ADVPN shortcut offers. The key required settings on the hub are auto-discovery-forwarder (for VPNs to hubs) and auto-discovery-sender (for VPNs to spokes). This ensures the hub can facilitate and advertise ADVPN shortcut offers between spokes.

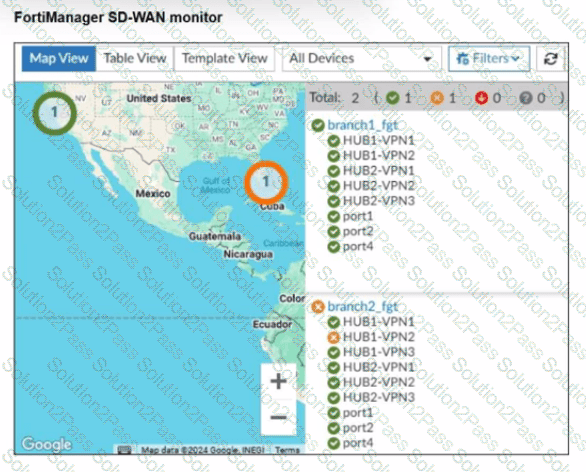

The SD-WAN monitor’s table view in FortiManager provides a donut visualization plus a detailed table that shows each SD-WAN member’s status and SLA pass/miss, giving the per-member health view you’re after.

The provisioning templates in FortiManager are designed for flexible, scalable configuration of large SD-WAN deployments. The official documentation explains:

"Template groups can consist of both system and SD-WAN templates, providing a way to apply consistent settings across multiple devices. CLI templates are evaluated and executed in order from top to bottom within the template group, which is crucial for managing dependencies. Furthermore, CLI template groups can contain both regular CLI templates and advanced (Perl-script-based) templates, allowing complex or conditional configuration logic."

This modular design streamlines large deployments by separating system, SD-WAN, and CLI logic into reusable building blocks.

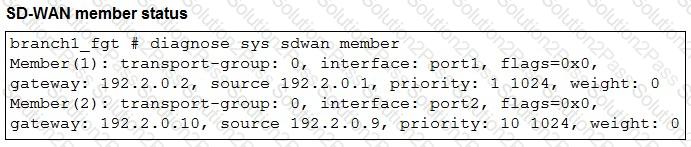

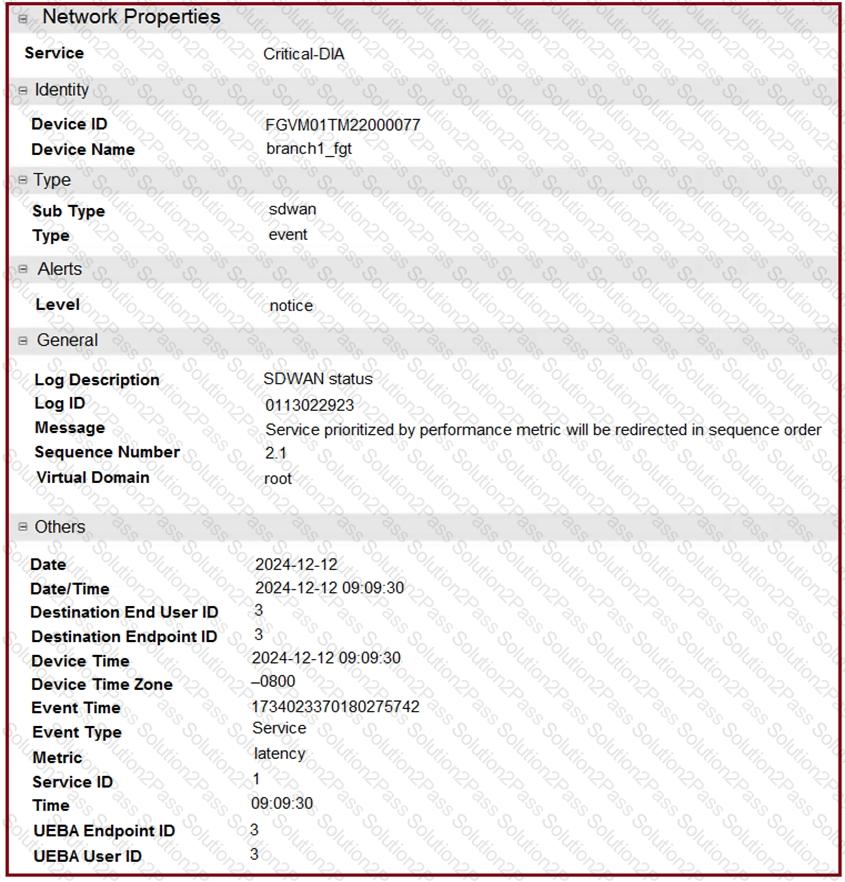

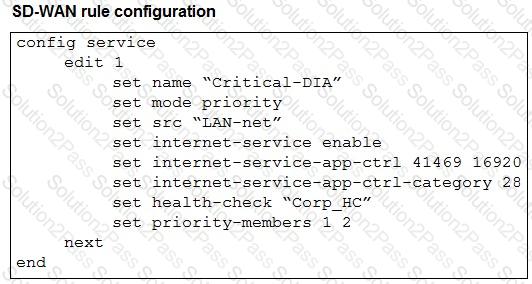

The SD-WAN rule (config service edit 1) is configured with set mode priority. This means the rule selects the best interface based on a defined performance metric, as opposed to a simple static priority or SLA. The event log (image_41cfb5.png) shows Metric latency and Message Service prioritized by performance metric will be redirected in sequence order. This indicates that the rule is using latency to determine the preferred member. Given that the log message is about a change, and the most logical reason for a change in a priority mode is that a different member is now the best performer, it implies that the latency on port2 has become lower than that on port1.

The log message Service prioritized by performance metric will be redirected in sequence order confirms that FortiGate is changing the member being used for this service. Because the mode is priority, FortiGate dynamically selects the member that currently meets the best performance criteria, which in this case is latency. The log implies a new member has been selected as the most optimal, and with the default configuration, the members are sorted based on their performance, so the outgoing interface list is effectively updated to prefer the new best-performing member (port2).

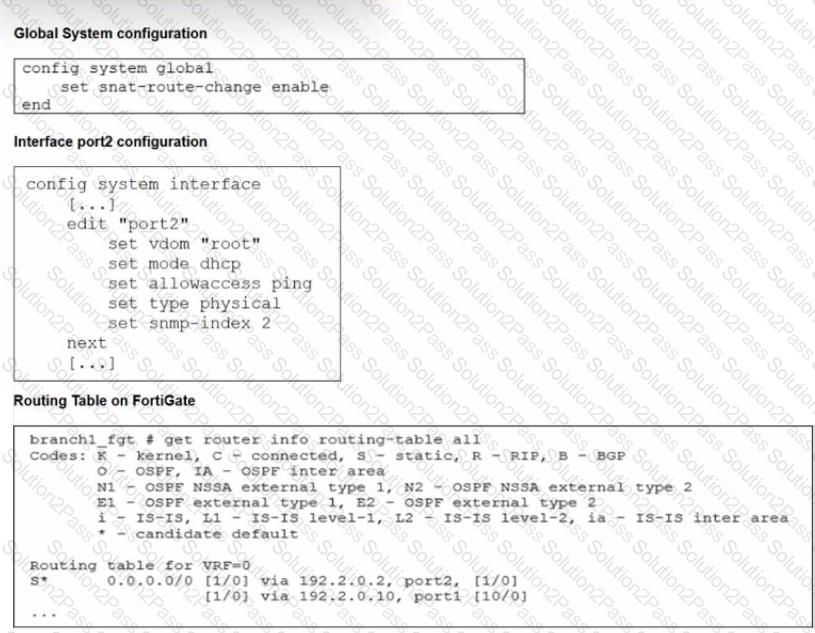

When the member priority of a port is increased (e.g., port2 to 20), FortiGate evaluates existing sessions and applies “dirty” flags where applicable. The SD-WAN session management mechanism is described in detail: “Upon a change in SD-WAN member priority, all existing sessions using that member are marked as dirty. For SNAT sessions, the gateway information is updated to ensure future packets are routed through the newly preferred member, in this case, port1. This automatic re-evaluation allows SD-WAN to dynamically respond to topology or priority changes, maintaining optimal routing.” This is fundamental to seamless failover and session persistence in Fortinet SD-WAN, ensuring active flows are redirected based on updated priorities or health status.

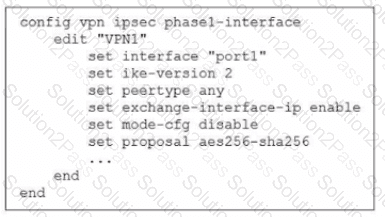

This configuration demonstrates a typical IPsec setup for SD-WAN overlays where the hub side requires a manually defined tunnel IP address, and the spoke can be flexibly configured, including interoperability with third-party IPsec devices. As described in the Fortinet SD-WAN Architect Guide: “For some overlays, the tunnel interface IP is configured statically on the hub side, which allows more control over overlay subnetting and facilitates the use of user-defined overlay IP addresses. This approach is also a requirement for compatibility with non-FortiGate endpoints, such as third-party IPsec devices that may not support dynamic address assignment via IKE or proprietary mechanisms.” This enables hybrid SD-WAN environments and advanced designs involving external partners or cloud services. Overlay IP flexibility is critical for route control and segmentation.

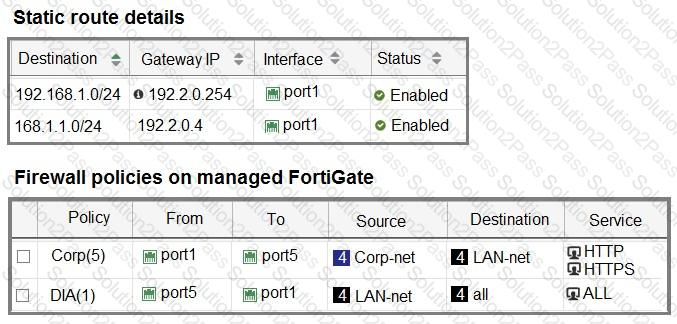

When you enable SD-WAN and add interfaces as SD-WAN members, those interfaces are no longer referenced directly in routing. You must replace routing configuration references (e.g., static routes, policy routes) with the SD-WAN zone. Firewall policies, however, can still point to the SD-WAN zone without requiring replacement of individual member interfaces.

When planning to deploy a large number of branches (e.g., 50), Fortinet recommends several preparatory steps to simplify and automate the rollout. Creating model devices allows you to predefine configurations and settings that can be cloned or adapted for each branch, saving time and minimizing manual errors. Preparing a Zero Touch Provisioning (ZTP) template enables automatic onboarding and provisioning of new FortiGates as soon as they come online, reducing manual intervention. Lastly, creating a policy blueprint allows for standardized policy deployment across all branches, ensuring consistent security and SD-WAN rule enforcement. This holistic approach streamlines the deployment process, allows for rapid scaling, and ensures that all devices are configured according to corporate policy from day one.

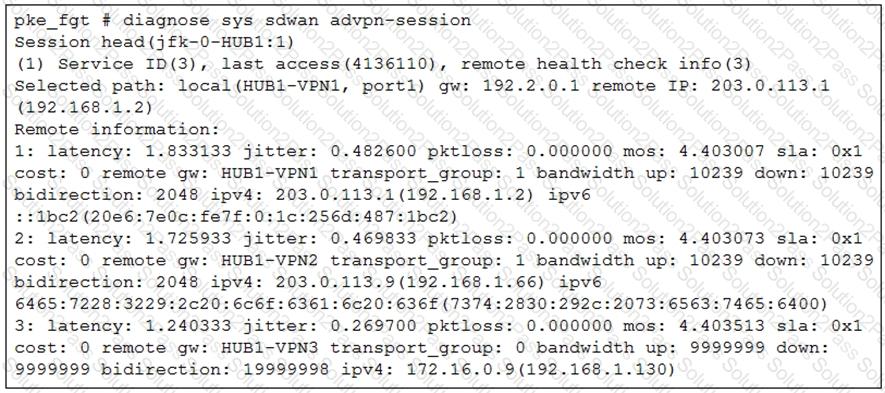

The diagnose output shows multiple ADVPN tunnels (HUB1-VPN1, HUB1-VPN2, HUB1-VPN3) with detailed latency, jitter, and packet loss values being reported for each. In ADVPN, the spoke performs embedded health checks and provides the hub with the performance metrics for each tunnel. Therefore, the device in the exhibit is a spoke, and it is sending health-check measurements for each tunnel to the hub.

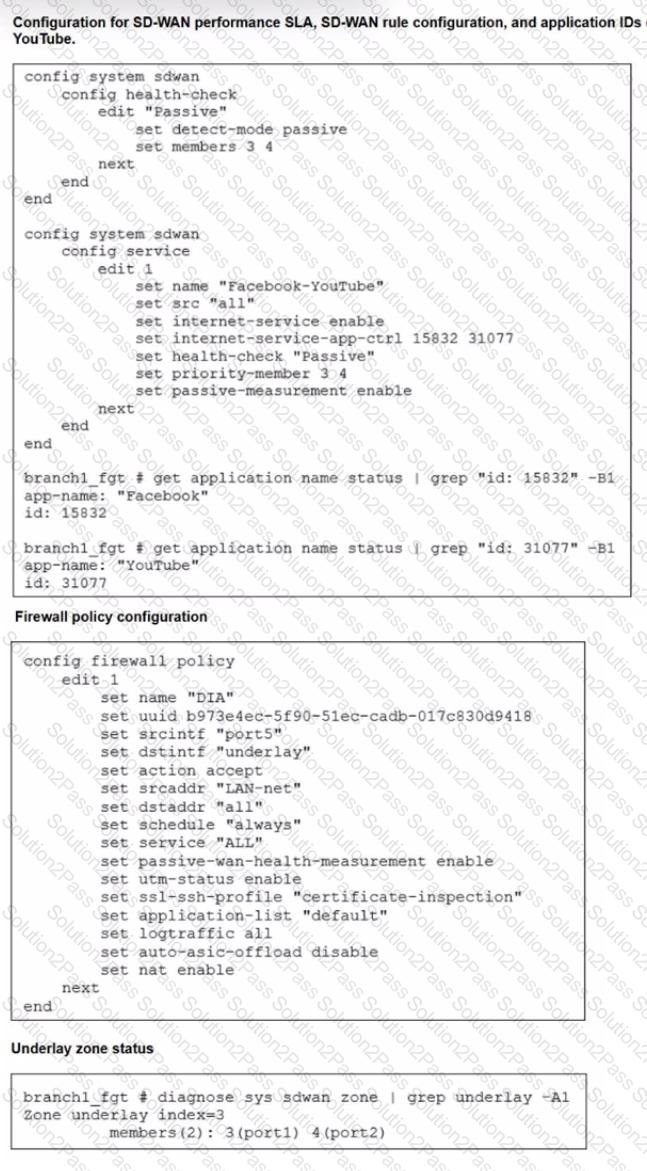

FortiGate passively monitors the member if TCP traffic is passing through the member → With Prefer Passive mode, FortiGate inspects existing traffic (like TCP flows) to measure performance metrics without generating its own probes.

FortiGate passively monitors the member if ICMP traffic is passing through the member → Similarly, when ICMP flows exist, FortiGate uses them for SLA checks.

When using the diagnose sys session list command, SD-WAN-specific session steering is indicated by the presence of the sdwan_service_id field in the session data. This identifier ties the session directly to a specific SD-WAN rule or service. As noted in the Fortinet documentation: “Sessions that are handled according to SD-WAN rules will include a service ID tag (sdwan_service_id) in their session listing. This allows administrators to correlate live sessions with SD-WAN policy matches for troubleshooting and visibility.” This is a crucial diagnostic tool, as it distinguishes between traffic managed by traditional routing and that explicitly controlled by SD-WAN steering logic, aiding in operational insight and troubleshooting.

FortiManager enforces a strict distinction:

"Firewall policies must reference SD-WAN zones, not individual SD-WAN members, when used in conjunction with SD-WAN templates. Attempting to install a policy that references a specific member (interface) will result in a deployment error, as member-level targeting is not supported in SD-WAN policy abstraction. This enforces centralized policy consistency and proper SD-WAN operation."

Ensuring policies target zones allows FortiGate to dynamically select the optimal member.

Enforce Device Configuration is enabled and the blueprint applies the provisioning CLI templates. The LAN-interface script sets port1 and port2 to DHCP and assigns a static IP to port5 (using the branch_id variable). Therefore, when FortiManager pushes the blueprint, it updates the configurations of port1, port2, and port5 - and their IP addresses may change accordingly.

The log shows messages on HUB1-VPN1 where the device processes a SHORTCUT_QUERY and performs NAT hole punching (peer at 192.2.0.1:4500). This indicates that the device is acting as a hub, helping two spokes (192.2.0.1 and 10.0.3.101) establish a direct ADVPN shortcut tunnel between each other, instead of routing their traffic through the hub.
