The correct answers are D. Run Remediation/Script and E. Run Playbook on Incident Trigger . FortiSIEM can block an IP address on a FortiGate through a remediation script or through a FortiSOAR playbook/connector workflow. The FortiSIEM Analyst Study Guide explains that for automatic remediation, you define a remediation script for a scenario, and that mitigation scripts can “block an IP address in a firewall” or disable a user in Active Directory. It also states that, when an automation policy is triggered and the remediation script option is enabled, FortiSIEM uses incident data and runs the script to quarantine or block the offending IP address on FortiGate.

FortiSIEM 7.4 also supports automatic playbook execution from an automation policy. The 7.4 User Guide states that under Admin > Settings > Automation Policy , you can choose Run Playbook on Incident Trigger and select a playbook. The same guide explains that FortiSOAR playbooks can call connectors, and the Fortinet FortiOS connector can perform actions such as Block IP Address on a FortiGate firewall.

Email, Remedy tickets, and generic integration policies are notification/ticketing workflows, not the direct FortiGate IP-block actions.

The automation policy is configured to run a remediation script named " Fortinet FortiOS - Block Source IP FortiOS via API " . It specifies enforcement on two FortiGate devices: FortiGate508 and FortiGate90D. Therefore, associated source IP addresses will be blocked on those two FortiGate firewalls only.

The correct answer is D because the remediation configuration defines specific enforcement targets. The FortiSIEM Study Guide explains that automation policies can run remediation scripts automatically when an incident occurs. It also explains the remediation options: Enforce On determines which devices the script runs against, while Run On identifies whether the script is launched from the supervisor or a collector. The Study Guide further states that mitigation scripts can block an IP address in a firewall or disable a user in Active Directory, and recommends specifying the Enforce On value because it controls the target device used by the remediation script. In the exhibit, the selected script is a Fortinet FortiOS block-source-IP remediation script, and the Enforce On field lists two FortiGate devices. That means the block action is targeted only at those two named FortiGate firewalls. The Aviation organization limits the automation policy context, but it does not mean every device in the organization receives the block. It is also not all FortiGate firewalls or the whole Network CMDB group.

The correct answer is B because the configuration groups results by Source IP and Destination IP , while using COUNT(Matched Events) as a display/aggregate value. FortiSIEM’s grouping logic combines events only when the selected Group By attributes match. The Study Guide explains that Group By attributes determine how matching events are placed into rows, and that when multiple events share the same grouped values, “they are grouped together in one row.” The count column then tracks the number of events represented by that row. In the exhibit, Source IP and Destination IP are the grouping fields, so FortiSIEM displays each unique connection pair once. The count shows how many matching allowed firewall connection events were seen for each pair. Option A is not correct because the exhibit does not show sorting by destination IP hit count. Option C ignores the source and destination grouping. Option D would require grouping by source IP alone or by distinct destination counts per source, which is not the shown configuration.

The operator is set to " = " , which performs an exact match on the entire raw event log, not a substring search. To find logs that contain the keyword " udp " , the analyst should use the CONTAIN operator instead. This will return all logs where " udp " appears anywhere in the raw log message.

The correct answer is D because the analyst is trying to search for raw logs that contain the keyword udp, but the filter uses the equality operator. The FortiSIEM Study Guide explains keyword searches in terms of Raw Event Log CONTAIN logic. In the keyword phrase search section, the guide states that without quotes, FortiSIEM searches raw event logs by using conditions such as Raw Event Log CONTAIN TCP OR Raw Event Log CONTAIN connection . Another analytics example explains that searching for TCP or UDP events uses the raw event log containing the keyword tcp or udp and that the search returns case-insensitive results for TCP and UDP. This directly eliminates option C. The time range is already set to the last two hours, which is correct for historical raw log searching. The problem is the operator. To find a keyword anywhere inside a raw log message, the analyst should use CONTAIN , not =.

The correct answer is B. FortiSIEM does not create a separate incident every time the same rule condition repeats. The FortiSIEM Study Guide explains that rules process events based on time periods, and if the same rule with the same incident conditions triggers repeatedly, FortiSIEM increases the count instead of creating a new incident. The incident list view includes the incident Count field for this purpose. The guide further explains that when an incident triggers for the first time, FortiSIEM sets First Occurred and Last Occurred to the same value. When the incident triggers again within the rule evaluation period, FortiSIEM increases the count and updates Last Occurred, while the triggered Events view displays the latest event data. This behavior prevents duplicate incident flooding while preserving evidence that the condition is recurring. Option A is incorrect because FortiSIEM does not use a “Repeated” incident status. Option C and D are incorrect because FortiSIEM does not generate a new incident for every repeated trigger when the incident conditions match an already active incident.

The best answer is A. Two . The exhibit shows an Analytics Search scatter plot with two visually distinct groups of data points: one isolated group around the lower-left area of the chart and another dense group near the upper-right area. For KMeans clustering, the analyst must provide the number of clusters based on the observed structure of the data. The FortiSIEM 7.4 User Guide describes KMeans as “an unsupervised clustering algorithm that groups data points into user specified K groups so that each data point belongs to one group.” It also states that KMeans “tries to iteratively minimize intra-cluster distance and maximize inter-cluster distance” and notes that the user must “specify the number of clusters based on user’s knowledge of data.”

The same FortiSIEM guide explains that during Clustering Local Mode training, the analyst chooses the algorithm and, “for KMeans choose the cluster size as a guess.” In this exhibit, the natural guess is 2, because the scatter plot separates into two obvious groups. Fifty or 100 clusters would overfit the small number of visible groups, while one cluster would merge two clearly separate behaviors into a single cluster.

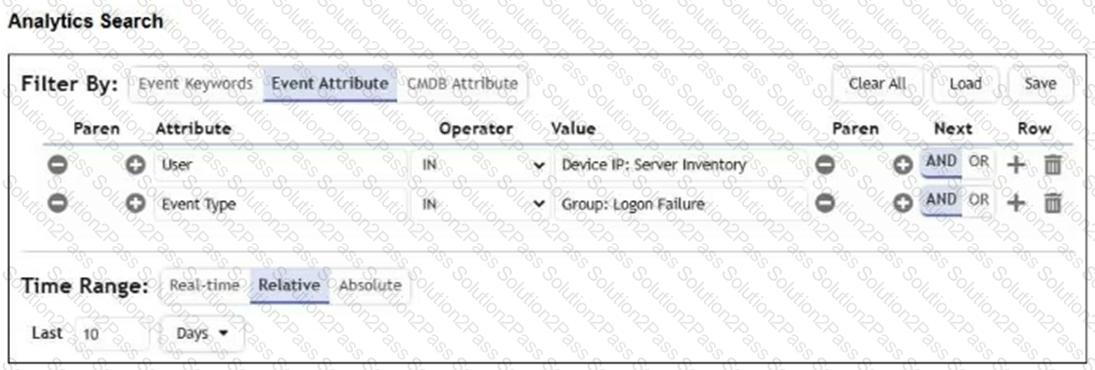

The search fails because nested analytics queries require the outer query attribute type to match the inner query display-column data type. The FortiSIEM Study Guide explicitly explains this rule in the Nested Query section: “Another important aspect to understand is that the data value types must match.” It further explains that each inner query display column has a data value type, such as IP, string, or integer, and the outer query attribute must match that type. The FortiSIEM 7.4 User Guide states the same operational requirement: for a nested query to work correctly, “the data type of the filter attribute in the outer query must match up with the data type of one certain display column in the inner query.” Therefore, if the inner query returns a string attribute but the outer query compares it against an IP-type attribute, FortiSIEM cannot produce a valid match. The issue is not the time range, not the use of User and Event Type together, and not the Boolean operator. It is an attribute type mismatch between the query and subquery.

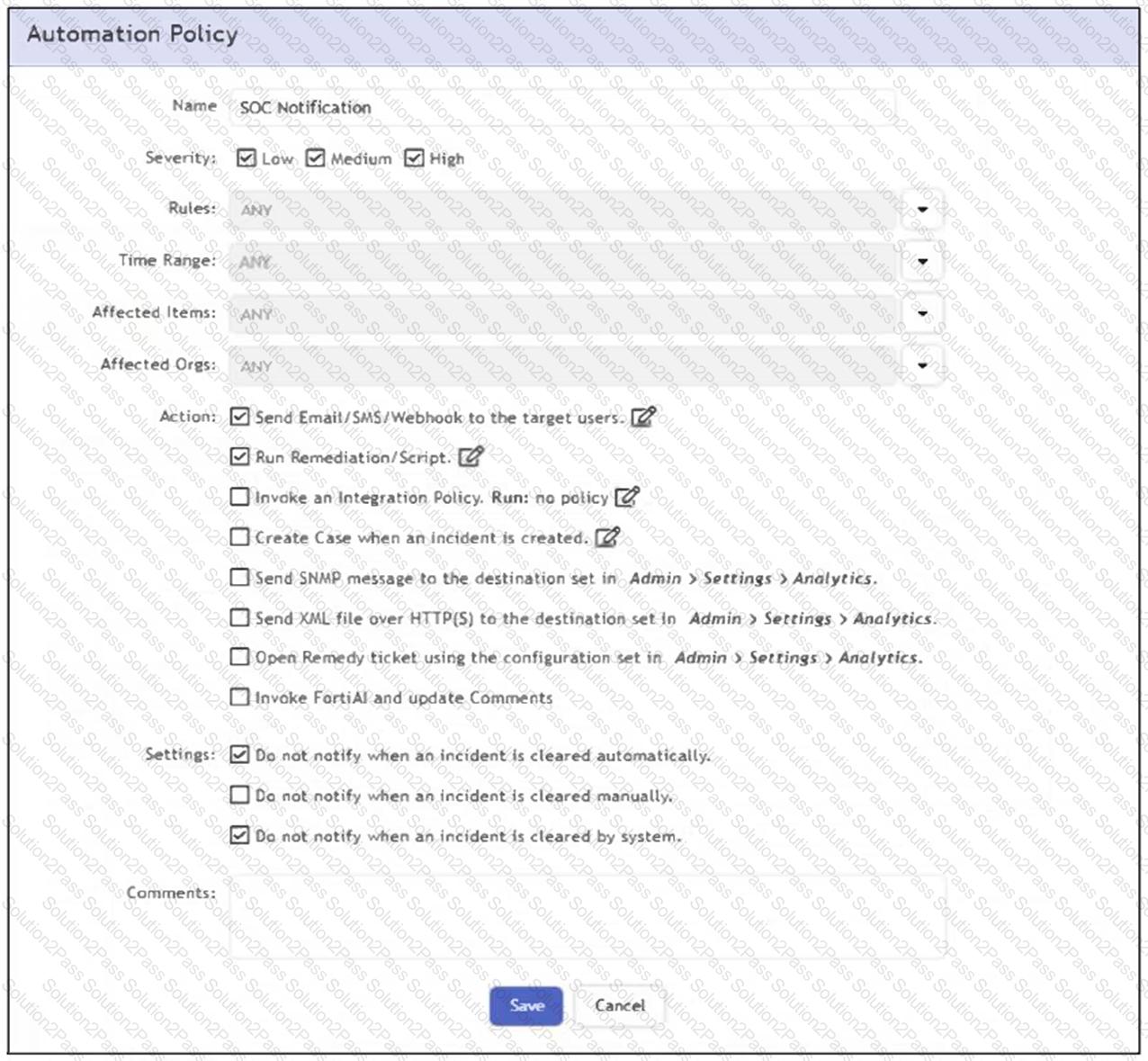

The correct answers are A. Email and B. FortiSIEM Case. FortiSIEM automation policies can notify or route work to analysts when an incident is triggered. The Study Guide describes the incident notification email workflow and explains that when an incident triggers and an automation policy is defined, FortiSIEM can send a notification email using the default template. It also explains that notification frequency is configured per rule and that repeated incident notifications are controlled by the frequency timer. The FortiSIEM 7.4 User Guide also describes automated case creation through automation policy. It states that an automation policy can use the action Create Case when an incident is created, and that a case management policy can assign FortiSIEM Analyst Teams in an ordered handling sequence. Syslog is not listed as one of the analyst notification methods in the automation policy options shown in this question; FortiSIEM supports SNMP and webhook-style actions, but not “Syslog” as the listed answer. A pop-up window is not an automation policy notification method. Therefore, the two correct analyst-notification/routing methods are Email and FortiSIEM Case.

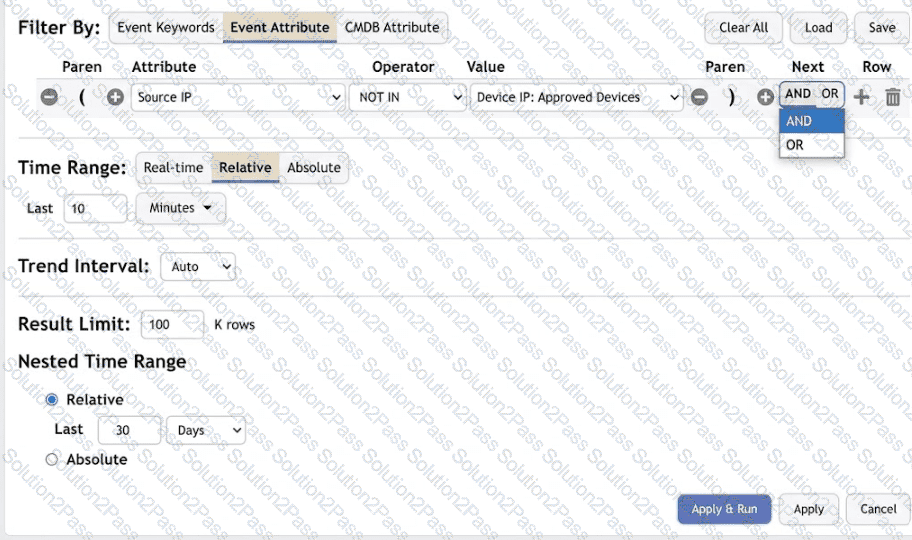

The correct answer is D. The exhibit shows an outer event query using the Event Attribute filter Source IP NOT IN Device IP: Approved Devices. The outer query time range is set to Relative — Last 10 Minutes, so FortiSIEM searches only the event data from the last 10 minutes. The exhibit also shows a separate Nested Time Range set to Relative — Last 30 Days. In FortiSIEM nested searches, the nested time range applies to the inner report/subquery, not to the outer event search. The FortiSIEM 7.4 User Guide states that nested query functionality lets one query refer to results from another query, and for outer event / inner event nested searches, it instructs the user to “choose the time range for outer query” and separately “choose Nested Time Range for the inner query.” It also states that when an existing query is used as an inner query, “time range would be set separately” in the outer query configuration. Therefore, FortiSIEM searches the last 10 minutes of outer events and compares their Source IP values against the Device IP values returned by the Approved Devices report using the last 30 days nested time range.

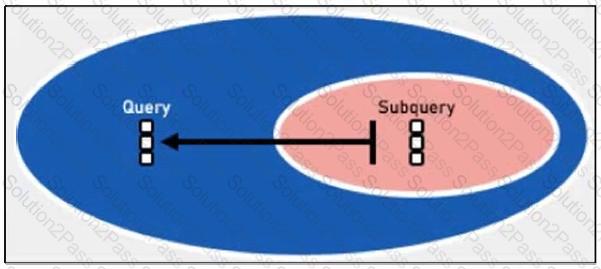

The FortiSIEM Study Guide defines a nested query as a query that has another query embedded within it, where the embedded query is known as the subquery. The FortiSIEM 7.4 User Guide lists the supported nested search scenarios: Outer CMDB Query, Inner Event Query ; Outer Event Query, Inner Event Query ; and Outer Event Query, Inner CMDB Query . These supported combinations prove that the inner or subquery can be either an Event Query or a CMDB Query. LDAP Query and SNMP Query are not listed as supported nested analytics subquery types. LDAP may be used for user discovery or authentication, and SNMP may be used for monitoring or discovery, but neither is referenced as a nested analytics query type. The User Guide also explains that the outer query uses Select from Report to reference the saved inner query and that the matching attribute data types must align between the outer query and the selected display column in the inner query.

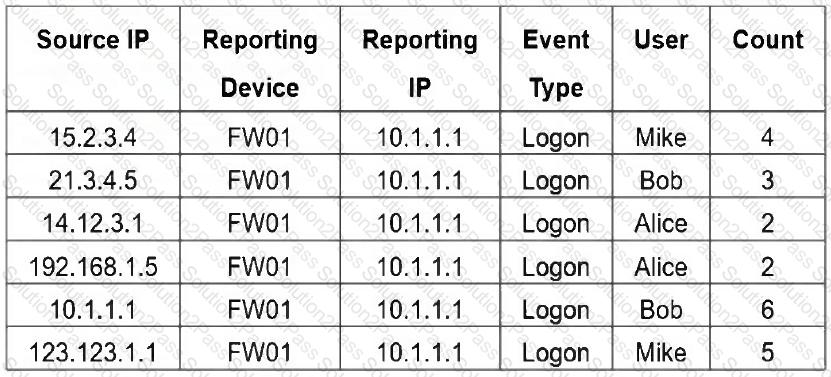

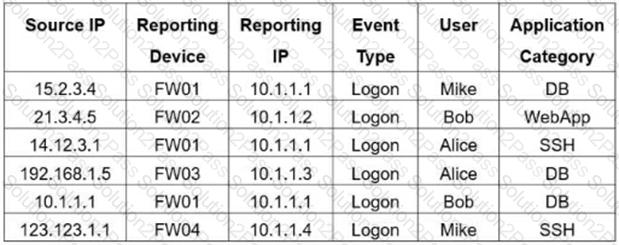

The verified answer is D. Five . FortiSIEM grouping is based on unique combinations of the selected Group By fields. The Study Guide explains this behavior clearly: if multiple events have the same selected Group By values, “they are grouped together in one row,” and the count column tracks the number of events for each row. In this question, the selected fields are User and Count . The six raw rows contain these combinations: Mike/4, Bob/3, Alice/2, Alice/2, Bob/6, and Mike/5. Because Alice/2 appears twice, those two rows are grouped into a single result. The remaining combinations are unique. So FortiSIEM displays five grouped results, not six. Six would be correct only if every row had a unique User-and-Count combination, or if grouping included another differentiating attribute such as Source IP. Since the question specifically groups only by User and Count, duplicate User/Count pairs collapse into one row. Therefore, the correct result count is five .

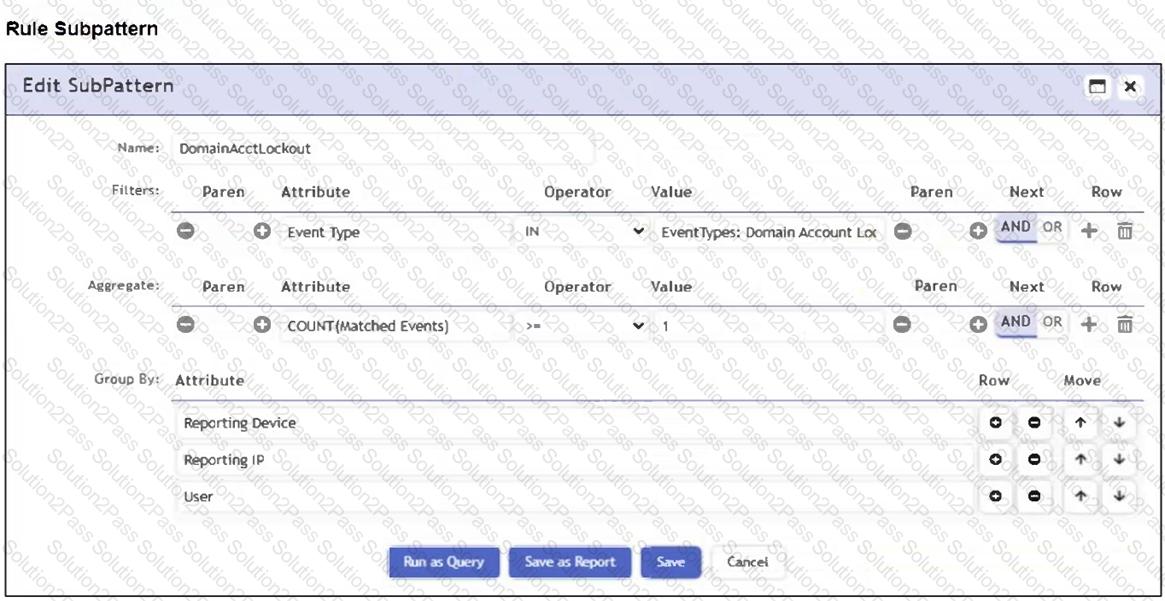

The Aggregate section contains the condition COUNT(Matched Events) > = 1, which defines how many events must match the filter criteria for the rule to trigger. This is the subpattern configuration that determines the event threshold.

The correct answer is A. Aggregate . In FortiSIEM rule subpatterns, the Filter section defines which events are eligible for matching, but the Aggregate section defines the statistical or threshold condition that must be satisfied before the subpattern is considered matched. The Study Guide explains that rule conditions are built from subpatterns of event attribute filters and aggregation functions. It also states that a single-subpattern rule is formed by three fields: filters, aggregate, and group by. In the exhibit, the aggregate line is COUNT(Matched Events) > = 1. That expression directly specifies the number of matching events required to satisfy the subpattern. Group By only controls how matching events are partitioned into separate evaluation groups. Actions define what happens after a rule triggers, such as incident generation or notification. Filters define the event type or attribute criteria, but they do not define the required count threshold. Therefore, the section that determines how many matching events are needed is the Aggregate section.

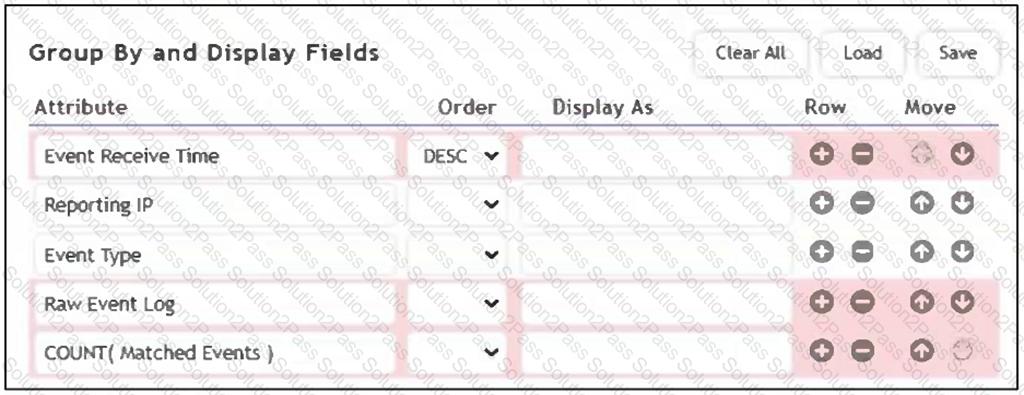

The fields are highlighted in red because unique values such as Event Receive Time and Raw Event Log cannot be used in group-by operations. Grouping requires aggregatable or consistent values across events, while these fields are unique to each event, making them incompatible for grouping.

The correct answer is A because the highlighted fields are not valid for that grouped/aggregated display configuration. The FortiSIEM 7.4 User Guide notes that some event attributes, functions, and queries are not supported in specific analytics result-filter and display contexts. It lists date fields, including examples such as Event Receive Time , and also lists Raw Event Log and Binary Raw Event Log among unsupported fields for that context. The reason is practical: grouping requires stable values that can combine multiple events into meaningful grouped rows. Attributes such as Event Receive Time and Raw Event Log are highly specific to individual events. If every event has its own receive timestamp or unique raw log content, grouping by those fields defeats aggregation and can create one row per event rather than meaningful grouped output. COUNT(Matched Events) itself is a valid aggregate expression when used correctly. Event Receive Time is available in logs, but it is not appropriate as a grouped field in the configuration shown. Therefore, the red highlighting indicates invalid grouped fields caused by unique/non-groupable values.
