NSE7_PBC-7.2 Fortinet NSE 7 Public Cloud Security 7.2 (FCSS) Free Practice Exam Questions (2025 Updated)

A VPC attachment is the type of attachment that allows you to connect a VPC to a TGW and advertise routes through BGP. A VPC attachment creates a VPN connection between the VPC and the TGW, and enables dynamic routing with BGP. A connect attachment is used to connect a VPN or Direct Connect gateway to a TGW. A route attachment is not a valid type of attachment for TGW. A GRE attachment is used to connect a FortiGate device to a TGW using GRE tunnels. References:

Creating the TGW and related resources

Configuring TGW route tables

FortiGate Public Cloud 7.2.0 - Fortinet Documentation

Updating the route table and adding an IAM policy

Considering the situation where the administrator is unable to access the FortiGate VM using its public IP address and no traffic is reaching the FortiGate's external interface, the administrator should check:

D. Check the inbound network security group rules.

Network Security Group Rules: AWS uses security groups as a virtual firewall that controls inbound and outbound traffic to AWS resources such as EC2 instances. If the FortiGate VM’s public interface is not receiving HTTPS or SSH traffic, it's likely because the inbound security group rules associated with that interface are not allowing access on the necessary ports (HTTPS - port 443, SSH - port 22).

Troubleshooting: The administrator should verify that the security group rules for the FortiGate VM’s network interface allow inbound traffic on the specific ports used for management access. If these rules are absent or misconfigured, the intended traffic will be blocked, resulting in the inability to connect.

References: The role of security groups in network traffic management is a core concept in AWS and is outlined in AWS documentation. Checking security group rules is a standard troubleshooting step when dealing with connectivity issues to AWS resources.

The two best connection solutions available between your company headquarters, branch sites, and the Azure vWAN hub are A. ExpressRoute and E. VPN Gateway.

According to the Azure documentation for Virtual WAN, ExpressRoute and VPN Gateway are two of the supported connectivity options for connecting your on-premises sites and Azure virtual networks to the Azure vWAN hub1. These options provide secure, reliable, and high-performance connectivity for your network traffic.

ExpressRoute is a service that lets you create private connections between your on-premises sites and Azure. ExpressRoute connections do not go over the public internet, and offer more reliability, faster speeds, lower latencies, and higher security than typical connections over the internet2.

VPN Gateway is a service that lets you create encrypted connections between your on-premises sites and Azure over the internet using IPsec/IKE protocols. VPN Gateway also supports point-to-site VPN connections for individual clients using OpenVPN or IKEv2 protocols3.

The other options are incorrect because:

GRE tunnels are not a supported connectivity option for Azure vWAN. GRE is a protocol that encapsulates packets for tunneling purposes. GRE tunnels are established between the connect attachment and your appliance in Azure vWAN4.

SSL VPN connections are not a supported connectivity option for Azure vWAN. SSL VPN is a type of VPN that uses the Secure Sockets Layer (SSL) protocol to secure the connection between a client and a server. SSL VPN is not compatible with the Azure vWAN hub5.

An L2TP connection is not a supported connectivity option for Azure vWAN. L2TP is a protocol that creates a tunnel between two endpoints at the data link layer (Layer 2) of the OSI model. L2TP is not compatible with the Azure vWAN hub.

1: Azure Virtual WAN Overview | Microsoft Learn 2: [ExpressRoute overview - Azure ExpressRoute | Microsoft Docs] 3: [VPN Gateway - Virtual Networks | Microsoft Azure] 4: [Transit Gateway Connect - Amazon Virtual Private Cloud] 5: [SSL VPN - Wikipedia] : [Layer 2 Tunneling Protocol - Wikipedia]

 The Azure client secret is a one-time value that is only visible when it is created. If the administrator loses or forgets the client secret, they cannot retrieve it from the Azure portal. However, they can create a new client secret and use it to configure Terraform. To create a new client secret, they need to follow these steps12:

Sign in to the Azure portal and navigate to the Azure Active Directory service.

Select the application name under the App Registrations.

Select Certificates & Secrets > New client secret to create a new client secret.

Add a description and an expiration date for the client secret and select Add.

Copy the value of the new client secret immediately as it will not be shown again.

References:

Generate new Client Secret and link to key-vault | Microsoft Learn

Azure Quickstart - Set and retrieve a secret from Key Vault using Azure portal | Microsoft Learn

Immutable infrastructure is a DevOps approach that emphasizes the creation of disposable resources instead of modifying existing ones1. This approach helps to achieve stability, consistency, and predictability in IT operations by reducing the risk of configuration drift and eliminating stateful components1.

One way to implement immutable infrastructure is to use a blue-green deployment strategy, which runs two live environments for configuration changes2. The blue environment is the current production environment, while the green environment is the new version of the application or service. When the green environment is ready, the traffic is switched from blue to green, and the blue environment is destroyed or kept as a backup2. This way, there is no need to update or patch the existing infrastructure, but rather replace it with a new one.

References:

1: Immutable Infrastructure, Architecture, and its benefits

2: Introduction to Immutable Infrastructure – BMC Software | Blogs

B. The default network ACL is configured to allow all traffic. This means that when you create a VPC, AWS automatically creates a default network ACL for that VPC, and associates it with all the subnets in the VPC1. By default, the default network ACL allows all inbound and outbound IPv4 traffic and, if applicable, IPv6 traffic1. You can modify the default network ACL, but you cannot delete it1. C. Network ACLs are stateless, and inbound and outbound rules are used for traffic filtering. This means that network ACLs do not keep track of the traffic that they allow or deny, and they evaluate each packet separately1. Therefore, you need to create both inbound and outbound rules for each type of traffic that you want to allow or deny1. For example, if you want to allow SSH traffic from a specific IP address to your subnet, you need to create an inbound rule to allow TCP port 22 from that IP address, and an outbound rule to allow TCP port 1024-65535 (the ephemeral ports) to that IP address2.

The other options are incorrect because:

You can use network ACL and security group at the same time. Network ACL and security group are two different types of security layers for your VPC that can work together to control traffic3. Network ACL acts as a firewall for your subnets, while security group acts as a firewall for your instances3. You can use both of them to create a more granular and effective security policy for your VPC.

Network ACLs are not tied to an instance. Network ACLs are associated with subnets, not instances1. This means that network ACLs apply to all the instances in the subnets that they are associated with1. You cannot associate a network ACL with a specific instance. However, you can associate a security group with a specific instance or multiple instances3.

The correct answer is B and D. A transit gateway with an attachment and a transit VPC support east-west traffic inspection within the AWS cloud by the FortiGate VM.

According to the Fortinet documentation for Public Cloud Security, a transit gateway is a network transit hub that connects VPCs and on-premises networks. A transit gateway attachment is a resource that connects a VPC or VPN to a transit gateway. By using a transit gateway with an attachment, you can route traffic from your spoke VPCs to your security VPC, where the FortiGate VM can inspect the traffic1.

A transit VPC is a VPC that serves as a global network transit center for connecting multiple VPCs, remote networks, and virtual private networks (VPNs). By using a transit VPC, you can deploy the FortiGate VM as a virtual appliance that provides network security and threat prevention for your VPCs2.

The other options are incorrect because:

A NAT gateway with an EIP is a service that enables instances in a private subnet to connect to the internet or other AWS services, but prevents the internet from initiating a connection with those instances. A NAT gateway with an EIP does not support east-west traffic inspection within the AWS cloud by the FortiGate VM3.

An Internet gateway with an EIP is a horizontally scaled, redundant, and highly available VPC component that allows communication between instances in your VPC and the internet. An Internet gateway with an EIP does not support east-west traffic inspection within the AWS cloud by the FortiGate VM4.

1: Fortinet Documentation Library - Deploying FortiGate VMs on AWS 2: [Fortinet Documentation Library - Transit VPC on AWS] 3: [NAT Gateways - Amazon Virtual Private Cloud] 4: [Internet Gateways - Amazon Virtual Private Cloud]

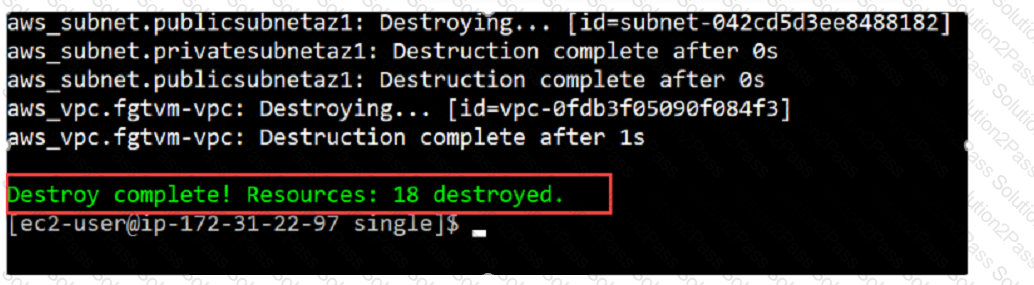

A. Use the terraform destroy command. This command is used to remove all the resources that were created using the Terraform configuration1. It is the opposite of the terraform apply command, which is used to create resources. The terraform destroy command will first show a plan of what resources will be destroyed, and then ask for confirmation before proceeding. The command will also update the state file to reflect the changes. D. The administrator must manually delete the Linux server. This is because the Linux server was not deployed using Terraform, but using AWS Marketplace2. Therefore, Terraform does not have any information about the Linux server in its state file, and cannot manage or destroy it. The administrator will have to use the AWS console or CLI to delete the Linux server manually.

The other options are incorrect because:

There is no terraform validate command. The correct command is terraform plan, which is used to show a plan of what changes will be made by applying the configuration3. However, this command does not delete any resources, it only shows what will happen if terraform apply or terraform destroy is run.

There is no terraform destroy all command. The correct command is terraform destroy, which will destroy all the resources in the current configuration by default1. There is no need to add an all argument to the command.

The correct answer is D. CloudWatch and S3.

According to the GitHub repository for the Fortinet aws-lambda-tgw script1, this function requires the following AWS services:

CloudWatch: A monitoring and observability service that collects and processes events from various AWS resources, including Transit Gateway attachments and route tables.

S3: A scalable object storage service that can store the configuration files and logs generated by the Lambda function.

By using the Fortinet aws-lambda-tgw script, you can automate the creation and configuration of Transit Gateway Connect attachments for your FortiGate devices. This can help you save time and avoid errors when adding more spoke VPCs to an existing hub and spoke topology1.

The other AWS services mentioned in the options are not required for this task. GuardDuty is a threat detection service that monitors for malicious and unauthorized behavior to help protect AWS accounts and workloads. WAF is a web application firewall that helps protect web applications from common web exploits. Inspector is a security assessment service that helps improve the security and compliance of applications deployed on AWS. DynamoDB is a fast and flexible NoSQL database service that can store various types of data.

1: GitHub - fortinet/aws-lambda-tgw

The correct answer is C. Use FortiWebCloud.

FortiWebCloud is a SaaS cloud-based web application firewall (WAF) that protects public cloud hosted web applications from the OWASP Top 10, zero day threats, and other application layer attacks1. FortiWebCloud also includes robust features such as API discovery and protection, bot mitigation, threat analytics, and advanced reporting2. FortiWebCloud supports multiple regions across the world, and you can choose the region that is closest to your applications to minimize traffic cost3.

The other options are incorrect because:

FortiADC is an application delivery controller that provides load balancing, acceleration, and security for web applications. It is not a dedicated WAF solution and does not offer the same level of protection as FortiWebCloud4.

FortiCNP is a cloud-native platform that provides security and visibility for containerized applications. It is not a WAF solution and does not protect web applications from the OWASP Top 10 vulnerabilities5.

FortiGate is a next-generation firewall (NGFW) that provides network security and threat prevention. It is not a WAF solution and does not offer the same level of protection as FortiWebCloud for web applications. It also requires additional configuration and management to deploy in the public cloud6.

1: Overview | FortiWeb Cloud 23.3.0 - Fortinet Documentation 2: Web Application Firewall (WAF) & API Protection | Fortinet 3: [FortiWeb Cloud WAF-as-a-Service | Fortinet] 4: [Application Delivery Controller (ADC) | Fortinet] 5: [Fortinet Cloud Native Platform | Fortinet] 6: [FortiGate Next-Generation Firewall (NGFW) | Fortinet]

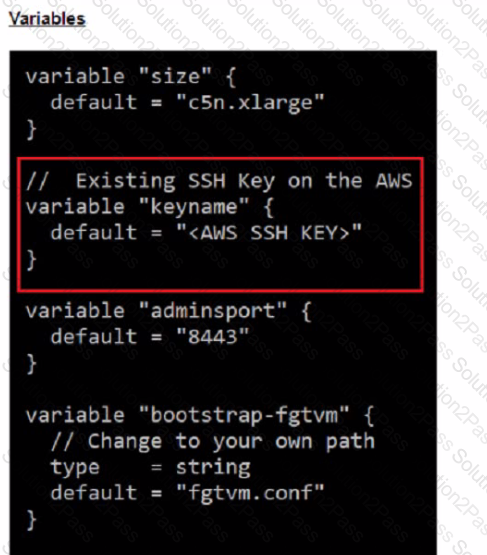

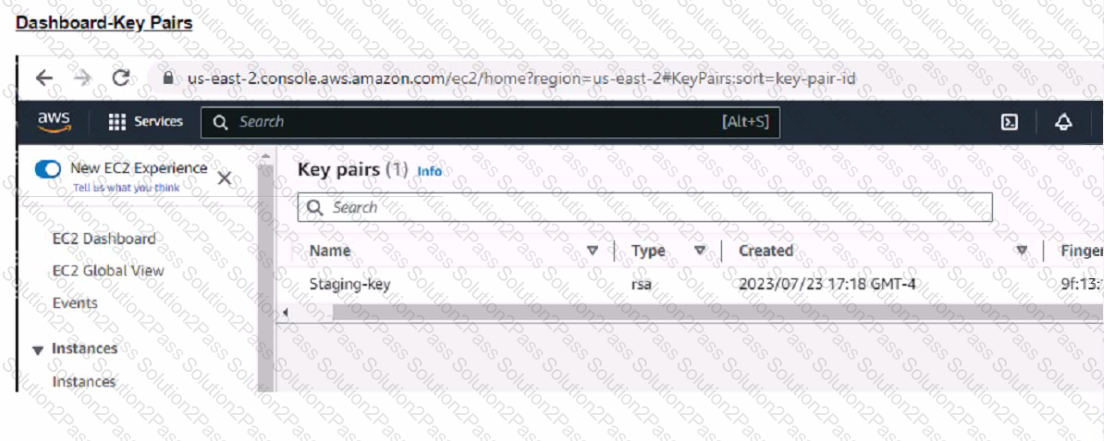

For deploying a FortiGate VM using Terraform in AWS, the administrator must use:

B. Use the Name of the key pair.

Terraform and AWS SSH Keys: When deploying instances in AWS using Terraform, it is required to specify the name of the SSH key pair to enable key-based authentication to the instance post-deployment.

Configuration Syntax: The variable keyname within the Terraform configuration should match the exact name of the SSH key pair as it is stored in AWS. This ensures that Terraform can reference the correct key during the deployment process to set up SSH access to the FortiGate VM.

Terraform Variables: The variable "keyname" block in the Terraform configuration will look for the key pair name as it should be declared in the terraform.tfvars file or passed as a variable during execution. This does not require the key pair's ID or fingerprint, just its name.

References: The need for the SSH key pair's name in Terraform configurations for AWS deployments is outlined in the Terraform AWS Provider documentation, which specifies how resources should be provisioned using Terraform.

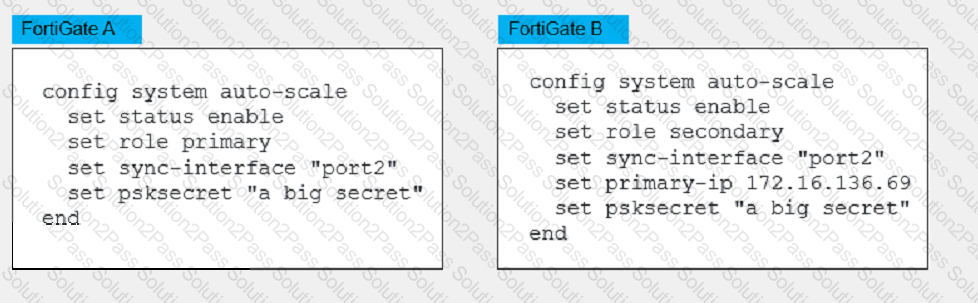

B. FortiGate A and FortiGate B are two independent devices. This means that they are not part of a cluster or a high availability group, and they do not share the same configuration or state information. They are configured as standalone FortiGates with standalone configuration synchronization enabled1. This feature allows them to synchronize most of their configuration settings with each other, except for some settings that identify the FortiGate to the network, such as the hostname1. D. It does not synchronize the FortiGate hostname. This is one of the settings that are excluded from the standalone configuration synchronization, as mentioned above. The hostname is a unique identifier for each FortiGate device, and it should not be changed by the synchronization process1.

The other options are incorrect because:

FortiGate-VM instances are not scaled out automatically according to predefined workload levels. This is a feature of the auto scaling solution for FortiGate-VM on Azure, which requires a different deployment and configuration than the one shown in the exhibit2. The exhibit shows a static deployment of two FortiGate-VM instances behind an Azure load balancer, which does not support auto scaling.

By default, FortiGate does not use FGCP. FGCP stands for FortiGate Clustering Protocol, which is used to synchronize configuration and state information between FortiGate devices in a cluster or a high availability group3. However, the exhibit shows that the FortiGates are not in a cluster or a high availability group, and they use standalone configuration synchronization instead of FGCP.

When adding the Amazon Web Services (AWS) account to the FortiCNP, you must follow these three mandatory configuration steps:

Add AWS accounts through FortiCNP. This is the first step to enable cloud protection for your AWS account. You can add one or multiple accounts automatically or manually. You need to provide the AWS account ID and a name for the account. You also need to select the optional permissions to be granted to FortiCNP as needed1.

Accept FortiCNP to create CloudTrail for the account. This is required for FortiCNP to collect and analyze the AWS API calls and events. You can choose to let FortiCNP create a CloudTrail for the account or use an existing one. You also need to specify the aggregation region for the CloudTrail1.

Launch the CloudFormation template. This is required for FortiCNP to create a stack and a role in your AWS account. The stack contains the resources that FortiCNP needs to access and monitor your AWS account. The role allows FortiCNP to assume it and perform actions on your behalf. You need to enter a custom or default role name and a unique UUID that is designated for your company on FortiCNP1.

References: Add AWS Account Automatically

https://docs.fortinet.com/document/forticnp/22.4.a/online-help/246021/add-aws-account-automatically

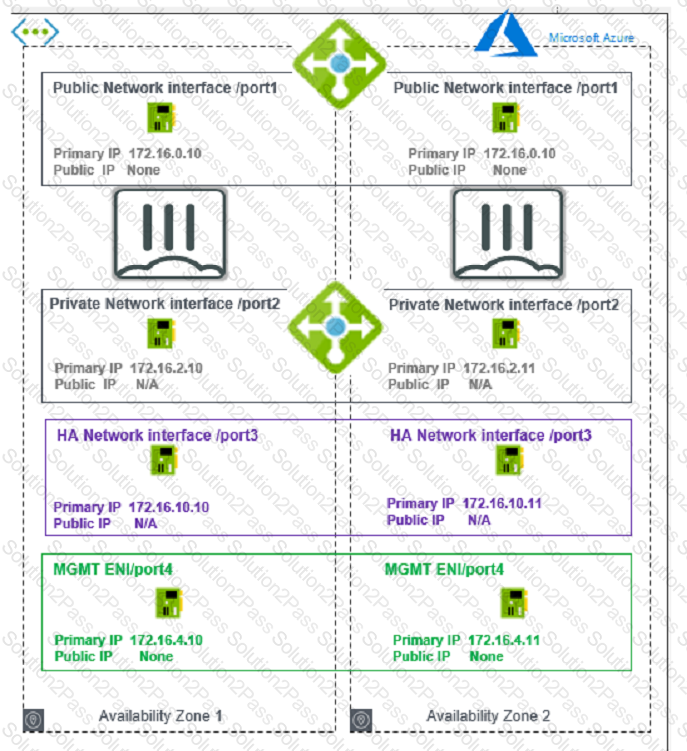

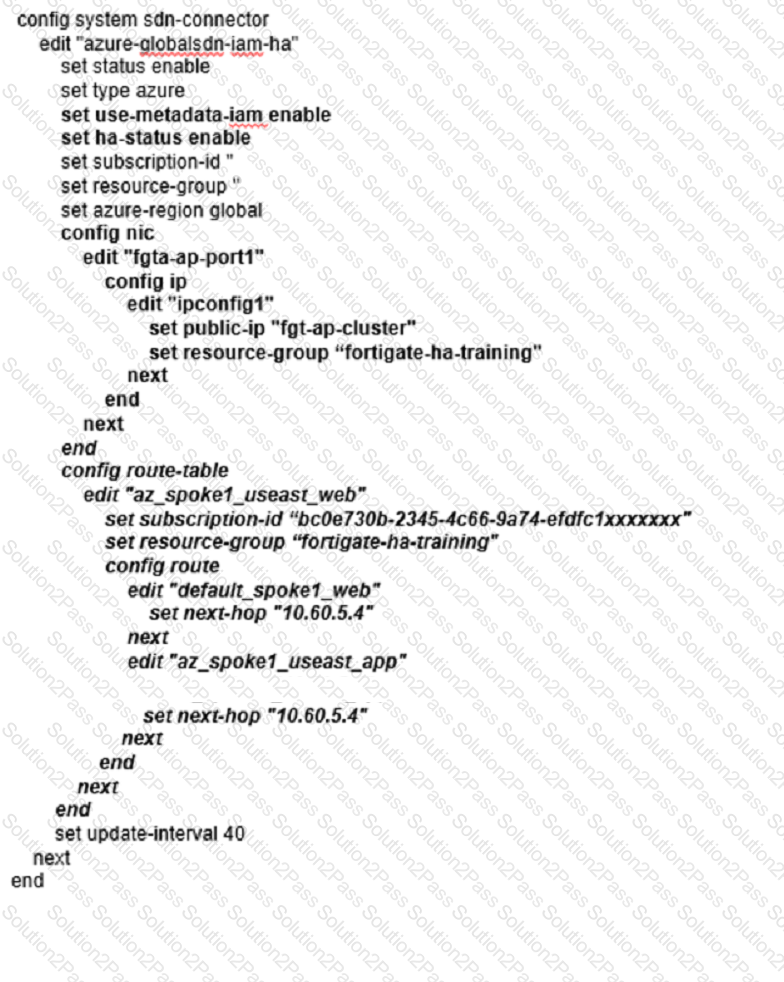

A is incorrect because the FortiGate public IP is not the next-hop for all the traffic. The FortiGate public IP is only used for incoming traffic from the internet. The Azure load balancer distributes the incoming traffic to the active FortiGate VM based on a health probe123. The FortiGate public IP is not used for outgoing traffic or internal traffic.

B is correct because an internal load balancer listener is the next-hop for outgoing traffic. The internal load balancer listener is configured with a floating IP address that is assigned to the active FortiGate VM. The internal load balancer listener also has a health probe to monitor the status of the FortiGate VMs123. The internal load balancer listener forwards the outgoing traffic to the internet through the public load balancer.

C is incorrect because you do not need to add a route to the Microsoft VIP used for the health check. The Microsoft VIP is an internal IP address that is used by the Azure load balancer to send health probes to the FortiGate VMs123. The Microsoft VIP is not reachable from outside the Azure network and does not require any routing configuration on the FortiGate VMs.

D is correct because a dedicated management interface can be used for load balancing. In this deployment, port4 is used as a dedicated management interface that connects to the management network3. The dedicated management interface can be used to access the FortiGate VMs for configuration and monitoring purposes. The dedicated management interface can also be used to synchronize the configuration and session information between the primary and secondary devices in an HA cluster2.

To keep track of sensitive data files located in AWS S3 buckets and protect them from malware, the administrator should use:

C. FortiCNP DLP policies.

Data Loss Prevention (DLP): DLP policies are designed to detect and prevent unauthorized access or sharing of sensitive data. In the context of AWS S3, DLP policies can be used to scan for sensitive information stored in S3 objects and enforce protective measures to prevent data exfiltration or compromise.

FortiCNP Integration: FortiCNP is Fortinet’s cloud-native protection platform that offers security and compliance solutions across cloud environments. By applying DLP policies within FortiCNP, the administrator can ensure sensitive data within S3 is monitored and protected consistently.

References: Fortinet's FortiCNP documentation provides information on implementing DLP policies within cloud environments, highlighting the capabilities for protecting sensitive data within cloud storage services like AWS S3.
