HPE0-V26 HP Delta - HPE Hybrid Cloud Solutions Free Practice Exam Questions (2025 Updated)

According to HPE, SMU is a web-based interface that enables you to configure, monitor, and manage storage devices. It also provides performance monitoring and reporting for HPE MSA storage arrays1. With SMU, you can demonstrate the features and monitoring capabilities of the new MSA storage array to your customer.

https://en.wikipedia.org/wiki/Fibre_Channel

https://www.techtarget.com/searchnetworking/tutorial/Network-cable-history-and-fundamentals-Cabling-tips-for-network-professionals-lesson-1

https://fibrechannel.org/wp-content/uploads/2016/04/Fibre_Channel_Connectivity_White_Paper_04-06-16.pdf

This is because single-mode fiber optic cable has a small core diameter that allows only one mode of light to propagate. This reduces signal attenuation and enables longer transmission distances than multimode fiber optic cable, which has a larger core diameter that allows multiple modes of light to propagate. Single-mode fiber optic cable can support distances up to 40 kilometers for Fibre Channel applications.

To set the email notification option, you need to go to the “Administration” tab and select the “Management” option. Then you need to enter the email address and SMTP server information in the “AlertMail” section and enable the “AlertMail” feature. You can also specify which events you want to receive emails for by selecting the appropriate severity level.

Containers solutions -> Simplify acquisition and deployment of complex systems1 Data Management and Analytics solutions -> Accelerate time to value from insights2 Hybrid Cloud solutions -> Unify operations and management3

Transcoding & Visualization solutions -> Provide stability to scale anywhere VDI solutions -> Improve user experience while managing costs

HPE workload profile is one of the HPE Intelligent System Tuning (IST) features and allows you to tune the resources in your HPE ProLiant server by choosing a preconfigured workload profile. The server will automatically configure the BIOS settings to match the selected workload12.

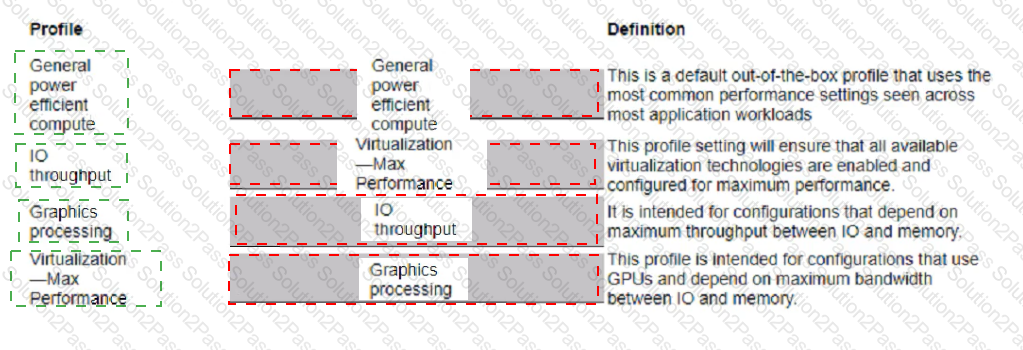

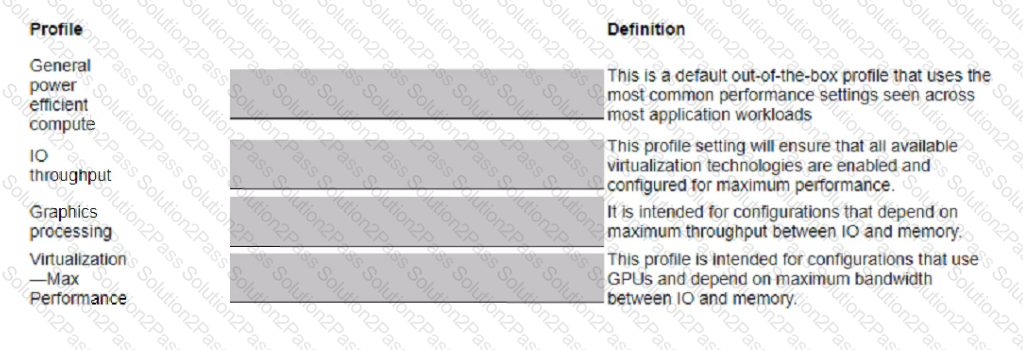

According to the information I found on the web, here is how you can match the preconfigured HPE workload profile with its definition:

General power efficient compute: This is a default out-of-the-box profile that uses the most common performance settings seen across most application workloads. It also enables power management settings that have minimal impact to overall performance. This profile is recommended for customers that do not typically tune their BIOS for their workload1.

IO throughput: This profile is intended for configurations that depend on maximum throughput between IO and memory. It disables power management settings that are known to have impact on maximum achievable bandwidth. It also applies settings that benefit NUMA awareness, as best throughput is achieved when the workload is also NUMA aware and optimized1.

Graphics processing: This profile is intended for configurations that use GPUs and depend on maximum bandwidth between IO and memory. It disables power management settings that are known to have impact on maximum achievable bandwidth. It also applies settings that benefit NUMA awareness, as best throughput is achieved when the workload is also NUMA aware and optimized1.

Virtualization —Max Performance: This profile setting will ensure that all available virtualization technologies are enabled and configured for maximum performance. It disables power management settings in favor of delivering maximum performance. Certain virtualization technologies can have possible performance impacts to nonvirtualized environments and can be disabled in other profiles

According to HPE, this license enables advanced features such as performance tiering and RAID tier affinity for HPE MSA 2060 storage arrays1. These features can help enhance the performance of SSD drives by automatically moving hot data to faster drives and keeping data on the same RAID group1.

HPE MSA 2060 Storage solution supports a mixture of 3.5 inch LFF and 2.5 inch SFF expansion enclosures for a maximum of 9 enclosures (10 total including the array). This means that it can accommodate the four existing expansion enclosures from the previous solution that have different disk sizes.

The HPE MSA 2060 also delivers up to 395,000 IOPS, which is up to 80% faster than its prior generation1. This would be beneficial for a customer who wants to fully populate the controller enclosure with SSD drives, which are faster than HDD drives.

The Advanced Data service (ADS) suite LTU is a license that enables features such as snapshot, replication, performance tiering, virtual disk groups, and thin provisioning on the HPE MSA 20602. These features can enhance the performance, availability, and efficiency of the storage system.

the HPE Smart Storage Administrator (SSA) is a web-based application that helps you configure, manage, diagnose, and monitor HPE ProLiant Smart Array Controllers and now other storage devices as well, such as host bus adapters (HBAs), HPE Storage controllers, and future devices such as SCSI Express drives, and SAS switch devices.

Some of the features of the HPE SSA include:

Creating a bootable logical drive

Checking online drive firmware activation readiness

Managing device identification LEDs

Configuring drive erase

Creating and managing arrays and logical drives

Viewing controller and drive status and health information

Updating controller firmware

This is a tool that helps you estimate power consumption and thermal output for HPE servers, storage, and networking products. You can use it to design new server environments or validate existing ones by selecting the products and configurations you want and generating a detailed report that shows the power and cooling requirements at the unit and rack level.

According to IBM, a SAN is a dedicated network that provides access to consolidated, block-level data storage1. A SAN allows multiple servers to access shared pools of storage devices, such as disk arrays or tape libraries1. A SAN can help your customer consolidate data and add additional block-based storage to their main document management application.

Kubernetes is an open-source system for automating deployment, scaling, and management of containerized applications. It groups containers that make up an application into logical units for easy management and discovery. Kubernetes supports cloud-native applications that are designed to run on distributed and dynamic environments.

Kubernetes also supports containers with persistent storage by providing various options such as:

Persistent Volumes: These are abstracted storage resources that can be provisioned by administrators and consumed by users without worrying about the underlying storage implementation.

Persistent Volume Claims: These are requests for storage by users that can be dynamically or statically bound to Persistent Volumes.

Storage Classes: These are ways to describe different kinds of storage offered by a cluster, such as SSD or HDD, performance or capacity, etc.

Volume Snapshots: These are point-in-time copies of Persistent Volumes that can be used for backup or restoration purposes.

Container Storage Interface: This is a standard interface that allows Kubernetes to communicate with various storage vendors and plugins.

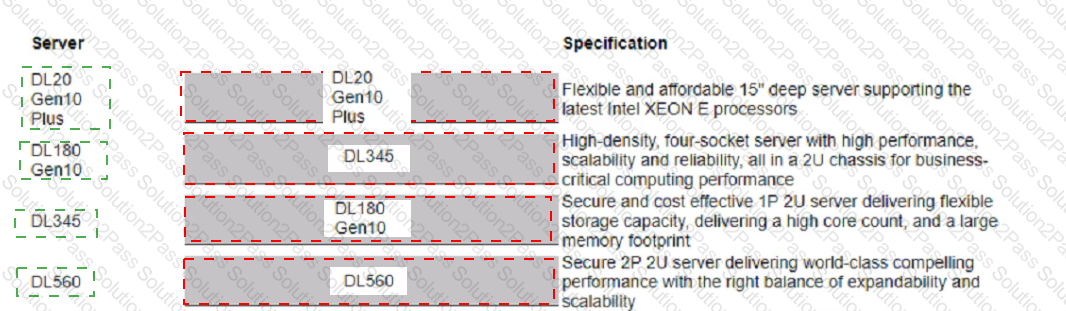

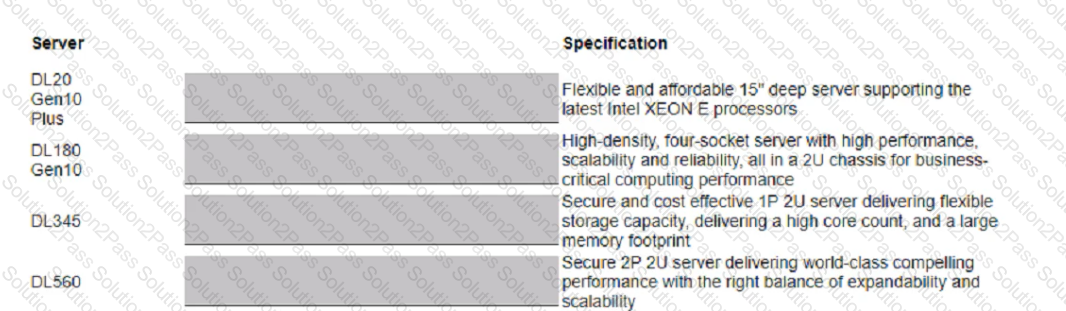

The DL20 Gen10 Plus is a flexible and affordable 15" deep server supporting the latest Intel XEON E processors12.

The DL180 Gen10 is a secure and cost effective IP 2U server delivering flexible storage capacity, delivering a high core count, and a large memory footprint12.

The DL345 is a high-density, four-socket server with high performance, scalability and reliability, all in a 2U chassis for business-critical computing performance12.

The DL560 is a secure 2P 2U server delivering world-class compelling performance with the right balance of expandability and scalability12.

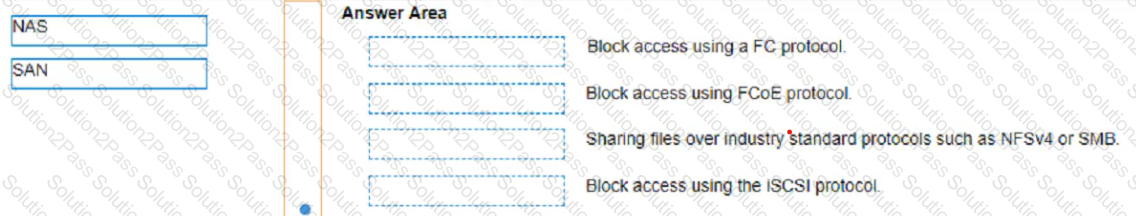

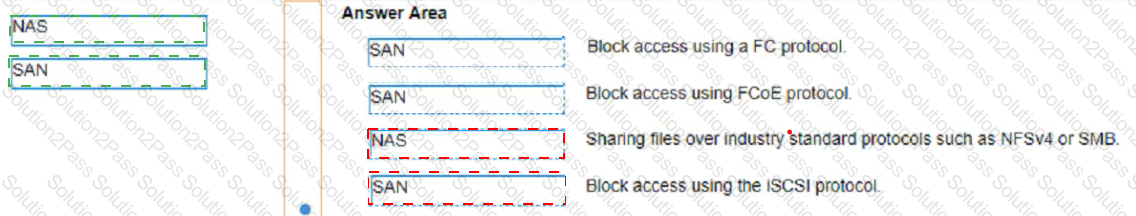

NAS: c) Sharing files over industry standard protocols such as NFSv4 or SMB.

SAN: a) Block access using a FC protocol. or b) Block access using FCoE protocol or d) Block access using the iSCSI protocol.

According to the HPE website, NAS stands for Network Attached Storage and is a storage system that provides file-level access to data over a network. NAS devices use protocols such as NFSv4 or SMB to share files with clients. NAS devices typically have their own file system and operating system and can support multiple users and applications.

SAN stands for Storage Area Network and is a network that provides block-level access to data over a dedicated network. SAN devices use protocols such as FC, FCoE, or iSCSI to transfer blocks of data to servers. SAN devices do not have their own file system and rely on the servers to manage the data. SAN devices typically provide high performance and availability for mission-critical applications.

Managed by HPE and HPE Partners: Allows customer IT employees to be more productive within an organization

Pay-per-use: Provides financial flexibility for customers, frees up capital, and provides better control costs

Scale up and down: Manages capacity ahead of demand and allows customers to easily add resources when they are needed

Self-service: Provides customers with a simple point-and-click automated provisioning

https://www.hpe.com/psnow/doc/a00029675enw?jumpid=in_lit-psnow-red

https://www.techtarget.com/searchdatacenter/feature/What-is-HPE-GreenLake-and-how-does-it-work

https://www.turn-keytechnologies.com/blog/article/how-hpe-greenlakes-consumption-model-is-transforming-networks/

HPE ProLiant DL380 Gen10 server is a versatile 2U rack server that delivers world-class performance and security for a wide range of workloads. The server supports up to two Intel Xeon Scalable processors with up to 28 cores per processor and up to 3 TB of memory. The server also offers a range of management, expansion, and security features, such as:

HPE iLO 5 software for remote management and monitoring

HPE Smart Array controllers for RAID configuration and data protection

HPE SmartMemory for enhanced performance and reliability

HPE Flexible Slot power supplies for efficiency and redundancy

HPE FlexibleLOM adapters for network connectivity options

HPE Persistent Memory for fast data access and analytics

HPE Secure Boot and Secure Start for firmware validation and protection
