H12-521_V1.0 Huawei HCIP-Intelligent Vision V1.0 Free Practice Exam Questions (2026 Updated)

During the commissioning and operation of video surveillance clients, such as the iClient, maintaining optimal playback performance is vital for accurate observation. A common technical recommendation is to avoid superimposing the video pane playing live video with the window or dialog box of another program . This is because the video decoding and rendering process on a PC involves high-frequency data transfer between the CPU/GPU and the screen buffer. When another application's window is placed over the active video pane, the computer's graphics subsystem must constantly recalculate which pixels to display, often leading to artifacts or video stuttering .

This phenomenon is especially prevalent when viewing high-resolution streams (such as 4K or 1080p) or when the client is handling multiple concurrent video windows. Overlapping windows can disrupt the hardware acceleration pathways, forcing the system to rely on software rendering, which significantly increases latency. To ensure a smooth "UHD video viewing" experience and to maintain the integrity of the visual data—which is necessary for identifying targets or verifying alarms—users should keep the video interface clear of obstructions. This best practice ensures that the frames are rendered sequentially and clearly, preventing the loss of critical detail during real-time monitoring.

The correct answer is A because WDR is the standard method for handling scenes with strong contrast between bright background light and a darker foreground target. In a backlit scenario, the camera must balance very bright and very dark regions at the same time. If this is not handled correctly, the foreground subject appears too dark. WDR addresses exactly this problem by improving detail retention in both bright and dark parts of the scene.

This is consistent with the exposure principle emphasized in the material, which states that “T-Shot, Huawei’s patented exposure technology, enables optimal imaging of targets and vehicles at the same time” and explains that “Traditional exposure technology cannot correctly expose targets, motor vehicles, and non-motorized vehicles in one image” . That same engineering logic is what makes WDR the right correction for backlit darkness. By contrast, HLC is mainly used to suppress overly bright highlights such as headlights, not to brighten a dark foreground in a backlit scene. FoV and focal length affect framing and magnification, not dynamic-range correction. Therefore, A is the correct answer.

The Open Network Video Interface Forum (ONVIF) provides a standardized framework for the interoperability of IP-based physical security products. These standards are organized into specific "Profiles" that define the features supported by devices and clients. Standard interfaces such as ONVIF are used to connect cameras to the IVS platform, facilitating a future-proof ecosystem where hardware from different vendors can communicate seamlessly.

Among the recognized standards, Profile S is the most common, used for basic video streaming and configuration. Profile T is a more modern standard designed for advanced video streaming, specifically supporting H.265 encoding and metadata reporting. Profile A is utilized for broader access control configurations, allowing for the integration of security management systems. Other profiles include Profile G for edge storage and Profile Q for quick installation. However, Profile B is not a recognized ONVIF standard profile. Adhering to these standardized formats ensures that recording streams can be accessed through external interfaces and that the system provides a channel for reporting metadata (structured data) for exchange with the platform, regardless of the underlying hardware differences.

The correct answer is B. FALSE . A solar-powered site may indeed reduce or eliminate dependence on mains in some deployment scenarios, but it is not accurate to say that this solution is widely used in the main urban area . In urban site planning, the material emphasizes checking whether mains is available , whether it is stable, and whether outages occur frequently, which shows that urban deployments are generally expected to have grid access and that power design is centered around existing mains conditions . The document also describes integrated power solutions using both solar energy and mains through technologies that “maximize energy efficiency of solar energy and mains and provide secure and reliable power supply”

From a planning perspective, pure solar solutions are more suitable where mains is unavailable, difficult to access, or unreliable, such as remote roads, islands, or isolated outdoor sites. Main urban areas usually already have grid infrastructure, making standalone solar less common as the default design choice. Urban systems more often use mains-based or hybrid schemes for reliability, maintenance convenience, and continuous service assurance. Therefore, the statement is false because the phrase “widely used in the main urban area” is inconsistent with the planning logic presented in the material.

The correct answer is C . In manual zoom lens terminology, N--F stands for Near to Far , which is the focus adjustment range, while W--T stands for Wide to Tele , which is the focal length or zoom adjustment range. This is standard optical-camera labeling and is consistent with the training material’s broader treatment of camera angle and image adjustment, where physical image tuning is performed through controlled mechanical or optical adjustment rather than through resolution changes alone. The material also shows that image framing and observation behavior depend on controlled camera adjustment, for example through tilt, horizontal, and vertical tuning during installation.

From an optical engineering standpoint, focus adjustment changes the sharpness plane of the subject, while focal length adjustment changes the field of view and magnification. Therefore, a technician first uses the W--T ring to set the desired scene scale and then uses the N--F ring to make the image sharp at the chosen distance. Since the question asks which function each labeled knob performs, N--F = adjust the focus position and W--T = adjust the focal length , making C the only correct option.

The correct answers are A, C, and D because camera upgrade operations in the intelligent vision environment include license-related activation , algorithm package upgrade , and software version upgrade , but do not include simply resetting a camera. The material explains that apps on the intelligent camera platform can be “installed, activated, upgraded, and uninstalled online” and that the App Manager “installs, activates, monitors, and upgrades intelligent apps” . It also states that end users can install RPM software packages on SDCs and that “users need to purchase a license file … and load the license file on the SDC” for chargeable apps. This directly supports license loading and algorithm package upgrade as part of operational upgrade handling.

In addition, software version upgrade is a standard maintenance activity, and the material explicitly references upgrade behavior, including “During upgrade within the power module” and version-upgrade scenarios that require recalibration after software changes. Resetting a camera, however, is a recovery or configuration action, not an upgrade action. Therefore, the valid upgrade operations are A, C, and D .

The correct answer is B. FALSE . The installation guidance in the material does confirm that radar is used in “highway scenarios and accurate speed estimation scenarios” and includes alignment steps such as “Adjust the bubble level. When the bubble is in the center, the radar is horizontal” . However, the statement is too absolute because it says the radar is placed right above the lane , which is not a general rule for radar deployment.

In real highway and checkpoint engineering, radar installation depends on the capture model, lane layout, pole position, and the coordination between radar and camera fields of view. The key requirement is that the detection area be aligned correctly with the intended capture zone, not that the radar must always be mounted directly above the lane center. Many practical deployments use side-mounted or offset positions on poles or beams so the radar can still cover the target lane accurately while matching the camera’s observation geometry. Since the essential requirement is proper alignment with the capture area rather than mandatory overhead placement, the statement as written is inaccurate.

The correct answer is A because the SDC OS is designed with open northbound interconnection capability for platform integration. The material explains that “Standard interfaces such as ONVIF are used to connect cameras to the IVS platform” and further states that the open SDC OS supports camera connection through northbound access protocols such as “ONVIF, GB/T 28181, and GA/T 1400”

This directly confirms option A .

In practical intelligent vision deployment, these protocols are essential for interoperability between cameras, platforms, and third-party systems. ONVIF is widely used for standardized video surveillance interoperability. GB/T 28181 is important in many public-security and video networking scenarios. GA/T 1400 is commonly associated with structured data and public-security video information exchange. The other options list either general IT service protocols or physical interfaces, which are not the defined northbound camera access protocols in this context. Therefore, A is the correct answer because it precisely matches the supported protocol set described in the HCIP Intelligent Vision material.

The correct answers are A, B, C, and D because a proper solar PV module check must cover both the module condition and the mechanical support condition . A damaged panel can reduce charging efficiency or create safety risks. Dirt, oil stains, dust, or snow on the panel surface can block sunlight and reduce power-generation performance. At the same time, the support structure must be checked for corrosion, rust, and stability , because outdoor PV assemblies are continuously exposed to weather, vibration, and environmental aging.

This conclusion is also consistent with the overall site-power design described in the training material, where Huawei’s integrated site solution includes “PV modules: two PV modules” and uses “SolarMax, and GridMax technologies to maximize energy efficiency of solar energy and mains and provide secure and reliable power supply” . Since PV modules are part of the site power system, both energy-conversion efficiency and structural reliability must be maintained. In actual maintenance practice, a clean, intact, and firmly supported PV module is necessary for stable long-term operation. Therefore, all four listed checks are valid and should be included.

The Huawei Intelligent Video Surveillance (IVS) platform is designed with a high degree of openness and compatibility, allowing it to manage a vast array of front-end devices from various third-party vendors. To facilitate this interoperability, the platform utilizes a specialized driver or plug-in architecture. While standard protocols like ONVIF, GB/T 28181, and SDKs provide a baseline for communication, many proprietary features and vendor-specific protocols require a dedicated access plug-in to be installed on the platform side.

These plug-ins act as a translation layer that maps the third-party camera's private commands and data structures to the IVS platform's unified internal management language. This is particularly important for synchronization functions and interconnection collection, which are often handled by the VDS (Video Data Service) component. By installing the correct vendor-specific plug-in, the platform can access advanced camera features such as PTZ control, alarm reporting, and parameter configuration that might not be fully supported by generic standards. This modular approach allows Huawei's intelligent vision system to remain flexible and future-proof, enabling rapid integration of new camera models and vendors without requiring a full system-wide firmware upgrade.

The correct answer is D. 71W . PoE++ is associated with the IEEE 802.3bt standard, which extends earlier PoE and PoE+ power delivery capabilities to support higher-power devices. In engineering practice, IEEE 802.3bt Type 4 PSE output power is generally recognized as being around 71 W at the source side, which is why 71 W is the best answer here. This aligns with the training material’s device-side description that the PowerCube service board includes ports where “two of the ports can be used to transmit P & E++ signals” while other ports transmit lower-level P & E signals

From a deployment perspective, this higher power class is important because intelligent vision sites may need to power cameras, illuminators, communication modules, and related edge equipment over Ethernet-linked interfaces. The lower values in the options correspond to earlier or lower-power classes: 15.4 W is associated with standard PoE, 30 W with PoE+, and 50 W is below the typical maximum associated with full 802.3bt Type 4 sourcing. Therefore, 71 W is the correct ceiling among the provided choices.

The correct answer is C because the Kunpeng processor is characterized by ARM-based RISC design, multi-core capability, low power consumption, and high integration, but not by a closed architecture . The material describes Kunpeng’s strengths by stating that “The ARM architecture is used so that the same function performance occupies a smaller area of the chip, consumes less power, and are highly integrated. More hardware CPU cores are provided for better concurrent processing” and further notes that “The RISC instruction set is used. The instruction length is fixed, the addressing mode is flexible and simple, and the execution efficiency is high” . These statements directly support options A, B, and D .

From an engineering perspective, ARM-based processors are known for compact instruction design, strong concurrency through many CPU cores, and high performance per watt. Those are exactly the attributes highlighted here. By contrast, “closed architecture” is not presented as a Kunpeng feature in the training material and does not align with Huawei’s ecosystem positioning, which emphasizes compatibility across multiple operating systems and application scenarios from IoT to cloud. Therefore, C is the only option that does not describe the Kunpeng processor.

The correct answer is B. FALSE . The statement is internally inconsistent because it says there are nine parts , but then lists more than nine items . More importantly, the construction sequence in the training material is described differently. The document states that civil engineering implementation includes “onsite measurement and routing, site arrangement, foundation pit excavation, lightning protection and grounding, foundation pit bedding, reinforced cage making, foundation template making, concrete casting, concrete maintenance, foundation pit backfilling, handhole making (optional), and trenching and cabling (optional)”

That official sequence does not match the wording in the question exactly. Terms such as construction material entry , ground part connecting , template removal , and muck backfilling are either not stated in the same form or are not presented as part of a fixed nine-step list. From a professional project-delivery viewpoint, foundation construction is indeed a staged civil process, but the exam statement is inaccurate because both the count and the listed procedure names do not align with the material. Therefore, the statement should be judged false.

The correct answer is A. TRUE . The idea of an observation circle in video site planning is to form a perimeter-style observation system around a protected area so that targets can be detected, tracked, and controlled at key boundary points. This matches the planning logic used in intelligent vision deployments, where site selection focuses on strategically important locations. The material identifies priority planning positions such as “Road intersections and entrances and exits” and “Key areas in cities” . These are exactly the kinds of points used to form an observation circle.

From a professional planning perspective, the observation circle concept is not just about placing cameras randomly; it is about creating an enclosed prevention-and-control framework by covering the external boundary and critical transition points of an area. Inter-city boundaries and city entrances or exits are typical examples because they are natural choke points for observation, vehicle monitoring, and event response. By surrounding the target area through layered site deployment, the system improves awareness, traceability, and early warning capability. Therefore, the statement correctly describes the purpose and example of an observation circle.

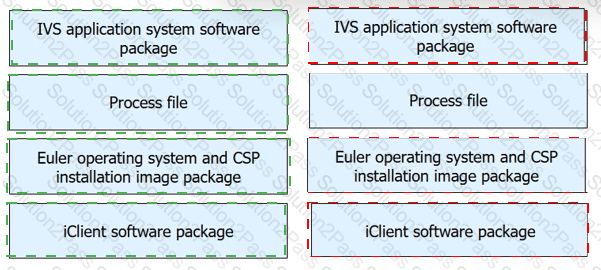

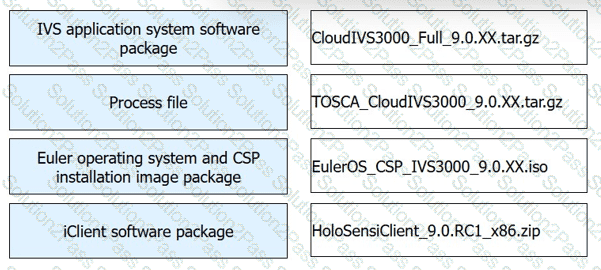

IVS application system software package → CloudIVS3000_Full_9.0.XX.tar.gz

Process file → TOSCA_CloudIVS3000_9.0.XX.tar.gz

Euler operating system and CSP installation image package → EulerOS_CSP_IVS3000_9.0.XX.iso

iClient software package → HoloSensiClient_9.0.RC1_x86.zip

The matching is determined by standard Huawei software package naming conventions used for IVS3800 and CloudIVS3000 deployment. The package named CloudIVS3000_Full_9.0.XX.tar.gz is the full IVS application system software package , because the keyword Full indicates the complete application deployment content. The TOSCA_CloudIVS3000_9.0.XX.tar.gz file corresponds to the process file , since TOSCA is used for orchestration and deployment workflow definition in Huawei platform installation. The EulerOS_CSP_IVS3000_9.0.XX.iso package is clearly the Euler operating system and CSP installation image package , as both EulerOS and CSP are explicitly named in the file. Finally, HoloSensiClient_9.0.RC1_x86.zip is the iClient software package , because HoloSens iClient is Huawei’s client-side operation and management application for the platform.

This mapping also follows the practical installation sequence. Engineers first prepare the operating system and CSP base image, then use the process file for orchestration, deploy the IVS application package, and finally install the iClient for platform access and configuration.

The correct answer is B. FALSE . Behavior analysis, video synopsis, and video search are not isolated single-function outputs. They are built on a chain of capabilities that includes moving-object extraction, trajectory processing, segmentation, indexing, and structured retrieval. The material shows this dependency very clearly. For synopsis, it states that “Moving object detection involves algorithms such as background modeling, scene segmentation, and moving object extraction” , then “Object trajectory extraction involves object tracking algorithms” , and finally the system “Generate[s] a compact video” by fusing trajectories and background frames . For video search, the document further explains that indexed features and structured search conditions are required to browse and retrieve target information efficiently .

Because these services involve both intelligent analysis and media-content handling or structured-search capability, treating them as requiring only the VA algorithm is too narrow. In practical deployment, the MCS-related capability is also needed to support the complete algorithm service chain. Therefore, the statement that only the VA algorithm is required is false.

The correct answer is D because the iris directly controls the amount of light entering the lens, which has the most immediate effect on image brightness. When the iris opening is enlarged, more light reaches the image sensor, and the captured image becomes brighter. This makes iris adjustment the preferred action when the goal is simply to improve overall brightness. By contrast, resolution affects image detail, not light intake. Angle of view changes scene coverage, not exposure level. Focal length changes magnification and framing, but it does not function as the primary exposure control in this context.

This aligns with the exposure-centered logic emphasized throughout the training material, where Huawei highlights advanced imaging control and notes that “T-Shot, Huawei’s patented exposure technology, enables optimal imaging of targets and vehicles at the same time” and that traditional exposure methods cannot properly expose different targets in one image . In practical camera operation, brightness problems are first treated as an exposure issue, and among the listed options, the iris is the only parameter that directly regulates exposure by controlling incoming light.
