The exhibit shows aFolded IP Clos Architecture, which is also referred to as a3-stage Closnetwork design. This architecture typically consists of two layers of switches:

Spine Layer: The top row of switches.

Leaf Layer: The bottom row of switches.

Step-by-Step Breakdown:

Clos Architecture:A 3-stage Clos network has two types of devices: spine and leaf. In this design, each leaf switch connects to every spine switch, providing a high level of redundancy and load balancing.

Stage Explanation:

Stage 1: The first set of leaf switches.

Stage 2: The spine switches.

Stage 3: The second set of leaf switches.

TheFolded Closarchitecture shown here effectively "folds" the 3-stage design by combining the ingress and egress leaf layers into one, reducing it to two visible layers, but still maintaining the overall3-stage architecture.

Juniper Reference:

IP Clos Architecture: The 3-stage Clos design is commonly used in modern data centers for high availability, redundancy, and scalability.

The primary purpose of anIRB (Integrated Routing and Bridging)interface is to enableinter-VLAN routingin a Layer 3 environment. An IRB interface in Junos combines the functionality of both Layer 2 bridging (switching) and Layer 3 routing, allowing devices in different VLANs to communicate with each other.

Step-by-Step Breakdown:

VLANs and Layer 2 Switching:Devices within the same VLAN can communicate directly through Layer 2 switching. However, communication between devices in different VLANs requires Layer 3 routing.

IRB Interface for Inter-VLAN Routing:The IRB interface provides a Layer 3 gateway for each VLAN, enabling routing between VLANs. Without an IRB interface, devices in different VLANs would not be able to communicate.

Configuration:In Juniper devices, the IRB interface is configured by assigning Layer 3 IP addresses to it. These IP addresses serve as the default gateway for devices in different VLANs.

Example configuration:

set interfaces irb unit 0 family inet address 192.168.1.1/24

set vlans vlan-10 l3-interface irb.0

This allows VLAN 10 to use the IRB interface for routing.

Juniper Reference:

IRB Use Case: Inter-VLAN routing is essential in data centers where multiple VLANs are deployed, and Juniper's EX and QFX series switches support IRB configurations for this purpose.

AnIP fabricis a network architecture commonly used in data centers to provide scalable, high-throughput connectivity using aspine-leaf topology.

Step-by-Step Breakdown:

Layer 3 Routing Protocol:An IP fabric relies on aLayer 3 routing protocol, typically BGP or OSPF, to provide routing between the leaf and spine switches. This ensures efficient traffic forwarding across the network.

Single Connection Between Spine and Leaf:In an IP fabric, each leaf switch connects toevery spine switchwith a single connection. This ensures that traffic between any two leaf switches can travel through the spine layer in just two hops.

Juniper Reference:

Spine-Leaf Design: Juniper’s IP fabric implementations are designed for scalability and low-latency routing, often using protocols like BGP for Layer 3 control.

OSPF (Open Shortest Path First)calculates the best path based on thecostof the route, which is derived from the bandwidth of the interfaces along the path.

Step-by-Step Breakdown:

OSPF Path Selection:

OSPF assigns a cost to each link, typically based on the link's bandwidth (higher bandwidth equals lower cost).

The OSPF algorithm computes the shortest path to a destination by adding the costs of all links in the path. The path with thenumerically lowest total costis chosen as the best path.

Cost Calculation:The OSPF cost can be manually adjusted or automatically calculated using the default formula:

Cost=Reference BandwidthLink Bandwidth\text{Cost} = \frac{\text{Reference Bandwidth}}{\text{Link Bandwidth}}Cost=Link BandwidthReference Bandwidth​

Juniper Reference:

OSPF Best Path Selection: OSPF selects the path with the lowest cumulative cost, ensuring efficient use of higher-bandwidth links in Junos networks.

Thesource MAC addressin the Ethernet header is used to populate thebridging table(also called the MAC address table) on a switch. When a frame arrives at a switch, the switch examines the source MAC address and records it along with the ingress port in its MAC address table.

Step-by-Step Breakdown:

Learning Process:When an Ethernet frame arrives on a switch port, the switch looks at thesource MAC addressand adds this MAC address to the MAC table along with the port it was received on. This process is calledMAC learning.

Purpose:The switch uses this information to determine the correct port to send frames destined for that MAC address in future transmissions, thus ensuring efficient Layer 2 forwarding.

Juniper Reference:

Ethernet Switching: Juniper switches use source MAC addresses to build and maintain the MAC address table, which is essential for Layer 2 switching.

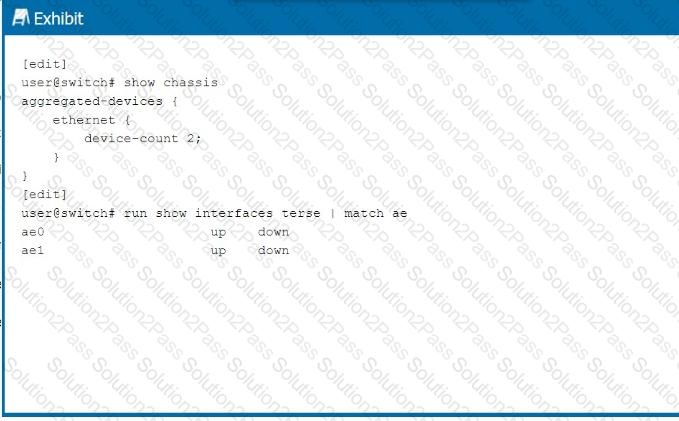

In the exhibit, theae0andae1interfaces are in alink downstate. This occurs when no physical interfaces (member interfaces) have been added to theLAG (Link Aggregation Group)interfaces, or the member interfaces are not operational.

Step-by-Step Breakdown:

LAG Configuration:ALAGinterface (aggregated Ethernet interface) is a logical interface that combines multiple physical interfaces for redundancy and increased bandwidth. The LAG will only be operational if at least one member interface is active and configured correctly.

No Operational Member Interfaces:If no member interfaces are added or if the member interfaces are down, the LAG will remain in adownstate, as shown in the exhibit for ae0 and ae1.

Resolution:Verify that physical interfaces have been added to the LAG using commands like:

LAG Interface Status: In Juniper, the link status of the LAG depends on its member interfaces, which must be operational for the LAG to function.

When creating aLAG (Link Aggregation Group)in Junos, theduplex settingsandlink speedmust be the same across all member interfaces.

Step-by-Step Breakdown:

LAG Overview:A LAG combines multiple physical interfaces into a single logical interface to increase bandwidth and provide redundancy. All member links must act as a single cohesive unit.

Interface Requirements:

Duplex: All member interfaces must operate in the same duplex mode (either full-duplex or half-duplex). Mismatched duplex settings can cause performance issues, packet drops, or interface errors.

Link Speed: All interfaces in the LAG must have the same link speed (e.g., all interfaces must be 1 Gbps or 10 Gbps). Mismatched speeds would prevent the interfaces from functioning correctly within the LAG.

Configuration and Validation: Ensure that all member interfaces have identical settings before adding them to the LAG. These settings can be checked using the show interfaces command, and the LAG can be configured using:

set interfaces ae0 aggregated-ether-options link-speed 10g

set interfaces ge-0/0/1 ether-options 802.3ad ae0

Juniper Reference:

LAG Configuration: Duplex and link speed must be consistent across member interfaces to ensure proper LAG operation in Juniper devices.

When thediscardoption is configured as the next hop for a static route, it silently drops any packets that match the route without sending any notification to the sender.

Step-by-Step Breakdown:

Discard Behavior:

If a route uses thediscardnext hop, the router drops the packet without generating any ICMP message or error back to the sender. This is useful for creating null routes to prevent routing loops or blackhole traffic intentionally.

Reject vs. Discard:

Therejectnext hop, in contrast, drops the packet but sends anICMP Destination Unreachablemessage back to the source.

Juniper Reference:

Static Route Behavior: In Junos, thediscardoption ensures packets matching a static route are dropped silently, providing a way to discard traffic without alerting the source.

High availability and fast convergence are critical in data center networks to minimize downtime and maintain optimal performance. The following technologies contribute to achieving these goals:

Graceful Restart (GR):

GR allows routers to maintain forwarding state during control plane restarts, ensuring continuous packet forwarding while minimizing network disruptions.

Bidirectional Forwarding Detection (BFD):

BFD provides fast detection of path failures, allowing routing protocols to converge quickly by detecting link failures much faster than traditional timers.

Link Aggregation Group (LAG):

LAG increases both redundancy and bandwidth by combining multiple physical links into one logical link, providing load balancing and fault tolerance.

Juniper Reference:

High Availability Techniques: These technologies are fundamental in ensuring rapid recovery and failover within Juniper-based data center environments.

The BGPAS (Autonomous System) pathattribute is crucial in path selection and loop prevention. Each BGP router appends itslocal AS numberto the beginning of the AS path when it advertises a route to an external BGP (eBGP) peer.

Step-by-Step Breakdown:

AS Path Attribute:The AS path is a sequence of AS numbers that a route has traversed to reach a destination. Each AS adds its number to the front of the path, allowing BGP to track the route’s history.

Why the Local AS is Added at the Beginning:When advertising a route to an eBGP neighbor, a BGP router adds its own AS number to the beginning of the AS path. This ensures that the AS path reflects the route's journey accurately from the origin to the destination, and prevents loops in BGP. If the route returns to the same AS, the router will detect its AS number in the path and reject the route, preventing routing loops.

Order of the AS Path:The order is significant because BGP uses it to select the best path. A shorter AS path is preferred, as it indicates fewer hops between the source and destination.

Juniper Reference:

AS Path Attribute: Junos devices append the local AS at the start of the AS path before advertising the route to an external peer.

To verify that your router islearning routes from a remote BGP peerat a specific IP address (e.g., 10.10.100.1), the correct command to use is show route receive-protocol bgp.

Step-by-Step Breakdown:

BGP Route Learning:The show route receive-protocol bgp command displays the routes that have been received from a specified BGP peer. This helps in confirming that the remote peer is sending routes correctly and that your router is receiving them.

Command Example:

show route receive-protocol bgp 10.10.100.1

This will show all routes that have been received from the BGP peer with IP address 10.10.100.1.

Juniper Reference:

BGP Route Verification: Use this command to troubleshoot and verify that routes from a specific BGP peer are being received.

InIBGP (Internal Border Gateway Protocol), all routers within the same AS (Autonomous System) must have a logical full-mesh topology. This means that every IBGP router must be able to communicate with every other IBGP router directly or indirectly to ensure proper route propagation.

Step-by-Step Breakdown:

Logical Full Mesh:

In an IBGP setup, routers do not re-advertise routes learned from one IBGP peer to another IBGP peer. This rule is in place to prevent routing loops within the AS.

To ensure full route propagation, alogical full meshis required, meaning every IBGP router must peer with every other IBGP router in the AS. This can be done either directly or via route reflection or confederation.

Physical Full Mesh Not Required:The physical topology does not need to be a full mesh, but the BGP peering relationships must form a logical full mesh. Techniques like route reflectors or BGP confederations can reduce the need for manual full-mesh peering.

Juniper Reference:

IBGP Configuration: IBGP logical full mesh requirements can be simplified usingroute reflectorsto avoid the complexity of manually configuring many IBGP peers.

Graceful Restart (GR)is a feature that allows a router to maintain forwarding even when the routing process (e.g., the rpd process in Junos) is restarting, minimizing disruption to the network.

Step-by-Step Breakdown:

Graceful Restart Function:During aGR event, the forwarding plane continues to forward packets based on existing routes, while the control plane (rpd process) is restarting. This prevents traffic loss and maintains routing stability.

Minimizing Disruptions:GR is particularly useful in ensuring continuous packet forwarding during software upgrades or routing protocol process restarts.

Juniper Reference:

Graceful Restart in Junos: GR ensures high availability by maintaining forwarding continuity during control plane restarts, enhancing network reliability.

Per-flow load balancingensures that packets within the same flow are always forwarded over the same path, ensuring that packet order is preserved.

Step-by-Step Breakdown:

Flow Definition:A flow is typically defined by a combination of packet attributes like source/destination IP, source/destination port, and protocol type. Packets that belong to the same flow are routed over the same path to avoid reordering.

Per-Flow Behavior:Inper-flow load balancing, the hashing algorithm ensures that all packets in a particular flow use thesame egress port, maintaining order across the network.

Juniper Reference:

Load Balancing in Juniper: This method ensures that flows are balanced across multiple paths while preventing packet reordering within a single flow.

Each port on a modernswitchcreates a separatecollision domain. This allows multiple devices to communicate simultaneously without collisions on different ports.

Step-by-Step Breakdown:

Collision Domain:

Acollision domainis a network segment where data packets can collide if two devices send packets simultaneously.

On a switch, each port creates aseparate collision domain, so collisions only occur if two devices connected to the same port (through a hub, for instance) try to send data at the same time.

Switches vs Hubs:Unlike hubs, which have one large collision domain, switches isolate collisions to individual ports, improving performance.

Juniper Reference:

Switch Port Behavior: In Juniper switches, each port operates in its own collision domain, enhancing network efficiency by reducing the chances of packet collisions.

In OSPF, routers exchange link-state information in different stages to establish full adjacency. TheMTU sizeis checked during theExchangestate.

Step-by-Step Breakdown:

OSPF Adjacency Process:

OSPF routers go through multiple stages when forming an adjacency:Down,Init,2-Way,ExStart,Exchange,Loading, andFull.

Exchange State:

During theExchangestate, OSPF routers exchangeDatabase Description (DBD)packets to describe their link-state databases. TheMTU sizeis checked at this stage to ensure both routers can successfully exchange these packets without fragmentation.

If there is anMTU mismatch, the routers may fail to proceed past the Exchange state.

Juniper Reference:

MTU Checking in OSPF: Junos uses the Exchange state to check for MTU mismatches, ensuring that routers can properly exchange database information without packet fragmentation issues.

IP fabricsare Layer 3-centric network designs often used in data centers due to their scalability, efficient routing, and loop-free architecture.

Step-by-Step Breakdown:

Layer 3 Load Balancing:IP fabrics useEqual-Cost Multipath (ECMP)to distribute traffic across multiple paths, providing effective load balancing and improving bandwidth utilization. This capability is absent in traditional Layer 2 networks, which do not support ECMP for routing decisions.

Layer 2 Loops:Layer 2 networksare prone to loops because of the lack of TTL (Time-to-Live) mechanisms. Spanning Tree Protocol (STP) is required to prevent loops, but it can introduce inefficiencies by blocking links. In contrast, IP fabrics based on Layer 3 protocols are loop-free and do not need STP.

Juniper Reference:

IP Fabric: Juniper’s IP fabric solutions offer efficient Layer 3 routing with built-in load balancing and loop prevention, making them ideal for modern data center architectures.

Acollision domainis a network segment where data packets can "collide" with one another when being sent on the same network medium.

Step-by-Step Breakdown:

Increased Collision Probability:If all devices are in asingle collision domain, the likelihood of packet collisions increases as more devices attempt to send packets simultaneously, leading to network inefficiencies.

Increased Resource Consumption:More collisions result inincreased network resource consumptionas devices need to retransmit packets, causing higher utilization of bandwidth and slowing down network performance.

Juniper Reference:

Collision Domains: Proper network segmentation using switches reduces collision domains, thereby improving network performance and reducing packet collisions.
