The correct answer to your question is C. Option C. Here is why:

Option C shows the configuration of the chassis statement, which defines the properties of the router chassis, such as the number of aggregated Ethernet interfaces, the number of FPCs, and the number of PICs1.

To enable aggregated Ethernet interfaces on a router, you need to specify the aggregated-devices statement under the chassis statement and set the ethernet parameter to the desired number of interfaces2. For example, to enable two aggregated Ethernet interfaces, you can use the following configuration:

chassis { aggregated-devices { ethernet { device-count 2; } } }

Option C shows this configuration with the device-count set to 2, which will enable two aggregated Ethernet interfaces on the router. The other options do not show this configuration and will not enable any aggregated Ethernet interfaces on the router.

Therefore, option C is the correct answer to your question.

 In a Rapid Spanning Tree Protocol (RSTP) topology, the root bridge is determined by the switch with the lowest bridge priority value12. If all switches have the same priority, then the root bridge is assigned to the switch whose MAC address’s hex value is the lowest2. The default bridge priority value is 3276832. However, without the actual exhibit, it’s difficult to definitively determine which device is the root bridge. But based on the options provided, if we assume that the local device has a lower bridge priority or a lower MAC address than other devices in the network, then it could be considered as the root bridge for this RSTP topology45.

B is correct because duplex and speed settings are required to match on both participating devices. According to the Juniper Networks documentation1, all the interfaces in a LAG must have the same speed and be in full-duplex mode. This ensures that the LAG can operate as a single logical link without any performance or compatibility issues.

C is correct because member links are not required to be contiguous ports. According to the Juniper Networks documentation2, you can group any Ethernet interfaces on a switch into a LAG, regardless of their physical location or slot number. This provides flexibility and scalability for configuring LAGs on switches.

The BGP attribute that you would use to forward all Internet traffic through the R1 device is the local preference1.

The local preference is an attribute that is used within an autonomous system (AS) and exchanged between iBGP routers1. It is used to select an exit point from the AS1. The path with the highest local preference is preferred1. By setting a higher local preference for the routes received from R1, you can make R1 the preferred exit point for all Internet traffic1.

OSPF DR/BDR election is a process that occurs on multi-access data links. It is intended to select two OSPF nodes: one to be acting as the Designated Router (DR), and another to be acting as the Backup Designated Router (BDR).The DR and BDR are responsible for generating network LSAs for the multi-access network and synchronizing the LSDB with other routers on the same network1.

The DR/BDR election is based on two criteria: the OSPF priority and the router ID. The OSPF priority is a value between 0 and 255 that can be configured on each interface participating in OSPF. The default priority is 1. A priority of 0 means that the router will not participate in the election and will never become a DR or BDR. The router with the highest priority will become the DR, and the router with the second highest priority will become the BDR. If there is a tie in priority, then the router ID is used as a tie-breaker. The router ID is a 32-bit number that uniquely identifies each router in an OSPF domain.It can be manually configured or automatically derived from the highest IP address on a loopback interface or any active interface2.

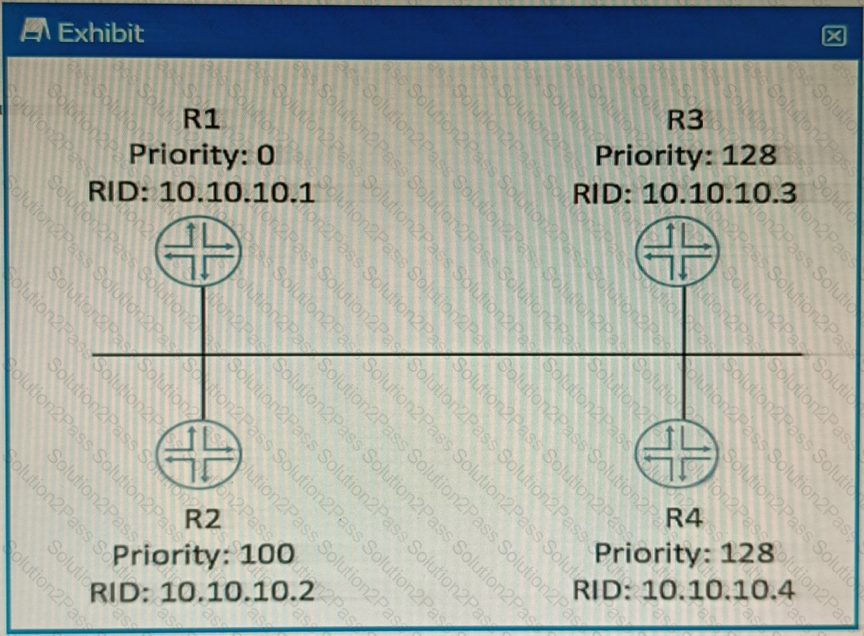

In this scenario, all routers have the same priority of 1, so the router ID will determine the outcome of the election. The router IDs are shown in the exhibit as RID values. The highest RID belongs to R4 (10.10.10.4), so R4 will become the DR. The second highest RID belongs to R3 (10.10.10.3), so R3 will become the BDR.

References:

1:OSPF DR/BDR Election: Process, Configuration, and Tuning2:OSPF Designated Router (DR) and Backup Designated Router (BDR)

BFD is a protocol that can be used to quickly detect failures in the forwarding path between two adjacent routers or switches. BFD can be integrated with various routing protocols and link aggregation protocols to provide faster convergence and fault recovery.

According to the Juniper Networks documentation, the following protocols support BFD on Junos OS devices1:

BGP: BFD can be used to monitor the connectivity between BGP peers and trigger a session reset if a failure is detected. BFD can be configured for both internal and external BGP sessions, as well as for IPv4 and IPv6 address families2.

OSPF: BFD can be used to monitor the connectivity between OSPF neighbors and trigger a state change if a failure is detected. BFD can be configured for both OSPFv2 and OSPFv3 protocols, as well as for point-to-point and broadcast network types3.

LACP: BFD can be used to monitor the connectivity between LACP members and trigger a link state change if a failure is detected. BFD can be configured for both active and passive LACP modes, as well as for static and dynamic LAGs4.

Other protocols that support BFD on Junos OS devices are:

IS-IS: BFD can be used to monitor the connectivity between IS-IS neighbors and trigger a state change if a failure is detected. BFD can be configured for both level 1 and level 2 IS-IS adjacencies, as well as for point-to-point and broadcast network types.

RIP: BFD can be used to monitor the connectivity between RIP neighbors and trigger a route update if a failure is detected. BFD can be configured for both RIP version 1 and version 2 protocols, as well as for IPv4 and IPv6 address families.

VRRP: BFD can be used to monitor the connectivity between VRRP routers and trigger a priority change if a failure is detected. BFD can be configured for both VRRP version 2 and version 3 protocols, as well as for IPv4 and IPv6 address families.

The protocols that do not support BFD on Junos OS devices are:

RSTP: RSTP is a spanning tree protocol that provides loop prevention and rapid convergence in layer 2 networks. RSTP does not use BFD to detect link failures, but relies on its own hello mechanism that sends BPDU packets every 2 seconds by default.

FTP: FTP is an application layer protocol that is used to transfer files between hosts over a TCP connection. FTP does not use BFD to detect connection failures, but relies on TCP’s own retransmission and timeout mechanisms.

References:

1: [Configuring Bidirectional Forwarding Detection] 2: [Configuring Bidirectional Forwarding Detection for BGP] 3: [Configuring Bidirectional Forwarding Detection for OSPF] 4: [Configuring Bidirectional Forwarding Detection for Link Aggregation Control Protocol] : [Configuring Bidirectional Forwarding Detection for IS-IS] : [Configuring Bidirectional Forwarding Detection for RIP] : [Configuring Bidirectional Forwarding Detection for VRRP] : [Understanding Rapid Spanning Tree Protocol] : [Understanding FTP]

Option B is correct. Flooding is a mechanism used in Layer 2 bridging where the switch sends incoming packets to all its ports except for the port where the packet originated1. This is done when the switch doesn’t know the destination MAC address or when the packet is a broadcast or multicast1.

Option C is correct. Learning is another mechanism used in Layer 2 bridging where the switch learns the source MAC addresses of incoming packets and associates them with the port on which they were received23. This information is stored in a MAC address table, also known as a bridge table23.

Option A is incorrect. Blocking is a state in Spanning Tree Protocol (STP) used to prevent loops in a network2. It’s not a mechanism used in building and maintaining a Layer 2 bridge table2.

Option D is incorrect. Listening is also a state in Spanning Tree Protocol (STP) where the switch listens for BPDUs to make sure no loops occur in the network before transitioning to the learning state2. It’s not a mechanism used in building and maintaining a Layer 2 bridge table2.

The management IP address of a device is the IP address that is used to access the device for configuration and monitoring purposes. It is usually assigned to a dedicatedmanagement interface that is separate from the data interfaces. The management interface can be accessed via SSH, Telnet, HTTP, or other protocols.

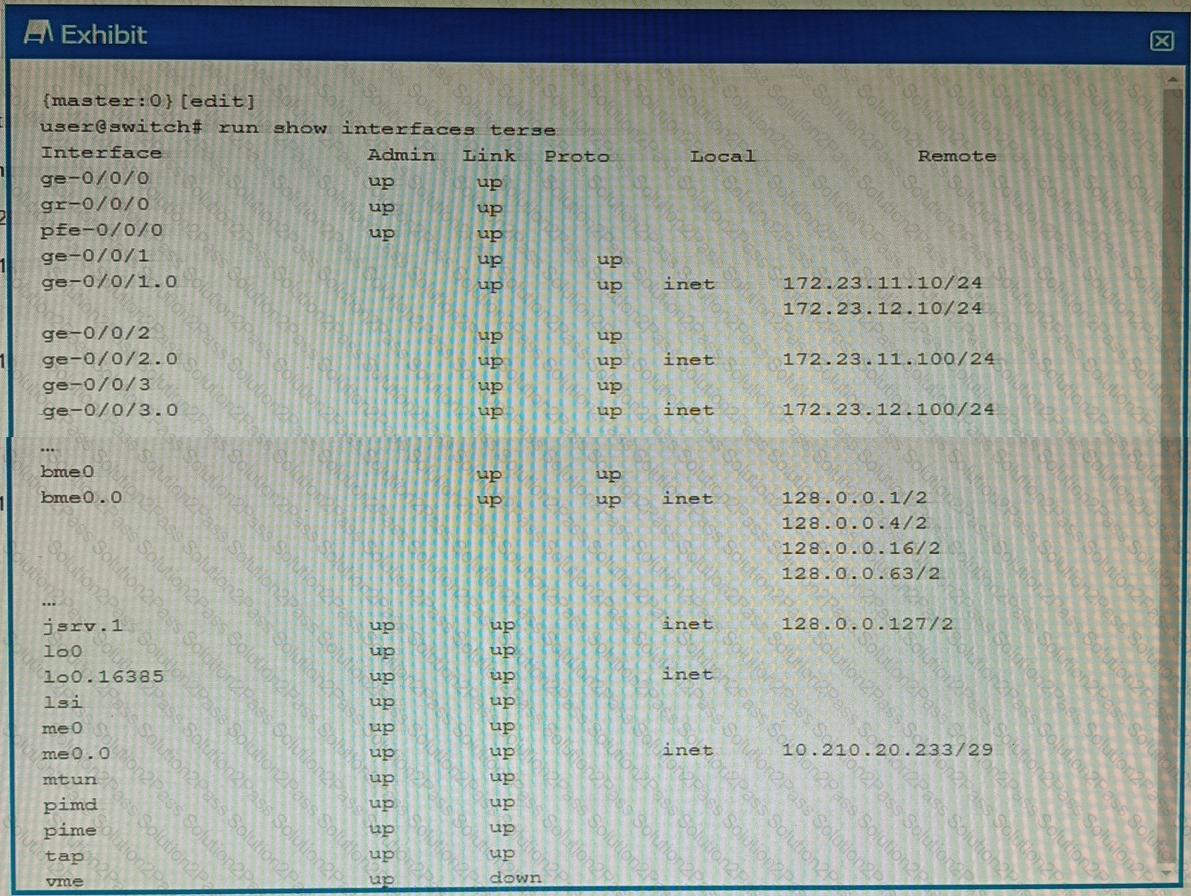

In the exhibit, the list of interfaces and their statuses shows that the management interface isme0. This interface has an admin status ofup, a protocol status ofinet, a local address of172.23.12.100/24, and a remote address ofunspecified. This means that the me0 interface is active, has an IPv4 address assigned, and is not connected to another device.

Therefore, the management IP address of the device shown in the exhibit is172.23.12.100.

References:

[Management Interfaces Overview] : [Displaying Interface Status Information]

A is correct because dynamic ARP inspection (DAI) is a Layer 2 security feature that prevents ARP spoofing attacks. ARP spoofing is a technique that allows an attacker to send fake ARP messages to associate a spoofed MAC address with a legitimate IP address. This can result in traffic redirection, man-in-the-middle attacks, or denial-of-service attacks. DAI validates ARP packets by checking the source MAC address and IP address against a trusted database, which is usually built by DHCP snooping1. DAI discards any ARP packets that do not match the database or have invalid formats1.

C is correct because DHCP snooping is a Layer 2 security feature that prevents DHCP spoofing attacks. DHCP spoofing is a technique that allows an attacker to act as a rogue DHCP server and offer fake IP addresses and other network parameters to unsuspecting clients. This can result in traffic redirection, man-in-the-middle attacks, or denial-of-service attacks. DHCP snooping filters DHCP messages by classifying switch ports as trusted or untrusted. Trusted ports are allowed to send and receive any DHCP messages, while untrusted ports are allowed to send only DHCP requests and receive only valid DHCP replies from trusted ports2. DHCP snooping also builds a database of MAC addresses, IP addresses, lease times, and binding types for each client2.

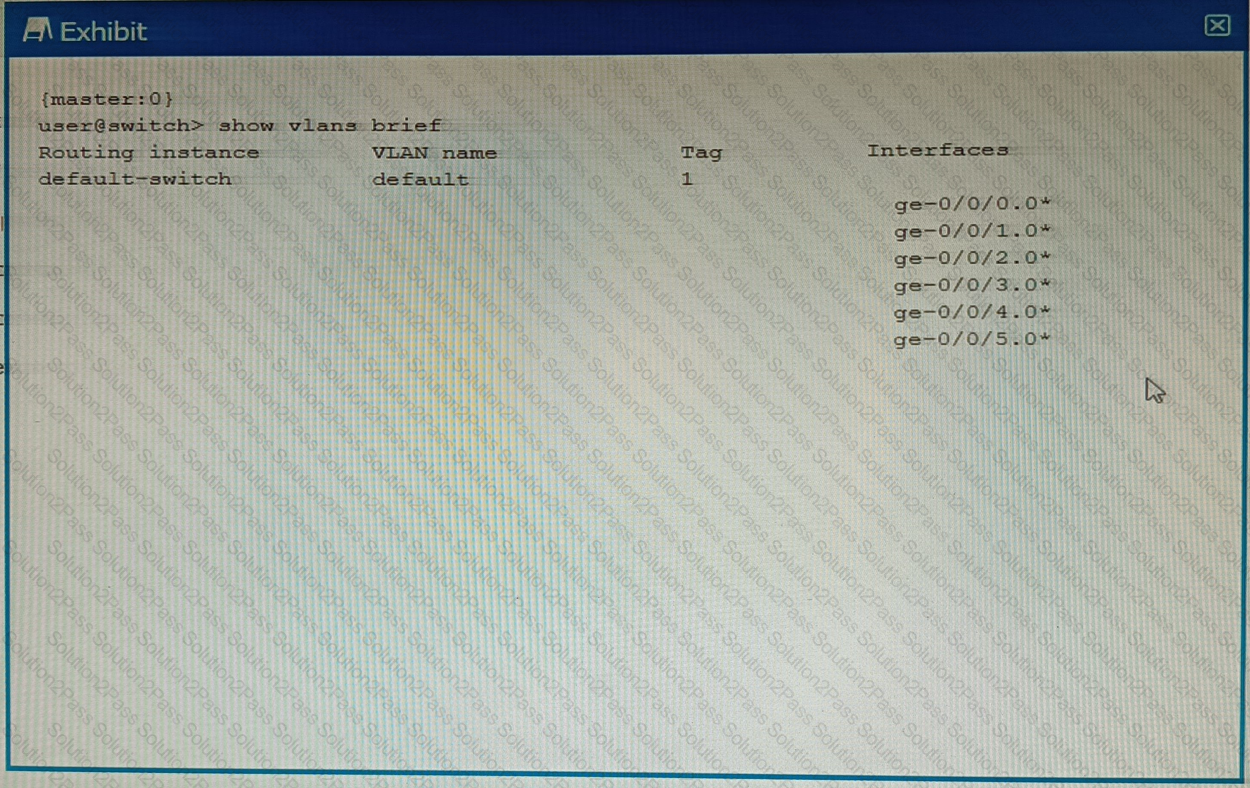

The exhibit shows the output of the command show vlans brief, which displays brief information about VLANs and their associated interfaces1.

The output has four columns: Routing instance, VLAN name, Interfaces, and Tagging.

The * symbol indicates that the interface is active, meaning that it is up and forwarding traffic1. This can be verified by the command show interfaces terse, which displays the status of the interfaces2.

A is correct because RSTP alternate ports block traffic while receiving superior BPDUs from a neighboring switch. An alternate port is a backup port for a root port, which means it receives better BPDUs from another bridge than the current root port1. However, an alternate port does not forward any traffic, as it is in a discarding state2. It only listens to BPDUs and waits for the root port to fail. If the root port fails, the alternate port can immediately transition to a forwarding state and become the new root port1.

C is correct because RSTP alternate ports provide an alternate higher cost path to the root bridge. An alternate port is selected based on the same criteria as the root port, which are the lowest bridge ID, the lowest path cost, the lowest sender port ID, and the lowest receiver port ID3. However, an alternate port receives a higher cost BPDU than the root port, otherwise it would be the root port itself1. Therefore, an alternate port provides an alternate higher cost path to the root bridge than the root port.

A is correct because IBGP updates the next-hop attribute to ensure reachability within an AS. This is because the next-hop attribute is the IP address of the router that advertises the route to a BGP peer. If the next-hop attribute is not changed by IBGP, it would be the IP address of an external router, which may not be reachable by all routers within the AS. Therefore, IBGP updates the next-hop attribute to the IP address of the router that received the route from an EBGP peer1.

B is correct because IBGP peers advertise routes received from EBGP peers to other IBGP peers. This is because BGP follows the rule of advertising only the best route to a destination, and EBGP routes have a higher preference than IBGP routes. Therefore, IBGP peers advertise routes learned from an EBGP peer to all BGP peers, including both EBGP and IBGP peers1.

Option A is correct. For traffic to be sent through a GRE tunnel, there must be a route that directs the traffic into the tunnel. This is typically accomplished through the use of a static route or a dynamic routing protocol.

Option B is correct. All intermediary devices must have a route to the tunnel endpoints34. In real-world scenarios, the tunnel endpoints for a tunnel going over the Internet must have globally reachable internet addresses. Otherwise, intermediate routers in the Internet cannot forward the tunneled packets.

C is correct because Layer 2 control traffic is permitted on the secondary link of a redundant trunk group (RTG) on EX Series switches. Layer 2 control traffic includes protocols such as LLDP, LACP, and STP, which are used to exchange information and coordinate actions between switches1. According to the Juniper Networks documentation2, Layer 2 control traffic is allowed to pass through both the active and the secondary links of an RTG, but data traffic is only forwarded through the active link. This allows the switches to maintain their Layer 2 adjacencies and monitor the link status on both links.

D is correct because if the active link fails, then the secondary link automatically takes over in an RTG on EX Series switches. An RTG consists of two trunk links: an active or primary link, and a secondary or backup link2. The active link is used to forward data traffic, while the secondary link is in standby mode. If the active link fails or becomes unavailable, the secondary link immediately transitions to a forwarding state and takes over the data traffic without waiting for normal STP convergence2. This provides fast recovery and redundancy for the network.

The default MAC age-out timer on an EX Series switch is 300 seconds12. The MAC age-out timer is the maximum time that an entry can remain in the MAC table before it “ages out,” or is removed31. This configuration can influence efficiency of network resource use by affecting the amount of traffic that is flooded to all interfaces1. When traffic is received for MAC addresses no longer in the Ethernet routing table, the router floods the traffic to all interfaces1.

To isolate management traffic in a non-default routing-instance on Junos-based devices, you can use the set system management-instance and set routing-instances mgmt_junos commands12.

set system management-instance: This command associates the management interface (usually named fxp0 or em0 for Junos OS, or re0:mgmt-* or re1:mgmt-* for Junos OS Evolved) with the non-default virtual routing and forwarding (VRF) instance1. After you configure the non-default management VRF instance, management traffic no longer has to share a routing table with other control traffic or protocol traffic1.

set routing-instances mgmt_junos: This command creates a new routing instance named mgmt_junos. The name of the dedicated management VRF instance is reserved and hardcoded as mgmt_junos; you cannot configure any other routing instance by the name mgmt_junos1.

Therefore, options C and D are correct. Options A and B are not correct because they attempt to assign an interface to the mgmt_junos routing instance, which is not necessary for isolating management traffic1.

The maximum allowable MTU size for a default GRE tunnel without IPv4 traffic fragmentation is 1476 bytes1. This is because GRE packets are formed by the addition of the original packets and the required GRE headers1. These headers are 24-bytes in length and since these headers are added to the original frame, depending on the original size of the packet we may run into IP MTU problems1. The most common IP MTU is 1500-bytes in length (Ethernet)1. When the tunnel is created, it deducts the 24-bytes it needs to encapsulate the passenger protocols and that is the IP MTU it will use1. For example, if we are forming a tunnel over FastEthernet (IP MTU 1500)the IOS calculates the IP MTU on the tunnel as: 1500-bytes from Ethernet - 24-bytes for the GRE encapsulation = 1476-Bytes1.

A is correct because the interface is configured as a disabled port. A disabled port does not forward any traffic, including DHCP packets. Therefore, DHCP snooping cannot learn any MAC addresses or lease information from a disabled port1.

C is correct because the interface is configured as a trunk port. By default, all trunk ports on the switch are trusted for DHCP snooping2. This means that DHCP snooping does not inspect or filter any DHCP packets received on a trunk port. Therefore, DHCP snooping does not add any entries to the snooping database for a trunk port2.
