MuleSoft MCPA-Level-1 Practice Test Questions Answers

Anypoint Platform allows organizations to integrate one external identity provider (IdP) for identity and access management (IAM), supporting SSO and centralized user authentication.

Identity Provider Limit:

Anypoint Platform supports configuring a single IdP for the organization, which can be used to authenticate all users across business groups and environments within that Anypoint organization.

Explanation of Correct Answer (C):

Configuring one IdP ensures centralized and secure identity management, aligned with MuleSoft’s architecture.

Explanation of Incorrect Options:

Option A is incorrect because SAML 2.0 bearer tokens from external IdPs can indeed be used for invoking Anypoint Platform APIs.

Option B is incorrect as client providers can be assigned to specific business groups and environments.

Option D is incorrect since only identity management strictly requires an IdP; client management does not.

ReferencesFor further details on identity management options, consult MuleSoft documentation on Anypoint Platform’s IAM capabilities​.

Explanation

Correct Answer: In parallel, invoke the system API deployed to the primary environment and the system API deployed to the DR environment, and ONLY use the first response.

*****************************************

>> The API requirement in the given scenario is to respond in least possible time.

>> The option that is suggesting to first try the API in primary environment and then fallback to API in DR environment would result in successful response but NOT in least possible time. So, this is NOT a right choice of implementation for given requirement.

>> Another option that is suggesting to ONLY invoke API in primary environment and to add timeout and retries may also result in successful response upon retries but NOT in least possible time. So, this is also NOT a right choice of implementation for given requirement.

>> One more option that is suggesting to invoke API in primary environment and API in DR environment in parallel using Scatter-Gather would result in wrong API response as it would return merged results and moreover, Scatter-Gather does things in parallel which is true but still completes its scope only on finishing all routes inside it. So again, NOT a right choice of implementation for given requirement

The Correct choice is to invoke the API in primary environment and the API in DR environment parallelly, and using ONLY the first response received from one of them.

For an organization starting with API-led connectivity to integrate a siloed back-end system with a new CRM, the following approach aligns with best practices and MuleSoft’s Center for Enablement (C4E) guidance:

API-led Connectivity: This model organizes APIs into distinct layers (System, Process, and Experience) to improve reusability, modularity, and manageability.

System APIs are used to expose and unlock data from core systems (such as back-end applications or databases).

Process APIs orchestrate data across multiple systems and transform it as needed.

Experience APIs format the data specifically for consumption by applications or devices, such as the CRM in this case.

Step to Support Application Network:

Create a System API for the back-end system. This API should expose the necessary data to support integration with the CRM.

By creating a System API with a RESTful interface, data can be accessed in a standardized way, making it easier to integrate with other systems and supporting future scalability.

Why Option D is Correct:

Creating a System API aligns with the principle of API-led connectivity, ensuring that data is exposed in a reusable manner. This API can then be orchestrated by Process APIs as needed to meet CRM requirements and can easily be extended to other applications.

Explanation of Incorrect Options:

Option A (creating a business process model) does not directly enable connectivity or expose back-end data through APIs.

Option B is unnecessary at this stage; assessing CRM capabilities like OAuth 2.0 support is not directly related to creating the application network via System APIs.

Option C contradicts API-led best practices by suggesting a point-to-point integration, which API-led connectivity seeks to avoid due to its lack of flexibility and scalability.

ReferencesRefer to MuleSoft’s API-led Connectivity resources for a detailed framework on building scalable integration layers using System, Process, and Experience APIs​​.

Explanation

Correct Answer: Allow System APIs to return data that is NOT currently required by the identified Process or Experience APIs.

*****************************************

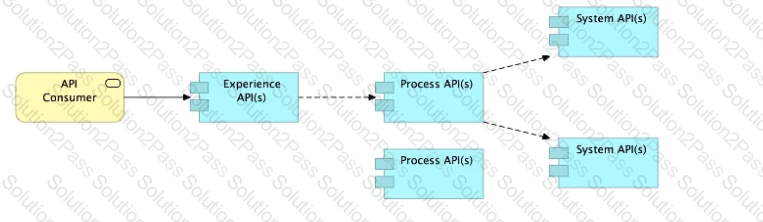

>> All customizations for the end-user application should be handled in "Experience API" only. Not in Process API

>> We should use tiered approach but NOT always by creating exactly one API for each of the 3 layers. Experience APIs might be one but Process APIs and System APIs are often more than one. System APIs for sure will be more than one all the time as they are the smallest modular APIs built in front of end systems.

>> Process APIs can call System APIs as well as other Process APIs. There is no such anti-design pattern in API-Led connectivity saying Process APIs should not call other Process APIs.

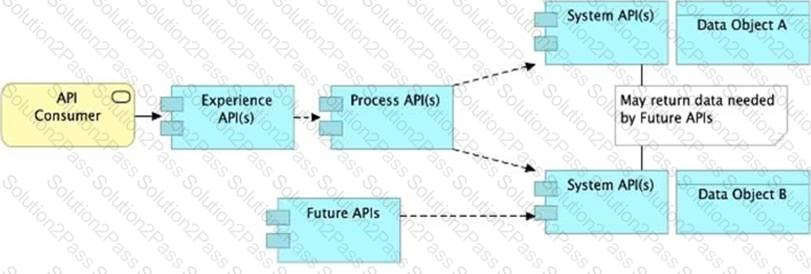

So, the right answer in the given set of options that makes sense as per API-Led connectivity principles is to allow System APIs to return data that is NOT currently required by the identified Process or Experience APIs. This way, some future Process APIs can make use of that data from System APIs and we need NOT touch the System layer APIs again and again.
