NetApp Volume Encryption uses a KMIP server when encryption keys must be stored separately from encrypted data. KMIP is the Key Management Interoperability Protocol and is the standard method ONTAP uses to communicate with external key managers. RADIUS is an authentication protocol and does not store encryption keys for NVE. TLS secures communications but is not itself a key management server. TKIP is an older wireless encryption mechanism and is unrelated to ONTAP volume encryption. Separating keys from encrypted data is a core security control because compromise of storage media or data blocks should not also expose the keys required to decrypt them. In ONTAP environments, external key management provides centralized lifecycle control, auditing, and recovery considerations for encrypted volumes. Support engineers must also verify key-manager reachability before enabling encryption because inaccessible keys can prevent encrypted volumes from being brought online. References/topics: NetApp Volume Encryption, external key management, KMIP server configuration, encryption key separation, and ONTAP security architecture.

Compression, compaction, and thin provisioning are ONTAP storage efficiency techniques. Compression reduces the physical space consumed by compressible data blocks. Compaction packs small I/O writes more efficiently into storage blocks to reduce wasted space, especially on AFF systems. Thin provisioning presents logical capacity to clients without reserving all physical capacity up front, allowing storage to be consumed as data is actually written. Encryption protects data confidentiality but is not a capacity-saving technology. Advanced Drive Partitioning improves disk utilization by partitioning drives for root and data usage, but it is a platform layout mechanism rather than the standard ONTAP data-reduction efficiency listed with compression and compaction. The NCSE interpretation must distinguish capacity efficiency from security and hardware layout features. The three selected options are the technologies that reduce or optimize consumed capacity at the volume or aggregate layer. References/topics: ONTAP storage efficiencies, inline compression, data compaction, thin provisioning, AFF efficiency defaults, and capacity management.

The Interoperability Matrix Tool and Active IQ Interop Advisor are the correct resources for verifying SAN component and host-environment compatibility. The IMT is the authoritative NetApp matrix for supported combinations of ONTAP, host OS, HBA/CNA, firmware, multipathing software, protocol, switch, and related SAN components. Active IQ Interop Advisor uses customer configuration data to help identify interoperability risks and recommend supported combinations. Uploading AutoSupports to Active IQ is useful because it feeds the analytics platform, but by itself it is not the action that verifies compatibility. Config Advisor validates configuration and cabling best practices, but it is not the primary host/SAN supportability matrix. The support engineer must validate both published interoperability rules and customer-specific risk analysis before a storage update. That is why the correct paired actions are IMT and Active IQ Interop Advisor. References/topics: NetApp Interoperability Matrix Tool, Active IQ Interop Advisor, SAN host compatibility, firmware/software supportability, and upgrade planning.

The supported NetApp HCI compute-node cabling methods are the 2-cable and 6-cable configurations. The 2-cable design is a simplified topology that reduces cabling while still supporting required network connectivity. The 6-cable configuration provides greater physical separation and bandwidth for management, storage, vMotion, and VM traffic depending on the validated design. A 1-cable configuration does not provide the required redundancy and traffic separation for supported HCI compute-node deployment. A 4-cable configuration is not one of the supported compute-node cabling methods in this exam context. NetApp HCI cabling must follow validated architecture because incorrect port use or switch design can prevent the NetApp Deployment Engine from validating the environment and can create performance or availability issues. The engineer should always compare the physical cabling with the deployment guide before running or rerunning the NetApp Deployment Engine. References/topics: NetApp HCI compute-node cabling, deployment prerequisites, 2-cable topology, 6-cable topology, and validated HCI network design.

CIFS domain controller selection is governed by the CIFS server discovery configuration, because ONTAP must discover and select domain controllers for authentication, name lookup, and domain services. Site membership can influence which domain controllers are preferred when Active Directory Sites and Services is correctly configured, but the configuration mechanism that determines how domain controllers are discovered is discovery mode. Enabled SMB versions control client protocol negotiation and do not define domain controller selection. Trusted domains define authentication trust boundaries but do not directly decide which domain controllers a specific CIFS server uses. In a troubleshooting context, when users experience CIFS authentication delays, logon failures, or inconsistent access, the support engineer checks DNS, site awareness, domain controller discovery, and CIFS domain status. The exam wording asks for the CIFS server configuration that determines the domain controllers used by the CIFS server, which is the discovery mode setting. References/topics: ONTAP SMB/CIFS server configuration, domain controller discovery, Active Directory site awareness, and CIFS authentication troubleshooting.

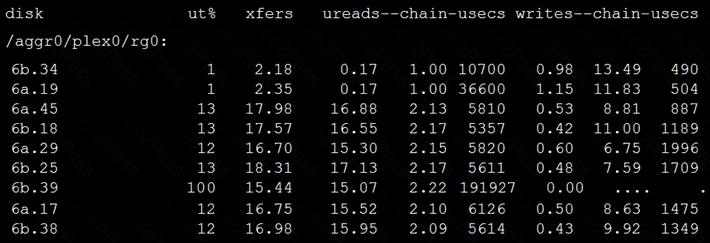

Disk 6b.39 should be replaced because the exhibit indicates one disk is the abnormal contributor to disk utilization rather than a balanced aggregate-wide load problem. When Active IQ reports 100 percent disk utilization despite low protocol operations, the support engineer must determine whether the metric reflects true client workload, background operations, or a single device causing path or service time issues. Replacing multiple disks without evidence would be excessive, and adding disks to the aggregate would not correct a failing or pathological disk that is already producing abnormal utilization. Reseating shelf module B would be appropriate if the pattern showed a path, shelf, or module-wide issue, but the scenario points to a specific disk. In disk-level troubleshooting, the correct response is to isolate the outlier device, confirm the disk ID, and replace the failing component through standard NetApp support procedures. References/topics: Active IQ disk utilization analysis, disk outlier diagnosis, ONTAP storage performance triage, drive replacement workflow, and hardware fault isolation.

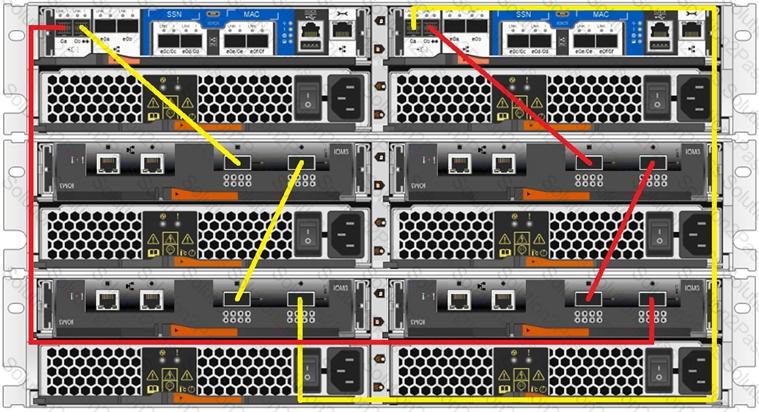

The controller of controller A should be replaced. The error reports an unknown device on adapter 0a from NetappA, with a SCSI check condition indicating a hardware error. In the cabling context of a FAS2750 HA pair, if the system is cabled according to the exhibit and the error remains isolated to controller A's path, the fault follows the controller-side hardware rather than the partner controller or only an external cable. Re-cabling per the guide would be appropriate if the exhibit showed incorrect cabling, and replacing a cable would be appropriate if the fault evidence isolated to the cable. Replacing controller B does not align with the reporting node and adapter. A support engineer should first map the error to node, adapter, shelf path, and cabling; then isolate whether the failing element is the controller path, cable, or external shelf component. Here, the reported hardware error points to controller A. References/topics: FAS2750 SAS path troubleshooting, SCSI check condition errors, controller path isolation, HA cabling validation, and hardware replacement workflow.

A disk/shelf count mismatch AutoSupport message indicates that nodes in the cluster do not agree about visible disks or shelves, so the first areas to inspect are drive paths and SAS cabling. Drive paths reveal whether each controller can see the expected disks through the expected redundant routes. SAS cabling is a common physical cause because a missing, crossed, loose, or failed cable can make one path or shelf segment disappear from one controller's view. IOM firmware and drive firmware can matter in broader shelf troubleshooting, but a count mismatch is primarily about visibility and pathing, not code level on a disk or module. The support engineer should validate multipath HA, shelf stack cabling, port connections, and path status before replacing hardware. Correct path redundancy is essential because ONTAP expects consistent shelf and disk inventory across the HA pair or cluster. References/topics: AutoSupport disk/shelf count mismatch, SAS cabling, drive path validation, multipath HA, and shelf visibility troubleshooting.

The appropriate corrective action is to tune the SyncMirror resync speed by using the storage raid-options command. In a fabric MetroCluster, SyncMirror maintains mirrored plexes across sites. After a site event, plex resynchronization can generate substantial back-end I/O. If the resync is too slow or affects production behavior, ONTAP provides RAID option controls to tune mirror resync behavior. Adding disks might improve aggregate I/O capacity in some cases, but it does not directly control SyncMirror resync pacing. Destroying and recreating a plex is disruptive and unnecessary when the plex is already resyncing. A QoS policy limits client workload behavior and does not tune the underlying RAID mirror resynchronization engine. The support engineer must use the control point associated with the subsystem that is performing the work: SyncMirror resync is RAID/plex activity, not front-end workload throttling. References/topics: MetroCluster SyncMirror, plex resynchronization, storage raid-options, aggregate mirror maintenance, and MetroCluster performance troubleshooting.

The complete hardware test after replacing a motherboard is performed from the diagnostics environment, which is reached from the LOADER prompt by using boot_diags, followed by system-level diagnostics such as sldiag. Booting normal ONTAP or ordinary maintenance mode is not the full diagnostics workflow for newly installed field-replaceable components. The motherboard is a core platform component, so the objective is not merely to see whether ONTAP boots; the objective is to run system-level hardware diagnostics using the special diagnostic drivers. Executing sldiag directly from the LOADER prompt is also incorrect because sldiag is run after entering the diagnostic/maintenance environment. In support practice, after controller FRU replacement, the engineer validates the component, checks diagnostic status, clears diagnostic logs if successful, halts back to LOADER if needed, and returns the node to service only after the diagnostic result is clean. References/topics: NetApp system-level diagnostics, LOADER boot_diags workflow, sldiag device testing, and hardware FRU validation.

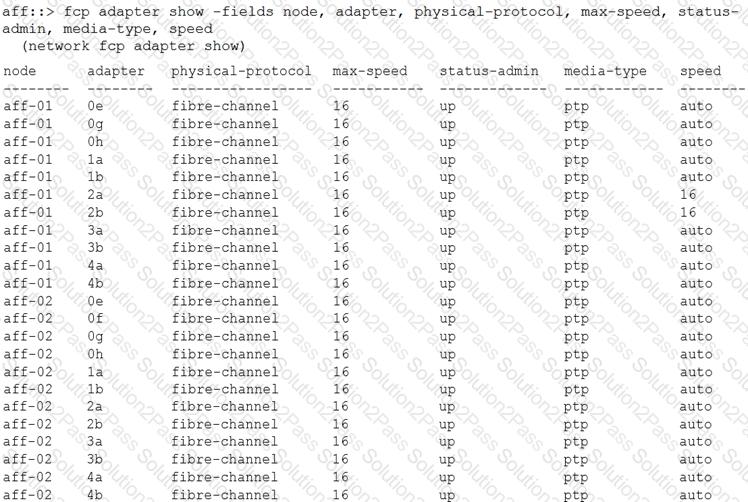

The problem is that there are no FC adapters with a max-speed of 32 Gbps. NVMe/FC support depends on platform, adapter, and speed capability. The exhibit shows FC adapters, but their max-speed is 16 Gbps, which does not satisfy the requirement being tested. The issue is not that the physical protocol is already set to NVMe; FC adapters are configured and then used for FC or FC-NVMe services according to supported capabilities. Media type is not NVMe, because NVMe is a storage protocol, not an optical media type. The wording 'cannot enable the protocol' requires checking whether installed adapters meet the hardware support requirements. A support engineer should verify adapter model, max speed, port mode, firmware, and ONTAP support matrix before attempting to configure NVMe. In this exhibit, the absence of 32 Gb-capable FC adapters is the blocking condition. References/topics: ONTAP NVMe/FC adapter requirements, FC adapter max-speed, protocol enablement, SAN hardware support, and port capability validation.

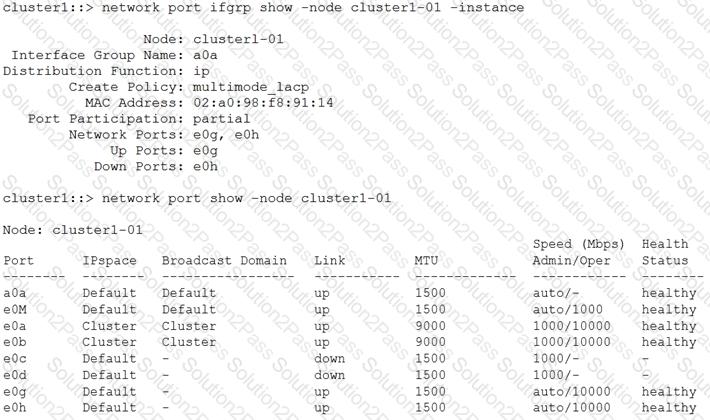

One physical interface is mis-cabled. The interface group output shows that the ifgrp expects specific member ports and that one member is not participating as expected after the network card replacement. The physical port listing shows link state information, but the ifgrp/LACP state indicates the port is not correctly associated with the intended switch-side aggregation. If a port were simply uncabled, the physical link would be down. If the interface were broken, the issue would follow the port regardless of switch-side configuration and would not primarily appear as a membership mismatch. The ifgrp is not configured in single mode; it uses multimode LACP, so switch cabling and LACP membership must match exactly. In support practice, a replacement NIC can lead to cables being swapped into the wrong switch ports or LAG groups. The engineer should verify cabling against the switch LACP configuration and NetApp port membership. References/topics: ONTAP ifgrp troubleshooting, LACP port membership, NIC replacement validation, physical cabling checks, and network port show interpretation.

The ISL between siteA and siteB is the component causing the problem. The EMS messages show both nodes reporting HA interconnect connection failures and then bridges being removed from opposite sites at essentially the same timestamp. If a single ATTO bridge were the root cause, the failure would localize to that bridge or path. If one SAN switch at siteA_2 or siteB_2 failed, the messages would more narrowly implicate paths through that switch. Instead, both sides simultaneously lose visibility across the fabric to remote bridges, which indicates an intersite link failure between the sites. In a fabric MetroCluster, ISLs carry the cross-site connectivity required for mirrored storage and FC fabric communication. A support engineer should interpret symmetry: simultaneous bridge removals from both perspectives generally point to the shared intersite path, not independent bridge failures at both locations. References/topics: MetroCluster fabric ISLs, FC-to-SAS bridge visibility, DISK REDUNDANCY FAILED messages, cross-site pathing, and MetroCluster fabric troubleshooting.

ONTAP System Manager and Performance Archive are the appropriate data sources for explaining a wafl.cp.toolong event. A long consistency point indicates that WAFL took longer than expected to complete a CP, so the engineer needs both system event context and historical performance evidence. System Manager provides an operational view of cluster health, aggregate state, and performance indicators. Performance Archive provides the deeper time-series performance data needed to correlate the event with workload, disk, CPU, NVRAM, or aggregate behavior around the timestamp. Active IQ Unified Manager may be useful in broader monitoring, but the question asks for the data sources used to explain this specific EMS message. mgwd.log is a management daemon log and is not the primary source for WAFL CP performance analysis. The support approach is to correlate the EMS event with performance archive counters and visible system health. References/topics: wafl.cp.toolong EMS events, WAFL consistency points, Performance Archive, System Manager performance review, and ONTAP CP troubleshooting.

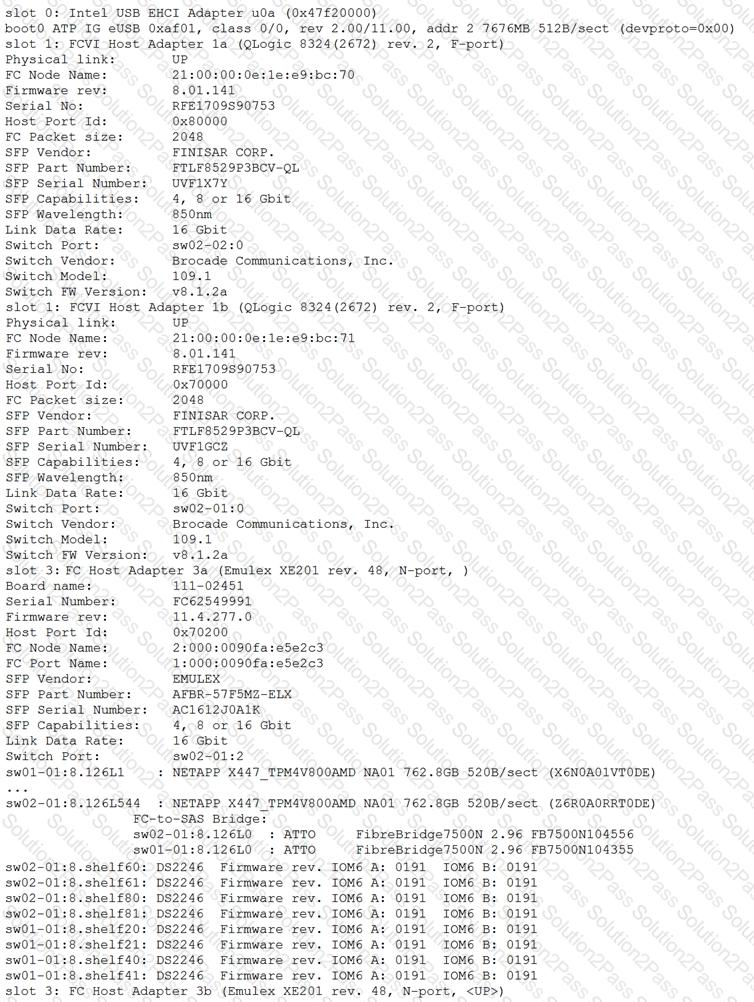

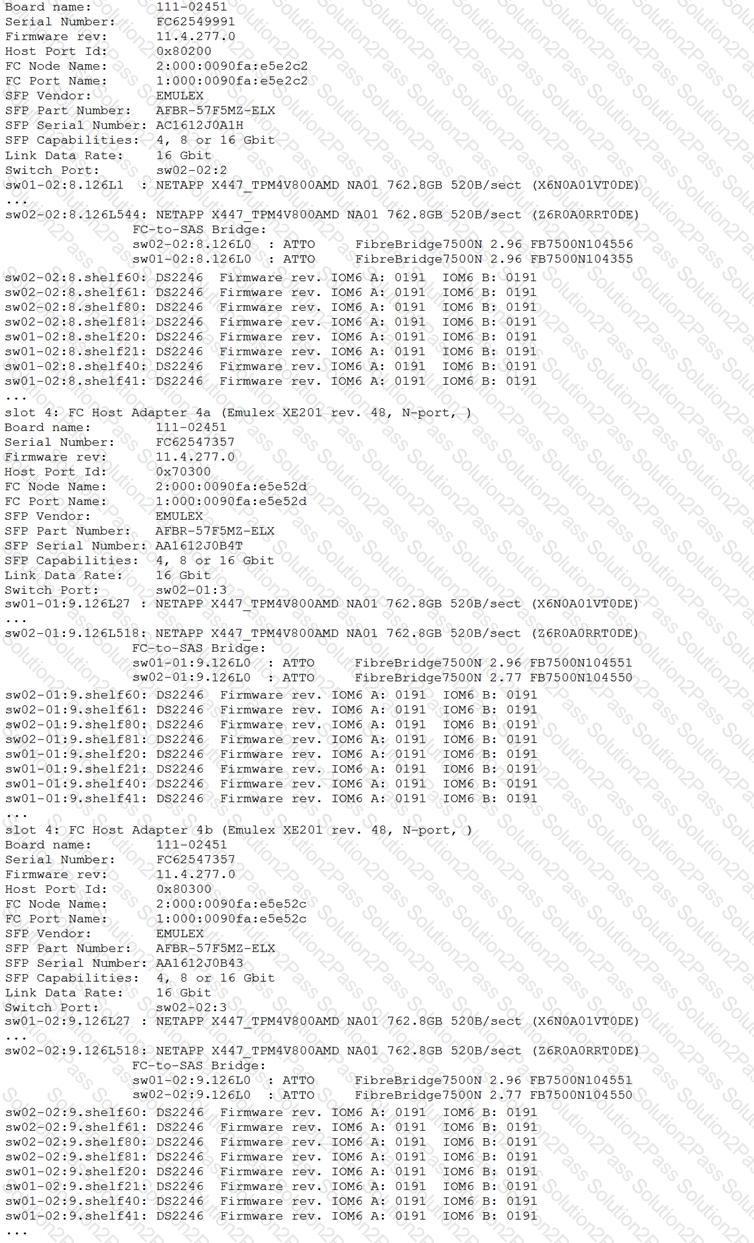

The exhibit shows a fabric-attached MetroCluster design rather than an IP or stretch design. The output includes FC-VI host adapters, Brocade switch information, FibreBridge devices, and disk shelves connected through FC-to-SAS bridges. Those components are characteristic of a fabric MetroCluster where Fibre Channel switches provide the intersite storage fabric and bridges connect SAS shelves into the FC environment. A two-node stretch MetroCluster would not show the same four-node fabric topology, and MetroCluster IP would use Ethernet-based back-end connectivity rather than FC switches and FC-to-SAS bridges. A four-node stretch MetroCluster would also not use the fabric-switch/bridge arrangement shown in the exhibit. The support engineer must identify topology from the hardware path indicators, not from the node count alone. The presence of FC switches, FC-VI, and ATTO FibreBridge devices makes the topology a four-node fabric-attached MetroCluster. References/topics: MetroCluster fabric architecture, FC-VI adapters, FC-to-SAS bridges, Brocade switch paths, and MetroCluster hardware topology identification.

NDMP is the correct technology when a customer must create physical hard copies of transaction data for off-site regulatory storage. NDMP enables ONTAP data to be backed up directly to tape through a supported backup application, and tape is the typical medium for physical removable copies. SnapVault is disk-to-disk backup and retention; it is excellent for secondary ONTAP protection but does not inherently create physical hard copies. SVM DR replicates an SVM for disaster recovery and is not a physical-copy mechanism. FlexCache accelerates access to remote data and is not a regulatory backup technology. The phrase 'physical hard copies off site' is the key discriminator. A support engineer should map this to tape backup workflows, NDMP configuration, qualified tape devices, and backup software integration. For regulatory retention that requires removable media, NDMP is the NetApp-supported data transfer framework. References/topics: ONTAP NDMP, tape backup, off-site physical media retention, backup application integration, and regulatory data protection.

MPIO and ALUA are the required host/target features to ensure storage failover works correctly for FCP and iSCSI clients. MPIO on the host provides multiple available paths to the LUN, allowing I/O to continue when one path or controller is unavailable. ALUA on the target communicates path states to the host so that optimized paths are preferred and non-optimized paths are used correctly during failover. LACP is a link aggregation mechanism for Ethernet networking and does not solve block SAN path selection for FCP; it is also not relevant to FC. SCSI is the command protocol foundation for FCP and iSCSI, but it is not a failover feature by itself. The support engineer must validate the complete SAN failover stack: host multipathing software, correct DSM/device handler, ONTAP ALUA reporting, igroup configuration, and redundant LIF/target paths. References/topics: ONTAP SAN failover, MPIO, ALUA, FCP/iSCSI host access, and TR-4080 SAN best practices.
