NS0-304 Netapp NetApp Certified Hybrid Cloud Administrator Professional Exam Free Practice Exam Questions (2025 Updated)

To move several volumes containing iSCSI LUNs from an ONTAP AFF cluster to Cloud Volumes ONTAP (CVO), the most appropriate method is using SnapMirror. Here’s the process:

Utilizing SnapMirror for LUN Migration:SnapMirror is NetApp’s replication technology that is ideally suited for efficiently transferring data between ONTAP systems, including from AFF to CVO. It is capable of handling complex data structures like iSCSI LUNs, ensuring data integrity and consistency during the transfer.

Configuration of SnapMirror:Set up a SnapMirror relationship between the source AFF cluster and the destination CVO instance. This involves configuring the SnapMirror policy, scheduling the replication, and initializing the transfer of data.

Advantages for iSCSI LUNs:SnapMirror maintains the layout and attributes of the iSCSI LUNs during replication, which is crucial for ensuring that the storage is ready for immediate use upon completion of the replication to the CVO environment.

For step-by-step instructions on configuring and using SnapMirror for transferring iSCSI LUNs, consult the NetApp documentation on SnapMirror: NetApp SnapMirror Documentation.

When setting up Cloud Volumes ONTAP (CVO) with high availability in AWS, the creation of an IAM role associated with CVO is performed in the AWS console. Here’s the process:

Role Creation in AWS Console:The IAM role must be created within the AWS console. This role is crucial as it grants the Cloud Volumes ONTAP instance thenecessary permissions to access other AWS services as required by its configuration and operational needs.

Permissions Configuration:The IAM role should be configured with policies that provide the appropriate permissions for services that CVO needs to interact with, such as S3 for storage, EC2 for compute resources, and others depending on the specific setup.

Associate IAM Role with CVO:Once created, the IAM role is then associated with the CVO instance during its setup process in the AWS console or through BlueXP, which automates and manages NetApp configurations in cloud environments.

For detailed guidelines on creating and configuring IAM roles for Cloud Volumes ONTAP in AWS, please consult the AWS documentation and NetApp setup guides for CVO: NetApp CVO AWS Documentation.

To utilize the SnapCenter Plug-in for VMware vSphere to back up VMware virtual machines from on-premises AFF (All Flash FAS) systems to AWS S3, it's crucial to meet specific requirements:

Plug-in Installation in vCenter:The SnapCenter Plug-in for VMware vSphere must be installed directly within the VMware vCenter Server. This integration allows the plug-in to manage and coordinate the backup operations directly from the vCenter, providing centralized management and control over the backup processes.

Registration with BlueXP (formerly NetApp Cloud Manager):The plug-in must be registered with BlueXP. BlueXP serves as a unified control plane for orchestrating and managing NetApp’s hybrid cloud storage and data services. Registering the plug-in with BlueXP ensures it can communicate and operate seamlessly with other NetApp services, including storage orchestration to AWS S3.

These steps are designed to ensure the SnapCenter Plug-in operates effectively within the VMware environment and interacts correctly with NetApp's cloud data services, facilitating the backup process to AWS S3.

For more detailed guidance, reference the SnapCenter documentation available through the NetApp support site: NetApp SnapCenter Documentation.

In a scenario where a Cloud Volumes ONTAP (CVO) instance lacks outbound network connectivity to send AutoSupport messages, BlueXP (formerly known as NetApp Cloud Manager) will automatically configure the Connector as the proxy server for AutoSupport. The Connector serves as a bridge between the customer's environment and NetApp cloud services, facilitating communication and data transfer, including AutoSupport messages, when direct connectivity is unavailable.

Page blobis a type of storage in Azure, not related to network functions.

MediatorandCollectorare not standard terms used within NetApp for describing components involved in managing or proxying AutoSupport messages.

BlueXP's configuration to use the Connector as a proxy ensures that all monitoring and telemetry data crucial for the health and performance diagnostics of the CVO instance are relayed effectively, even in environments with restrictive outbound network policies.More details on this setup can be explored in the BlueXP or Cloud Volumes ONTAP documentation available on NetApp's website.

For a customer requiring unlimited backups in their Cloud Volumes ONTAP (CVO) instance, the Essentials and Premium subscription models are the appropriate choices. Both these subscription models offer unlimited backups as part of their service package, which is ideal for customers who prioritize extensive backup capabilities without the concern of hitting limits.

The Professional, Optimized, and Edge Cache plans typically have different focuses or limitations concerning backup capabilities:

Professional: Geared more towards smaller or less critical deployments without the breadth of features found in Premium or Essentials.

Optimized: Often focuses on performance optimization rather than extensive backup functionalities.

Edge Cache: Is used for caching services at the edge rather than core data management and backup functionalities.

Detailed information on these subscription models and their backup capabilities can be found in the NetApp Cloud Volumes ONTAP documentation or through consultation with NetApp sales representatives.

For migrating applications between Kubernetes clusters—specifically from Google Kubernetes Engine (GKE) to Azure Kubernetes Service (AKS)—and ensuring that all components and data are moved in an application-aware manner, the best product to use is Astra Control Service. Here’s why:

Application-Aware Migration:Astra Control Service is designed to manage, protect, and move applications in Kubernetes environments. It understands the structure of Kubernetes applications and can manage the entire lifecycle, including migration of application data along with its configuration and state.

Cross-Platform Capability:Astra Control Service supports multiple Kubernetes platforms, making it suitable for migrations from GKE to AKS. It ensures that all parts of the Kubernetes application, including persistent volumes and configurations, are consistently replicated to the new environment.

Seamless Migration Process:The service automates much of the migration process, reducing the complexity and potential for error when moving applications between different cloud providers or Kubernetes services.

For more detailed guidance on using Astra Control Service for Kubernetes migrations, refer to the NetApp documentation: NetApp Astra Control Service Documentation.

When setting up NetApp Cloud Tiering with an S3 object storage bucket, it is crucial that the bucket configuration adheres to the default IAM policy for the cloud connector. Here’s the configuration requirement:

Bucket Configuration with Specific Prefix:The IAM policy often specifies access permissions based on resource names or prefixes. For Cloud Tiering, particularly when integrating with FabricPool technology, the bucket should have a prefix set tofabric-pool. This allows the Cloud Tiering service to correctly identify and interact with the bucket, ensuring compliance with security policies and access controls.

Verify IAM Policy Configuration:Ensure that the IAM policy for the cloud connector includes permissions for operations on the S3 bucket with thefabric-poolprefix. This typically includes permissions to put, get, list, and delete objects within the bucket.

For further information on configuring S3 buckets for NetApp Cloud Tiering and detailed IAM policy settings, please consult the NetApp Cloud Tiering documentation available on the NetApp website: NetApp Cloud Tiering Documentation.

To automate firmware updates effectively using Active IQ Digital Advisor, the best tool to use is Ansible. Here’s why:

Ansible Integration with NetApp:Ansible is widely recognized for its powerful automation capabilities across various IT environments. NetApp provides specific Ansible modules designed to interact with its storage solutions and services, including the automation of firmware updates.

Active IQ Digital Advisor Integration:Active IQ Digital Advisor offers predictive analytics, actionable intelligence, and proactive recommendations. By using Ansible, administrators can automate the implementation of these recommendations, including firmware updates, to enhance efficiency and reliability in operations.

To implement this, the administrator needs to leverage the NetApp Ansible modules that are specifically designed for storage management tasks. This can be found in the NetApp Automation Store, where administrators can access pre-built playbooks for firmware updates, simplifying the automation process.

For further details and specific implementation steps, please refer to the NetApp Automation Store and the official NetApp documentation on Ansible integration: NetApp Ansible Modules Documentation.

When setting up FlexCache in Cloud Volumes ONTAP (CVO) to scale out an on-premises system, the critical first step on the on-premises system is to generate a cluster peering passphrase. This passphrase is used to establish a secure cluster peering relationship between the on-premises ONTAP system and the CVO in the cloud. Here's the process:

Cluster Peering Setup:Cluster peering is essential for FlexCache because it allows the on-premises system to communicate and share data with the CVO instance. The cluster peering passphrase is used to authenticate the peering session, ensuring security.

Generate the Passphrase:In the ONTAP system manager on the on-premises cluster, navigate to the cluster peering settings and generate or configure the passphrase that will be used for peering with the CVO.

Establish Peering:Once the passphrase is set, use it to create the cluster peer relationship from the on-premises ONTAP to the CVO, following the guided steps in ONTAP System Manager or using CLI commands.

For detailed instructions on setting up cluster peering for FlexCache, refer to the NetApp documentation on FlexCache and cluster peering: NetApp FlexCache Documentation.

To deploy Cloud Volumes ONTAP (CVO) in Google Cloud, typically two Virtual Private Clouds (VPCs) are required. This configuration generally involves:

A VPC for the management of CVO operations, handling management traffic, control plane operations, and other administrative activities.

A VPC dedicated to data traffic, ensuring data security and optimal network performance for storage operations.

This dual-VPC architecture helps in isolating management operations from data operations, providing enhanced security and performance. The management VPC can handle tasks like software updates and system monitoring, while the data VPC focuses purely on serving storage requests, thereby optimizing traffic flows and security policies accordingly.

For more detailed deployment instructions and VPC configuration guidelines, the official NetApp documentation on deploying Cloud Volumes ONTAP in Google Cloud provides comprehensive guidance.

For Cloud Data Sense to effectively scan S3 buckets, it requires permissions to list and get objects within the buckets. From the IAM policy provided in the exhibit, the permissions currently includes3:PutObjectfor object creation and a series of IAM-related permissions such asiam:GetPolicyVersion,iam:GetPolicy, andiam:ListAttachedRolePolicies. However, for scanning purposes, Data Sense needs to read and list the objects in the buckets. Therefore, the missing permissions are:

s3:List*: This permission allows the listing of all objects within the S3 buckets, which is necessary to scan and index the contents.

s3:Get*: This grants the ability to retrieve or read the content of the objects within the S3 buckets, which is essential for scanning the data within them.

These permissions ensure that Cloud Data Sense can access the metadata and contents of objects within S3 to perform its functionality.

When dealing with a potential ransomware attack where files appear encrypted, it is crucial to restore the affected data to a point before the corruption occurred. The best course of action in this scenario is to perform a SnapRestore using a known good weekly snapshot and then re-enable the share. Here's how:

Assess the Snapshots:Verify that you have snapshots that predate the ransomware attack. These snapshots should be intact and free from encryption or corruption.

Perform a SnapRestore:Use the SnapRestore operation to quickly revert the entire volume to the state captured in the selected weekly snapshot. SnapRestore is efficient because it does not involve data movement; it simply reverts pointers in the filesystem.

Re-enable the Share:After successfully reverting the volume to a good state, the share can be safely re-enabled, allowing users to access the clean, restored data.

Verify System Integrity and Security:Before re-enabling the share, ensure that all system vulnerabilities are addressed to prevent future attacks. Implement improved security measures as needed.

For more details on using SnapRestore in ONTAP systems, refer to the NetApp documentation on data protection and recovery: NetApp SnapRestore Documentation.

When deploying Cloud Volumes ONTAP (CVO) in a High Availability (HA) configuration, two critical network types are used:

Intracluster:This network type is used for communication within the same cluster, particularly between nodes within the same HA pair. It is crucial for the synchronization and coordination of operations that support the cluster's internal processes and data management.

Intercluster:This network type facilitates communication between different clusters or between nodes across different data centers or geographical locations. It is typically used for data replication and disaster recovery purposes, ensuring data continuity and availability across diverse environments.

Understanding and configuring these network types correctly is essential for maintaining high availability and ensuring robust disaster recovery in CVO deployments.

For more details on network configuration in CVO HA setups, refer to the NetApp documentation on network management for Cloud Volumes ONTAP: NetApp CVO Network Documentation.

When an administrator receives an error that the DNS server is not available while trying to create a new volume in Azure NetApp Files, the first action should be to confirm that the network security groups allow connectivity. Here’s the process:

Check Network Security Group Rules:Verify that the network security group (NSG) associated with the subnet where Azure NetApp Files is located has rules that allow traffic to and from the DNS server, specifically permitting DNS query traffic (typically over port 53 for both TCP and UDP).

Adjust NSG Settings if Necessary:If the current NSG rules are restrictive and do not allow DNS traffic, modify them to include the necessary allowances for DNS resolution.

Test Connectivity:After updating the NSG settings, retry the volume creation to see if the DNS issue has been resolved.

For guidance on managing NSGs in Azure, consult the Azure documentation:Azure Network Security Groups.

To address the issue of not being able to access an NFS file system hosted on FSx for ONTAP in one Virtual Private Cloud (VPC) from clients located in another VPC, the administrator should configure VPC peering between the two VPCs. Here’s why and how:

VPC Peering Setup:VPC peering allows two VPCs to communicate with each other as though they are part of the same network. This is essential for enabling direct access to the NFS file system across different VPCs.

Configure Network Routes:Once VPC peering is established, configure the network routes to ensure that traffic destined for the NFS file system can traverse the peered VPC connection.

Verify Accessibility:Test the NFS file system access from the client VPC to ensure that the configuration is correct and that the file system is accessible.

VPC peering is a straightforward solution that does not require the complexity and additional cost associated with options like Transit Gateways or Direct Connect. It’s well-suited for enabling direct network connectivity between VPCs within the same cloud provider.

For more details on setting up VPC peering, refer to AWS documentation:AWS VPC Peering Guide.

To automate the creation of several new volumes on an existing aggregate in a NetApp Cloud Volumes ONTAP instance, the administrator should use an Ansible Playbook. Here’s how it benefits the task:

Automation with Ansible:Ansible is a powerful automation tool that can manage infrastructure as code. Using Ansible Playbooks, administrators can script the configuration of new volumes, including size, protocols, and other settings, ensuring consistent and repeatable deployments.

NetApp Module for Ansible:NetApp provides specific Ansible modules for ONTAP that allow administrators to automate various storage operations, including volume creation. This integration streamlines the process and ensures compatibility with NetApp technologies.

Ease of Use and Scalability:Ansible Playbooks can be run from a central location and can manage multiple configurations across different environments, making them ideal for large-scale deployments or routine operations.

For instructions on creating Ansible Playbooks for NetApp ONTAP, refer to the NetApp Automation and Ansible documentation: NetApp Developer Network - Ansible.

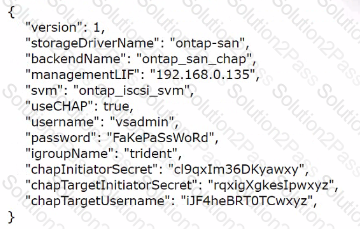

When configuring the Trident ONTAP-SAN driver with CHAP (Challenge Handshake Authentication Protocol) enabled (useCHAP: true), it is essential to specify both the initiator and target CHAP secrets and their corresponding usernames. In the configuration provided, while the CHAP secrets for both initiator and target are specified (chapInitiatorSecretandchapTargetInitiatorSecret), only the CHAP target username (chapTargetUsername) is listed. The missing parameter necessary for the complete CHAP configuration is the CHAP initiator username (chapUsername). This username is used along with thechapInitiatorSecretto authenticate the initiator to the storage system.

To correct this, add thechapUsernamefield to the configuration file, ensuring that the initiator's username matches the configured environment and that it is correctly paired with thechapInitiatorSecret. This inclusion ensures that both sides of the CHAP authentication process are properly identified, thereby providing the necessary security for SAN communication.

For further guidance on configuring CHAP with the Trident ONTAP-SAN driver, refer to the NetApp Trident documentation:NetApp Trident Documentation.

To monitor storage and compute resources across both a hyperscaler and a private data center, BlueXP Observability is the appropriate tool. This part of the BlueXP suite offers a unified view of infrastructure health, performance, and capacity. Here’s the benefit of using BlueXP Observability:

Unified Monitoring:BlueXP Observability provides a single pane of glass for monitoring resources, regardless of their location—whether in the cloud or on-premises. This includes real-time data on performance, capacity utilization, and system health.

Cross-Environment Support:It supports various environments, making it suitable for hybrid deployments. This capability allows administrators to have a holistic view of their entire infrastructure.

Alerts and Metrics:The tool offers customizable alerts and detailed metrics that help in proactive management and troubleshooting of storage and compute resources.

BlueXP Observability's extensive capabilities in monitoring and managing diverse IT environments make it an ideal choice for enterprises that operate across multiple platforms.

For more information on how to utilize BlueXP Observability for infrastructure monitoring, refer to the NetApp BlueXP documentation: NetApp BlueXP Documentation.
