4A0-C04 Nokia NRS II Composite Exam: OSPF version Free Practice Exam Questions (2025 Updated)
Prepare effectively for your Nokia 4A0-C04 Nokia NRS II Composite Exam: OSPF version certification with our extensive collection of free, high-quality practice questions. Each question is designed to mirror the actual exam format and objectives, complete with comprehensive answers and detailed explanations. Our materials are regularly updated for 2025, ensuring you have the most current resources to build confidence and succeed on your first attempt.
Which of the following prefix-lists is the most specific match for prefix 172.31.2.1/24?
Which of the following is NOT required when configuring an LSP with an admin group constraint on an Nokia 7750 SR?
Click the exhibit.

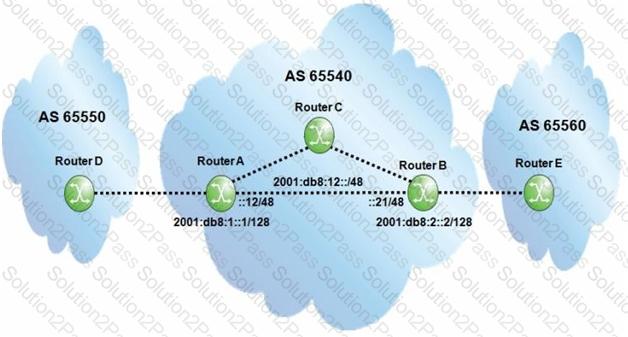

Assume all router-IDs are properly configured, and global IPv6 addresses are used to establish eBGP sessions. Which of the following configurations is required on router A so that router B can exchange traffic with router D?
Which of the following about SAPs is FALSE?
Which of the following OSPF area types are supported by the Alcatel- Lucent 7750 SR? Choose two answers.
Click the exhibit.

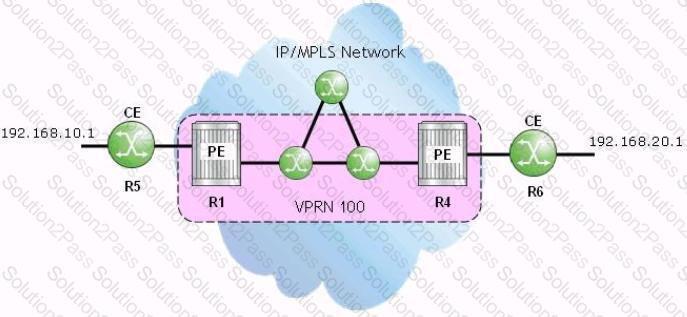

The CEs use BGP and export policies to advertise their local prefixes with the VPRN on their PEs. If the VPRN is functioning properly, which of the following commands will succeed when performed on router R1?
Which routing protocol cannot be run over an Ipipe?
On an Nokia 7750 SR, which vc-type will strip service delimiting tags at the ingress PE?
Click on the exhibit.

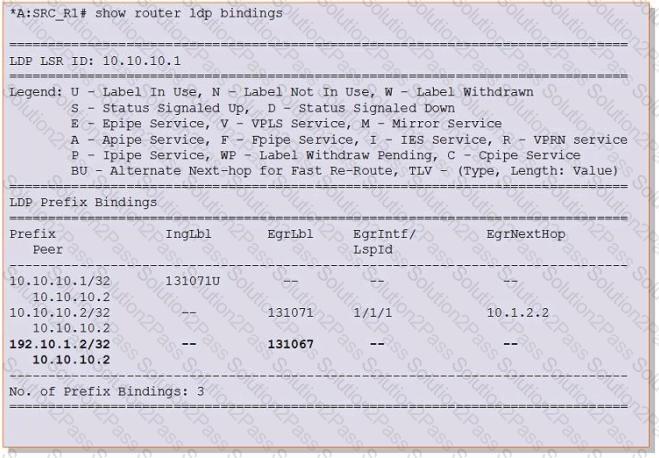

What is the possible reason that the label for prefix 192.10.1.2/32 is not active?
Which of the LSA types stay within an OSPF area and are not exported outside of the area? (Choose all that apply)
The configuration of an Nokia 7750 SR is given below. Router Rl has established BGP sessions with routers R2 and R3. Which of the following is TRUE?
Click on the exhibit.
LSP 1's link between routers R3 and R6 has failed, and the RESV state at router R3 has timed out. Which of the following actions will router R3 initiate?
Click the exhibit.
The output is from PE router R4 about VPRN service 100. How many prefixes have been learned from the MP-BGP protocol?
Click the exhibit button.
The following command sequence is executed on router R2:
A: R2# configure router ospf router-id 10.10.10.99
A: R2# configure router router-id 10.10.10.66
On router R1, what router ID appears for router R2 directly after these commands are executed?
Which of the following devices assumes the active role during the establishment of an LDP session?
Which of the following about CSPF is TRUE?
Click on the exhibit.

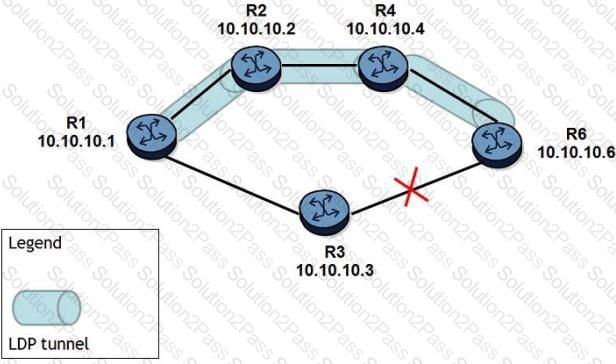

An LDP tunnel is established on R1-R2-R4-R6 because the link between routers R3 and R6 is down. With the LDP-IGP Sync feature enabled, what happens immediately after the link is restored?
If an Nokia 7750 SR is an iLER operating in pipe mode, which of the following regarding the TC field (EXP bits) is TRUE?
Click on the exhibit.

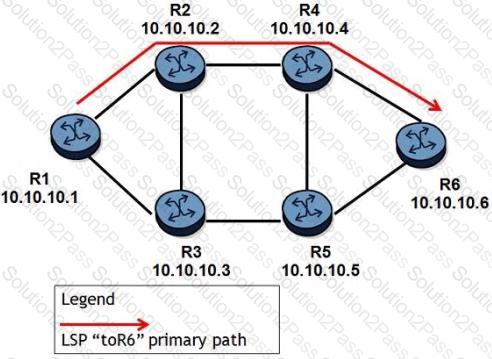

An LSP traverses R1-R2-R4-R6 and one-to-one fast reroute with link protection is enabled. All links have the same cost. Which of the following about DMP and MP is TRUE?
Which of the following about the Nokia 7750 SR sdp-ping is TRUE?
