NCP-MCI-6.5 Nutanix Certified Professional - Multicloud Infrastructure (NCP-MCI) v6.5 exam Free Practice Exam Questions (2025 Updated)

According to the web search results, two steps that should be taken to prepare for relocating an AHV cluster to a new datacenter during a maintenance window are:

Shut down all user VMs in the cluster: This step is necessary to ensure that there is no data loss or corruption during the relocation process. The user VMs can be shut down either individually or in bulk by using the Prism Element web console or the acli command-line interface1.

Stop all Nutanix Files clusters: If the AHV cluster hosts any Nutanix Files clusters, they should be stopped before relocating the cluster. Nutanix Files clusters are composed of one or more virtual machines that provide file services to clients. Stopping a Nutanix Files cluster will stop all the file server VMs and release the resources they consume2. The Nutanix Files clusters can be stopped by using the Prism Element web console or the ncli command-line interface3.

The best way to configure the VM for optimal performance is to set it up with 2 vNUMA nodes. This will ensure that the VM is configured to take advantage of the CPU and memory resources available in each node, and it will also ensure that all of the cores are utilized for the best performance. Additionally, the administrator should ensure that the VM has an affinity policy set up so that the vCPUs are evenly distributed across the four nodes. Finally, Flash Mode should be enabled in order to take advantage of the high-performance SSDs that are available in the cluster

The correct answer is B. The existing and the expansion node are on different VLANs.

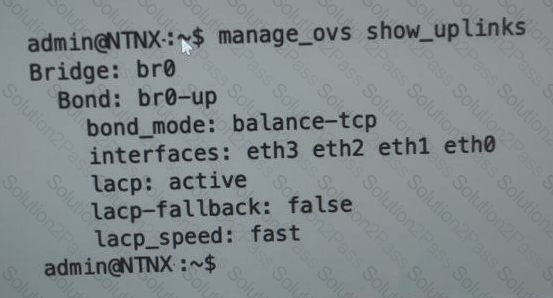

The output shows that the new node has a br0-up bond with four interfaces: eth0, eth1, eth2, and eth3. The bond is configured with LACP active and LACP fallback set to false. This means that the bond will only work if the upstream switch supports LACP and is configured to form an LACP group with the four interfaces. However, the output also shows that the bond has no IP address assigned to it, which indicates that the bond is not operational. One possible reason for this is that the existing and the expansion node are on different VLANs, and the upstream switch is not configured to allow the VLAN traffic on the LACP group. This would prevent the new node from communicating with the cluster and being discovered by the Expand Cluster function in Prism.

To verify this, the administrator can check the VLAN configuration on the upstream switch and compare it with the existing nodes. Alternatively, the administrator can use the “manage_ovs show_uplinks” command on an existing node and compare the output with the new node. If there is a VLAN mismatch, the administrator can either change the VLAN configuration on the switch or on the new node to match the existing nodes.

According to the How to use the cvm_shutdown script web search result3, the cvm_shutdown script signals HA when shutting down the CVM (Controller VM) to forward the storage traffic to another healthy CVM. Instead of using sudo shutdown or sudo reboot commands, this script should be used to minimize I/O hits in user VMs running on the present hypervisor host. The cvm_shutdown -P now command will initiate the shutdown process on the CVM immediately. Therefore, if the administrator needs to perform an orderly shutdown of the CVM, they should execute this command from the CVM.

According to the web search results, one of the requirements for cross-hypervisor disaster recovery (CHDR) is to install and configure Nutanix Guest Tools (NGT) on all the VMs2. NGT configures the VM with all the required drivers for VM portability. Without NGT, the VMs may fail to boot after being migrated to a different hypervisor type.

According to the Nutanix Support & Insights web search result1, if the owner Controller VM becomes unavailable, the address moves to another Controller VM, ensuring that it is always available. This IP address is also used as a cluster-wide address by clients configured as part of Nutanix Files and other products. Therefore, the host will automatically redirect I/O and VMs will continue running without any interruption.

https://portal.nutanix.com/page/documents/solutions/details/?targetId=BP-2029_AHV:BP-2029_AHV

Administrators can use Acropolis with IPAM to deliver a complete virtualization deployment, including network management, from the unified Prism interface. This capability radically simplifies the traditionally complex network management associated with provisioning VMs and assigning network addresses. To avoid address overlap, be sure to work with your network team to reserve a range of addresses for VMs before enabling the IPAM feature.

The Acropolis master assigns an IP address from the address pool when creating a managed VM NIC; the address releases back to the pool when the VM NIC or VM is deleted.

According to section 6 of the exam blueprint guide1, one of the topics covered is VM placement options. When creating a new VM on an AHV cluster, there are two ways to determine its initial placement:

Automatic placement: The Acropolis Dynamic Scheduler (ADS) selects a host that provides adequate resources for the VM’s configuration, such as CPU, memory, disk space, and network bandwidth. ADS also considers factors such as host load, power state, availability domains, and affinity rules.

Manual placement: The administrator can specify a host or a host group where they want to place the VM.

To periodically send information about cluster efficiency via email to a set of users, the administrator can follow these steps:

Create a report in Prism Central that contains the relevant information about cluster efficiency.

Add a schedule to the report to generate and send the report via email to the set of users at a specified frequency.

This will ensure that the users receive regular updates about the cluster efficiency without the need for manual intervention.

A. This statement is incorrect because there is no static threshold set to trigger a critical alert at 6000 MB. The graph shows a peak that goes above 6000 MB, but the alert configuration below does not specify a static threshold at this value.

B. This is the correct statement. The configuration under "Behavioral Anomaly" is set to alert every time there is an anomaly, with a critical level alert set to trigger when the I/O working set size is between 0 MB and 4000 MB. The graph illustrates that the anomalies (highlighted in pink) occur when the working set size exceeds the normal range (blue band). Therefore, any anomaly detected above 4000 MB would trigger a critical alert.

C. This statement is incorrect because there is no indication that a warning alert is configured to trigger after 3 anomalies. The exhibit does not show any configuration that specifies an alert based on the number of anomalies.

D. This statement is incorrect as there's no indication that a warning alert will be triggered based on the I/O working set size exceeding the blue band. The alert settings are configured to ignore anomalies below 4000 MB and to trigger a critical alert for anomalies above this threshold.

The settings displayed in the exhibit are typically part of Nutanix's Prism infrastructure management platform, which can set various thresholds for performance metrics and trigger alerts based on those thresholds. The behavior is defined in the Prism documentation where the alert configuration is outlined.

According to the web search results, one of the best practices for Nutanix AHV networking is to create a second bridge on each host and assign the 1GbE interfaces to it3. This way, the customer can use both 10GbE and 1GbE interfaces for VM traffic, and also benefit from network isolation and redundancy.

According to the Nutanix Prism Central Guide, Prism Central allows you to apply storage policies on a per VM basis using Category, so that the VM uses the storage configuration defined in the storage policy. Using a storage policy, you can manage parameters of VMs, such as encryption, type of or lack of data compression, and IOPS or Throughput throttling values to be applied to the entities.

The correct answer is A. Long term storage of data which is written once and read infrequently.

Erasure Coding is a feature that increases the usable capacity on a Nutanix cluster by reducing the amount of data replication. Instead of replicating data, Erasure Coding uses parity information to rebuild data in the event of a disk failure. The capacity savings of Erasure Coding is in addition to deduplication and compression savings1.

Erasure Coding is most beneficial for scenarios where the data is written once and read infrequently, such as long term storage of archival data, backup data, or cold data. This is because Erasure Coding has some trade-offs and limitations that may affect the performance and availability of the cluster. Some of these trade-offs and limitations are2:

Erasure Coding requires more CPU and memory resources than replication, as it involves more complex calculations for encoding and decoding data.

Erasure Coding increases the network bandwidth consumption, as it involves more data transfers between nodes for encoding and decoding data.

Erasure Coding reduces the resiliency of the cluster, as it can tolerate fewer node failures than replication. For example, a cluster with redundancy factor 2 can tolerate one node failure with replication, but only two disk failures with Erasure Coding.

Erasure Coding is not effective for workloads that have many overwrites or random writes, as it involves more overhead for updating the parity information.

Erasure Coding is not supported for some features, such as volume groups, file server VMs, or Metro Availability.

Therefore, if an administrator needs to configure a container on a Nutanix cluster, they should enable Erasure Coding only if the container will store data that is written once and read infrequently. This way, they can maximize the capacity savings of Erasure Coding without compromising the performance and availability of the cluster.
