MuleSoft-Integration-Architect-I Salesforce Certified MuleSoft Integration Architect 1 (SP25) Exam Free Practice Exam Questions (2025 Updated)

To enable package-specific debugging for the org.apache.cxf package, you need to update the logging configuration in the Mule application's log4j2.xml file. The steps are as follows:

Open the log4j2.xml file in your Mule application.

Add an AsyncLogger element with the name property set to org.apache.cxf and the level set to DEBUG. This configuration specifies that only the logs from the org.apache.cxf package should be logged at the DEBUG level.

Save the changes to the log4j2.xml file.

Redeploy the updated Mule application to the CloudHub production environment to apply the new logging configuration.

This approach ensures that only the specified package's logging level is changed to DEBUG, minimizing the potential performance impact on the application.

References

MuleSoft Documentation on Configuring Logging

Log4j2 Configuration Guide

A core pillar of the MuleSoft Catalyst delivery approach is focusing on business outcomes. This approach ensures that the integration and API strategies are aligned with the organization’s overall business objectives. By emphasizing business outcomes, MuleSoft Catalyst helps organizations realize measurable benefits such as increased efficiency, faster time to market, and improved customer experiences. This outcome-driven methodology ensures that IT initiatives deliver tangible value to the business.

Object Store v2 (OSv2) in MuleSoft allows multiple applications within the same Anypoint Virtual Private Cloud (VPC) to share data. To achieve this, the OSv2 connector must be configured in each application to access the common persistent object store instance. This configuration enables the applications to read from and write to the same object store, facilitating data sharing. Object Store v2 is designed to be persistent and reliable, making it suitable for scenarios where data needs to be retained and shared across multiple applications.

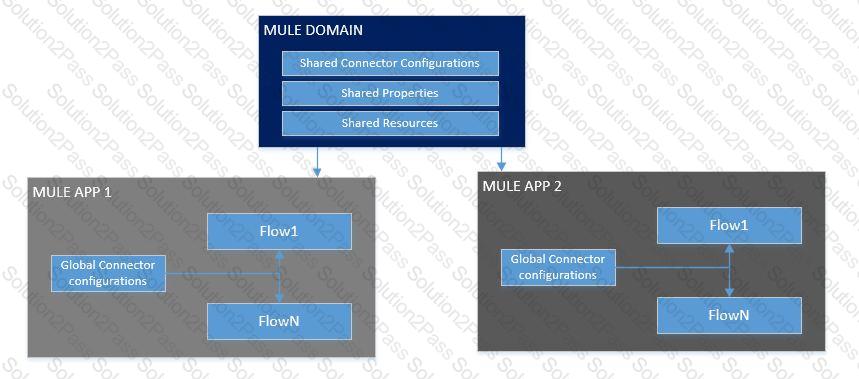

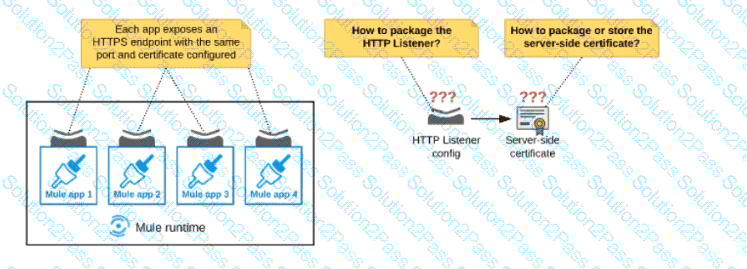

When multiple Mule applications need to listen on the same port (e.g., port 443), configuring them individually will cause a conflict because only one application can bind to a specific port on a server at a time. To resolve this, you can use a Mule domain project, which allows multiple Mule applications to share configurations, including HTTP listeners. Here’s how you can do it:

Create a Mule Domain Project:

In Anypoint Studio, create a new Mule Domain Project.

This project will contain shared resources that can be used by multiple Mule applications.

Configure the Shared HTTP Listener:

Define the HTTP Listener configuration in the domain project.

Reference the Shared HTTP Listener in Mule Applications:

In each Mule application that needs to use port 443, reference the shared HTTP Listener configuration from the domain project.

Deploy the Domain Project and Applications:

Deploy the domain project to the Mule runtime first.

Then deploy the Mule applications that reference the shared HTTP Listener configuration.

By using a domain project to centralize the HTTP listener configuration, you ensure that both APIs can listen on port 443 without conflicts, allowing customers to access both APIs through the same port.

References

MuleSoft Documentation: Domain Projects

MuleSoft Documentation: HTTP Listener Configuration

Explanation

* "Relocation of the database systems to a DMZ in the on-premises network, with Mule applications deployed to the CloudHub Shared Worker Cloud connecting only to the DMZ" is not a feasible option

* "Static IP addresses for the Mule applications deployed to the CloudHub Shared Worker Cloud, plus matching firewall rules and IP whitelisting in the on-premises network" - It is risk for sensitive data. - Even if you whitelist the database IP on your app, your app wont be able to connect to the database so this is also not a feasible option

* "An Anypoint VPC with one Dedicated Load Balancer fronting each on-premises database system, plus matching IP whitelisting in the load balancer and firewall rules in the VPC and on-premises network" Adding one VPC with a DLB for each backend system also makes no sense, is way too much work. Why would you add a LB for one system.

* Correct answer: "An Anypoint VPC connected to the on-premises network using an IPsec tunnel or AWS DirectConnect, plus matching firewall rules in the VPC and on-premises network"

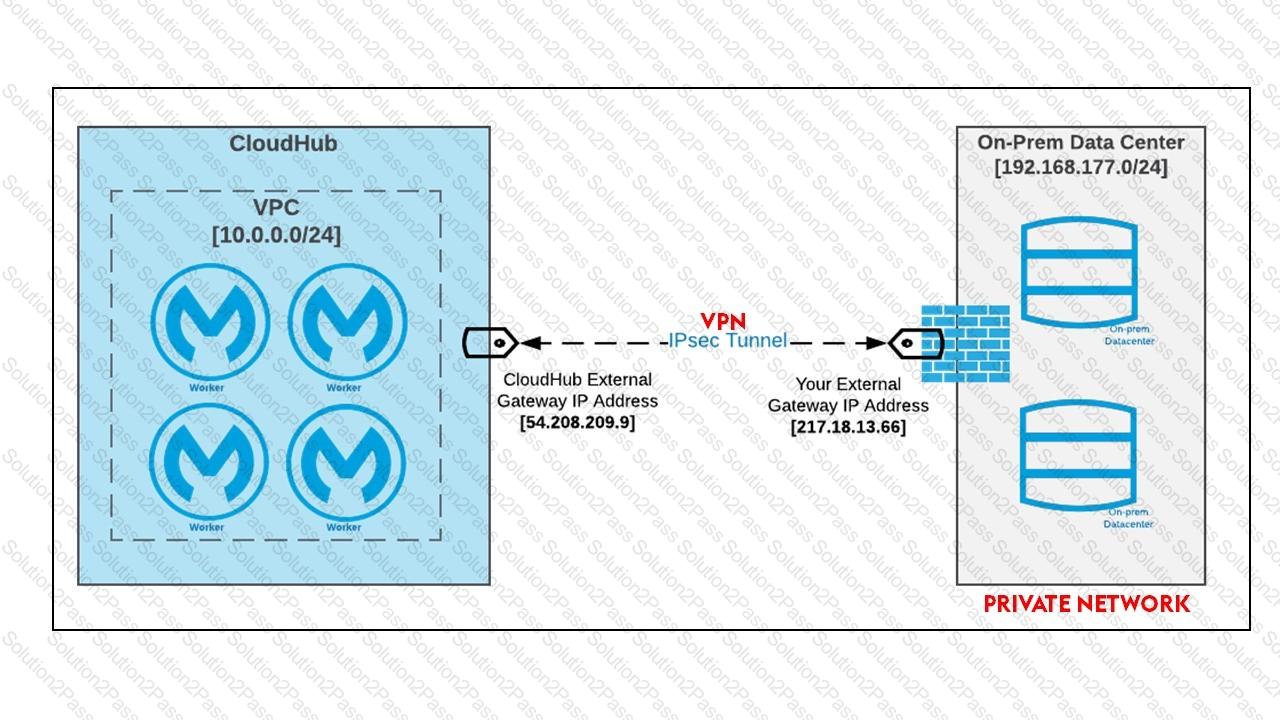

IPsec Tunnel You can use an IPsec tunnel with network-to-network configuration to connect your on-premises data centers to your Anypoint VPC. An IPsec VPN tunnel is generally the recommended solution for VPC to on-premises connectivity, as it provides a standardized, secure way to connect. This method also integrates well with existing IT infrastructure such as routers and appliances. Reference: https://docs.mulesoft.com/runtime-manager/vpc-connectivity-methods-concept

Diagram Description automatically generated

Requirement Analysis: The Mule application needs secure access to both an on-premises database and a Kafka cluster in AWS VPC.

Solution: Setting up Anypoint VPN for the on-premises corporate data center and VPC peering with AWS VPC ensures secure and seamless connectivity.

Implementation Steps:

Anypoint VPN Setup:

In the Anypoint Platform, navigate to the VPN configuration.

Create a new VPN connection between the CloudHub VPC and the on-premises corporate data center.

Configure the necessary VPN parameters such as IP address, shared secret, and routing information.

Establish the VPN tunnel and verify connectivity.

VPC Peering Setup:

In the AWS Management Console, navigate to the VPC dashboard.

Create a VPC peering connection between the AWS VPC (where Kafka is hosted) and the CloudHub VPC.

Configure the necessary route tables to allow traffic between the peered VPCs.

Verify the peering connection and ensure that the routing is correctly set up to allow communication between the Mule application and the Kafka cluster.

Testing: Conduct thorough testing to ensure the Mule application can securely connect to both the on-premises database and the Kafka cluster in AWS.

Advantages:

Security: Ensures secure communication channels between CloudHub VPC, on-premises data center, and AWS VPC.

Reliability: Provides a robust and reliable network setup for accessing critical infrastructure components.

References

MuleSoft Documentation on Anypoint VPN

AWS Documentation on VPC Peering

Explanation

* Anypoint Runtime Fabric is a container service that automates the deployment and orchestration of your Mule applications and gateways.

* Runtime Fabric runs on customer-managed infrastructure on AWS, Azure, virtual machines (VMs) or bare-metal servers.

* As none of the Mule applications use Mule domain projects. applications are not required to be rewritten. Also when applications are deployed on RTF, by default ingress is allowed only on 8081.

* Hence port conflicts are not required to be managed by DevOps team

Explanation

Correct answer is Depending on the Listener operation configuration, either all messages are consumed by ONLY the primary cluster node or else EACH message is consumed by ANY ONE cluster node

For applications running in clusters, you have to keep in mind the concept of primary node and how the connector will behave. When running in a cluster, the JMS listener default behavior will be to receive messages only in the primary node, no matter what kind of destination you are consuming from. In case of consuming messages from a Queue, you’ll want to change this configuration to receive messages in all the nodes of the cluster, not just the primary.

This can be done with the primaryNodeOnly parameter:

Explanation

JMX Management Java Management Extensions (JMX) is a simple and standard way to manage applications, devices, services, and other resources. JMX is dynamic, so you can use it to monitor and manage resources as they are created, installed, and implemented. You can also use JMX to monitor and manage the Java Virtual Machine (JVM). Each resource is instrumented by one or more Managed Beans, or MBeans. All MBeans are registered in an MBean Server. The JMX server agent consists of an MBean Server and a set of services for handling Mbeans. There are several agents provided with Mule for JMX support. The easiest way to configure JMX is to use the default JMX support agent. Log4J Agent The log4j agent exposes the configuration of the Log4J instance used by Mule for JMX management. You enable the Log4J agent using the element. It does not take any additional properties MuleSoft Reference: https://docs.mulesoft.com/mule-runtime/3.9/jmx-management

To meet the requirements of enriching logging with more context and improving throughput while reducing latency, the customer should use an asynchronous logging approach. Here's why option B is correct:

Async Logger: Asynchronous logging helps in improving the performance by decoupling the logging from the main thread of execution. This reduces the latency of message processing since logging operations are offloaded to a separate thread.

Logging Level Greater than INFO: Logging at levels such as WARN, ERROR, or FATAL ensures that only essential logs are written asynchronously, further enhancing performance. Avoiding DEBUG or TRACE levels unless necessary reduces the overhead of logging.

Pattern Layout with [%MDC]: Using the pattern layout with [%MDC] in the log4j2.xml configuration file allows the inclusion of mapped diagnostic context in the logs. MDC is a feature that provides context-specific information, such as transaction IDs or user IDs, which helps in tracing and debugging.

Example configuration in log4j2.xml:

This configuration ensures that the logs are enriched with context information provided by MDC and processed asynchronously to maintain high throughput and low latency.

References

Log4j2 Asynchronous Logging

Mapped Diagnostic Context (MDC) in Log4j2

Explanation

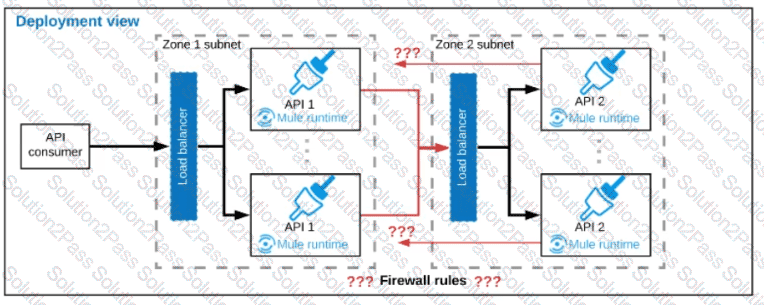

* If your API implementation involves putting a load balancer in front of your APIkit application, configure the load balancer to redirect URLs that reference the baseUri of the application directly. If the load balancer does not redirect URLs, any calls that reach the load balancer looking for the application do not reach their destination.

* When you receive incoming traffic through the load balancer, the responses will go out the same way. However, traffic that is originating from your instance will not pass through the load balancer. Instead, it is sent directly from the public IP address of your instance out to the Internet. The ELB is not involved in that scenario.

* The question says “each API is deployed to multiple redundant Mule runtimes”, that seems to be a hint for self hosted Mule runtime cluster. Set Inbound allowed for the LB, outbound allowed for runtime to request out.

* Hence correct way is to enable communication from each API’s Mule Runtimes and Network zone to the load balancer of the other API. Because communication is asynchronous one

When using a non-persistent object store in MuleSoft, the state data is stored in memory rather than on disk. This means that if a server crashes, all data stored in the non-persistent object store will be lost because it does not survive a server restart or crash. Non-persistent object stores are typically used for temporary data that does not need to be retained across application restarts. Therefore, in an environment where an API is maintaining its state using a non-persistent object store, a server crash will result in the loss of that state data.

According to MuleSoft, a significant business benefit associated with an API-led connectivity approach using Anypoint Platform is increased developer productivity through self-service of API assets. API-led connectivity promotes the creation of reusable APIs that can be easily discovered and consumed by developers across the organization. This self-service model reduces dependencies, accelerates development, and fosters innovation by enabling teams to quickly build and integrate applications using existing APIs without waiting for central IT to provide access.

To ensure that non-functional requirements, such as rate limiting, are clearly communicated and enforced in the designed API definitions, the project team should use API fragments for the appropriate policy. Here's why option D is correct:

API Governance and Policies: Mulesoft's API governance framework allows the definition and enforcement of policies across APIs to ensure consistency and compliance with organizational standards. These policies can include security, rate limiting, logging, and more.

Policy Fragments: By updating API definitions with policy fragments, the team can encapsulate the non-functional requirements within the API specification itself. This approach ensures that these requirements are an integral part of the API design and are automatically applied whenever the API is deployed.

Publishing to Exchange: Publishing the updated API definitions with the policy fragments to Anypoint Exchange makes them available for reuse and ensures that all stakeholders have access to the latest, compliant API specifications.

Example of adding a rate limiting policy fragment to a RAML file:

#%RAML 1.0 title: Example API version: v1 baseUri: https://api.example.com/v1 ... /* Include the rate limiting policy fragment */ uses: rateLimitPolicy: !include rate-limit-policy.raml

The rate-limit-policy.raml fragment might define the specific rate limiting rules as per the service level agreements.

References

MuleSoft API Manager

Defining and Using API Fragments

Explanation

Correct answer is: Add a Mulesoft hosted Anypoint VPC configured and with VPC Peering to the AWS VPC * Connecting to your Anypoint VPC extends your corporate network and allows CloudHub workers to access resources behind your corporate firewall.

* You can connect on-premises data centers through a secured VPN tunnel, or a private AWS VPC through VPC peering, or by using AWS Direct Connect.

MuleSoft Doc Reference : https://docs.mulesoft.com/runtime-manager/virtual-private-cloud

Data confidentiality involves protecting information from unauthorized access and disclosure. Encrypting a file containing personally identifiable information (PII) is a prime example of ensuring data confidentiality. Encryption transforms the data into a format that is unreadable without the appropriate decryption key, thereby safeguarding sensitive information such as PII from being accessed by unauthorized parties. This measure is essential for compliance with data protection regulations and maintaining the privacy and security of personal data.

References

MuleSoft Security Best Practices

Data Protection and Encryption Standards Documentation

A defining characteristic of an Integration-Platform-as-a-Service (iPaaS) is that it is cloud-based. iPaaS provides a cloud-based platform to enable integration of applications and data across various environments. This approach leverages the scalability, flexibility, and accessibility of the cloud to facilitate seamless integrations, reduce on-premises infrastructure requirements, and improve the speed of deployment and maintenance of integration solutions.
