The correct answer is A . Versa monitoring documentation states that when an administrator selects a provider organization in Director and opens the Summary tab, the screen displays several panes. The Asset Inventory pane displays the number of tenants, SD-WAN branches, SD-WAN Controller nodes, vCPEs, SD-WAN hubs, uCPEs, Director nodes, and Analytics nodes in the organization.

This pane is useful for quickly validating the managed estate and confirming whether expected infrastructure objects exist under the provider organization. It also provides a Details button to display asset information in tabular format, which can help during audits or operational checks.

Package Information shows software package details for the selected node, not organization-wide inventory. Uptime shows how long a node and its software have been running. High Availability shows Director HA information. These panes are useful, but they do not provide the organization-level asset count requested in the question.

The correct answers are C and D . Versa templates are designed to reuse common configuration while still allowing per-device customization. Template variables allow the same template to be deployed to multiple appliances while using device-specific values such as addresses, VLAN IDs, DHCP information, or other bind-data values. Versa documentation for deploying templates describes assigning values to variables contained in a main template that are specific to the device. This makes option C correct.

Option D is also correct because Versa workflows are used to create templates for VOS device configuration. Versa documentation states that workflows are used to create templates to configure VOS devices, and also to create templates for application steering, spoke groups, and service chains.

Option A is not correct in the normal Versa Director onboarding model because a group of devices is associated with one staging template and one post-staging template, rather than multiple device templates being stacked per appliance. Option B is also incorrect because service templates are optional reusable service-specific fragments. Versa documentation states that service templates can be used by multiple device templates and device groups, but it does not require every appliance to have one.

The correct answers are A and B . In the exhibit, the LAN interface shows a fixed VLAN ID value of 100 . Because this value is directly configured in the template rather than represented as a per-device variable, every branch that uses this template will receive the same LAN VLAN ID. This supports option A. Versa configuration examples show that VLAN-tagged interfaces are created by defining logical units with a vlan-id, and organizations then use those tagged interfaces for traffic identification and routing services.

For the MPLS WAN network , the VLAN ID field is shown as a variable or bind-data style value rather than a fixed number. This allows each branch device to receive a different MPLS VLAN ID during onboarding, depending on the branch-specific values supplied in the workflow or device bind data. Therefore, branches can have separate VLAN IDs on the MPLS WAN transport, which supports option B. Versa SD-WAN troubleshooting output also shows WAN interfaces as logical VNI subinterfaces, such as vni-0/1.0 and vni-0/2.0, mapped to SD-WAN transport networks like INET and MPLS.

Option C is incorrect because an INET interface can be untagged, commonly represented with VLAN ID 0. Option D is incorrect because the MPLS VLAN field is intentionally parameterized, not incorrectly configured.

The correct answer is A . During Versa SD-WAN onboarding, the branch uses the staging server only in the early part of the process. Versa documentation states that in Stage 1 , the branch starts an IKE session with the staging server, receives an IP address, and is informed of the Versa Director IP address. In Stage 2 , Versa Director pushes the stage-two configuration to the branch through the staging server. In this stage-two configuration, the Controller IP address is given as the remote IP address in the IPsec profile , and the branch is rebooted. After reboot, the branch should establish the IKE session with the Controller.

If the branch keeps trying to connect to the staging server after the stage-two reboot, the most likely issue is that the stage-two IPsec profile still points to the staging server or does not contain the correct Controller remote IP. Analytics, DHCP, and URL filtering settings do not determine whether the branch moves from staging-server connectivity to Controller IKE connectivity.

The correct answer is B . In the exhibit, Versa Director shows multiple branch interfaces and a Live Data column. To populate the bandwidth graph with current real-time statistics for all WAN circuits, Live Data must be selected for each WAN circuit that should be monitored. Versa documentation states that from a Director node, administrators can monitor VOS devices, provider organizations, tenants, events, and alarms. It also explains that Versa Director, together with Versa Analytics, can poll VOS devices in real time to provide visibility into what is happening on those devices and to assist with troubleshooting.

Because the requirement is to find the current bandwidth of each WAN circuit, simply refreshing the page is not enough. Refreshing only reloads the dashboard; it does not enable real-time polling for interfaces that are not selected. Selecting Live Data only for MPLS circuits would populate only MPLS-related data and would not satisfy the requirement for all WAN circuits. Unselecting and reselecting only the INET circuit affects only that one circuit. Therefore, the correct operational step is to enable Live Data for all WAN circuits shown in the branch interface dashboard.

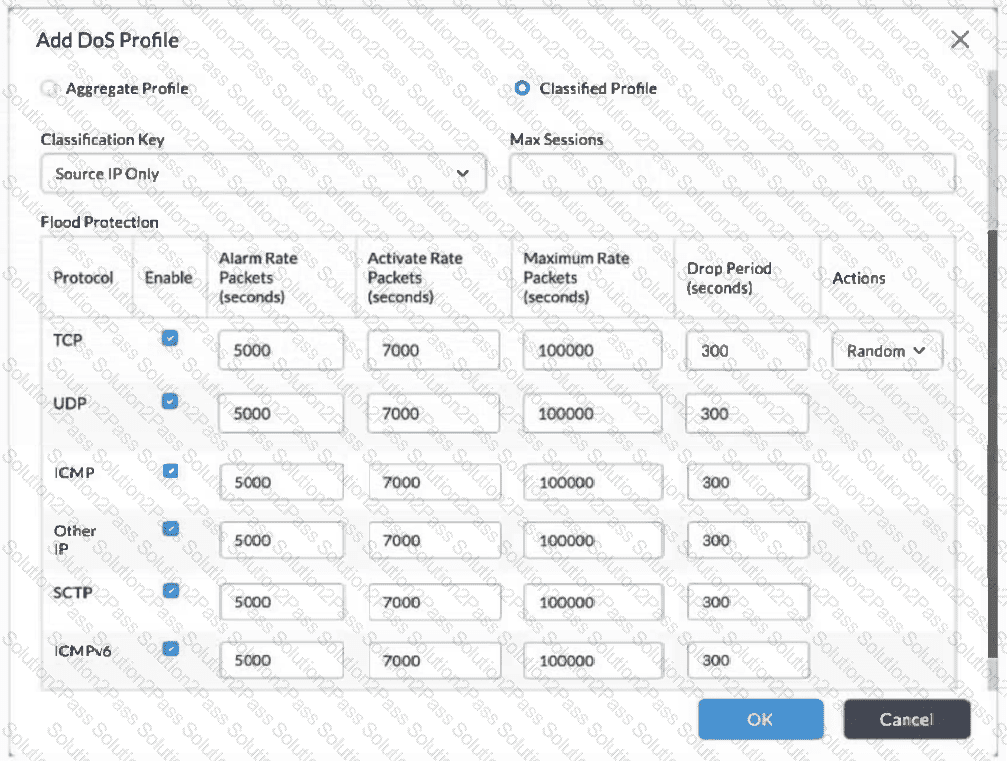

The correct answer is B . The DoS profile in the exhibit is a Classified Profile using Source IP Only as the classification key. For TCP flood protection, the profile is enabled and shows an Alarm Rate of 5000 packets per second , an Activate Rate of 7000 packets per second , a Maximum Rate of 100000 packets per second , a Drop Period of 300 seconds , and an action of Random . This means the first threshold, 5000 pps, is used to trigger alarm behavior, while the second threshold, 7000 pps, activates the configured mitigation action. Since the selected action is Random , packets are randomly dropped when the TCP rate reaches the activate threshold.

Versa documentation shows that DoS policies can match traffic using source, destination, service, application, schedule, IP version, DSCP, and other conditions, and that a DoS policy can set either an aggregate or classified DoS profile. It also documents that DoS policies support enforcement actions and logging through LEF profiles for DoS events. Therefore, 7000 pps does not merely generate an alarm, and it does not mean complete dropping. Complete dropping is not selected in the exhibit.

The correct answer is D . In a Versa HA active-active branch deployment, the cross-connect link between the two CPE devices is used to extend WAN transport reachability between the peers. Versa SD-WAN design documentation explains that, in an HA active-active design, a cross-connect cable between the two devices extends one device’s transport VR to the other device and vice versa. For example, the documentation describes the cross-connect as extending the MPLS-Transport-VR to one device and the Internet-Transport-VR to the peer device.

In the question, there are four total WAN networks across the HA pair: INET-1 , MPLS-1 , INET-2 , and MPLS-2 . The HA active-active workflow must create separate logical subinterfaces on the cross-connect link for each WAN network so that each transport segment can be extended and kept logically separated across the two appliances. Therefore, the number of subinterfaces created on the cross-connect link equals the total number of WAN networks across the HA pair, which is four .

Options A, B, and C are incorrect because they undercount the number of required transport extensions. Two subinterfaces would only account for two WAN networks, but this design has four separate WAN transport networks.

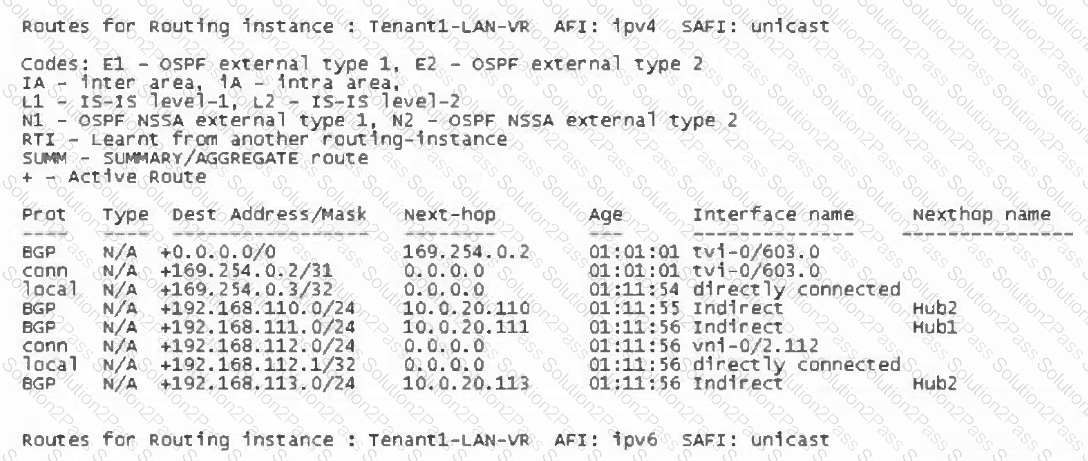

The correct answers are A and C . The route table shown in the Versa SD-WAN design documentation includes a default route, 0.0.0.0/0 , with next hop 169.254.0.2 and exit interface tvi-0/603.0 . A default route is used when no more specific route exists in the routing table, so any unknown IPv4 unicast destination will follow that active default route through the tvi-0/603 interface. This directly supports option C.

The same design context describes local or central internet breakout, where Director workflows create TVI-based connectivity for breakout or gateway-style forwarding. In Versa SD-WAN, TVI interfaces are commonly used as internal virtual tunnel interfaces between routing instances, such as between a tenant LAN VR and a transport or breakout VR. The documentation also describes virtual TVI interface pairs being created by Director workflows between VRs for gateway routing use cases. Therefore, option A is also correct: tvi-0/603 is paired with another interface in another VR to support the default-route forwarding path.

The IP address is not shown as misconfigured; 169.254.x.x addressing is commonly used for point-to-point internal TVI links. The route is also not a blackhole route, because it has an active next hop and an exit interface.

The correct answers are A and C . Versa supports upgrading deployed VOS branch devices either directly on the VOS appliance or centrally through Versa Director. The Director-based method is performed from the Administration > Appliances area: Versa documentation says to select one or more Controller nodes or VOS devices, click the Upgrade Selected Appliances icon, choose the software image package, and proceed with the appliance upgrade. The same upgrade procedure is referenced for remaining VOS branch devices, including the option to upgrade branches individually or all at once.

A CLI-based upgrade using a software .bin package is also a valid operational method when the image is copied to the device and installed locally, particularly for controlled or recovery-style maintenance. Option B is not the best answer for already deployed branch upgrades because the Preferred Software Version field applies to zero-touch provisioning; Versa states that during ZTP, Director upgrades a branch to the preferred version if applicable. That setting influences onboarding behavior, not the normal upgrade workflow for already deployed branches. Option D is incorrect because System > Director Upgrade is used to upgrade the Versa Director node itself, not VOS branch appliances.

The correct answers are A, B, and E . Versa Director supports multiple notification and event-publishing mechanisms. For email-style system and alarm notifications, Versa Director supports SMTP configuration. The Director documentation lists Configure SMTP Notifications and explains that email templates require SMTP notifications to send test emails or operational messages.

Versa Director also supports webhook notifications. The Director GUI overview states that Notification Configuration includes webhook-based notifications for alarms, and the Director documentation includes a dedicated workflow for configuring webhook notifications for alarms.

Kafka is also a supported event-notification method. Versa’s Kafka Notifications documentation states that Versa Director can publish event notifications to an Apache Kafka server when events occur on a Director node or a VOS device. It also lists notification topics for device events, Director events, Director task notifications, and object-change event notifications.

MMS is not a Versa Director system event notification method. SMS can be configured for text messaging in some notification contexts, but for the three methods listed for system event notifications in this answer set, the verified options are SMTP, Webhook, and Kafka.

The correct answer is A . Versa template-based provisioning is designed to separate common configuration from site-specific values. A device template can define common interface, service, routing, and SD-WAN behavior, while variables and device bind data provide unique values for each appliance. This allows the same template to be reused across many branches while assigning different WAN IP addresses, gateways, VLAN IDs, circuit names, or other per-site parameters during onboarding.

In this scenario, Branch-A and Branch-B use the same template but receive different WAN VLAN IDs from bind data. That is normal and expected in a scalable SD-WAN deployment. Without variables, administrators would need to create a separate template for every site, which would be operationally inefficient and increase configuration drift.

The Controller does not automatically rewrite VLAN IDs after IPsec comes up; VLAN IDs must be part of the generated device configuration. It is also not required to duplicate the device template for each branch. The correct Versa design is reusable templates plus unique bind-data values.

The correct answer is B . The exhibit shows the branch interface summary in Versa Director with a Live Data column. To populate real-time bandwidth graphs for WAN circuits, the administrator must select Live Data for the WAN interfaces that need to be monitored. Versa monitoring documentation states that, from a Director node, you can monitor VOS devices and organizations, and that Director, together with Versa Analytics, can poll VOS devices in real time to understand what is happening on the devices. This real-time information can be displayed to assist with troubleshooting.

Because the question asks for the current bandwidth of each WAN circuit, historical analytics alone is not sufficient. The dashboard must poll live statistics from the selected WAN circuits. In the exhibit, not all WAN interfaces appear to have Live Data selected; therefore, the graph is not populated for all circuits. Refreshing the page does not enable polling and will not solve the missing data condition. Selecting only MPLS would populate only the MPLS circuit, not all WAN circuits. Unselecting and reselecting only the INET circuit would affect only that one interface. Therefore, Live Data must be selected for all WAN circuits whose current bandwidth should be displayed.

The correct action is to update the WAN gateway IP address in Device Bind Data and onboard the branch appliance again. Device Bind Data supplies site-specific values, such as WAN interface addressing and gateway information, that are merged with the workflow and template configuration during onboarding. If the wrong WAN gateway is entered, the branch may activate successfully from a workflow perspective, but the resulting WAN routing configuration is incorrect. As a result, the branch cannot establish proper transport reachability to the Controller. Versa troubleshooting documentation explains that, after establishing transport connectivity from a branch to a Controller, at least one WAN interface must be available, and the branch then establishes IKE-based IPsec connectivity to the Controller. If that IKE/IPsec connectivity fails, the Controller-facing ptvi interface remains down.

Changing the configuration only from the Appliance context is not the best answer because the incorrect value originated in the bind-data source used for provisioning. Modifying it manually from the branch CLI is also not recommended because the device is managed by Versa Director and template-driven configuration. Resetting the device does not automatically discover or “ping” the correct gateway. The correct remediation is to fix the bind data and repeat onboarding so the branch receives the correct generated configuration.

The correct answers are A and D . A Versa stateful firewall primarily enforces security by tracking connection state and matching packet/session information such as source, destination, zones, services, protocol, and L3/L4 attributes. Versa’s CLI configuration guide shows stateful firewall access-policy match options for source and destination addresses, services, IP version, IP flags, DSCP, TTL, and also optional application and URL-category match fields when enhanced services are available.

A Versa NGFW extends this inspection model by adding deeper Layer 7 and UTM capabilities, such as IDS/IPS, antivirus, URL filtering, file or data filtering, and application-aware enforcement. Versa’s SD-WAN design guide specifically describes internet security using the Versa next-generation firewall with unified threat management features, including IDS/IPS and antivirus inspection for DIA traffic. Licensing is also a valid distinction: Versa’s SD-WAN licensing overview describes NGFW features as part of solution tiers, so the availability of advanced security functions depends on the licensed tier or subscription

The correct answer is A . In Versa SD-WAN traffic steering, forwarding profiles define how traffic is mapped to WAN circuits, how next hops are selected, and how traffic behaves when SLA conditions are violated. If the requirement is to stop traffic when no SLA-compliant path is available, the relevant behavior is the SLA Violation Action . Setting this option to Drop prevents the VOS device from forwarding the matching traffic over a circuit that does not satisfy the policy’s SLA requirements.

This is the opposite of using Forward , which allows traffic to continue even when the available next hops violate the SLA. Forward may be appropriate for best-effort applications where degraded delivery is better than no delivery, but it is not appropriate for strict business-critical applications that must not use a degraded path.

Nexthop Failure Action controls how the system behaves when a next hop fails, such as waiting for recovery or re-evaluating. Header compression affects packet overhead, and the recompute timer controls periodic recalculation timing. None of those settings directly enforce “drop when SLA is not met.”

The correct answers are A and D . Versa stateful firewall service includes classic firewall functions that track sessions and enforce traffic policy, and it can work with DoS policy enforcement. Versa’s CLI guide includes Configuring DoS policies under the security configuration area, where DoS rules can match on source, destination, services, applications, URL category, IP version, DSCP, TTL, EtherType, and other packet or session attributes, and can then apply aggregate or classified DoS profiles. This validates DoS protection as a stateful firewall/security service capability.

Application-Level Gateways, or ALGs , are also associated with stateful firewall/NAT behavior because they inspect and assist protocol handling for applications that embed addressing or dynamic port information inside the payload or control channel. This is part of traditional stateful firewall service behavior rather than UTM content inspection.

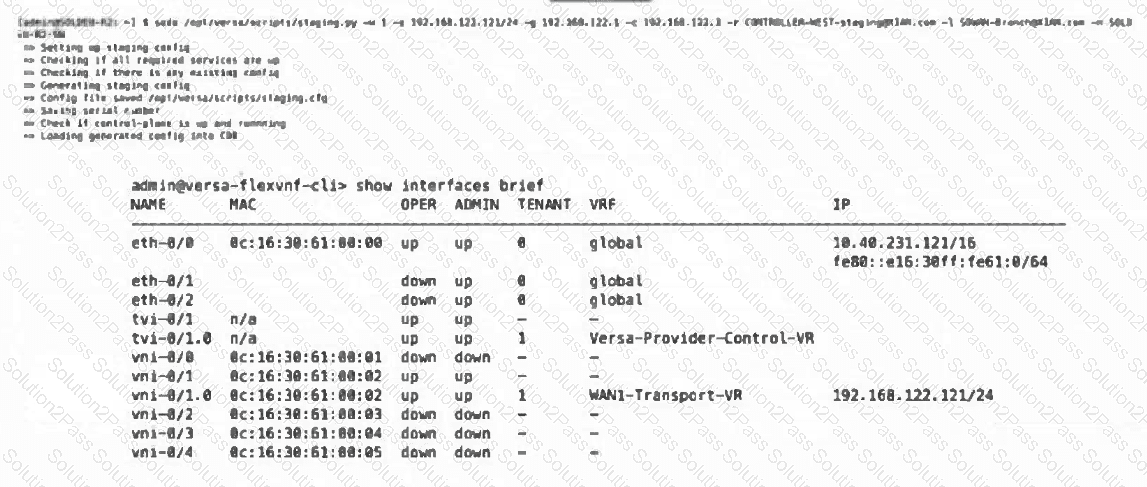

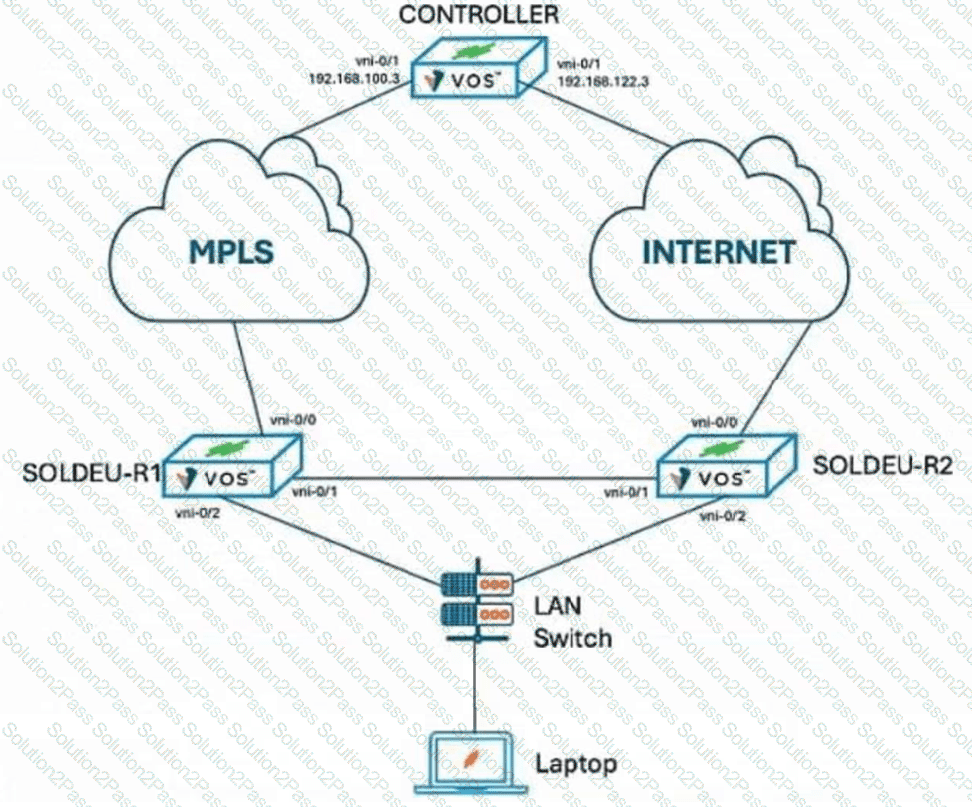

The issue is caused by specifying the incorrect WAN port in the staging script. In the exhibit, the SOLDEU-R2 branch is physically connected to the Internet cloud through vni-0/0 , while vni-0/1 is shown as the inter-device link toward SOLDEU-R1. However, the show interfaces brief output shows that the WAN IP address 192.168.122.121/24 has been assigned to vni-0/1.0 , not to the Internet-facing interface. Since the cables are confirmed to be connected correctly, the mismatch must be in the staging script interface selection, not in the cabling.

Versa documentation states that during SD-WAN staging, the branch establishes an IKE session with the Controller, and after that the Controller assigns an IP address to the branch device. Versa troubleshooting guidance also states that after transport connectivity to the Controller is established, the branch forms IKE-based IPsec connectivity, and if this succeeds, the ptvi interface toward the Controller comes up. If IKE/IPsec fails, the ptvi interface remains down. Because the staged WAN IP is placed on the wrong VNI interface, the branch cannot reach the Controller over the intended Internet transport, so the Controller tunnel does not come up.
