Cisco NFVIS follows strict security controls. After a fresh deployment:

Thedefault admin credentials are considered insecure.

NFVIS requires the administrator toreset the default password on first login(typically via console or SSH).

Until the password is changed,REST API and web-portal access are denied, and attempts to access the portal or API returnHTTP 401 Unauthorized, even if the default credentials are provided.

This mechanism prevents use of factory-default passwords in production and is explicitly documented as a mandatory post-install step.

The other options are not the cause of a 401 error:

Enabling portal via SSH (B) is not required; HTTPS access is enabled by default once credentials are valid.

Restarting Tomcat (C) would address service availability issues (e.g., 5xx errors), not authentication.

Browser certificates (D) affect trust warnings (e.g., HTTPS certificate errors), not 401 Unauthorized.

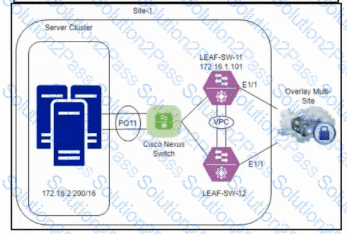

In a VXLAN BGP EVPNMulti-Siteenvironment:

DCI trackingmonitors the health of the DCI links. If all DCI-tracking interfaces go down, the leaf can incorrectly keep advertising or learning remote MAC/IP reachability, leading to packet loss and sub-optimal forwarding for servers in that VLAN/L2VNI.

For proper operation, eachDCI-facing interfacemust be enabled with evpn multisite dci-tracking so that the Multi-Site border leaf tracks reachability over that link.

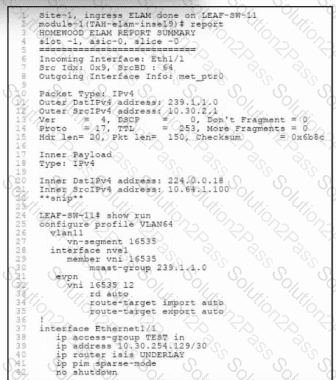

When using EVPN Multi-Site, BUM (broadcast, unknown unicast, multicast) traffic toward remote sites is typically handled viaingress replication, not multicast groups, for each L2VNI participating in Multi-Site. The configuration snippet shows an L2VNI (vn-segment 16535) still mapped to mcast-group 239.1.1.0, which is inconsistent with Multi-Site recommendations and contributes to packet loss.

Therefore, to fix the problem:

Enable DCI tracking on the uplink:

interface Ethernet1/1

evpn multisite dci-tracking

This restores proper DCI-link state monitoring for Multi-Site. →Option C

Change the L2VNI behavior from multicast to Multi-Site ingress replication:

Under the VNI for VLAN 11, configure:

evpn

vni 16535 l2

multisite ingress-replication

or the equivalent command for the specific NX-OS release, thereby aligning the L2VNI with EVPN Multi-Site design and eliminating packet loss. →Option D

Options A and B are ELAM (embedded logic analyzer) filters used only for packet capture and do not resolve the forwarding issue.

Option E is an ACL line unrelated to EVPN VXLAN or DCI tracking and does not address the underlying problem.

Comprehensive and Detailed Explanation From Cisco SP Cloud Network Infrastructure Security Knowledge

Cloud security compliance frameworks (such as ISO 27001, PCI-DSS, GDPR, SOC 2, HIPAA) require:

Evidence of security events

Retention of logs for audit periods

Ability to generate compliance reports

Traceability and accountability

Incident investigation support

Effective log management enables:

Centralized collection of application, network, and system logs

Storage of logs for mandated retention periods

Generation ofaudit-ready reports

Documentation required for compliance assessments

Demonstration that monitoring and security controls are active and functioning

Therefore, the role of log management in regulatory compliance is primarily aboutdocumentation, traceability, auditing, and reporting, which aligns only with Option A.

The other options do not directly serve regulatory compliance requirements:

Brelates to resource optimization, not compliance.

Crefers to interoperability, which is unrelated to regulatory auditing.

Dimproves security but does not directly address compliance documentation.

Comprehensive and Detailed Explanation Based on Designing and Implementing Cisco Service Provider Cloud Network Infrastructure Knowledge

When connectingcarrier-neutral facilities (CNFs)ordata centerswithin the same metropolitan area, service providers typically usehigh-bandwidth, low-latency optical transport methods. The most appropriate and commonly deployed interconnection technology is:

DWDM (Dense Wavelength Division Multiplexing) ring, which provides:

High capacity (10G, 40G, 100G, 400G)

Low latency

Redundancy through ring or mesh topologies

Multi-wavelength multiplexing for cost efficiency

Carrier-grade reliability for metro interconnect services

This aligns with cloud interconnect and metro transport design used in service provider environments.

Evaluation of the Options

A. OSPF backbone area adjacency

This is a routing protocol adjacency, not a physical connection method. It requires a transport link underneath but does not represent the physical interconnect itself.

B. Private wireless connection

Not suitable for CNF or metro DC interconnect because it lacks the bandwidth, reliability, and deterministic performance required for large-scale carrier-grade interconnects.

C. DWDM ring

This is the correct method. DWDM-based metro fiber rings are the standard for connecting carrier-neutral facilities in the same metro region.

D. CAT6e connection

This is limited to short-distance copper Ethernet (tens of meters). It is not used for metro-scale interconnects or between CNFs.

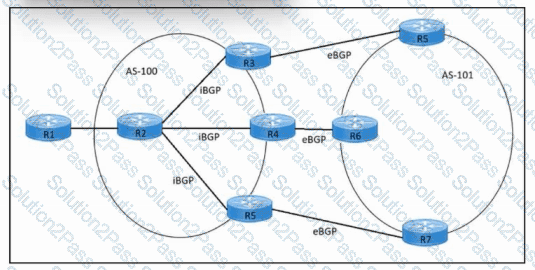

RouterR2is insideAS 100and has three iBGP paths (via R3, R4, R5) toward AS 101. To performiBGP multipathacross these three equal-cost paths, BGP must:

Run the correct BGP process forAS 100

Allow installation of multiple iBGP paths in the routing table

This is done with:

router bgp 100

maximum-paths ibgp 3

router bgp 100– enters the BGP process for AS 100 (correct AS per diagram).

maximum-paths ibgp 3– tells BGP to keep up to 3 iBGP paths to the same destination, enabling CEF to load-share across them.

Other options:

ip load-sharing ibgp 3– not a valid command.

router bgp 101– wrong AS number.

ip load-sharing per-destination– controls CEF hashing but does not enable BGP to install multiple iBGP paths by itself.
