Nokia 4A0-D03 Practice Test Questions Answers

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

Ethernet Auto-Discovery per EVI routes are EVPN route type 1 advertisements used in multi-homing at the service-instance level. A PE sends an AD per EVI route for each MAC-VRF associated with the Ethernet Segment. These routes allow remote PEs to understand that the advertising PE has reachability to a given EVI through the shared ES. They are also used for aliasing and fast convergence, because a remote PE can treat multiple attached PEs as valid paths for traffic toward the same multihomed segment. In VXLAN EVPN, the update can include data-plane information such as the VNI, and it carries route-target information so the route is imported into the correct MAC-VRF. Option B is false because the multi-homing type or redundancy mode is not carried in the AD per EVI update as stated. Redundancy behavior is associated with Ethernet Segment-level signaling and configuration, especially ES discovery and related route attributes, not with AD per EVI as the mechanism that declares the multi-homing type. Reference: EVPN RT-1 AD per EVI, MAC-VRF association, route target, VNI, aliasing.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

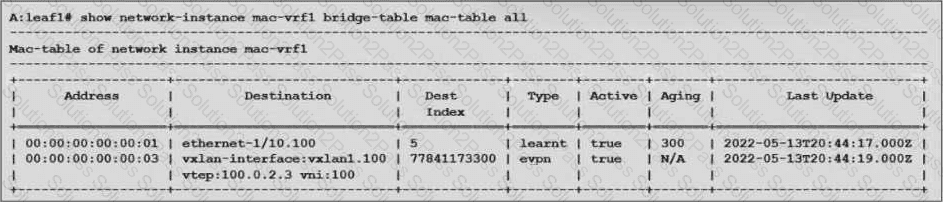

In an SR Linux Layer 2 EVPN MAC-VRF, locally attached MAC addresses are learned through the data plane on local access interfaces, while remote MAC addresses are learned from MP-BGP EVPN control-plane advertisements and installed with a VXLAN next-hop. The exhibit shows one local learned MAC on an Ethernet subinterface and another MAC learned through EVPN with a VXLAN interface and VNI 100. The remote VTEP or next-hop information identifies the remote endpoint, and the VNI maps the received VXLAN traffic to the correct MAC-VRF service. The false statement is C because saying that the MAC address associated with the vxlan-interface “will not age out” is too absolute. A remote EVPN MAC is not aged in the same way as a local data-plane-learned MAC, but it can still be removed when the corresponding EVPN route is withdrawn, invalidated, or no longer present in the control plane. The “N/A” style aging behavior does not mean permanent retention. Reference: SR Linux MAC-VRF verification, local MAC learning, EVPN-learned remote MACs, VXLAN VNI mapping.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In asymmetric L3 EVPN routing, the ingress PE performs the routing decision and then sends traffic across the overlay in the context of the destination MAC-VRF. The egress PE performs Layer 2 MAC forwarding only toward the destination host. This is why options A and B correctly describe asymmetric data-plane behavior. Asymmetric routing relies heavily on EVPN route type 2 MAC/IP Advertisement routes because the ingress PE must know the destination host's MAC/IP binding and the destination bridge domain information. EVPN route type 5, which advertises IP prefixes, is a symmetric L3 EVPN mechanism and is not mandatory for asymmetric routing. Therefore, option C is false. Option D is treated as correct in this asymmetric-routing model because each PE participating in inter-subnet forwarding needs the destination MAC-VRF context to encapsulate traffic toward the correct L2 VNI. This requirement is one reason asymmetric routing scales less efficiently than symmetric routing: MAC-VRF presence and host reachability information must be broadly available. Symmetric routing improves scale by using an IP-VRF routed VXLAN interface and RT-5 prefix routes instead. Reference: asymmetric L3 EVPN routing, ingress IP/MAC forwarding, egress MAC forwarding, RT-2 versus RT-5 usage.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

Layer 3 EVPN multi-homing with a centralized router uses an Ethernet Segment to associate multiple leaf routers with a common external L3 attachment. The centralized router is part of that attached segment from the forwarding perspective, and the connected leaf routers advertise third-party or customer prefixes into EVPN so that remote leaves can reach those prefixes through the multi-homed attachment. For L3 EVPN, learned customer prefixes are normally advertised using EVPN route type 5, which carries IP prefix reachability. In an all-active design, remote leaf routers may load balance traffic to the customer prefix through multiple attached leaf routers because the ES next-hop allows the remote PE to understand that the prefix is reachable through a multi-homed Ethernet Segment. The false statement is that every router participating in the Ethernet Segment must be configured with all-active mode. Multi-homing mode is a design and configuration property of the EVPN PEs participating in the ES, and designs may use single-active or all-active behavior depending on redundancy and forwarding requirements. Reference: L3 EVPN multi-homing, centralized router attachment, EVPN RT-5 prefix advertisement.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

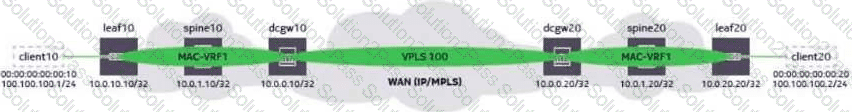

For Layer 2 data center interconnect using an integrated gateway, VPLS 100 on the Nokia 7750 SR represents the WAN-side Layer 2 VPN service. The VPLS requires an EVI because EVPN uses the EVI to identify the L2 service instance in the control plane. It also requires BGP EVPN signaling with the appropriate route targets so the local and remote service instances can import the correct EVPN routes. Because the service is transported across the WAN, the BGP/EVPN instance must be associated with the MPLS transport tunnels toward the remote gateway, dcgw20. A VXLAN instance with a VNI is not configured in the 7750 SR VPLS 100 for this integrated WAN gateway service. The VXLAN/VNI mapping is used inside the SR Linux data center fabric where MAC-VRF services are transported over VXLAN. On the WAN side, the VPLS service is carried using MPLS/EVPN mechanisms, not a VXLAN VNI configured directly under the VPLS. Reference: integrated gateway DCI, L2 EVPN/VPLS interworking, EVI and route-target operation.

================
