API-580 API 580 - Risk Based Inspection Free Practice Exam Questions (2025 Updated)

According to API 580’s glossary of terms:

“Unmitigated risk: The risk prior to mitigation activities.”

This definition is also applied in Section 5.6.2 where RBI plans must address unmitigated risk and propose mitigation strategies if it is deemed unacceptable.

Other options are either incorrect interpretations or irrelevant to RBI methodology.

API 580 Section 4.4 clearly lists residual risk factors that remain even after RBI implementation. These include:

“Residual risk not affected by RBI includes:

a) human error

…

d) secondary effects from nearby units

…

i) unknown or unanticipated mechanisms of damage.”

These are limitations of inspection-based risk mitigation. Options B and E (maintenance plans and change of ownership) are not part of the residual risk list, although they may influence long-term planning.

API 580, Section 15.2.4:

“A qualified corrosion specialist shall be responsible for assessing the types of damage mechanisms and their applicability and severity to the equipment considering the process conditions, environment, metallurgy, age, and other relevant data.”

Other roles may assist but the designated responsibility lies with the corrosion specialist.

Section 1.3 of API 580 explicitly states:

“The RBI process is focused on maintaining the mechanical integrity of pressure equipment items and minimizing the risk of loss of containment due to deterioration.”​

This confirms that reducing the risk associated with loss of containment is a fundamental goal and essential element of an RBI program. The other options:

A is a broad safety goal, not an RBI-specific essential element.

B is a component of methodology, not the goal itself.

C is incorrect—only credible, not all possible, damage mechanisms are required.

As stated in API 580 Section 7.3:

“The data quality has a direct relation to the relative accuracy of the RBI analysis. Although the data requirements are quite different for the various types of RBI analysis, quality of input data is equally important no matter what approach to RBI is selected.”

This highlights that data quality is critical across qualitative, semi-quantitative, and quantitative analyses.

API 580, Section 9.1 states:

“The POF analysis shall address all credible damage mechanisms to which the equipment being reviewed is or can be susceptible.”

This confirms that the analysis focuses only on damage mechanisms that are realistically applicable to the equipment—i.e., credible mechanisms based on process, materials, and operating conditions—not every possible or theoretical mechanism.

From API 580, Section 12.1:

“Some damage mechanisms precipitated by short-term event-driven operating changes can happen too fast to be monitored with normal inspection plans… hence the need for establishing and implementing a comprehensive program for Integrity Operating Windows (IOWs)…”

IOWs are specifically mentioned as the mitigation framework for rapid damage mechanisms due to transient process changes.

According to API 580 Section 10.1.1:

“The consequence analysis in an RBI program is performed to provide discrimination between equipment items on the basis of the significance of a potential failure.”

This analysis supports relative risk ranking but does not itself define the risk; rather, it provides input to the risk evaluation. Management may use this as input, but the purpose is discrimination for risk prioritization.

API 580 Section 15.3.1 and 15.3.2 confirm:

“Contractors... should have a program of training and be able to document that their personnel are suitably qualified.”

While API 580 certification is beneficial, it is not required. Therefore, “Documented training and suitably qualified personnel” is the minimum expectation.

Section 5.8 of API 580 states:

“The fact that some jurisdictions may have some prescriptive time-based rules on inspection intervals does not preclude the user from gaining significant benefits from the application of RBI as long as jurisdictional requirements are met and as long as the local regulations do not specifically prohibit the use of RBI planning.”

This confirms that unless explicitly prohibited, RBI may still be used effectively even in prescriptive jurisdictions.

According to API 580 Section 12.1:

"Risk mitigation (by the reduction in uncertainty) achieved through inspection presumes that the organization will act on the results of the inspection in a timely manner. The quality of the inspection data and the analysis or interpretation will greatly affect the level of risk mitigation."

Thus, inspection data quality and its correct analysis are directly linked to effective risk reduction.

According to Section 7.2.3:

“Quantitative RBI uses logic models depicting combinations of events that could result in severe accidents and physical models depicting the progression of accidents… Hence more detailed information and data are needed for a fully quantitative RBI in order to provide input for the models.”

The need for detailed data in quantitative analysis is primarily to enable the use of logic and physical models in assessing risk.

API 580 Section 5.5 outlines:

“The susceptibility of each equipment item should be clearly defined for the current and projected operating conditions including such factors as:

a) normal operation

b) upset conditions

c) normal start-up and shutdown

d) idle or out-of-service time

e) emergency shutdown and subsequent start-up.”

Furthermore, API 580 stresses that these operational states impact deterioration and must be included in the RBI assessment.

Options A, C, and D are clearly included in the standard.

Option B and E are too restrictive or speculative.

Option F is not referenced and is not considered in RBI methodology.

API 580, Section 12.4 states:

“Depending on factors such as the remaining life of the equipment and type of damage mechanism, risk management through inspection may have little or no effect.”

Examples include:

Instantaneous failures

Equipment at end of life

Damage mechanisms not detectable through inspection

Section 15.2.2 of API 580 clearly states:

“The main function of the team leader should be to integrate the inputs, outputs, organizational structure, and communications of the assessment team.”

Thus, the primary role is facilitation and coordination across the RBI team, ensuring structured and coherent execution of the process.

Per Section 11.7 of API 580:

“Thresholds that divide the risk plot matrix or table into acceptable and unacceptable regions of risk can be developed. Corporate safety and financial policies and constraints or risk criteria influence the placement of the thresholds.”

This confirms that risk thresholds define boundaries between acceptable and unacceptable regions, not simply levels of consequence or probability.

API 580 defines environmental consequence cost as the sum of “cleanup + fines + other costs” (Section 10.5.6). In this question:

EPA fine = $1,650,000

Cleanup = $1,145,000

Environmental cost = 1,650,000 + 1,145,000 = $2,795,000

Costs like downtime and vessel replacement are part of business interruption or capital loss, not environmental consequence.

According to Section 6.6 of API 580 (2016), titled “Estimating Resources and Time Required,” it is clearly stated:

“The resources and time required to implement an RBI assessment will vary widely between organizations depending on a number of factors including the following:

a) implementation strategy/plans.

b) knowledge and training of implementers.

c) availability and quality of necessary data and information.

d) availability and cost of resources needed for implementation.

e) amount of equipment included in each level of RBI analysis.

f) degree of complexity of RBI analysis selected.

g) degree of precision required.”

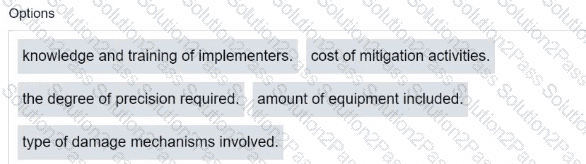

This confirms the following are among the officially listed influencing factors:

A. Knowledge and training of implementers✔

C. The degree of precision required✔

D. Amount of equipment included✔

However:

B. Cost of mitigation activities —✘Not listed in Section 6.6 as a driver for time/resources during implementation.

E. Type of damage mechanisms involved —✘Relevant to PoF modeling, but not a direct listed factor for estimating time/resources needed to implement the RBI.

API 580, Section 12.4 and 12.6 emphasize that inspection should be optimized and risk-focused. Excessive inspections can increase exposure to damage mechanisms (such as mechanical or corrosion risks introduced during inspection activities), especially if not needed.

From Section 12.4:

“Organizations should be deliberate and systematic in assigning the level of risk management achieved through inspection and should be cautious not to assume that there is an unending capacity for risk management through inspection.”

Further, in risk-optimization contexts (Section 12.5):

“While there is a potential for reduction of inspection costs through utilization of RBI, increased equipment integrity and inspection cost optimization should remain the focus.”

Therefore, excess inspections may be:

Unjustified

Economically wasteful

Risk-enhancing (e.g., opening equipment unnecessarily may lead to deterioration)
