143-085 Brocade Certified Fabric Professional Gen 5 Free Practice Exam Questions (2025 Updated)

Prepare effectively for your Brocade 143-085 Brocade Certified Fabric Professional Gen 5 certification with our extensive collection of free, high-quality practice questions. Each question is designed to mirror the actual exam format and objectives, complete with comprehensive answers and detailed explanations. Our materials are regularly updated for 2025, ensuring you have the most current resources to build confidence and succeed on your first attempt.

Brocade 143-085 Premium Access     Download Demo
Page: 2 / 2
Total 91 questions

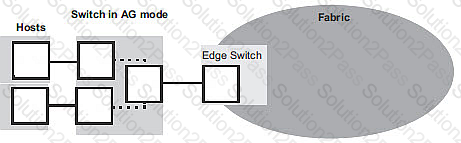

Refer to the exhibit.

In the exhibit, which two port types are used? (Choose two.)

A.

E

B.

N

C.

F

D.

EX

Which three advantages does trunking provide when using Access Gateway mode? (Choose three.)

A.

It maintains in-order delivery when a link fails.

B.

It allows F_Port trunking to be enabled on connected HBAs.

C.

It allows transparent failover and failback within the trunk.

D.

It maximizes link utilization within the trunk.

E.

It allows for quick reassignments of the port ID when N_Ports go offline.

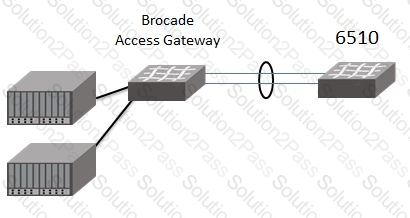

Refer to the exhibit.

In the exhibit, what is required to configure the trunk?

A.

On the 6510, you must statically assign an Area_ID to the trunk group.

B.

On the Access Gateway, statically assign an Area_ID to the trunk group.

C.

Ensure that F_Port trunking is enabled on both devices.

D.

Ensure all ports on the Access Gateway reside in the same quad.

Which action is performed by an Access Gateway (AG) during the N_Port login process?

A.

N_Ports perform the PLOGI command and the acceptance sequence with the fabric.

B.

FDISC is used by the host to discover the AG.

C.

FLOGI from the AG connected host is converted to FDISC by the AG.

D.

FDISC is used by the AG device to discover the attached fabric.

You are using FC routing to allow a host in the backbone FID 15 to communicate with the target in the edge fabric with FID 130. The host and target cannot communicate.

Which statement is true?

A.

The host is offline.

B.

The target is offline.

C.

LSAN zones have not been configured on the edge fabric.

D.

LSAN zones have not been configured on the backbone fabric.

An FCIP tunnel between two Brocade 7800s is bouncing online then offline. The service provider reports that the link is experiencing errors.

What is the problem?

A.

MTU is being exceeded.

B.

Jumbo frames are being dropped.

C.

The defined link cost is being exceeded by the service provider's network.

D.

There is over commitment of the available bandwidth on the link.

The porterrshow command lists Class 3 frame discards increasing on some of the ISLs on a Brocade 6520. You need to identify the host that sent the frame and the storage to where the frame was being sent.

Which command would you use?

A.

framelog

B.

fabriclog

C.

portlogdump

D.

framerpathtest
