170-010 Brocade Certified vRouter Engineer Free Practice Exam Questions (2025 Updated)
Prepare effectively for your Brocade 170-010 Brocade Certified vRouter Engineer certification with our extensive collection of free, high-quality practice questions. Each question is designed to mirror the actual exam format and objectives, complete with comprehensive answers and detailed explanations. Our materials are regularly updated for 2025, ensuring you have the most current resources to build confidence and succeed on your first attempt.
vyatta@vyatta:~$ show interfaces
Codes: S - State, L - Link, u - Up, D - Down, A - Admin Down
Interface IP Address S/L Description
--------- ---------- --- -----------
eth0 172.24.42.51/24 u/u
eth1 192.168.101.1/24 u/u
eth2 192.168.12.1/24 u/u
eth3 192.168.13.1/24 u/D
lo 127.0.0.1/8
::1/128
vyatta@vyatta:~$
Based on the output, which two could be the problem with eth3? (Choose two.)
vyatta@vyatta:~$ show dhcp server leases
IP address Hardware Address Lease expiration Pool Client Name
---------- ---------------- ---------------- ---- -----------
10.224.7.40 00:04:f2:02:84:49 2013/06/22 17:46:20 ClientLAN
10.224.7.41 d4:be:d9:1b:ed:9e 2013/06/22 20:27:26 ClientLAN PC-HR-34
vyatta@vyatta:~$ show interfaces
Codes: S - State, L - Link, u - Up, D - Down, A - Admin Down
Interface IP Address S/L Description
--------- ---------- --- -----------
eth0 192.168.200.254/24 u/u
eth1 192.168.100.1/24 u/u
eth2 10.224.7.1/25 u/u
eth3 172.24.42.1/24 u/u
lo 127.0.0.1/8 u/u
::1/128
Based on the output shown, which statement is true?
You want to configure a backup static route for a route learned through OSPF.
What is the lowest value you can use for administrative distance for this to work?
vyatta@vyatta:~$ show interfaces
Codes: S - State, L - Link, u - Up, D - Down, A - Admin Down
Interface IP Address S/L Description
--------- ---------- --- -----------
eth0 172.24.42.51/24 u/u
eth1 192.168.101.1/24 u/u
eth2 192.168.12.1/24 u/u
eth3 192.168.13.1/24 A/D
lo 127.0.0.1/8
::1/128
vyatta@vyatta:~$
Based on the output, what is the problem with eth3?
Which command displays the headers of packets matching firewall rules?

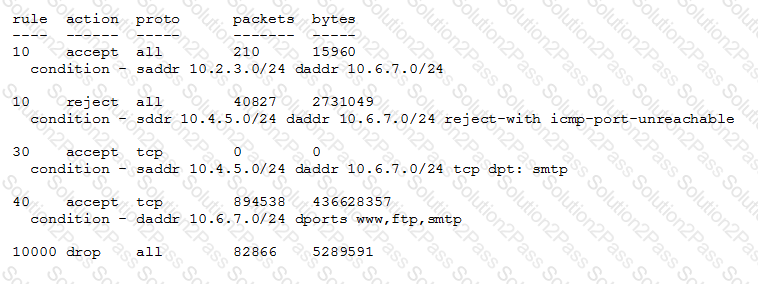

Some of your internal users are complaining that they can't get to the mail server at 10.6.7.22.
Looking at the firewall rulebase in the exhibit, what is the problem?
Which command disables hello packets on an OSPF interface?
vyatta@training:~$ show system commit
0 2013-05-03 21:07:54 by root via boot-config-loader
1 2013-05-03 00:05:32 by vyatta via cli
2 2013-05-02 23:15:23 by vyatta via cli
3 2013-04-08 17:57:48 by root via boot-config-loader
4 2013-03-12 18:08:45 by vyatta via cli
5 2013-01-22 22:56:04 by vyatta via cli
6 2012-11-04 02:36:36 by root via boot-config-loader
7 2012-10-12 16:15:36 by vyatta via cli
8 2012-10-11 16:23:08 by vyatta via cli
9 2012-09-10 18:51:06 by vyatta via cli
10 2012-09-04 23:56:28 by vyatta via cli
11 2012-08-31 23:25:35 by vyatta via cli
12 2012-08-31 23:08:05 by vyatta via cli
13 2012-08-31 23:07:32 by vyatta via cli
14 2012-08-31 23:06:56 by vyatta via cli
15 2012-08-31 03:38:53 by vyatta via cli
16 2012-08-31 03:37:15 by vyatta via cli
17 2012-08-31 03:03:53 by vyatta via cli
18 2012-06-22 04:58:47 by vyatta via cli
19 2012-06-20 19:48:08 by vyatta via cli
vyatta@training:~$
Which two configuration elements are required in a source NAT masquerade rule? (Choose two.)
You are running a Brocade Vyatta vRouter as a virtual machine, and the upgrade system image command tells you that you must perform a manual upgrade.
Which three steps are part of the manual upgrade process? (Choose three.)
vyatta@vyatta:~$ show dhcp client leases
interface : eth1
last update : Wed Jun 19 00:06:00 GMT 2013
reason : FAIL
vyatta@vyatta:~$
Based on the output shown, which two statements are true? (Choose two.)
Which two command lines can you use to search the Brocade Vyatta vRouter log files? (Choose two.)
Which two steps are required to enable logging of firewalled packets? (Choose two.)
What information does a router need to add an entry to its routing table? (Choose two.)

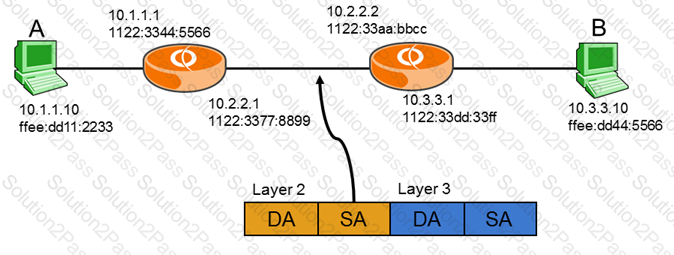

Data is being transmitted from host A to host B.
If you were to view a frame at the point indicated in the exhibit, what would the source MAC address be?
Which two statements about static routes are true? (Choose two.)
vyatta@vyatta:~$ show system login users
Username Type Tty From Last login
operator vyatta hvc0 Mon Jun 17 18:34:25 2013
vyatta vyatta pts/0 10.224.7.101 Wed Jun 19 20:47:39 2013
vyatta@vyatta:~$
Based on the output, which statement is true?
Your router has received a packet destined for host 192.168.12.2.
vyatta@vyatta:~$ show ip route
Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
I - ISIS, B - BGP, > - selected route, * - FIB route
S>* 0.0.0.0/0 [1/0] via 10.1.1.1, eth0
C>* 127.0.0.0/8 is directly connected, lo
O 192.168.12.0/24 [110/10] via 192.168.100.2, eth2, 01W1d21h
S>* 192.168.12.0/24 [1/0] via 192.168.101.2, eth1
C 192.168.12.0/24 is directly connected, eth3
O>* 192.168.23.0/24 [110/20] via 192.168.12.2, eth2 01w1d21h
vyatta@vyatta:~$
Referring to exhibit, which route will be used to forward the packet?
Which command line displays the output of an OSPF protocol monitoring session on your screen?

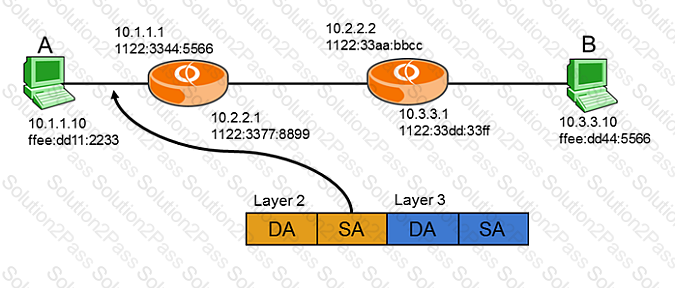

Data is being transmitted from host A to host B.
If you were to view a frame at the point indicated in the exhibit, what would the destination IP address be?
You have configured a destination port in your NAT rule.
Which two additional elements are required in the rule? (Choose two.)
