200-901 Cisco DevNet Associate (DEVASC) Free Practice Exam Questions (2025 Updated)

When creating an API to interact with Cisco Meraki MV cameras, the request header must specify the correct content type to ensure the server understands the format of the request data. Setting the Content-Type header to "application/json" indicates that the request body is formatted as JSON. This is essential for APIs that expect JSON data for requests and responses.

Additionally, the API must be scheduled to run automatically at 6 p.m. every day. This can be achieved using a cron job or a scheduling tool like cron in Unix-based systems or Task Scheduler in Windows.

References:

Cisco DevNet Associate Certification Guide

Cisco Meraki API Documentation

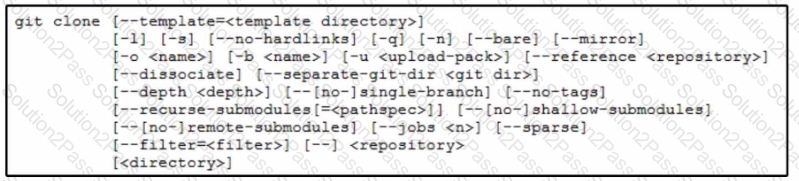

To clone the "myproject" repository from GitHub into a new folder named "aci" for optimization, the correct command is:

git clone git@github.com:myproject aci

This command specifies the SSH URL of the repository (git@github.com

) and sets the target directory to "aci." The git clone command copies the repository to the local machine, creating a new directory named "aci" where the repository's contents will be placed.

References:

Git Clone Documentation

GitHub SSH Setup

CSRF (Cross-Site Request Forgery) is an attack that forces an end user to execute unwanted actions on a web application in which they are currently authenticated. It exploits the trust that a web application has in the user's browser.

Authenticated Session Exploit: CSRF takes advantage of the fact that the user is already authenticated, making the attack appear legitimate.

Unwanted Actions: The attacker tricks the user into performing actions without their knowledge.

Option D is correct as CSRF is the OWASP threat that exploits authenticated sessions to execute attacks.

RESTCONF is a protocol used for accessing data defined in YANG, using RESTful principles. It is suitable for retrieving configuration data in JSON format from a Cisco CSR 1000 V instance. RESTCONF allows network devices to be managed using HTTP methods, and it supports both XML and JSON as data formats, making it ideal for outputting device configurations in JSON.

To build a Docker image using the current folder and a specified Dockerfile, and then tag the image with a specific name for the local repository, the following command is used:

docker build: This command builds a Docker image from a Dockerfile.

-t cust321453857-rep: The -t option tags the resulting image with the specified name (cust321453857-rep).

-f Dockerfile: The -f option specifies the Dockerfile to use for building the image.

Command:

docker build -t cust321453857-rep -f Dockerfile .

References:

Docker Build Command: Docker Build

To parse XML data in Python, a developer typically imports a library that provides the necessary functions and methods for XML parsing.

Libraries for XML Parsing: Python has several libraries for parsing XML, such as xml.etree.ElementTree, lxml, and minidom.

Functionality: These libraries offer functions and methods to read, manipulate, and extract data from XML files.

Example:

import xml.etree.ElementTree as ET

tree = ET.parse('file.xml')

root = tree.getroot()

References:

Python XML Parsing: Python XML Documentat

NTP (Network Time Protocol) is the protocol used for clock synchronization between network devices. It synchronizes the clocks of computers and network devices to ensure that all devices in a network have the same time, which is crucial for logging events, security protocols, and coordinating time-sensitive operations.

To download and execute an Apache web server container in Docker, you need to perform two steps: pulling the image and running the container with the appropriate port bindings.

docker pull httpd - This command downloads the Apache HTTP server image from the Docker repository. "httpd" is the official name for the Apache HTTP server image on Docker Hub.

docker run -p 8080:80 httpd - This command runs a new container from the "httpd" image, mapping port 8080 on the host to port 80 in the container. This allows you to access the web server running in the container via port 8080 on your host machine.

References:

Docker Documentation - docker pull

Docker Documentation - docker run

Cisco DevNet Associate Certification Guide

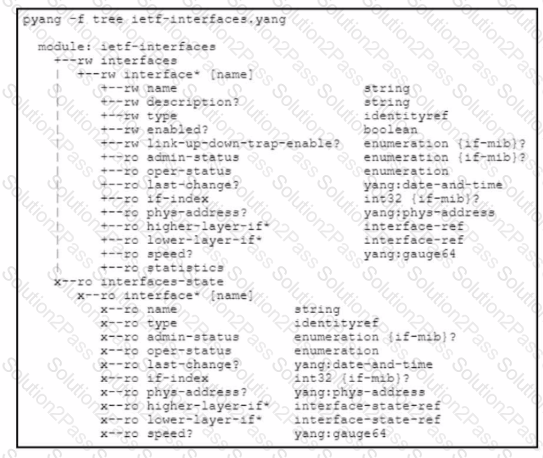

In YANG, a "container" is a grouping of related nodes and sub-nodes. The "interfaces" object in the YANG model is a container for interface-related data.

Container: The container statement is used to define an interior data node in the YANG data tree.

Structure: The exhibit shows that "interfaces" encapsulates other nodes such as interface, name, description, etc., indicating that it is a container.

References:

YANG Data Modeling Language: YANG RFC

DNS (Domain Name System) is the technology responsible for matching a name to an IP address of an application running on a host. When a user types a domain name into a browser, DNS translates that domain name into the corresponding IP address, enabling the user's device to connect to the server hosting the application.

References:

Cisco DevNet Documentation - DNS

Cisco DevNet Associate Certification Guide

Comparing a current version of code to a previous version is a common practice in software development for troubleshooting code failures. This process, often referred to as "diffing," helps developers identify changes that might have introduced bugs or caused the application to behave incorrectly. By pinpointing these changes, developers can more efficiently debug and resolve issues.

References:

Atlassian - Comparing code differences

Cisco DevNet Associate Certification Guide

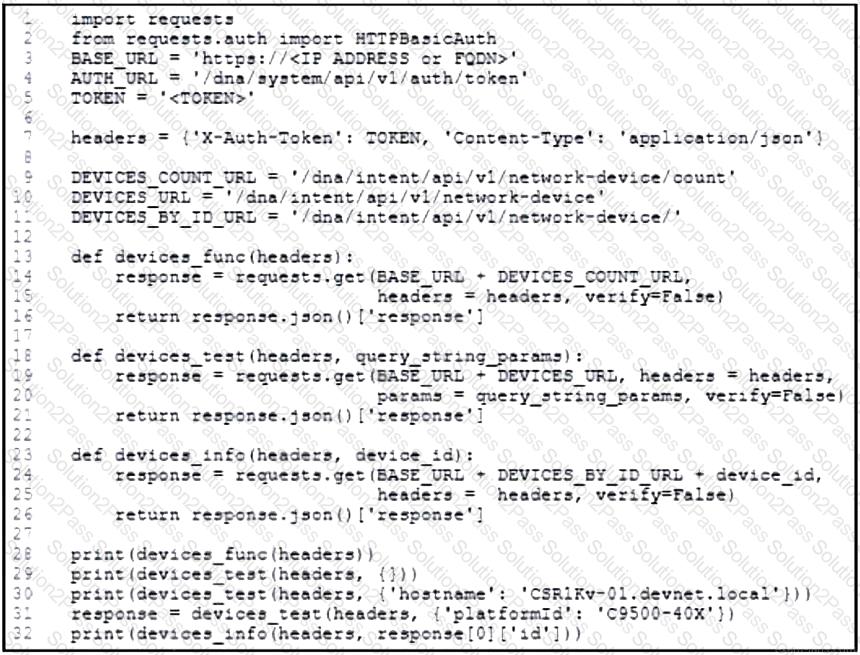

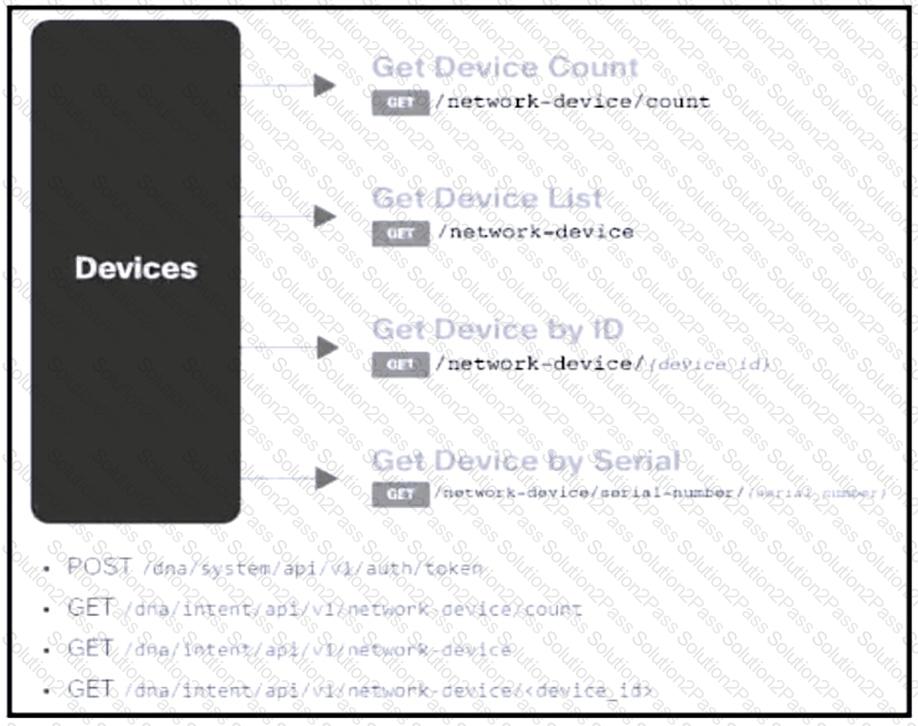

The Python script shown in the exhibit is designed to interact with Cisco DNA Center APIs. Here's a step-by-step breakdown of what the script does:

It imports necessary libraries and sets the BASE_URL, AUTH_URL, and TOKEN for authentication.

It defines the headers to include the authentication token and content type.

It constructs URLs for fetching the device count, all devices, and devices by ID.

The devices_func function makes a GET request to fetch the total count of devices.

The devices_test function fetches a list of network devices based on query parameters.

The devices_info function retrieves detailed information about a specific device using its ID.

The script then prints the total count of devices, all devices, and filtered device information based on the hostname and platform ID.

In the final step, after executing the script, it fetches devices with the hostname "CSR1Kv-01.devnet.local" and then filters the list by platform ID "C9500-40X". This results in displaying the filtered information about the device that matches both the hostname and platform ID criteria.

References:

Cisco DevNet Associate Certification Guide

Cisco DNA Center API Documentation

The command git reset --soft HEAD^ reverses the last commit but keeps the changes staged in the index file (staging area) and working directory. Here's what the command does:

git reset --soft: Moves the HEAD pointer to the specified commit (in this case, the parent of the current commit, denoted by HEAD^) but leaves the changes from the reset commit in the staging area.

HEAD^: Refers to the parent commit of the current HEAD.

This command is useful when you want to uncommit the last commit but keep the changes for further modification or recommit them.

References:

Git Documentation - git reset

Cisco DevNet Associate Certification Guide

The developer can use the Cisco DevNet API documentation to get detailed information on how to use the API for automated data collection from Webex. The API documentation includes comprehensive guides, usage examples, and authentication methods such as HTTP basic authentication. This resource helps developers understand the data formats (JSON or XML) and provides code snippets and best practices for implementation. Cisco DevNet API documentation is designed to assist developers in integrating their applications with Cisco's APIs effectively.

pyATS (Python Automated Test Systems) is a comprehensive testing framework developed by Cisco, designed specifically for automating the testing of network devices. It provides a robust and flexible environment for creating and running tests on network devices and simulating network automation scenarios.

pyATS enables the creation of reusable test scripts and workflows that can be applied across different network environments and devices.

It supports various protocols and devices, allowing for extensive testing coverage.

It integrates well with other Cisco network automation tools and frameworks, making it a versatile choice for network engineers and developers.

References:

Cisco DevNet pyATS documentation

Cisco DevNet Associate Certification Guide

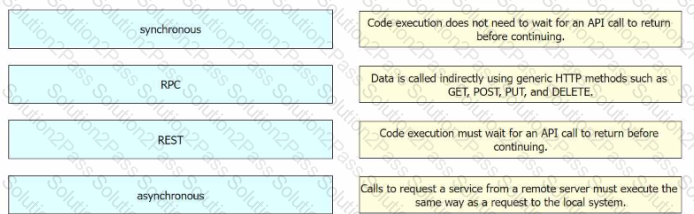

synchronous: Code execution must wait for an API call to return before continuing.

asynchronous: Code execution does not need to wait for an API call to return before continuing.

REST: Data is called indirectly using generic HTTP methods such as GET, POST, PUT, and DELETE.

RPC: Calls to request a service from a remote server must execute the same way as a request to the local system.

Comprehensive Detailed Step by Step Explanation with References

Synchronous:

Explanation: In a synchronous API call, the client must wait for the server to process the request and return a response before it can proceed with further execution.

Mapping: "Code execution must wait for an API call to return before continuing."

Asynchronous:

Explanation: In an asynchronous API call, the client can continue processing other tasks while waiting for the server to respond. This improves the efficiency and responsiveness of the application.

Mapping: "Code execution does not need to wait for an API call to return before continuing."

REST (Representational State Transfer):

Explanation: REST is an architectural style for designing networked applications. It relies on a stateless, client-server communication protocol, typically HTTP. RESTful APIs use standard HTTP methods (GET, POST, PUT, DELETE) to perform operations on resources.

Mapping: "Data is called indirectly using generic HTTP methods such as GET, POST, PUT, and DELETE."

RPC (Remote Procedure Call):

Explanation: RPC is a protocol that one program can use to request a service from a program located on another computer in a network. The calls are made in the same way as a local function call.

Mapping: "Calls to request a service from a remote server must execute the same way as a request to the local system."

References:

Cisco DevNet Associate Certification Guide, Sections on API styles and their characteristics

Official Cisco documentation on RESTful and RPC APIs

General programming resources on synchronous vs. asynchronous API calls

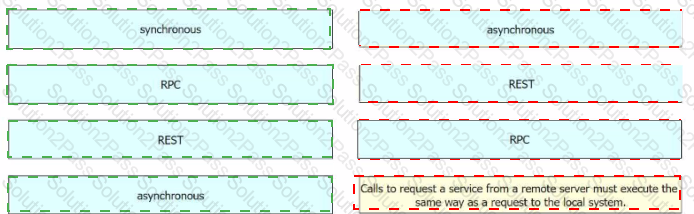

Therefore, the correct mapping is:

synchronous → "Code execution must wait for an API call to return before continuing."

asynchronous → "Code execution does not need to wait for an API call to return before continuing."

REST → "Data is called indirectly using generic HTTP methods such as GET, POST, PUT, and DELETE."

RPC → "Calls to request a service from a remote server must execute the same way as a request to the local system."

Routers play a crucial role in networking by providing several key functions, including:

Broadcast Domain Segmentation: Routers separate broadcast domains, preventing broadcast traffic from one network segment from spreading to another. This improves network efficiency and reduces unnecessary traffic.

Routing: Routers forward packets between different networks based on IP addresses, enabling communication between devices on different subnets or networks.

Network Address Translation (NAT): Routers can perform NAT, which allows multiple devices on a local network to share a single public IP address.

References:

Cisco DevNet Associate Certification Guide

Cisco Router Functions

Cisco Intersight is a platform designed to manage data center infrastructure through third-party tools and system integrations. It provides a unified management platform that integrates with Cisco UCS, HyperFlex, and other data center components, allowing for comprehensive infrastructure management, automation, and orchestration.

References:

Cisco Intersight - Overview

Cisco DevNet Associate Certification Guide
