300-435 Cisco Automating Cisco Enterprise Solutions (ENAUTO) Free Practice Exam Questions (2025 Updated)

Graphical user interface, application Description automatically generated

An HTTP 429 status code indicates that too many requests have been sent in a given amount of time (“rate limiting”). In this context, receiving an HTTP 429 error message from the Meraki cloud after executing a script to add descriptions to every switch port suggests that:

B. The rate limit of the Cisco Meraki API is exceeded.

References := ( Automating Cisco Enterprise Solutions Official Cert Guide )

To access the ‘status’ indicated on line 16 in a Python dictionary assigned to variable “d”, you would navigate through the nested structure of the JSON data. Starting with the key ‘data’, which points to a list, you select the first item using [0]. Within this item, ‘statusList’ is a key pointing to another list, and selecting the first item using [0] leads to a dictionary where ‘status’ is the key to the desired value ‘normal’.

References := (Automating Cisco Enterprise Solutions Official Cert Guide)

 To attach a device template in Cisco SD-WAN, you must issue a POST call to initiate the attach action. This is the first step in the process. After initiating the attach action, you need to monitor the status of the action. For this, you issue a “monitor device action status” GET API request with the process ID. The process ID is used to track the status of the attach action until it is completed.

References := Automating Cisco Enterprise Solutions Official Cert Guide, SD-WAN

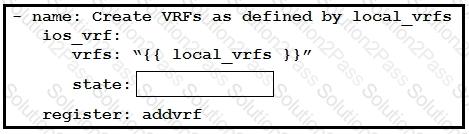

 In Ansible, the state parameter is used to define the desired state of a resource on the remote device. The options typically include “present” or “absent,” indicating whether the resource should exist or not. In this context, “present” is used to ensure that the VRFs defined in the local_vrfs variable are configured on the target device. Therefore, the string that completes the code for configuring VRF information using a local_vrfs variable is “present.” References: = Automating Cisco Enterprise Solutions Official Cert Guide

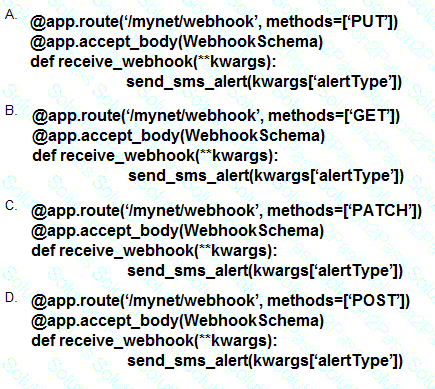

The correct Python snippet to receive a Meraki webhook request is the one that uses the @app.route decorator with the correct endpoint and accepts the POST method since webhooks typically send data using HTTP POST requests. In this case, Option D is set up to accept POST requests which align with how webhooks operate. References := ( Automating Cisco Enterprise Solutions Official Cert Guide )

 The Cisco SD-WAN vManage Troubleshooting Dashboard APIs capture various details during troubleshooting, including the connections summary. This summary provides an overview of all control connections from the vManage NMS to the vSmart controllers, WAN Edge routers, and vBond orchestrators in the overlay network. It displays the status of these connections, which is crucial during a network outage to identify and troubleshoot the cause of the issue.

References := Automating Cisco Enterprise Solutions Official Cert Guide, Cisco SD-WAN vManage Help - Dashboard3, Cisco Catalyst SD-WAN Monitor and Maintain Configuration Guide

 Cisco IOS XE Software supports two main data modeling languages for its network programmability interface: RESTCONF and NETCONF. RESTCONF provides an API that uses HTTP methods for a programmatic interface over HTTP/HTTPS web services with support for both JSON and XML data formats. On the other hand, NETCONF is a protocol defined by the IETF that also provides a programmatic interface but only supports XML as its data format. Therefore, the statement that RESTCONF supports JSON and XML while NETCONF supports only XML is true. References: Automating Cisco Enterprise Solutions Official Cert Guide

MV Sense MQTT API has the capability to request and subscribe to historical, current, or real-time data. This allows applications to receive updates about what’s happening in an environment monitored by Meraki MV smart cameras. References: Automating Cisco Enterprise Solutions Official Cert Guide

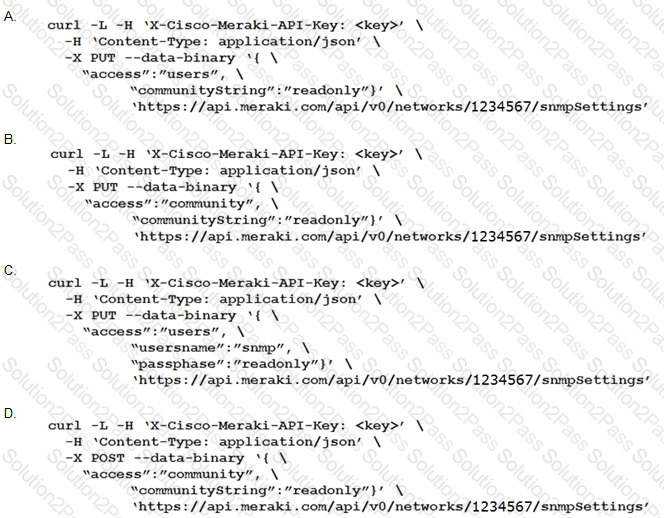

The curl command used to update settings typically involves making an HTTP PUT request to modify existing resources on the server. In this case, to update the SNMP community of network ID “1234567” to read-only, one would need to use a curl command that specifies the PUT method, includes headers indicating content type (usually application/json), and provides authentication credentials if necessary. The correct command should also include the appropriate body content specifying the new SNMP community settings. References: Automating Cisco Enterprise Solutions Official Cert Guide

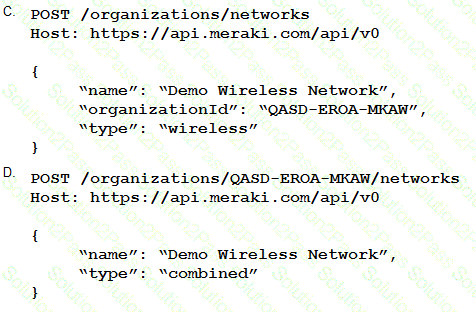

https://developer.cisco.com/meraki/api-v0/create-organization-network/

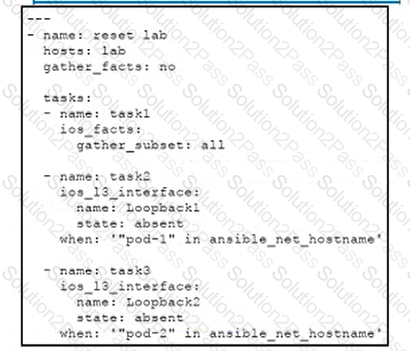

The Ansible playbook is designed to reset configurations on Cisco IOS XE routers. It includes tasks to remove Loopback1 and Loopback2 interfaces. The condition when: "'pod-2' in ansible_net_hostname" ensures that Loopback2 is only removed from routers with ‘pod-2’ in their hostname. Since pod-11 and pod-12 do not meet this condition, only Loopback1 is removed from them, which leads to the removal of IPv4 and IPv6 addresses for the Loopback1 interface on these routers. References: Automating Cisco Enterprise Solutions Official Cert Guide

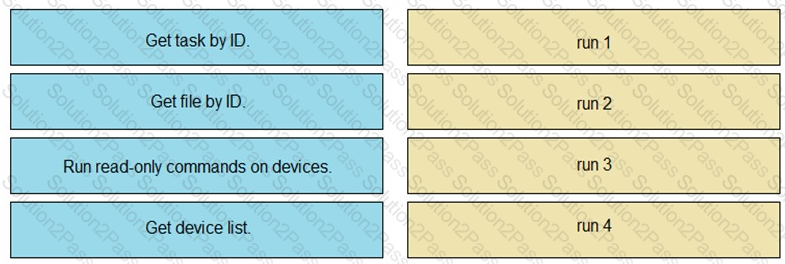

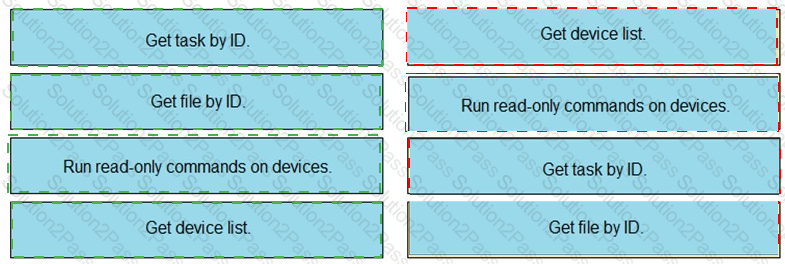

In Cisco DNA Center Operational Tool API, the Command Runner section of the intent API is designed to retrieve keywords accepted by CLI and enables execution of read-only commands on network devices. This feature allows administrators to retrieve real-time configuration data from devices without making any changes, aiding in monitoring and troubleshooting tasks. References: Automating Cisco Enterprise Solutions Official Cert Guide

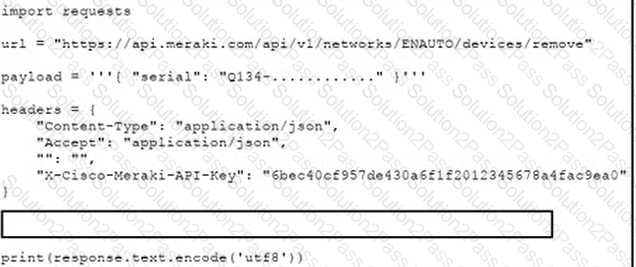

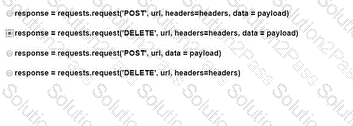

 To remove a device from the network ‘ENAUTO’ using Meraki APIs, the engineer must send an HTTP DELETE request to the Meraki API endpoint for device removal. The correct line of code to be added should specify the DELETE method, the URL for the API endpoint, and include headers that typically contain authentication information. Option B is correct because it uses requests.request('DELETE', url, headers=headers) which specifies the DELETE method and includes both the URL and necessary headers. References: Automating Cisco Enterprise Solutions Official Cert Guide

 The module name that corresponds to the YANG model referenced in the RESTCONF GET request is “ietf-interfaces:interfaces”. This can be determined by looking at the first line of the response in the exhibit, which shows "ietf-interfaces:interfaces": {. This line indicates that the data returned is part of a list defined within the ‘ietf-interfaces’ YANG module and specifically within the ‘interfaces’ container. References: (Automating Cisco Enterprise Solutions Official Cert Guide)

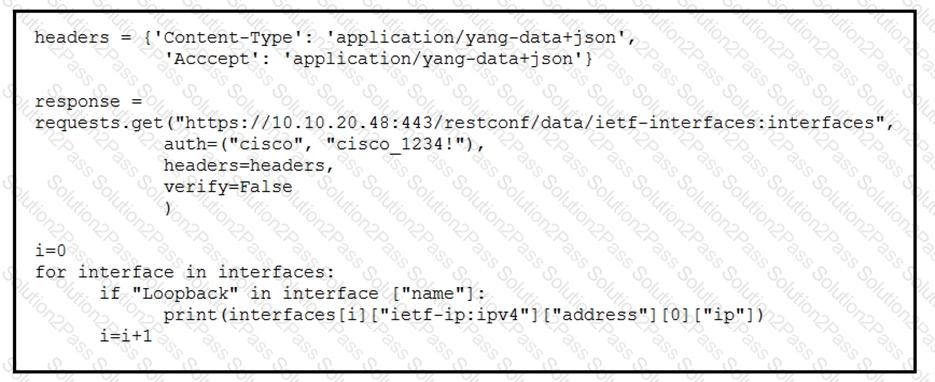

 The statement ‘D’ is used to assign the list of interfaces from the JSON response to the variable ‘interfaces’. This allows the script to iterate over each interface and print the IP addresses of all loopback interfaces.

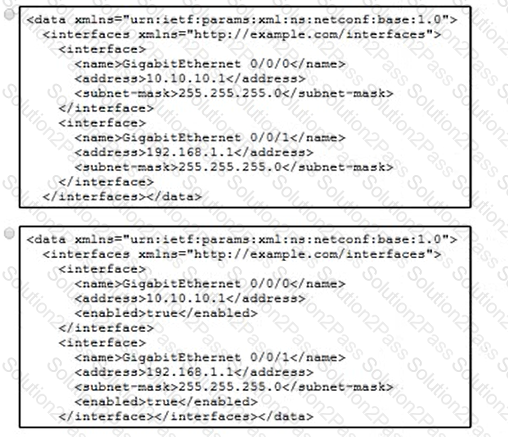

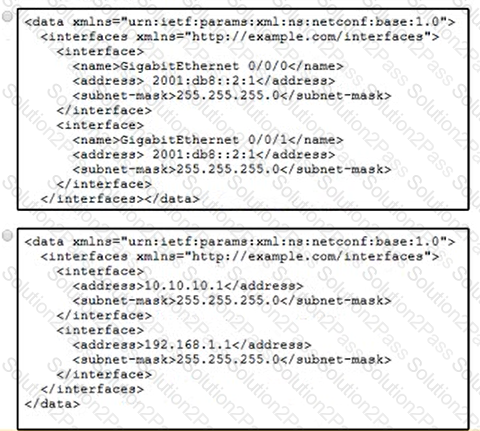

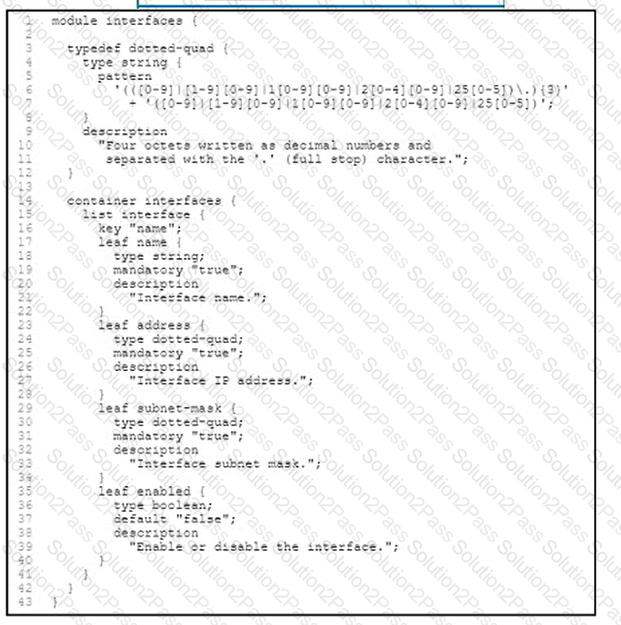

The YANG module defines a structure for network interfaces, including elements such as “name,” “address,” “netmask,” and “subnet.” The valid XML instance must adhere to this structure. Option A presents an XML instance that correctly reflects the hierarchy and elements specified in the YANG module, with appropriate namespace declarations and values for each element that are consistent with their definitions in the YANG model.

References := ( Automating Cisco Enterprise Solutions Official Cert Guide )

 Zero-Touch Provisioning (ZTP) is a method for automating the configuration of network devices upon initial power-up using DHCP and TFTP. It minimizes manual intervention, streamlining the deployment process and reducing errors. References := ( Automating Cisco Enterprise Solutions Official Cert Guide )
