300-510 Cisco Implementing Cisco Service Provider Advanced Routing Solutions Free Practice Exam Questions (2025 Updated)

Refer to the exhibit. The Cisco router has a single uplink to the upstream network, which is critical to the business. The router is configured for traffic steering with the Autoroute mechanism configured to steer all OSPF and IS-IS prefixes over non-shortest paths and divert traffic for those prefixes to the SR-TE policy. However, the Autoroute Announce functionality for all prefixes is not working. Which additional command set must the engineer configure on the router to correct this issue?

Refer to the exhibit.

While configuring router 2 with all the default values, a network engineer cannot see any route received in router 1. How should the engineer solve the issue?

Refer to the exhibit.

An engineer is troubleshooting IS-IS configuration between two areas. IS-IS Area-A network 30.1.1.0/24 is leaked into IS-IS Area-В. R2 is failing to filter the route updates from network 10.1.1.0/24. Which configuration must the engineer apply to resolve the issue?

What is a feature of SR-PCE?

For which reason do you deploy BGP confederations within a BGP transit backbone?

Refer to the exhibit.

R1 is directly connected to R2 and R3. R1 is in BGP AS 123, R2 is in BGP AS 2, and R3

is in BGP AS 3. Assume that there is no connectivity issue between R1, R2 and R1, R3. Which result between

BGP peers R1, R2 and R1, R3 is true?

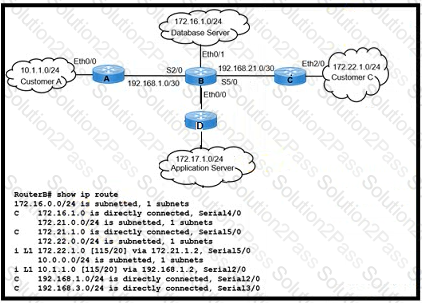

Refer to the exhibit. Customers A and C are experiencing packet drops when connecting to the application server While troubleshooting the problem the network engineer confirms that the IS-lS Level- 1/2 adjacency is up between routers A B C. and D and both customers can communicate with the database server without packet loss Which action must the engineer take to resolve the issue?

Guidelines

This is a lab item in which tasks will be performed on virtual devices.

Refer to the Tasks tab to view the tasks for this lab item.

Refer to the Topology tab to access the device console(s) and perform the tasks.

Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

All necessary preconfigurations have been applied.

Do not change the enable password or hostname for any device.

Save your configurations to NVRAM before moving to the next item.

Click Next at the bottom of the screen to submit this lab and move to the next question.

When Next is clicked, the lab doses and cannot be reopened.

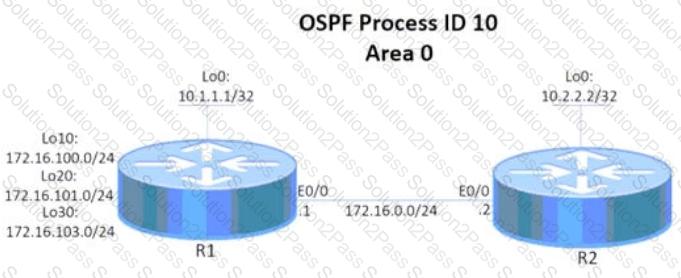

Topology

Tasks

Configure and verify an OSPF neighbor adjacency between R1 and R2 in OSPF area 0 according to the topology to achieve these goals:

1. R1 pings the Loopback0 interface of R2. Use interface-level configuration to complete this task.

2. R2 pings the Loopback0 interface of R1. Use interface-level configuration to complete this task.

3. R2 receives a single summary route 172.16.100.0/22 for networks 172.16.100.0/24, 172.16.101.0/24, and 172.16.103.0/24.

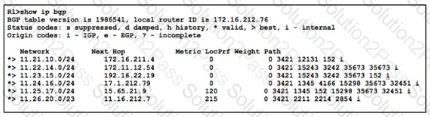

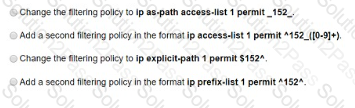

Refer to the exhibit. Company A established BGP sessions with several ISPs. A network engineer at the company must filter out all traffic except for routes that transit AS 152. The engineer configured the filtering policy “permit _152S_(_[0.9])” on R1, but after applying the configuration, the engineer notices that other routes are still visible. Which action resolves the issue?

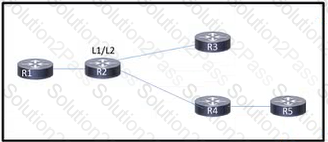

Refer to the exhibit.

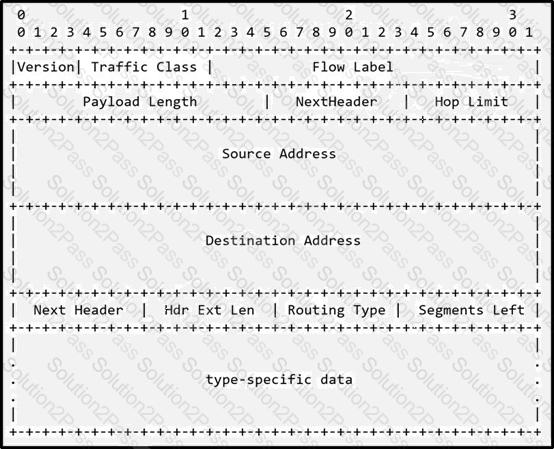

The extension header of the IPv6 header is ignored when which value is equal to zero?

Refer to the exhibit Reuters R2. R3, R4 and R5 all reside in the same area, with R1 in a different area R3 is overutilized and the engineer wants to reduce its CPU load The engineer configured router R4 to summarize routes that it receives from R5. but R3 is still receiving all of the R5 routes. Which action resolves the issue?

Which output from the show isis interface command helps an engineer troubleshoot an IS-IS adjacency problem on a Cisco IOS-XR platform?

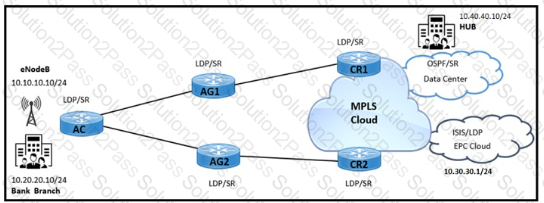

Refer to the exhibit. A service provider has LDP and segment routing running in the network. Mobility traffic is carried through LDP and enterprise traffic is carried through segment routing. Which configuration must be implemented to connect the bank branch with the HUB site on routers?

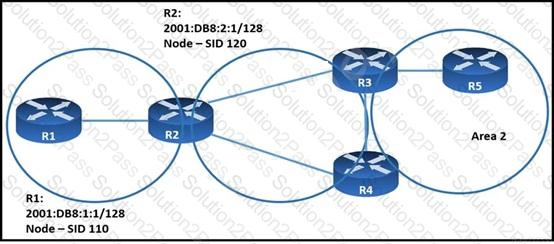

Refer to the exhibit.

When implementing SRv6, which SID does R2 propagate into area 0 for the prefix 2001:DB8:1:1/128?

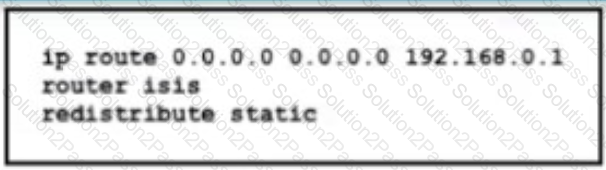

Refer to the exhibit.

An administrator is troubleshooting Internet access issues on a customer’s network. After applying this ISIS configuration to R1, the administrator notices that it fails to redistribute the default route into IS-IS. After checking the connectivity between the ISIS router and the ISP router the engineer confirmed there is Layer 3 connectivity between them Which action should be taken to correct the problem?

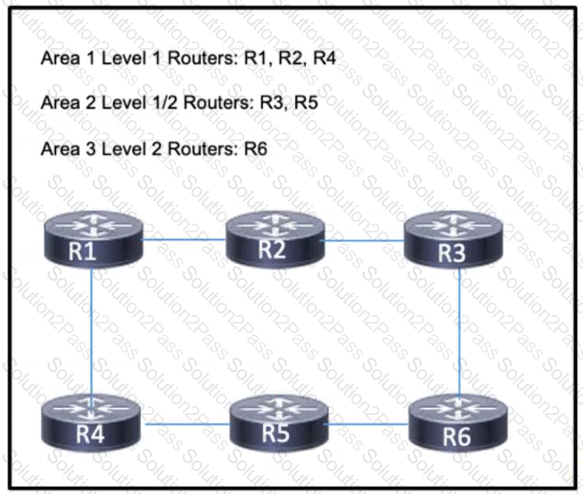

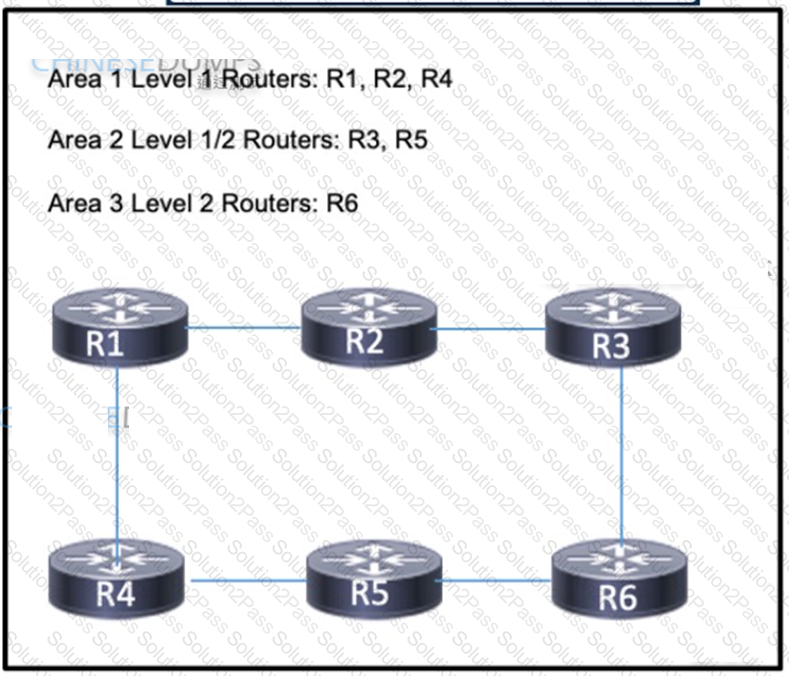

Refer to the exhibit. An engineering team implemented IS-IS on the network, with several different areas. Recently, router R6 in area 3 has been experiencing excessive CPU usage. To reduce the load, a network engineer implemented route summarization on R2 However. R6 is still receiving the full routes from all routers. Which action must the engineer take to resolve the excessive CPU usage?

Refer to the exhibit.

A network engineer implemented this segment routing configuration. Which statement

about the output is true?

A network operator working for a telecommunication company with an employee id: 4074:92:707 is planning to implement the Nonstop Forwarding (NSR) feature on the customer’s core network. After getting the configuration ready for NSR. on which router should the operator implement NSR changes?

Refer to the exhibit.

IS-IS is the routing protocol on the network. After the team noticed excessive CPU usage on all routers, particularly routers R2 and R6, they configured route summarization on all routers. However, a network engineer noticed that summary routes and more specific routes are present in the routing table on R1. Which action must the team take so that R1 receives only the summary routes?
