300-710 Cisco Securing Networks with Cisco Firepower (300-710 SNCF) Free Practice Exam Questions (2026 Updated)

When creating a new intrusion rule in a Cisco Secure Firewall Threat Defense (FTD) device, the keyword type " metadata " must be used to add a line that identifies the author of the rule and the date it was created. The metadata keyword is used to store additional information about the rule, such as authorship and creation date.

Steps:

In FMC, navigate toPolicies > Intrusion > Rules.

Create a new rule or edit an existing one.

Use the " metadata " keyword to add information about the author and date.

Example:

metadata: created_at 2023-06-15, author " John Doe " ;

By using the metadata keyword, you ensure that the rule contains relevant information for tracking its creation and authorship, which is essential for maintaining rule documentation and accountability.

Standard reports from Cisco Secure Firewall Management Center can be downloaded in CSV (Comma-Separated Values) format. This format is widely used for data exchange and can be opened in various applications such as Microsoft Excel.

Steps to download reports:

Navigate toReports > Report Designerin the FMC.

Select or create the report you wish to download.

Choose the CSV format option when exporting the report.

This allows the network engineer to analyze and manipulate the report data easily.

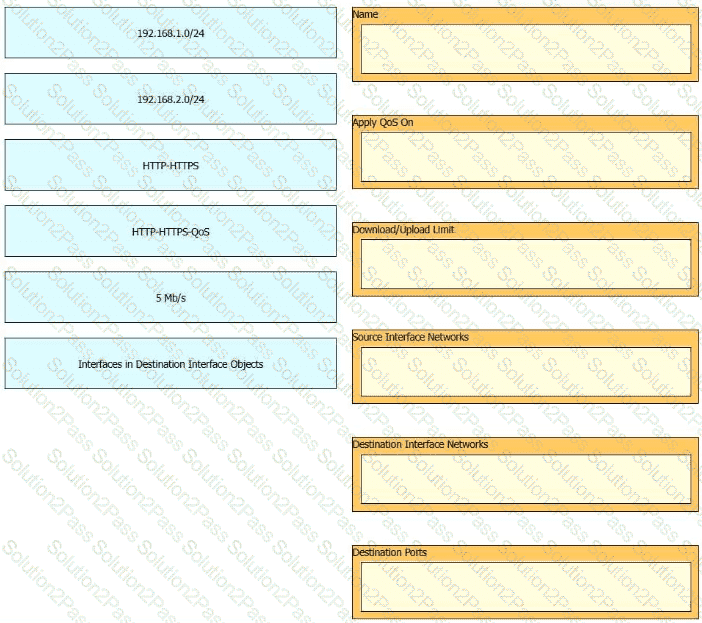

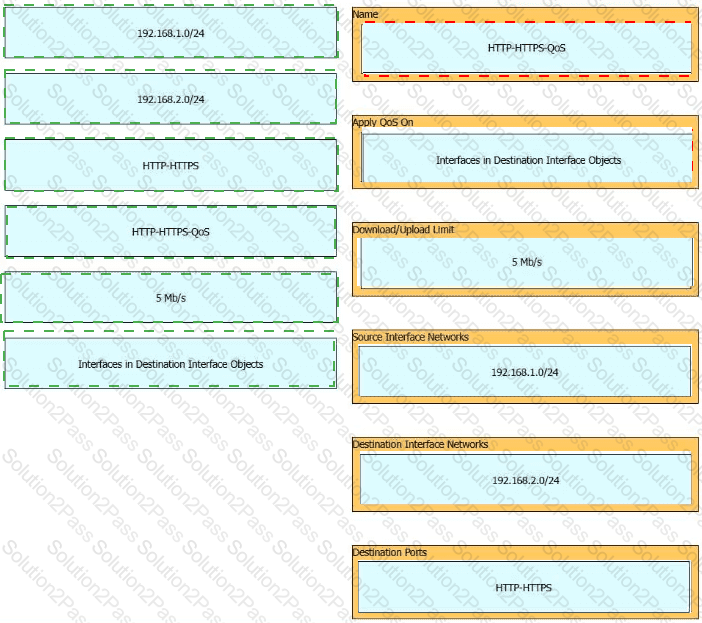

Name → HTTP-HTTPS-QoS

Apply QoS On → Interfaces in Destination Interface Objects

Download/Upload Limit → 5 Mb/s

Source Interface Networks → 192.168.1.0/24

Destination Interface Networks → 192.168.2.0/24

Destination Ports → HTTP-HTTPS

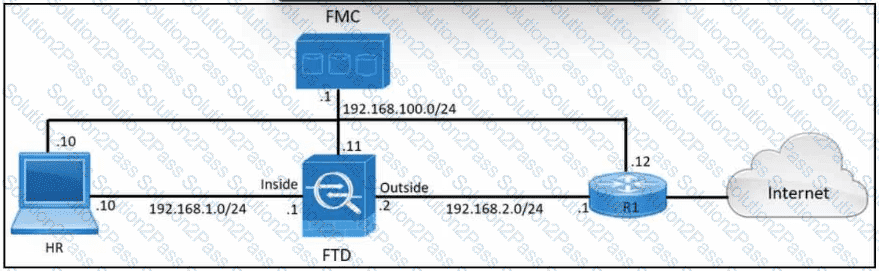

The HR workstation resides on the inside 192.168.1.0/24 network, making that subnet the source-interface network. Internet-bound traffic exits through the 192.168.2.0/24 network, which must be configured as the destination-interface network. Because rate limiting must occur as traffic leaves toward the internet, QoS is applied to interfaces in the destination interface objects. The HTTP-HTTPS object identifies the destination ports for web traffic, while HTTP-HTTPS-QoS provides a descriptive rule name. Both download and upload limits are configured as 5 Mb/s. Cisco Secure Firewall applies a QoS limit independently on each selected interface and determines upload and download direction based on the connection initiator. The Apply QoS On selection must correspond to a populated source or destination interface condition. Cisco Secure Firewall QoS configuration
