350-501 Cisco Implementing and Operating Cisco Service Provider Network Core Technologies (350-501 SPCOR) Free Practice Exam Questions (2025 Updated)

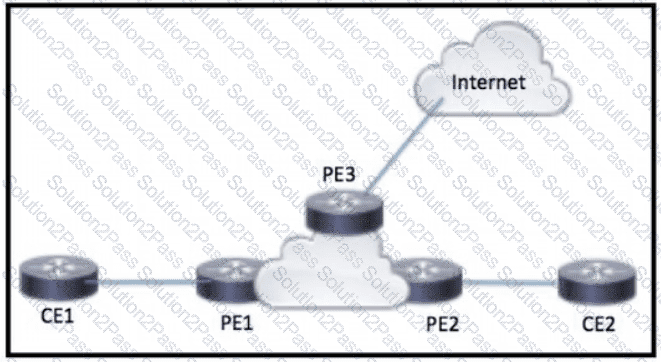

In this scenario, CE1 and CE2 need connectivity to the internet through the ISP connected to PE3. The most straightforward approach is to configure CE1 and CE2 with a static default route pointing to PE3 as the next-hop for internet-bound traffic. This ensures that any traffic destined for the internet will be routed directly to PE3, which is directly connected to the internet. Other options (A, B, and D) involve more complex configurations and are not necessary for this specific task. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

 In a multi-vendor environment with PIM-SM, the Bootstrap Router (BSR) mechanism is used for devices to dynamically learn the Rendezvous Point (RP). BSR is a protocol feature that automates the dissemination of RP information in a PIM domain. This feature allows routers to automatically discover the RP set in use, which simplifies configuration and management compared to static RP configurations or Auto-RP. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

Cisco MPLS Traffic Engineering (TE) tunnels necessitate a link-state routing protocol like OSPF or IS-IS because these protocols use Shortest Path First (SPF) calculations. The tunnel endpoints leverage these SPF calculations to implement the tunnel, ensuring an efficient and optimized path through the network. This is essential for MPLS TE, which aims to optimize network resource utilization and improve traffic distribution across the network.

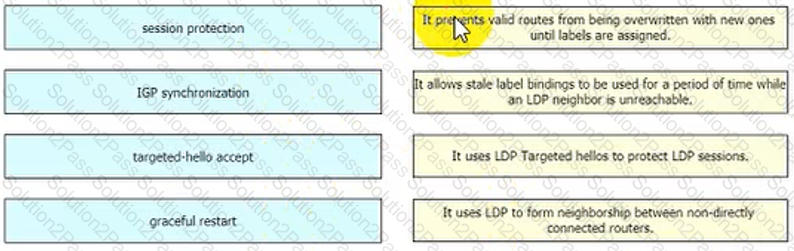

The mpls ldp graceful-restart command is applied in the global configuration mode in IOS XE Software. This command enables MPLS LDP Graceful Restart, which assists a neighboring router with MPLS LDP Stateful Switchover/Nonstop Forwarding (SSO/NSF) Support and Graceful Restart to recover gracefully from an interruption in service without losing its MPLS forwarding state1.

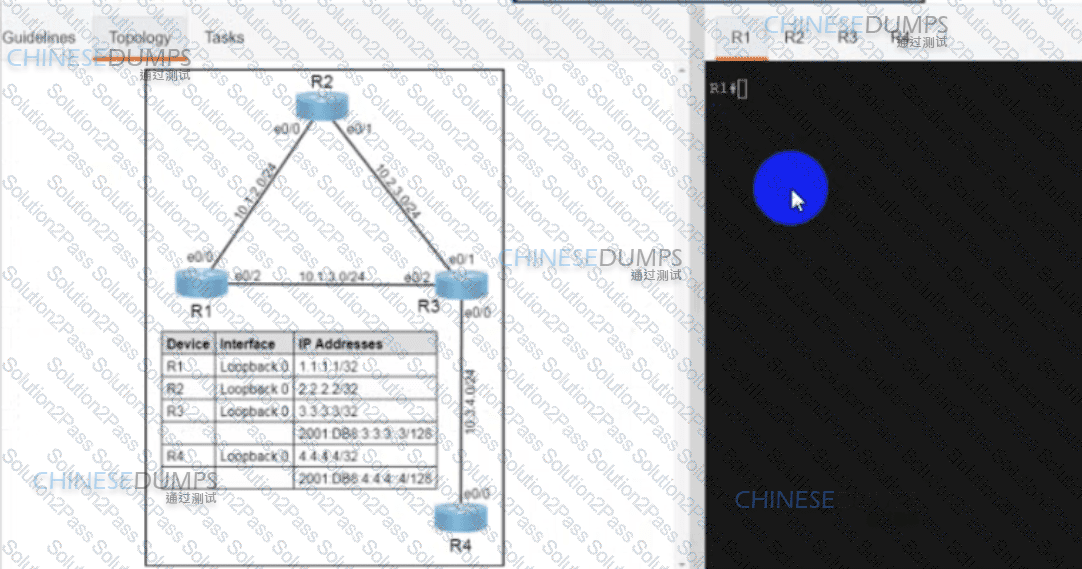

Solution

R3

router bgp 65413

add ipv4

nei 2.2.2.2 allowas-in

nei 4.4.4.4 allowas-in

add ipv6

nei 2001:db8:4:4:4::4 allowas-in

end

copy run start

=======================

R2

router bgp 65413

nei 1.1.1.1 as-override

nei 3.3.3.3 as-override

end

copy run start

=======================

R3

router bgp 65413

nei 10.3.4.2 remot 65412

nei 2001:db8:3:4::2 remot 65412

nei 2001:db8:4:4:4:4::4 remot 65412

nei 2001:db8:4:4:4:4::4 ebgp-multihop 10

add ip4

nei 10.3.4.2 act

ex

add ipv6

nei 2001:db8:4:4:4:4::4 activate

nei 2001:db8:4:4:4:4::4 ebgp-multihop 10

nei 2001:db8:3:4::2 act

end

copy run start

===================

R4

router bgp 65412

nei 10.3.4.1 remot 65413

nei 2001:db8:3:3:3:3::3 remot 65413

nei 2001:db8:3:3:3:3::3 ebgp-multihop 10

nei 2001:db8:3:4::1 remot 65413

add ipv4

nei 10.3.4.1 remot act

nei 10.3.4.1 prefix-limit 10

add ipv6

nei 2001:db8:3:3:3:3::3 activate

nei 2001:db8:3:3:3:3::3 ebgp-multihop 10

nei 2001:db8:3:3:3:3::3 prefix-limit 10

nei 2001:db8:3:4::1 activate

nei 2001:db8:3:4::1 prefix-limit 10

end

copy run start

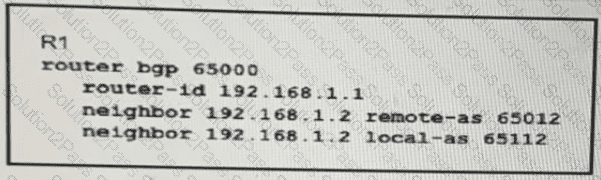

 The local-as keyword is used in BGP configurations to change the local AS number that is used in the BGP OPEN message when establishing a BGP session with a specific neighbor. In this case, even though the router is configured with AS 65000, it will use AS 65112 when establishing a connection with neighbor 192.168.1.2 due to the local-as keyword configuration. References := Cisco

https://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol-bgp/13761-39.html

 The correct route policy to satisfy the requirements is Option C. This option likely contains the necessary commands to:

Accept only customer-assigned prefixes, which can be specified using an access list or prefix list.

Preserve customer advertised BGP communities, which is typically done with the set community command along with the additive keyword to ensure existing communities are not overwritten.

Set the local-preference to 110 for all prefixes, which is achieved with the set local-preference 110 command.

Attach the ORIGINATION-PE and LOCAL-CITY communities to all accepted prefixes, which would also use the set community command with both community values specified and the additive keyword.

 DWDM, or Dense Wavelength Division Multiplexing, uses different wavelengths of light to combine multiple optical signals. This method allows for the transmission of various data streams simultaneously over a single optical fiber. By using closely spaced wavelengths, DWDM can fit more channels onto a single fiber, significantly increasing the capacity and efficiency of fiber-optic networks.

 OSPFv3 is designed to support both IPv4 and IPv6. The message “IPv6 routing not enabled” indicates that IPv6 has not been configured on the router, but this does not prevent OSPFv3 from running for IPv4. The OSPFv3 configuration for IPv4 will still function on the interface FastEthernet0/0 as intended.

Cisco IOS XE Software is an open and flexible operating system optimized for a variety of network infrastructures. One of its key enhancements over Cisco IOS Software is the support for symmetric multiprocessing (SMP). This allows the operating system to efficiently utilize multiple CPU cores, improving performance and scalability for network services.

 In OSPF, the election of the designated router (DR) and backup designated router (BDR) is based on the OSPF network type. The network types include:

Broadcast: This is the default network type for Ethernet interfaces. In a broadcast network, OSPF elects a DR and BDR. All other routers become DROTHERs. To prevent the election of a DR/BDR, you can configure the interface as non-broadcast (NBMA) using the ip ospf network non-broadcast command.

Point-to-Point: This network type is used for point-to-point links (e.g., serial links). There is no DR/BDR election in point-to-point networks.

Point-to-Multipoint: This network type is used for point-to-multipoint links (e.g., Frame Relay). There is no DR/BDR election in point-to-multipoint networks.

Point-to-Multipoint Non-Broadcast: Similar to point-to-multipoint, but explicitly configured as non-broadcast. There is no DR/BDR election in point-to-multipoint non-broadcast networks.

Loopback: Loopback interfaces are always treated as point-to-point.

Virtual-Link: Used for OSPF virtual links.

Sham-Link: Used for OSPF sham links.

Demand Circuit: Used for demand circuits (e.g., ISDN).

Non-Broadcast: Explicitly configured as non-broadcast. There is no DR/BDR election in non-broadcast networks.

Packet loops can occur during the configuration of BIDIR-PIM if not all parts of your network support this protocol or are configured correctly for it. If some routers or switches in your network don’t understand or aren’t configured for BIDIR-PIM, they can inadvertently forward packets back into parts of the network they were already in, creating a loop. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Multicast section.

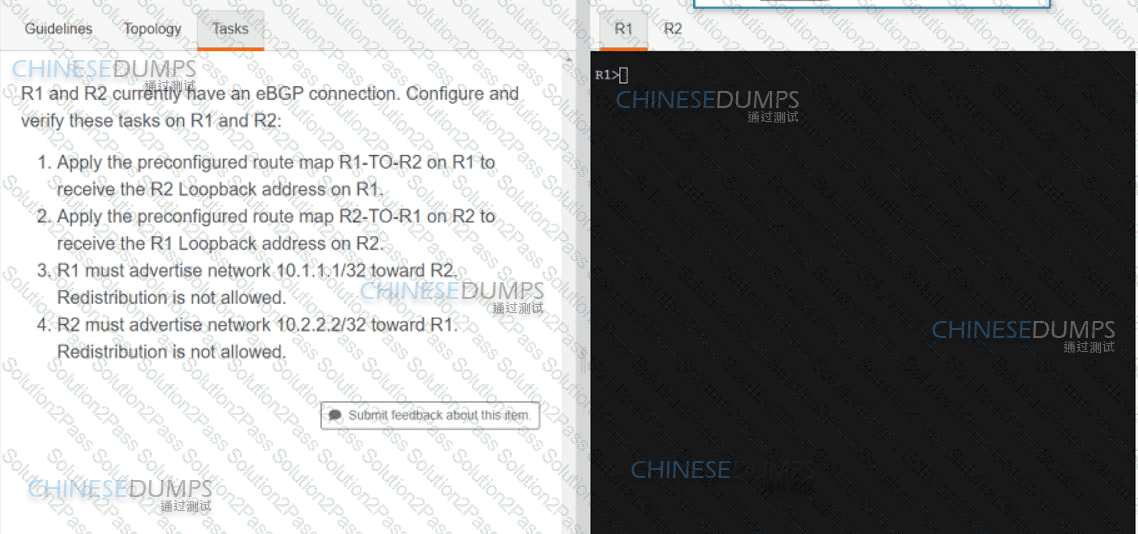

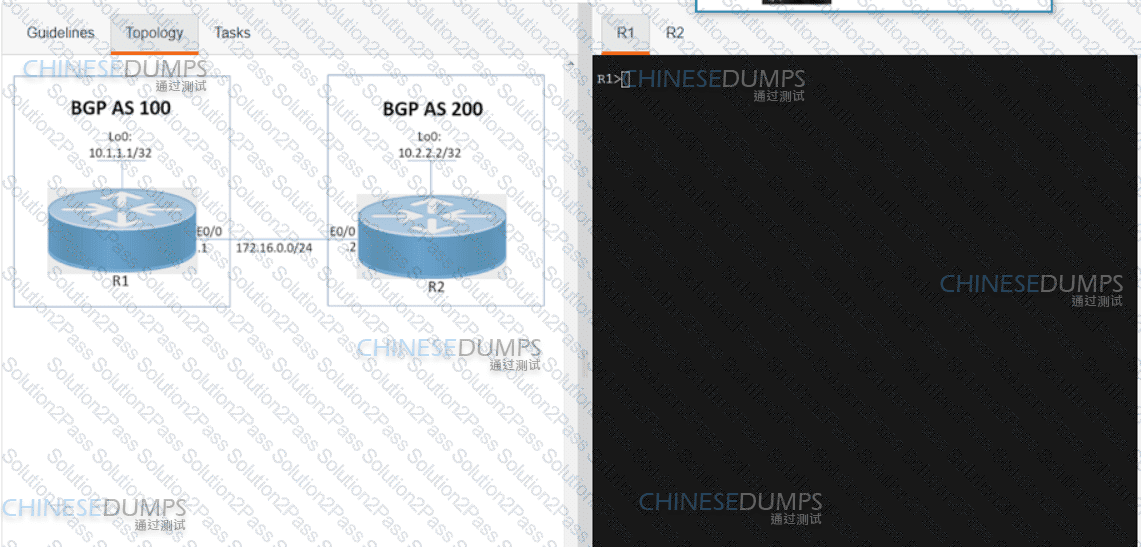

R1

router bgp 100

address-family ipv4

nei 172.16.0.2 route-map R1-TO-R2 in

network 10.1.1.1 mask 255.255.255.255

copy run start

R2

router bgp 200

address-family ipv4

network 10.2.2.2 mask 255.255.255.255

nei 172.16.0.1 route-map R2-TO-R1 in

copy run start

RSVP (Resource Reservation Protocol) is used with MPLS (Multiprotocol Label Switching) traffic engineering tunnels primarily to reserve bandwidth along the path of the tunnel. This ensures that sufficient resources are allocated for the traffic to meet quality of service requirements, which is crucial for maintaining the performance of critical applications that traverse the network. References := For more information on RSVP and MPLS traffic engineering, refer to the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials, which provide detailed explanations on how these technologies work together to optimize network traffic1.

NetFlow provides traceback information by analyzing network traffic. To configure NetFlow for traceback, you need to set up a classification ACL (Access Control List) to identify which type of traffic will be analyzed. This allows NetFlow to focus on specific traffic flows and report relevant information. The classification ACL can be based on various criteria such as source/destination IP addresses, port numbers, or protocols. By defining the classification ACL, you ensure that only the relevant traffic is considered for NetFlow analysis.
