350-801 Cisco Implementing Cisco Collaboration Core Technologies (350-801 CLCOR) Free Practice Exam Questions (2025 Updated)

Prepare effectively for your Cisco 350-801 Implementing Cisco Collaboration Core Technologies (350-801 CLCOR) certification with our extensive collection of free, high-quality practice questions. Each question is designed to mirror the actual exam format and objectives, complete with comprehensive answers and detailed explanations. Our materials are regularly updated for 2025, ensuring you have the most current resources to build confidence and succeed on your first attempt.

Cisco 350-801 Premium Access     Download Demo
Page: 3 / 6
Total 361 questions

A collaboration engineer is troubleshooting issues with a T1 PRi The engineer wants to confirm if the router received an ISON Set Asynchronous Balanced Mode Extended message and responded with an Unnumbered Acknowledge frame Which Cisco OS command is used to debug ISDN Laver 2 issues?

A.

debug isdn q931

B.

debug isdn q921

C.

debug voice q921

D.

debug voip ccapi mout

What is a capability of a Cisco IOS XE media resource?

A.

It provides a hardware conferencing solution.

B.

It provides call forwarding capabilities.

C.

It provides redundancy for voice calls.

D.

It provides a voice packet optimization solution.

An engineer is configuring a Cisco Unified Border Element to allow the video endpoints to negotiate without the Cisco Unified Border Element interfering in the process. What should the engineer configure on the Cisco Unified Border Element to support this process?

A.

Configure path-thru content sdp on the voice service.

B.

Configure a hardcoded codec on the dial peers.

C.

Configure a transcoder for video protocols.

D.

Configure codec transparent on the dial peers.

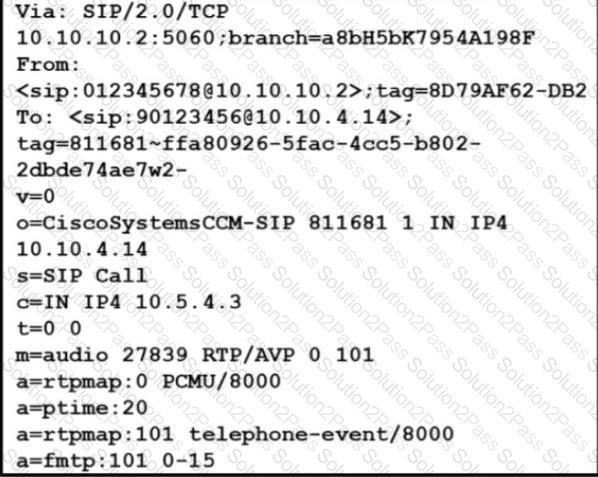

Refer to the exhibit.

Which Codec is negotiated?

A.

G.729

B.

ILBC

C.

G.711ulaw

D.

G.728

On which protocol and port combination does Cisco Prime Collaboration receive notifications (Traps and InformRequests) from several network devices in the Collaboration infrastructure for which it has requested notifications?

A.

UDP161

B.

TCP 161

C.

UDP 162

D.

TCP 80

An engineer is notified that the Cisco TelePresence MX800 that is registered in Cisco Unified communications Manager shows an empty panel, and the Touch 10 shows a corresponding icon with no action when pressed. Where does the engineer go to remove the inactive custom panel?

A.

The phone configuration page in CUCM Administration

B.

The SIP Trunk security profile page in CUCM Administration

C.

The software Upgrades page in CUCM OS Administration

D.

The In-Room control Editor on the webpage of the MX800

SIP proxies have operations defined in RFC 3261 and supporting extensions. Though no lETF RFC completely defines how SBCs must function. SBCs evolved over the years.

Which two operations demonstrate the high-level differences between SBCs and SIP proxies? (Choose two.)

A.

Stateful proxies are context-aware and can terminate communication sessions by themselves

B.

SlP proxies add a Via header and optionally a Record-Route header, and the rest of the headers are left untouched

C.

SBCs can modify headers such as To, From, Contact, and Call-D.lt can introduce new headers into the SIP message

D.

SBCs are capable of interworking completely different protocols to set up, modify, and tear down communication sessions. It includes SIP, H.323,and MGCP protocols

E.

SIP proxies are SDP-aware and can change the SDP bodies

Which two steps are required for bulk configuration transactions on the Cisco UCM database utilizing BAT? (Choose two.)

A.

A data file in Abstract Syntax Notation One format must be uploaded to Cisco UCM

B.

A server template must be created in Cisco UCM

C.

A data file in comma-separated values format must be uploaded to Cisco UCM

D.

A data file in Extensible Markup Language format must be uploaded to Cisco UCM

E.

A device template must be created in Cisco UCM

A customer wants a video conference with five Cisco Telepresence 1X5000 Series systems. Which media resource is necessary in the design to fully utilize the immersive functions?

A.

Cisco Webex Meetings Server

B.

software conference bridge on Cisco UCM

C.

Cisco Meeting Server

D.

Cisco PVDM4-128

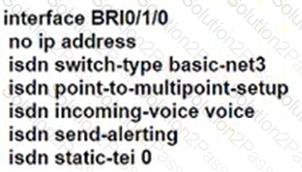

Refer to the exhibit. A customer submits this debug output, captured on a Cisco IOS router. Assuming that an MGCP gateway is configured with an ISDN BRI interface, which BRI changes resolve the issue?

A.


B.


C.

D.


Refer to the exhibit. An engineer is confining class of control for a user in Cisco UCM. Which change will ensure that the user is unable to call 2143?

A.

Change line partition to Partition_A

B.

Change line CSS to only contain Partition_B

C.

Set the user's line CSS to

D.

Set the user's device CSS to

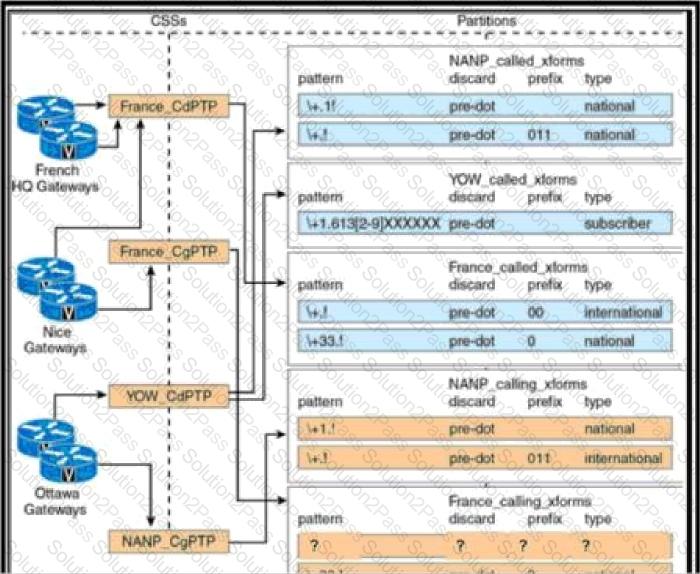

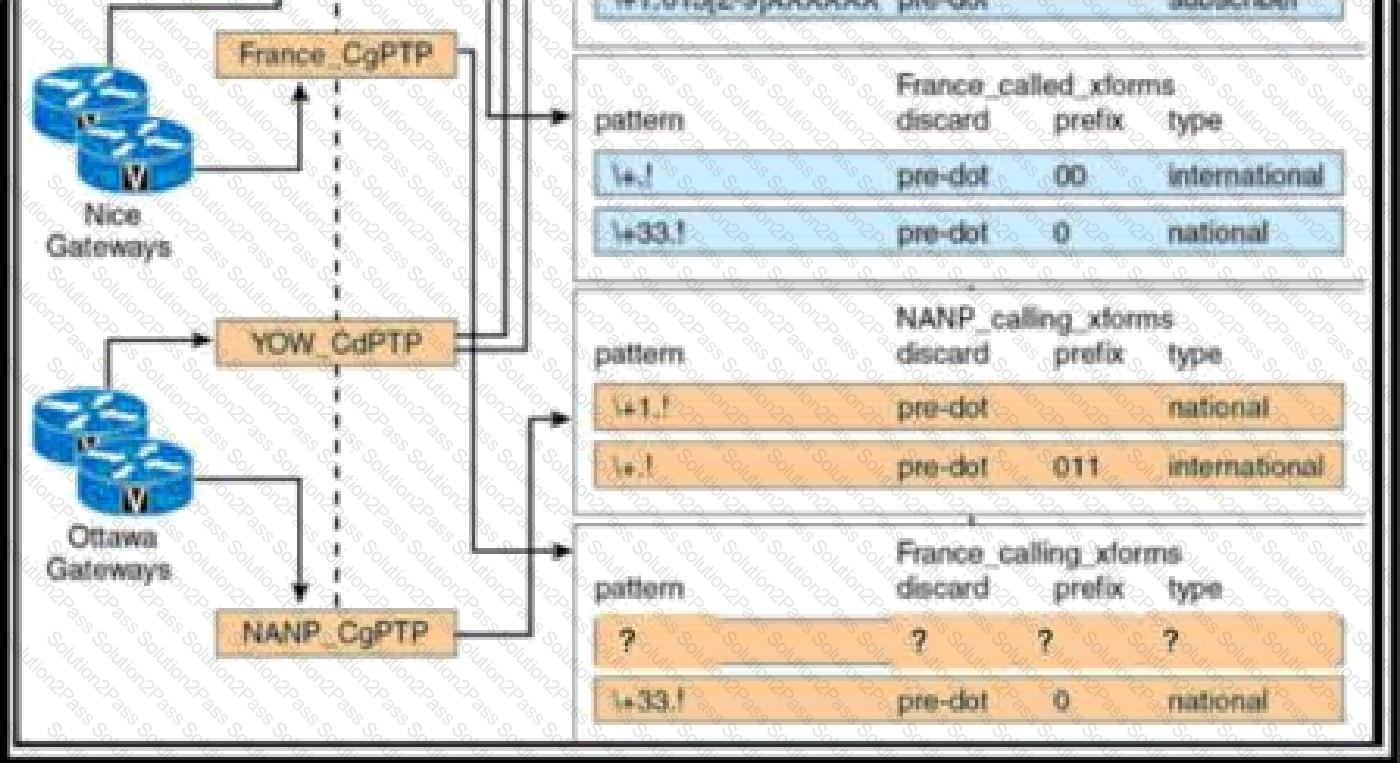

Refer to the exhibit A call from +1 613 555 1234 that is sent out through the Nice Gateways should result in a calling party of 001 613 555 1234 with the numbering type "international' Which configuration accomplishes this goal?

A.

\+.001! pre-dot 1 international

B.

\+1.1 none pre-dot 001 international

C.

\+.! pre-dot 00 international

D.

613XXXXXXX none +011 internationa

Which dial plan function restricts calls that are made by a lobby phone to internal extensions only?

A.

manipulation of dialed destination

B.

path selection

C.

calling privileges

D.

endpoint addressing

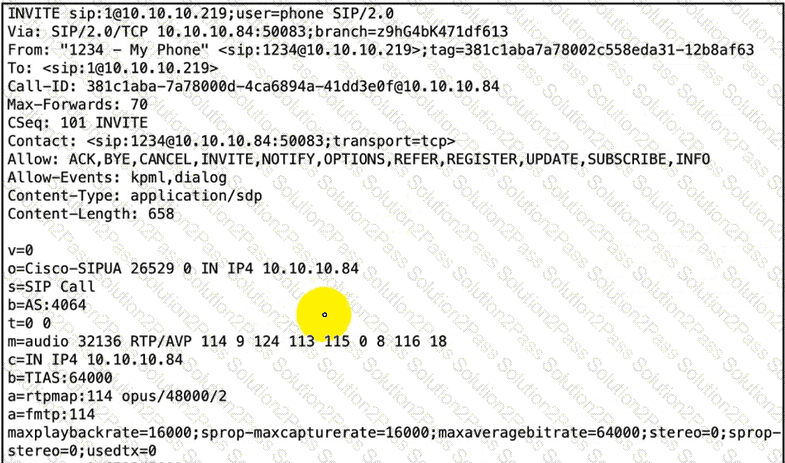

Refer to the exhibit. When a UC Administrator is troubleshooting DTMF negotiated by this SIP INVITE, which two messages are examined next to further troubleshoot the issue? (Choose two.)

A.

REGISTER

B.

SUBSCRIBE

C.

PRACK

D.

NOTIFY

E.

UPDATE

Which task is required when configuring self-provisioning for an end user in Cisco UCM?

A.

Enable Auto-Registration.

B.

Associate the end user to the Standard CCM Super Users group

C.

Associate the end user to a SIP Profile.

D.

Disable Auto-Registration.

What are two functions of Cisco Expressway in the Collaboration Edge? (Choose two.)

A.

Expressway-C provides encryption (or Mobile and Remote Access but not (or business-to-business communications.

B.

The Expressway-C and Expressway-E pair can enable connectivity from the corporate network to the PSTN via a T1/E1 trunk.

C.

The Expressway-C and Expressway-E pair can interconnect H.323-to-SIP calls for voice.

D.

Expressway-E provides a VPN entry point for Cisco IP phones with a Cisco AnyConnect client using authentication based on certificates.

E.

Expressway-E provides a perimeter network that separates the enterprise network from the Internet.

Which type of input is required when configuring a third-party SIP phone?

A.

digest user

B.

manufacturer

C.

serial number350-801 2023-4

D.

authorization code

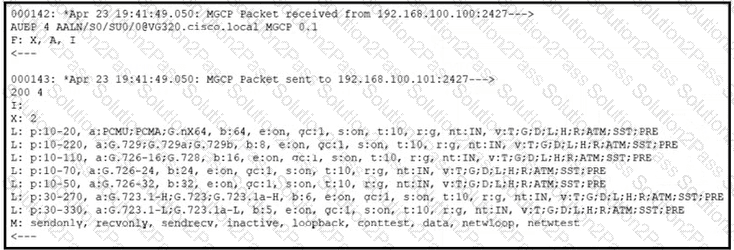

Refer to the exhibit. What is the registration state of the analog port in this debug output?

A.

The analog port failed to register to Cisco UCM with an error code 200.

B.

The MGCP Gateway is not communicating with the Cisco UCM.

C.

The analog port is currently shut down.

D.

The analog port is registered to Cisco UCM.

How does Cisco UCM perform a digit analysis on-hook versus off-hook for an outbound call from a Cisco IP phone that is registered to Cisco UCM?

A.

On-hook. by pressing the digits and entering "#" to process the call. UCM performs a digit-by-digit analysis; off-hook. UCM analyzes all digits as a string.

B.

On-hook. no digit analysis is performed; off-hook. UCM requires the '#" to start the digit analysis

C.

On-hook. UCM performs a digit-by-digit analysis; off-hook. UCM considers all digits were dialed and does not wait for additional digits.

D.

On-hook. UCM considers all digits were dialed and does not wait for additional digits; off-hook. UCM performs a digit-by-digit analysis.

After an engineer implements the FAC and CMC features together, users report that calls take almost one minute to complete and that they occasionally hear the reorder tone. Which two actions address this issue?( Choose two)

A.

Adjust the T302 timer from the default of 15 seconds to 5 seconds to shorten the interdigit timer

B.

Change the code if the problem persists

C.

Advise the user to hang up and try again

D.

Do not wait for the tones immediately dial the FAC and CMC

E.

Advise the user to press the"#"button after dialing the FAC and CMC codes
