1Y0-204 Citrix Virtual Apps and Desktops 7 Administration exam Free Practice Exam Questions (2025 Updated)

 The Dashboard view in Citrix Director provides a real-time graphical representation of the health and usage of the site, including the database services, the license server, and any hypervisor-hosting connections12

1: Director - Citrix Product Documentation 2: Director Dashboard Explained - Citrix Blogs

 The minimum built-in delegated administration role required to create an Application Group is the Delivery Group Administrator. This role has the necessary permissions to manage application groups within a delivery group1.

 According to the Citrix documentation, the Citrix Cloud Connector is a Citrix component that serves as a channel for communication between Citrix Cloud and the resource locations, enabling cloud management without requiring any complex networking or infrastructure configuration. This removes all the hassle of managing delivery infrastructure. The Cloud Connector also provides services for the Citrix Cloud Delivery Controllers to configure the resource location where Citrix Provisioning runs. Therefore, the administrator needs to install Citrix Cloud Connectors on the Citrix Provisioning servers to migrate the Citrix Provisioning environment to Citrix Cloud1

 According to the Reference Architecture: Image Management, Machine Creation Services (MCS) is a disk-based provisioning approach that works with major hypervisors and leading cloud platforms. The clones include a differencing disk and an identity disk linked from a base disk. MCS configures, starts, stops, and deletes virtual machines using the hypervisor APIs. When a Random/Non-Persistent desktop machine is restarted, the differencing disk will be updated from the base image, discarding any changes made by the user. This ensures that the desktop machine is always in a clean state and consistent with the master image.

The Cloud Connector requires outbound connectivity on port 443 for communication with the internet2

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration guide1, the HDX Printer properties retention policy has four possible settings:

Held in profile only if NOT saved on client: This is the default setting. The printer properties are held in the user profile only if they have not been saved on the user device.

Do NOT retain printer properties: The printer properties are not retained at all. The user must configure them for each session.

Saved on the client device only: The printer properties are saved on the user device only. The user profile does not store them.

Retained in user profile only: The printer properties are retained in the user profile only. The user device does not store them.

In this scenario, the administrator wants the users to maintain the different printer property settings for their HDX sessions. Since the users are using mandatory profiles, which are read-only and do not save any changes, the administrator should use the Retained in user profile only setting. This way, the printer properties are stored in the user profile and applied to the HDX sessions. The user device does not need to save them. This setting is suitable for environments where mandatory profiles are being used.

 According to the Citrix documentation2, the SDX platform is a multi-tenant appliance that supports multiple Citrix ADC instances. Each instance is fully isolated and has its own dedicated resources. The SDX platform allows administrators to create, manage, and monitor multiple instances from a single management interface.

According to the Citrix documentation, “When you configure the Citrix ADC appliance for Active Directory authentication, you must configure DNS to assign fully qualified domain names (FQDNs) to the authentication and traffic management virtual servers. This is because the domain session cookie that is used during authentication is based on the FQDN of the virtual server.” 1

1: Configure DNS to Support Active Directory Authentication

A SSL profile is a collection of SSL settings that define the SSL behavior of a virtual server. A Citrix Administrator can use SSL profiles to apply the same SSL settings to multiple SSL virtual servers, which simplifies the configuration and management of SSL parameters1.

1: SSL Profiles

 To ensure the line-of-business application is added to Favorites and users cannot remove it, the Citrix Administrator should add the phrase “KEYWORDS: Mandatory” to the application properties3.

According to the Citrix documentation, Citrix Director supports exporting reports in the following formats: PDF, XLS, and CSV. DOC and TXT are not supported. See Export reports and SCOM alerts for more details.

 The command set dns parameter -setAABit YES sets the authoritative answer (AA) bit in the DNS response header. This indicates that the Citrix ADC is the authoritative server for the domain name in the query. This can be useful when the Citrix ADC is configured as a DNS proxy server1

1: 2 - DNS Parameters

This is because having multiple Cloud Connectors can provide redundancy and high availability in case one of the connectors fails or needs maintenance. Therefore, based on my last update, option B would be the correct approach.

 The Citrix documentation states that if a machine catalog is not available when adding machines to a Delivery Group, a possible cause is that the machines in the unavailable machine catalog are of different OS types2.

 Citrix Director is the tool designed for monitoring the overall daily performance of a Citrix Virtual Apps and Desktops Site. It provides administrators with insights into the environment’s operations, allowing for proactive management and troubleshooting

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration guide, the expression CLIENT.SSL.CLIENT_CERT.VALID_NOT_AFTER.EQ(GMT2020) checks whether the client certificate is valid until the specified date (GMT2020). The other expressions are either incorrect or irrelevant for this requirement.

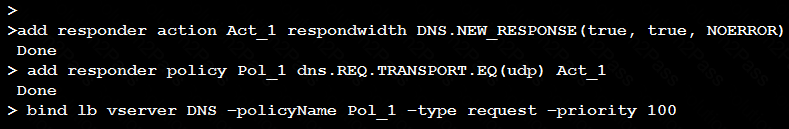

The commands in the screenshot create a responder action and policy that modify the DNS response from the Citrix ADC to the client. The responder action uses the DNS.NEW_RESPONSE function, which creates a new DNS response with the specified parameters. The first parameter is true, which means the response will have the TC (truncated) bit set. The second parameter is true, which means the response will have the AA (authoritative answer) bit set. The third parameter is NOERROR, which means the response will have the rcode (response code) set to NOERROR. The responder policy matches the DNS requests that use UDP as the transport protocol and applies the responder action to them. Therefore, the effect of this configuration is to create a DNS response with TC bit set and rcode as NOERROR for UDP requests. This can be used to prevent DNS amplification attacks by limiting the size of the DNS response.

 According to the Citrix documentation, the -denySSLReneg parameter specifies the type of SSL renegotiation that the Citrix ADC denies. The possible options are:

NONSECURE: Deny renegotiation requests from a client if the initial handshake between the Citrix ADC and the client is not secure. A secure handshake is one in which both parties prove their identities to each other by presenting valid certificates.

FRONTEND_CLIENT: Deny renegotiation requests from a client on a front-end SSL connection, regardless of whether the initial handshake is secure or not. A front-end SSL connection is one in which the Citrix ADC communicates with the client over SSL.

ALL: Deny all renegotiation requests from a client on a front-end SSL connection and from a server on a back-end SSL connection. A back-end SSL connection is one in which the Citrix ADC communicates with the server over SSL.

NO: Allow all renegotiation requests.

Therefore, the correct answer is A and C.

According to the Citrix Secure Web Gateway 12.1 documentation1, Citrix Secure Web Gateway (SWG) is a cloud-delivered service that provides secure access to web and SaaS applications, globally. It provides a complete stack of security capabilities, such as Secure Web Gateway, Cloud Access Security Broker, Malware Protection with Sandboxing, Intrusion Prevention and Detection Systems, and Data Loss Prevention. Citrix SWG can intercept and inspect all the traffic, including SSL/TLS, coming in and going out of the enterprise network. It can also block access to URLs identified as serving harmful or insecure content, and identify users who are accessing malicious websites. Citrix SWG can be deployed as a proxy on a Citrix ADC appliance at the edge of the network. The other options are not relevant for this scenario, as they do not provide the same level of security and visibility as Citrix SWG.
