A punchdown tool is specifically used to insert wires into a punchdown block in patch panels, which is typical for Cat 6 and similar cabling. It ensures a secure and correct connection by pushing the wire into a metal groove that slices the insulation.

When a workstation automatically assigns itself an IP address that is not part of the DHCP lease pool, the system has most likely configured an APIPA (Automatic Private IP Addressing) address. According to CompTIA Core 1 (220-1201) networking fundamentals, APIPA addresses fall within the range 169.254.0.0/16 and are assigned when a device cannot communicate with a DHCP server.

APIPA allows limited local network communication but does not provide access to the internet or network resources such as internal file shares that require routing or proper IP configuration. This explains why the workstation experiences connectivity issues.

A static IP address is manually configured and would not be automatically assigned. A DHCP address would come from the defined lease pool, which the technician has confirmed is not the case. A public IP address is assigned by an ISP and is not used directly on internal workstations.

CompTIA highlights APIPA as a key troubleshooting indicator of DHCP failure or network connectivity issues, making it the correct answer.

To share a phone’s cellular data connection with a laptop, the user should use a hotspot, also known as mobile hotspot or Wi-Fi tethering. In CompTIA A+ Core 1 terms, this feature allows a smartphone to act like a small wireless router: it takes the phone’s mobile data (4G/5G) connection and rebroadcasts it over Wi-Fi so another device (the laptop) can join the wireless network using an SSID and password. This is the most common and straightforward method because laptops universally support Wi-Fi and the connection typically provides better throughput than other tethering methods. Hotspot/tethering settings also commonly allow configuration of security (WPA2/WPA3) and can limit connected devices to reduce unauthorized access and manage data usage.

Bluetooth (option B) can support tethering on some devices, but it is slower, more limited, and not the primary expected answer when the goal is simply sharing cellular internet with a laptop. NFC (option C) is mainly used for close-range pairing or payments and does not provide an internet sharing link by itself. Ethernet (option D) would require wired adapters and is not the standard method for cellular sharing. Therefore, Hotspot is the best answer.

If a printer is set to use a special tray (for cards/invitations) but a different type of print job is attempted (like a letter), a paper tray setting mismatch can cause errors. Changing the tray setting to match the print media resolves the issue.

From CompTIA A+ 220-1101 Official Study Guide, Objective 4.3 – Troubleshooting printers:

“If print jobs fail when media type changes, verify and adjust the paper tray settings to match the required output.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Printer Troubleshooting

CompTIA Exam Objectives 220-1101, Domain 4.3

============

A device that connects directly to a laptop and provides a one-to-one duplication of the laptop’s existing ports is known as a port replicator. According to CompTIA Core 1 (220-1201) mobile device and laptop accessories objectives, a port replicator extends the available connections by mirroring the laptop’s built-in ports, such as USB, HDMI, Ethernet, and audio. This allows users to quickly connect peripherals like monitors, keyboards, mice, and network cables without plugging each device in individually.

Port replicators are typically passive devices and do not add new functionality beyond duplicating existing ports. They are commonly used in office environments where users frequently dock and undock laptops.

A docking station, by contrast, often provides additional or enhanced functionality, such as extra video outputs, higher-power charging, expansion slots, or proprietary connectors. A USB hub only expands USB connectivity and does not replicate all peripheral connections. A KVM switch is used to control multiple computers with a single keyboard, video display, and mouse, which is unrelated to laptop port expansion.

CompTIA distinguishes port replicators as simple port-duplication devices, making them the correct answer in this scenario.

Dual-BIOS motherboards contain two firmware chips. If theprimary BIOS becomescorrupted, the system canfailover to the secondary BIOS. Most boards allow manual enabling of the secondary BIOS via a physical switch or jumper.

Option B:Downgrading firmware may not be possible if the system won’t POST or access UEFI.

Option C:Not necessary until both BIOS chips are non-functional.

Option D:Thermal paste affects heat dissipation, not BIOS/boot behavior.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power.

Port 3389 is used by the Remote Desktop Protocol (RDP) for remote desktop connections in Windows environments. This port allows remote control and management of systems across the network.

Comprehensive and Detailed Step-by-Step Explanation:

When delivering 10Gbps speeds over long distances, fiber optic cables are the best choice. Here’s the breakdown:

A. Multimode Fiber (Correct Answer):

Multimode fiber is designed for relatively short to medium distances (up to 1,312 feet or 400 meters) while supporting high-speed data transfer (10Gbps and above).

It uses LED light sources and is cost-effective for environments like data centers or within buildings.

For the specified distance of over 328ft but under 1,312ft, multimode fiber is the most suitable option.

Incorrect Options:

B. Single-mode Fiber: While single-mode fiber supports much greater distances (up to several miles or kilometers) and higher speeds, it is more expensive and unnecessary for the specified range. Single-mode fiber is generally used for long-haul networking or telecommunications.

C. Cat 6a: Cat 6a is capable of 10Gbps speeds but only up to 328ft (100 meters). It cannot reliably handle the specified distance of over 328ft.

D. Cat 6: Cat 6 is also limited to 10Gbps speeds at distances up to 328ft (100 meters). Beyond this range, it is unsuitable.

Key Takeaway:

For delivering 10Gbps speeds over distances longer than 328ft (100m) but under 1,312ft (400m), Multimode Fiber is the best choice due to its ability to support high-speed data over medium distances at a reasonable cost.

A hybrid environment combines both on-premises infrastructure and cloud-based resources, allowing virtual machines to operate seamlessly between the two. CompTIA A+ describes hybrid cloud as a deployment model where organizations maintain their own private servers or virtualization hosts while also leveraging public cloud platforms such as AWS, Azure, or Google Cloud. This model supports flexibility, scalability, and gradual migration, making it ideal for businesses not ready to fully abandon local infrastructure.

In this model, workloads can move between the local environment and the cloud depending on performance requirements, cost considerations, or redundancy needs. Additionally, hybrid clouds allow resource sharing, data synchronization, and load balancing across both environments.

A public cloud hosts resources entirely in the provider’s data center, offering no on-premises integration. A private cloud exists solely within the organization’s infrastructure with no external shared resources. SaaS delivers applications, not infrastructure, meaning it cannot host or manage virtual machines.

Therefore, an environment where VMs exist both on-site and in the cloud is best described as a Hybrid cloud.

B. PAN (Personal Area Network):

A PAN is a network established between devices in close proximity, such as between a smartphone and a Bluetooth headset.

Bluetooth technology is specifically designed for short-range communication, making it a type of PAN.

Incorrect Options:

A. MAN (Metropolitan Area Network): A MAN covers a city or metropolitan area and is not relevant to Bluetooth connections.

C. SAN (Storage Area Network): A SAN is used for large-scale data storage, unrelated to Bluetooth connections.

D. WAN (Wide Area Network): A WAN spans large geographical areas (e.g., the internet) and is not relevant to this scenario.

Key Takeaway: Bluetooth connections, such as those between a headset and a device, create a Personal Area Network (PAN).

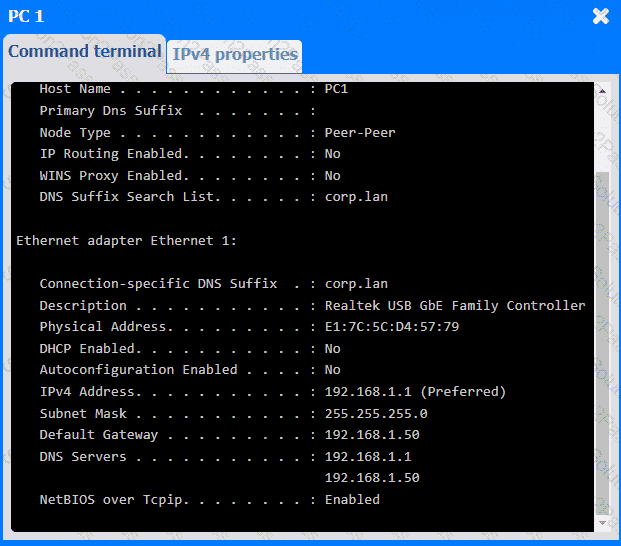

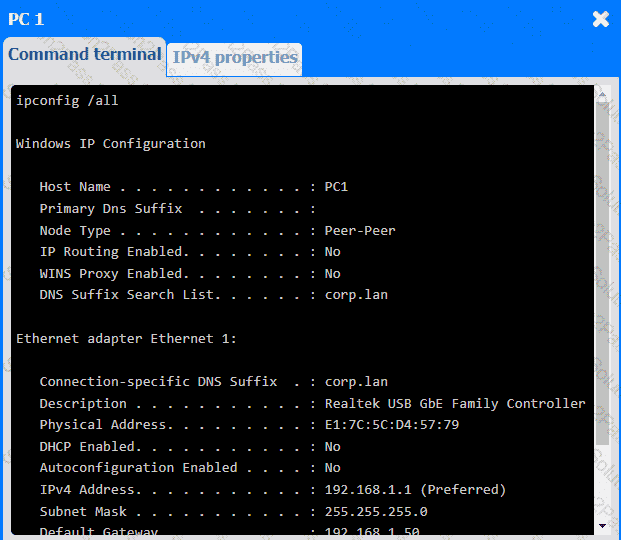

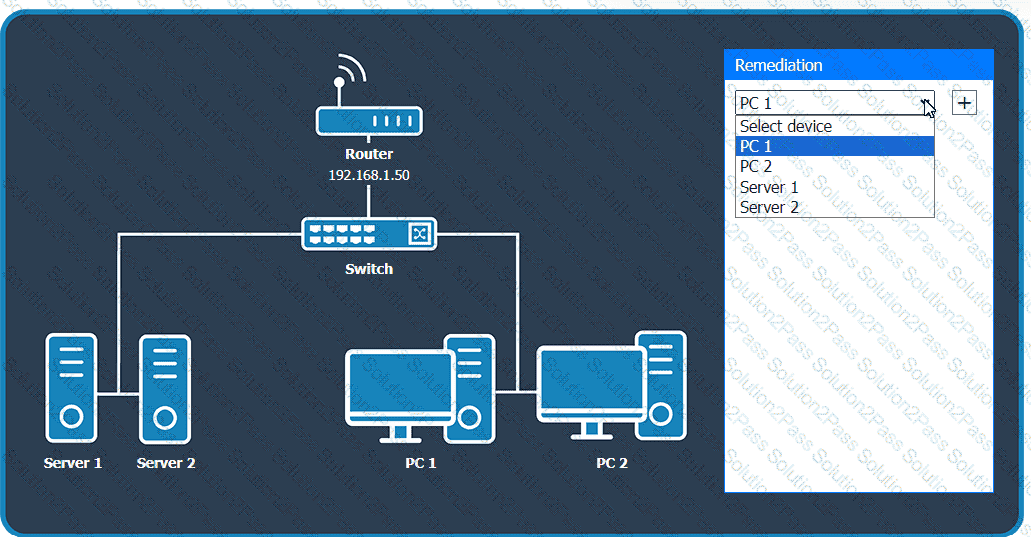

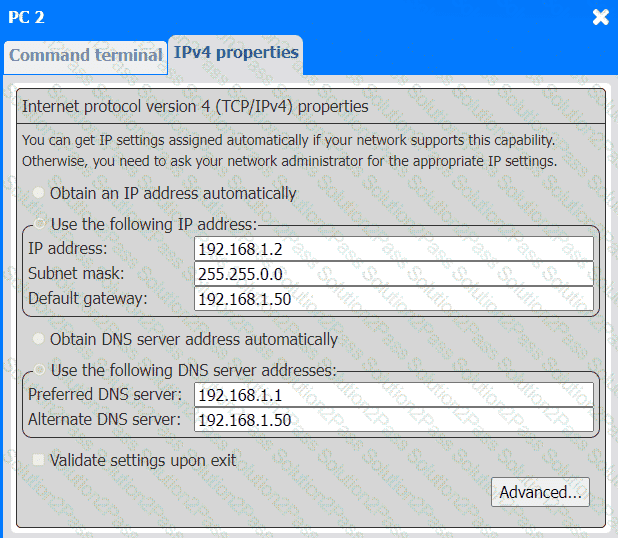

If two devices have thesame static IP address, anIP conflictoccurs. This results in both devices being intermittently disconnected or unable to communicate on the network. It’s a common mistake when copying configurations manually.

Option B:DNS conflicts wouldn’t cause total disconnection and wouldn ' t occur just from copying IP settings.

Option C:A cable issue would only affect one workstation.

Option D:Switchport security issues wouldn ' t affect both machines simultaneously unless port security was configured very specifically.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 2.6: Given a scenario, configure and troubleshoot network connectivity.

A WWAN card provides cellular wide-area network connectivity (such as LTE or 5G) for a laptop, allowing it to access mobile data networks similar to a smartphone. To authenticate to a cellular carrier and identify the subscriber account, WWAN devices typically use a SIM (Subscriber Identity Module) or an embedded SIM. The SIM contains carrier subscription information and security credentials used during registration on the cellular network. Without a valid SIM or eSIM profile, the WWAN radio may be present, but it cannot complete carrier authentication and will not provide cellular data service.

The other options are different wireless technologies that are not the defining requirement for WWAN service. Wi-Fi is WLAN connectivity, usually provided by a separate Wi-Fi adapter. Bluetooth is a short-range personal area networking technology for peripherals and tethering. NFC is very short-range communication used mainly for tap-to-pair or payments. Therefore, the technology a built-in WWAN card supports in this context is SIM.

Comprehensive and Detailed Step-by-Step Explanation:

To determine the correct device, we need to understand how a DOCSIS (Data Over Cable Service Interface Specification) network functions in a Small Office/Home Office (SOHO) environment:

C. Cable Modem:

A cable modem is required to convert the signal provided by the ISP (Internet Service Provider) over a DOCSIS network into a format that is usable by the local area network (LAN).

DOCSIS is a standard for high-speed internet over cable television infrastructure, and the cable modem acts as the gateway between the ISP ' s coaxial network and the LAN.

Without the cable modem, devices in the LAN would not be able to access the internet.

Port 22 is used by SSH (Secure Shell), which is the standard protocol for secure remote administration of network devices such as switches, routers, firewalls, and Linux-based systems. CompTIA A+ Core 1 emphasizes knowing common ports and selecting secure management methods. SSH provides encrypted communication for both authentication and the session data, protecting usernames, passwords, and command output from being intercepted by packet sniffers. This makes it the preferred choice over older remote access methods.

In contrast, port 23 is Telnet, which is also used for remote terminal access but sends traffic in cleartext, making it insecure and generally discouraged in modern environments. Port 21 is FTP control traffic, used for file transfers and typically not secure unless paired with FTPS or replaced by SFTP (which actually runs over SSH on port 22). Port 25 is SMTP, used for sending email between mail servers and is unrelated to remote device management. Therefore, for secure remote access to a network device, SSH on port 22 is the correct answer.

Single-mode fiber (as well as multi-mode fiber) transmits data using beams of light, allowing for high-speed data transfer over flexible fiber-optic cables.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.1 – Networking media:

“Fiber optic cables transmit data using light. Single-mode fiber is used for long-distance, high-speed communication.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Networking Media

CompTIA Exam Objectives 220-1101, Domain 2.1

============

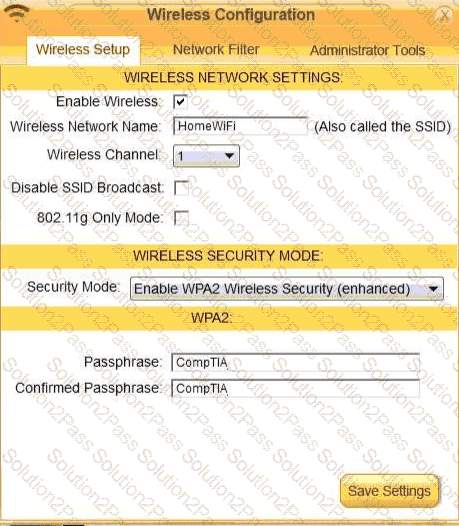

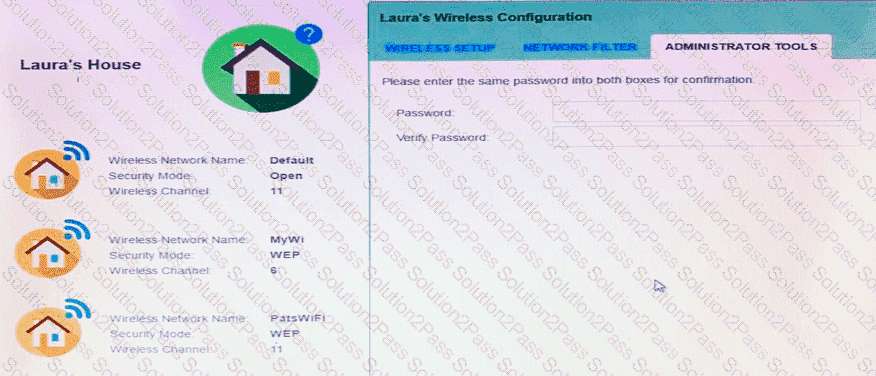

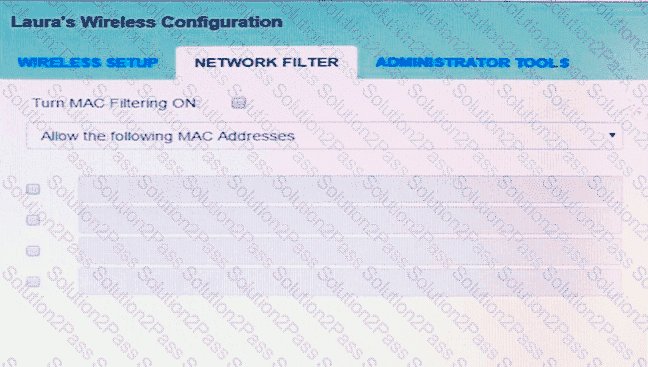

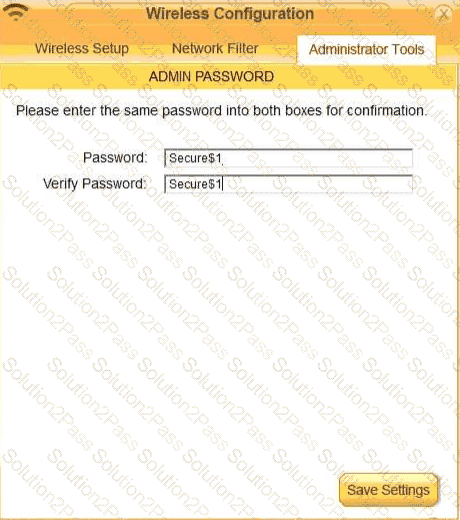

The first security step after deploying a new router is to change the default administrative password. Default credentials are well known and pose a security risk if left unchanged.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.3 – Secure a wireless network:

“Always change default administrative credentials before further configuration to prevent unauthorized access.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Wireless Security

CompTIA Exam Objectives 220-1101, Domain 2.3

============

Comprehensive and Detailed Step-by-Step Explanation:

S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology):

S.M.A.R.T. is a monitoring system integrated into modern HDDs and SSDs that detects and reports on various indicators of drive health and reliability.

A S.M.A.R.T. error indicates that the drive is showing signs of impending failure, even if the PC continues to boot and work normally for the time being.

Next Steps:

The appropriate action is to replace the hard drive (HDD) because a S.M.A.R.T. error is an early warning of possible hardware failure. Ignoring the warning could result in data loss if the drive fails completely.

The technician should also back up the user ' s data immediately to avoid losing critical information.

Incorrect Options:

B. Update the PC ' s BIOS: While keeping the BIOS updated is a good practice, it does not address the S.M.A.R.T. error, which is specific to the HDD.

C. Close the ticket: Closing the ticket without resolving the issue would be improper, as the S.M.A.R.T. error is a hardware problem that needs to be addressed to prevent future data loss or downtime.

D. Change the NIC: The NIC (Network Interface Card) is unrelated to the storage system and would not resolve a S.M.A.R.T. error.

Key Takeaway:

A S.M.A.R.T. error is a critical indicator of HDD health issues, and the drive should be replaced as soon as possible. Backing up data is also essential.

CompTIA A+ explains that radio frequency (RF) connections use electromagnetic waves instead of copper or optical cabling. Satellite uses RF signals transmitted to and from orbiting satellites, while cellular networks (3G/4G/5G) use RF communications via cell towers.

Cable uses coaxial wired infrastructure, DSL uses telephone lines, Ethernet is twisted-pair copper, and fiber uses light instead of RF.

Satellite and cellular are the only technologies in the list that rely on wireless radio frequency transmission as their medium. The A+ networking domain emphasizes understanding the physical media of WAN technologies and distinguishing wired vs. wireless connectivity, making B and D the correct answers.

Comprehensive and Detailed Step-by-Step Explanation:

To answer this question, we need to identify the port numbers associated with email protocols used in client-server communication.

Port 25 (SMTP - Simple Mail Transfer Protocol):

This port is primarily used for sending emails between mail servers and from mail clients to mail servers (sending outbound mail).

SMTP is an essential protocol for email traffic.
