N10-009 CompTIA Network+ Certification Exam Free Practice Exam Questions (2026 Updated)

The longest prefix match is a routing concept used to find the most specific route to a destination IP address. The routing table performs this calculation to determine the exit interface for a packet, ensuring the most accurate delivery. The document explains:

“Routers use the longest prefix match when searching the routing table to determine the best path for an IP packet. This ensures that the most specific (and thus optimal) route is chosen, based on the destination IP address.”

VLAN hopping occurs when an attacker tricks a switch into believing the host is another switch by generating tagged frames or exploiting trunk negotiation (DTP). This allows the attacker to access traffic from multiple VLANs, potentially stealing sensitive data.

B. Evil twin is a rogue wireless AP attack, unrelated to switch impersonation.

C. DNS poisoning corrupts name resolution, not VLAN access.

D. ARP spoofing is a Layer 2 on-path attack, not masquerading as a switch.

References (CompTIA Network+ N10-009):

Domain: Network Security — VLAN hopping attacks, switch spoofing techniques.

A /25 subnet mask means 25 bits are reserved for the network portion, leaving 7 bits for host addresses. In dotted decimal, that is:

11111111.11111111.11111111.10000000

Decimal equivalent: 255.255.255.128

A. 255.255.254.0 corresponds to /23.

B. 255.255.255.1 is invalid as a subnet mask.

D. 255.255.255.192 corresponds to /26.

Thus, the correct subnet mask for a /25 network is 255.255.255.128.

References (CompTIA Network+ N10-009):

Domain: Networking Concepts — Subnetting, CIDR notation, dotted decimal.

In a mesh topology, every node is directly connected to every other node. This provides high redundancy and reliability, as there are multiple paths for data to travel between nodes. This topology is often used in networks where high availability is crucial.References: CompTIA Network+ study materials.

To prioritize traffic and utilize a constrained link more effectively, the engineer should implement QoS (Quality of Service). QoS is a set of mechanisms that classifies and marks traffic (for example, voice, video, business-critical apps) and then applies queuing and scheduling behaviors to ensure important traffic receives preferential treatment during congestion. Network+ objectives commonly connect QoS to supporting real-time applications (VoIP/video) by reducing latency, jitter, and packet loss, while preventing less critical traffic (bulk transfers, updates) from consuming all available bandwidth. Techniques can include traffic classification, DSCP marking, priority queuing, and traffic shaping/policing.

A CDN improves content delivery by caching closer to users, but it doesn’t provide link-level prioritization for all traffic types. A VPN provides secure tunneling/encryption, not prioritization. TTL (Time To Live) is an IP header value used to prevent routing loops by limiting packet lifespan; it does not manage bandwidth or prioritize flows. QoS is the standard solution when the goal is to control how bandwidth is allocated under load and to ensure critical services remain performant.

===========

Definition of Fiber Connector Types:

LC (Lucent Connector): A small form-factor fiber optic connector with a push-pull latching mechanism, commonly used for high-density applications.

SC (Subscriber Connector or Standard Connector): A larger form-factor connector with a push-pull latching mechanism, often used in datacom and telecom applications.

ST (Straight Tip): A bayonet-style connector, typically used in multimode fiber optic networks.

MPO (Multi-fiber Push On): A connector designed to support multiple fibers (typically 12 or 24 fibers), used in high-density cabling environments.

Common Usage:

LC Connectors: Due to their small size, LC connectors are widely used in network interface cards (NICs) and high-density environments such as data centers. They allow for more connections in a smaller space compared to SC and ST connectors.

SC and ST Connectors: These are larger and more commonly used in patch panels and older fiber installations but are less suitable for high-density applications.

MPO Connectors: Primarily used for trunk cables in data centers and high-density applications but not typically on individual network interface cards.

Selection Criteria:

The small form-factor and high-density capabilities of LC connectors make them the preferred choice for network interface cards, where space and connection density are critical considerations.

Comprehensive and Detailed Explanation (paraphrased, aligned to N10-009):

A proxy server (specifically a caching HTTP/HTTPS proxy) stores frequently accessed web objects and serves them locally to clients, reducing external bandwidth consumption and improving response times.

B. Load balancer distributes traffic across servers but does not inherently cache internet content.

C. Open relay is a misconfigured mail server that permits unauthorized relaying—this is a security issue, not a caching solution.

D. Code repository (e.g., for source control) isn’t related to web content caching.

References (CompTIA Network+ N10-009):

Domain: Network Standards, Protocols, and Implementations — Application-layer services (HTTP/HTTPS), proxies and caching behavior, performance optimization.

===========

Border Gateway Protocol (BGP) is the primary protocol used to route traffic on the public internet. It allows ISPs and large networks to exchange routing information, making it an Exterior Gateway Protocol (EGP).

Breakdown of Options:

A. BGP – Correct answer. Used for internet routing and exchanges routing information between ISPs.

B. OSPF – An Interior Gateway Protocol (IGP) used for routing within an autonomous system (not the public internet).

C. EIGRP – Cisco’s proprietary IGP, used within private networks, not the public internet.

D. RIP – An older distance-vector protocol, not scalable for the internet.

Direct Connect refers to a dedicated network connection between an on-premises network and a cloud service provider (such as AWS Direct Connect). This link bypasses the public internet, providing a more reliable and higher-bandwidth connection. It may not inherently include encryption because it relies on the security measures of the dedicated physical connection itself. In contrast, other options like VPN typically involve encryption as they traverse the public internet.

When a network administrator installs a new Network Interface Card (NIC) and users are unable to reach the server, one of the common issues is the use of an incorrect cable type. Network cables must match the specifications required by the NIC and the network infrastructure (e.g., Cat5e, Cat6 for Ethernet).

NIC Compatibility: The new NIC might require a specific type of cable to function properly. Using a cable not rated for the NIC's required speeds or capabilities can result in connectivity issues.

Cable Standards: Different NICs and network devices might need different cabling standards (straight-through vs. crossover cables, or specific fiber optic types).

Connection Types: Ensuring that the cable connectors are appropriate for the NIC ports (e.g., RJ45 for Ethernet, LC connectors for fiber optics).

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses network cabling standards and NIC specifications.

Cisco Networking Academy: Provides insights into cabling and NIC configurations for optimal network performance.

Network+ Certification All-in-One Exam Guide: Offers comprehensive details on troubleshooting network connectivity issues, including cabling problems.

The errors described — dropped packets and CRC (Cyclic Redundancy Check) errors — often indicate electromagnetic interference (EMI) on unshielded twisted pair (UTP) cabling. The correct replacement is STP (Shielded Twisted Pair), which has shielding that protects signals from external interference, ensuring better reliability in noisy environments such as data centers or near heavy electrical equipment.

A. Coaxial is not used for modern Ethernet server-switch links.

B. Shorter UTP cable does not solve EMI issues.

C. Plenum cable refers to cable jacket type for fire safety, not electrical shielding.

STP cabling reduces interference and ensures reliable gigabit+ Ethernet connections between servers and switches.

References (CompTIA Network+ N10-009):

Domain: Network Troubleshooting — Cabling issues, UTP vs. STP, EMI.

The correct answer is 802.1X, which is an identity-based Network Access Control (NAC) framework emphasized in the CompTIA Network+ N10-009 objectives under network security and access control. 802.1X uses a policy-driven authentication process to determine whether a user or device is allowed network access based on verified credentials, such as usernames, passwords, or digital certificates.

802.1X operates using three main components: the supplicant (the client requesting access), the authenticator (the network device such as a switch or wireless access point), and the authentication server (typically a RADIUS server). Once the user’s identity is authenticated, predefined policies determine the level of access granted—full access, limited access, or denial. This makes 802.1X a cornerstone of zero trust and enterprise-grade NAC implementations.

A standard ACL controls traffic based on IP addresses and ports, not user identity. MAC filtering allows or denies access based on device MAC addresses, which can be easily spoofed and does not verify user identity. SSO (Single Sign-On) simplifies authentication across multiple systems but does not control network-layer access.

Network+ highlights 802.1X as a secure, scalable solution for enforcing identity-based network access policies in both wired and wireless environments.

A Content Delivery Network (CDN) caches website content across multiple geographically distributed servers to reduce latency and improve load times for users worldwide.

Breakdown of Options:

A. VPN – Encrypts network connections, does not distribute website content.

B. CDN – ✅ Correct answer. A network of caching servers that delivers web content faster.

C. SAN – Storage Area Network, not related to web content distribution.

D. SDN – Software-defined networking, which controls network flows but does not stage website content.

GDPR (General Data Protection Regulation)is alegal frameworkenforced by the European Union to protect personal data and privacy. Unlike internal organizational policies such as AUPs or codes of conduct, GDPR is alegislated regulation, and organizations must comply or face legal consequences.

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding)

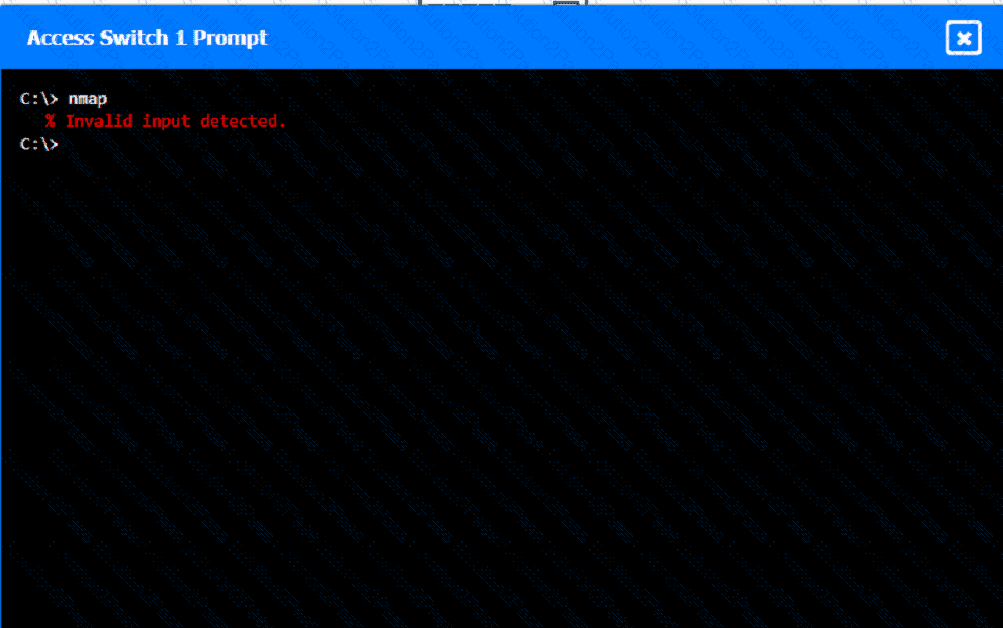

To perform a network discovery by entering commands into the terminal, you can use the following steps:

Click on each switch to open its terminal window.

Enter the command show ip interface brief to display the IP addresses and statuses of the switch interfaces.

Enter the command show vlan brief to display the VLAN configurations and assignments of the switch interfaces.

Enter the command show cdp neighbors to display the information about the neighboring devices that are connected to the switch.

Fill in the missing information in the diagram using the drop-down menus provided.

Here is an example of how to fill in the missing information for Core Switch 1:

The IP address of Core Switch 1 is 192.168.1.1.

The VLAN configuration of Core Switch 1 is VLAN 1: 192.168.1.0/24, VLAN 2: 192.168.2.0/24, VLAN 3: 192.168.3.0/24.

The neighboring devices of Core Switch 1 are Access Switch 1 and Access Switch 2.

The interfaces that connect Core Switch 1 to Access Switch 1 are GigabitEthernet0/1 and GigabitEthernet0/2.

The interfaces that connect Core Switch 1 to Access Switch 2 are GigabitEthernet0/3 and GigabitEthernet0/4.

You can use the same steps to fill in the missing information for Access Switch 1 and Access Switch 2.

A honeynet is a network of honeypots designed to attract and study attackers. Honeypots are decoy systems set up to lure cyber attackers and analyze their activities. A honeynet, being a collection of these systems, provides a broader view of attack methods and patterns, helping organizations improve their security measures. References: CompTIA Network+ Exam Objectives and official study guides.

HTTP is an application-layer protocol, so the OSI layer that manages the exchange of HTTP information is Layer 7 (Application). In the Network+ (N10-009) objectives, the OSI model is used to map common protocols to the layers where they operate. HTTP defines how web clients and servers format and exchange requests and responses (methods like GET/POST, headers, status codes, and message bodies). Those behaviors are part of the application services provided to end-user software such as web browsers, APIs, and web servers.

While HTTP relies on lower layers to function (for example, TCP at the Transport layer for reliable delivery and IP at the Network layer for addressing and routing), the protocol logic and meaning of the web transactions exist at the Application layer. The distractors do not fit: the Network layer handles IP routing, the Data Link layer handles frames and MAC addressing on local links, and the Session layer is associated with session establishment/management concepts but is not where HTTP is categorized for Network+ mapping. Therefore, Application is the correct answer.

===========

The correct answer is SNMP (Simple Network Management Protocol) because it is specifically designed to collect and transmit network management and status information between managed devices and management systems. According to CompTIA Network+ (N10-009) objectives, SNMP is used for monitoring and managing network devices such as routers, switches, servers, and printers.

SNMP operates using a manager-agent model. The SNMP manager (such as a network monitoring server) communicates with SNMP agents installed on network devices. Agents send traps and inform messages, which are unsolicited status alerts indicating events such as device failures, high CPU usage, or link outages. The manager can also poll agents to retrieve performance metrics and configuration details stored in the Management Information Base (MIB).

SSH (Option A) is used for secure remote administration. DHCP (Option B) dynamically assigns IP addresses. NTP (Option C) synchronizes time between devices. None of these protocols are designed for network status monitoring and alert messaging.

Therefore, SNMP is the correct protocol for sending networking status messages between devices and management systems.

Bottom of Form

UESTION NO: 21 [Network Infrastructure]

Which of the following physical installation factors is the most important when a network switch is installed in a sealed enclosure?

A. Fire suppression

B. Power budget

C. Temperature

D. Humidity

Answer: C

The correct answer is Temperature because a sealed enclosure restricts airflow, which can cause heat to accumulate rapidly. According to CompTIA Network+ (N10-009) objectives under physical installations and environmental factors, maintaining proper temperature control is critical for network equipment reliability and longevity.

Network switches generate heat during operation, particularly models with high port density or Power over Ethernet (PoE) capabilities. In a sealed enclosure without proper ventilation or cooling mechanisms, excessive heat buildup can lead to thermal throttling, unexpected shutdowns, hardware degradation, or permanent equipment failure. Manufacturers specify operating temperature ranges, and exceeding these limits significantly reduces device lifespan and performance.

While humidity (Option D) is important to prevent condensation and corrosion, temperature fluctuations pose a more immediate risk in a sealed environment. Power budget (Option B) is relevant when calculating PoE load capacity but does not directly address environmental installation conditions. Fire suppression (Option A) is important in data centers but is not the primary concern specific to a sealed enclosure scenario.

Therefore, ensuring proper temperature management is the most critical installation factor.
