This scenario requires unequal load distribution based on server capacity. The newer servers must receive more connections than the older ones, while still dynamically accounting for active connection counts.

According to BIG-IP Administration: Data Plane Configuration documentation:

Weighted Least Connections (member) combines:

Connection awareness (least connections)

Administrator-defined weights (ratios) to reflect server capacity

Pool members with higher weights receive proportionally more new connections than members with lower weights, even when using the same load balancing algorithm.

Why B is correct:

Allows assigning higher weights to newer servers and lower weights to older servers

Ensures smarter traffic distribution based on both capacity and real-time load

Why the other options are incorrect:

A. Global AvailabilityUsed for disaster recovery and site failover, not intra-pool load distribution.

C. Round RobinDistributes connections evenly without considering server capacity.

D. Least Connections (member)Balances only by current connection count and does not account for differences in server performance or capacity.

Correct Resolution:

Use Weighted Least Connections (member) and assign higher weights to newer servers so they receive more traffic while protecting older servers from overload.

In BIG-IP systems, iRules influence traffic only when they are attached to a Virtual Server. If application traffic is being sent to nodes or pool members that are not defined in the pool, this typically indicates that an iRule is overriding the default load-balancing behavior by explicitly selecting a pool or node.

According to BIG-IP Administration: Data Plane Configuration and official F5 guidance:

iRules are associated with Virtual Servers, not directly with pools or nodes.

To determine whether an iRule is actively affecting traffic, the administrator must inspect the Virtual Server configuration.

Explanation of the correct answers:

B. Via the GUI at the Resources tab for the virtual serverThe Resources tab in the Configuration Utility displays all traffic-handling objects applied to the Virtual Server, including assigned iRules. This is the primary GUI location to verify whether an iRule is influencing data plane traffic.

C. Via TMSH with the list /ltm virtual < virtual_server > commandThis TMSH command displays the full Virtual Server configuration, including any iRules listed under the rules section. It is the authoritative CLI method to confirm iRule usage.

Why the other options are incorrect:

A. Via TMSH with the list /ltm rule < irule > commandThis command only shows the contents of an iRule and does not indicate whether the iRule is attached to or used by any Virtual Server.

D. Via the GUI at the iRule tab for the virtual serverBIG-IP does not provide a dedicated “iRule” tab on Virtual Servers. iRules are viewed and managed under the Resources tab.

Correct Conclusion:

To verify whether an iRule is responsible for unexpected node selection, the BIG-IP Administrator must examine the Virtual Server configuration, either through the Resources tab in the GUI or by using TMSH to list the Virtual Server configuration.

The requirement states that load balancing decisions must be based on the number of active connections on each pool member. This directly maps to the Least Connections (member) load balancing method.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Least Connections (member) selects the pool member with the fewest active connections at the time of the request.

This method dynamically adapts to real-time traffic patterns and ensures that more heavily loaded pool members receive fewer new connections.

It is especially effective for web servers where connection duration may vary and equal distribution of active sessions is desired.

Why the other options are incorrect:

B. Round RobinDistributes connections sequentially without considering current load or active connections.

C. Ratio (member)Distributes traffic based on static ratios, not real-time connection counts.

D. Ratio (node)Uses predefined ratios at the node level and does not account for active connection counts.

Correct Resolution:

Using Least Connections (member) ensures that new connections are directed to the pool member currently handling the fewest active connections, meeting the stated requirement.

For HTTP-based applications, cookie persistence is the most appropriate and commonly recommended persistence method.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Cookie persistence inserts or uses an HTTP cookie to maintain session affinity.

It operates at Layer 7 (HTTP) and is application-aware.

It allows persistence to be maintained even when multiple clients are behind a NAT device.

Why the other options are incorrect:

A. Destination addressDestination address persistence is generally used for inbound traffic patterns such as firewall or proxy scenarios.

B. Hash persistenceHash persistence is less granular and not HTTP-specific.

C. SSL persistenceSSL persistence is typically used when SSL session IDs are reused and is less reliable than cookies for HTTP applications.

Correct Resolution:

Using cookie persistence ensures that HTTP web requests are consistently directed to the same pool member.

To solve this requirement, we must distinguish between the two " legs " of an SSL connection in a BIG-IP environment: Client-side and Server-side.

Current State (SSL Bridging): The administrator states the servers currently require encrypted traffic. This means the BIG-IP is likely performing " SSL Bridging. " In this setup, a Client SSL profile terminates encryption from the user, and a Server SSL profile re-encrypts the traffic before sending it to the back-end servers.

Target State (SSL Offloading): The requirement is to " offload SSL " to reduce web server load. This means the BIG-IP will continue to handle the encryption for the users (keeping the Client SSL profile) but will communicate with the back-end servers using unencrypted HTTP.

Why Option A is correct:

Remove the Server SSL profile: By removing this profile, the BIG-IP stops attempting to initiate an SSL/TLS handshake with the pool members.

Configure Pool Members to use HTTP: The service port for the pool members must be changed (typically from port 443 to port 80) so that the BIG-IP sends standard HTTP traffic to the servers.

Why other options are incorrect:

B & D: These suggest removing the Client SSL profile. If you remove this, the users can no longer connect via HTTPS, which violates the requirement for encrypted communication between the users and the BIG-IP.

C: Changing the Virtual Server to accept HTTP traffic would mean the user-to-BIG-IP connection is no longer encrypted, which is the opposite of SSL termination/offloading.

In BIG-IP configuration, health monitors can be applied at three distinct levels: the node, the pool, or the individual pool member. To ensure that a specific application service—in this case, a database service on port 1521—is functioning correctly for the entire pool, the administrator should apply the monitor at the pool level. Navigating to Local Traffic > Pools > DB.Pool > Properties allows the administrator to select one or more monitors from the " Available " list and move them to the " Active " list.

Applying a monitor at the pool property level ensures that the BIG-IP checks the health of every member assigned to that pool using the same logic. If a database-specific monitor (such as a TCP handshake or an Oracle/SQL check) fails for a specific member, the BIG-IP marks that member as " offline " for that specific pool, preventing new connections from being sent to it. While monitors can be applied to Pool Members (Option D) to give different members unique monitoring logic, it is more administratively efficient to apply it to the pool properties when all servers are expected to behave identically. Applying it to Nodes (Option C) would only verify that the IP address is up (typically via ICMP), which does not guarantee that the database service on port 1521 is actually responding. Finally, Profiles (Option A) are used to define how traffic is handled once it is accepted by a Virtual Server, not for the proactive health checking of backend resources. Therefore, the pool properties page is the standard location for configuring service-specific availability requirements.

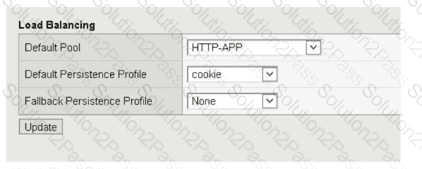

In a BIG-IP environment, a Fallback Persistence Profile is utilized as a secondary " stickiness " mechanism when the primary (Default) persistence method fails to provide a valid persistence record. For example, if a Virtual Server uses HTTP Cookie Persistence as its primary method, but a client’s browser has cookies disabled, the BIG-IP will be unable to find a persistence cookie in the request. Without a fallback method, the system would treat every request from that client as a new, independent connection, potentially breaking the application session.

Source Address Affinity (also known as Source Address Persistence) is the most common and standard choice for a fallback profile. It operates at the network layer (Layer 3) by tracking the client’s source IP address. Because every IP packet contains a source address, this method is virtually guaranteed to work even when application-layer data (like Cookies or SSL Session IDs) is missing or encrypted beyond the BIG-IP ' s visibility. While Universal (Option A) and Hash (Option D) profiles are highly flexible and can use iRules to persist on almost any data, they require specific configuration and logic that may not always be present or valid. SSL persistence (Option C) relies on the SSL Session ID, which frequently changes due to modern browser security practices (session renegotiation), making it less reliable than Source Address Affinity. By configuring Source Address Affinity as the fallback, the administrator ensures that the BIG-IP has a " safety net " to maintain session integrity based on the client ' s IP address when the more granular cookie-based persistence is unavailable.

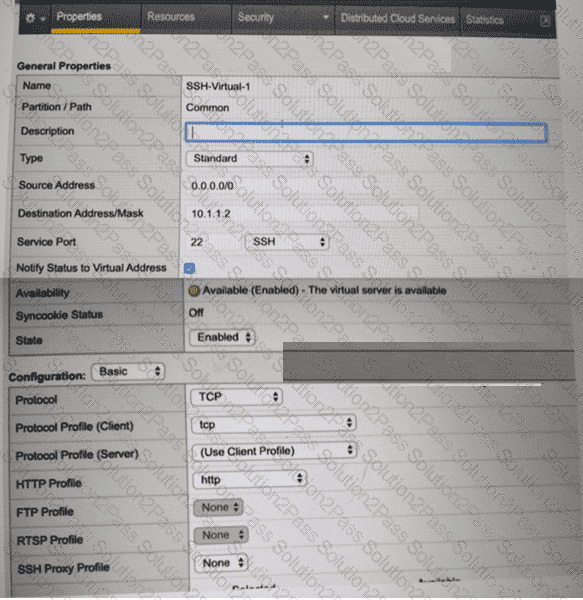

SSH is a TCP-based service. A TCP monitor validates service availability without requiring application-layer inspection.

The configuration provided utilizes Priority Group Activation in conjunction with the min_active_members setting. Priority groups allow an administrator to define primary servers and " backup " servers within the same pool. The BIG-IP prioritizes traffic based on the assigned priority number, with the highest number receiving traffic first.

In this specific configuration, the priority 3 group is the primary group. Therefore, connections are first distributed to all pool members with priority 3 as long as they are available. The system will continue to use only the priority 3 group unless the number of available members in that group falls below the min_active_members value, which is set to 2.

If the priority 3 group has fewer than two active members, the BIG-IP " activates " the next available priority group (priority 2) and distributes traffic among the remaining members of priority 3 and all members of priority 2. This cascading logic continues down the list. Consequently, if both the priority 3 group and the priority 2 group have fewer than two members available, traffic is directed to the priority 1 group. This ensures that even in a multi-server failure scenario, the system has a last-resort group of servers to handle the traffic.

Option D is incorrect because if only one member of priority 3 goes down, there are still two members active (10.12.10.8 and 10.12.10.9). Since 2 is not less than the min_active_members threshold of 2, the priority 2 group will not yet be activated. Option B is incorrect because traffic flows from high priority to low priority, not the other way around.

Slow Ramp Time prevents new pool members from receiving full traffic immediately, avoiding overload.

When a pool contains servers with heterogeneous hardware capabilities (differing CPU, RAM, or connection limits), a static load balancing method like Round Robin is ineffective because it distributes requests equally, regardless of the server ' s capacity. To optimize traffic distribution for newer, more powerful servers, a dynamic or weighted method is required.

Weighted Least Connections (member): This is the ideal method for this scenario. It combines two factors:

Least Connections: It first checks the current active connection count to ensure traffic goes to the least busy server.

Weight (Ratio): It allows the administrator to assign a " Ratio " value to each pool member. Newer servers can be assigned a higher ratio (e.g., 3) while older servers are assigned a lower ratio (e.g., 1). The BIG-IP system uses these weights to disproportionately favor the newer servers even when connection counts are similar.

Why other options are incorrect:

Global Availability: This is primarily a GSLB (Global Server Load Balancing) or specific LTM priority group concept where traffic is sent to the first available member in a list until it fails, then moves to the next. It does not load balance based on capacity.

Round Robin: This passes each new connection request to the next server in line, treating the old and new servers exactly the same.

Least Connections (member): While this sends traffic to the server with the fewest active connections, it assumes all servers are equal. If an old server and a new server both have 10 connections, they are treated as equally capable of taking the 11th, which is not true in this scenario.

By default, BIG-IP load balancing algorithms (such as Round Robin) distribute connections evenly across all available pool members. However, persistence profiles override normal load balancing decisions by forcing subsequent connections from a client to be sent to the same pool member.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Persistence creates a client-to-server mapping that is honored before load balancing algorithms are applied.

When persistence is enabled, BIG-IP may repeatedly select the same pool member even if others are available.

This directly alters load balancing behavior.

Why the other options are incorrect:

A. Adding a OneConnect profileOneConnect optimizes server-side TCP connections but does not change which pool member is selected.

B. Enabling SNAT automapSNAT affects source address translation, not pool member selection.

C. Enabling a fallback host in the HTTP profileA fallback host is only used when no pool members are available.

Correct Resolution:

Adding a persistence profile alters load balancing behavior by maintaining client affinity to a specific pool member.

A 400 Bad Request response from an HTTP/1.1 web server is a definitive indicator that the HTTP request sent by the health monitor is missing a required Host header . In HTTP/1.1, the Host header is mandatory per RFC 7230. Web servers — particularly those hosting named virtual hosts such as www.f5.com — will reject any HTTP/1.1 request that omits the Host header, returning a 400 error, which the BIG-IP monitor interprets as a failed health check, marking all members DOWN.

The correct Send string must include:

The GET request line with HTTP/1.1 protocol declaration

A \r\n (carriage return + line feed) after the request line

The Host: www.f5.com header to satisfy HTTP/1.1 requirements

A \r\n after the Host header

Connection: Close header to instruct the server to close the connection after responding

A final \r\n\r\n to properly terminate the HTTP request headers

Only option C satisfies all these requirements with the correct syntax and Host header inclusion.

Option D (the current configured string) omits the Host header entirely — the root cause of the 400 error. Options A and B are structurally incomplete or syntactically malformed.

When multiple hostnames resolve to the same IP address and encrypted communication is required, the BIG-IP must be able to present the correct SSL certificate based on the hostname requested by the client. This is accomplished using Server Name Indication (SNI).

According to BIG-IP Administration: Data Plane Configuration documentation:

SNI is a client-side TLS extension, where the client includes the requested hostname during the SSL handshake.

BIG-IP evaluates this hostname using the Client SSL profile, not the Server SSL profile.

The “Server Name” setting in the Client SSL profile enables BIG-IP to select the appropriate SSL certificate for the requested hostname.

Why option C is correct:

Client SSL profile handles inbound (client-side) encryption.

Server Name enables SNI-based certificate selection when multiple DNS names share the same virtual server IP.

Why the other options are incorrect:

A. Client SSL, Client NameThere is no Client SSL setting called Client Name for SNI certificate selection.

B. Server SSL, Server NameServer SSL is used for encryption between BIG-IP and backend servers, not for client-side hostname identification.

D. Server SSL, Client NameServer SSL does not process client-requested hostnames during TLS negotiation.

Correct Resolution:

Configure a Client SSL profile and enable the Server Name (SNI) setting to support multiple encrypted hostnames on the same virtual server IP.

Connection rate limits restrict how many new connections are accepted per second, protecting application resources.

When a single IP address (Virtual Server) must host multiple hostnames (e.g., site1.com, site2.com) over HTTPS, the BIG-IP must be able to present the correct SSL certificate for each site during the initial handshake. This requirement is handled by a technology called Server Name Indication (SNI).

To implement this on the BIG-IP, the administrator must use a Client SSL profile because the encryption is occurring between the user (Client) and the Virtual Server. Within the Client SSL profile settings, there is a field called Server Name. By creating multiple Client SSL profiles—each with a different " Server Name " (the hostname) and its corresponding certificate—and attaching them all to the same Virtual Server, the BIG-IP can inspect the SNI extension in the client ' s " Client Hello " packet. It then selects the specific profile that matches the requested hostname.

Option A is incorrect because " Client Name " is not the standard field name used for SNI hostname matching in the profile. Options B and C refer to Server SSL profiles, which manage the connection between the BIG-IP and the backend servers. While Server SSL profiles also have a " Server Name " field (used to send SNI to a backend server), the requirement here is to provide encrypted communication for " users " accessing the virtual server, which definitively requires a Client-side SSL configuration.

F5 provides several pre-configured (built-in) TCP profiles designed to optimize traffic for different network conditions. When an administrator is looking to improve general performance but does not have a specific, narrow use case (like strictly mobile or strictly long-haul WAN), the f5-tcp-progressive profile is the recommended starting point.

The f5-tcp-progressive profile is designed as a modern, high-performance replacement for the older default TCP settings. It incorporates several advanced congestion control algorithms and buffer management techniques that allow it to adapt dynamically to varying network latencies and packet loss scenarios. Unlike f5-tcp-legacy (Option A), which uses older, less efficient stacks, the progressive profile leverages modern TMM (Traffic Management Microkernel) optimizations.

While f5-tcp-mobile (Option B) is highly effective for high-loss cellular networks and f5-tcp-wan (Option D) is optimized for high-latency long-distance links, they can sometimes be too aggressive or poorly suited for standard campus or data center environments. The f5-tcp-progressive profile acts as a " best-of-all-worlds " template that typically provides an immediate performance boost for most web applications by improving window scaling and fast-retransmit behavior. Therefore, it is the procedural " first step " in TCP performance tuning before moving to more specialized, niche profiles.

X-Forwarded-For inserts the original client IP into HTTP headers, preserving client identity while SNAT is enabled.

A red diamond indicates that the Virtual Server is enabled but unavailable, typically due to all pool members being down.
