F5 F5CAB5 Practice Test Questions Answers

In the BIG-IP Configuration Utility, the status icon (shape and color) provides immediate feedback on why a virtual server is not working as expected81. A "Red Diamond" indicates that the object is "Offline" and unavailable to process traffic82. For a virtual server, this specific status typically means it has inherited an offline state from its mandatory backend resources8383. If all pool members associated with the virtual server have failed their health monitors, the virtual server will transition to a red diamond status because it has no healthy destination for incoming requests. This is distinct from a "Black Circle," which would indicate the virtual server has been manually "Disabled" by an administrator85858585. To troubleshoot a red diamond, the administrator must examine the associated pool and its members to determine why the health monitors are failing (e.g., server crashes, network path failures, or incorrect monitor strings). Resolving the health check failures on the pool members will return the virtual server to an "Available" (Green) status.

The failure to connect is caused by a restrictive Source Address filter configured on the Virtual Server.

Source Address Filtering: In the BIG-IP system, the Source Address field on a Virtual Server acts as an implicit Access Control List (ACL). Only traffic originating from a client IP address that matches the specified network range will be accepted and processed by the Virtual Server.

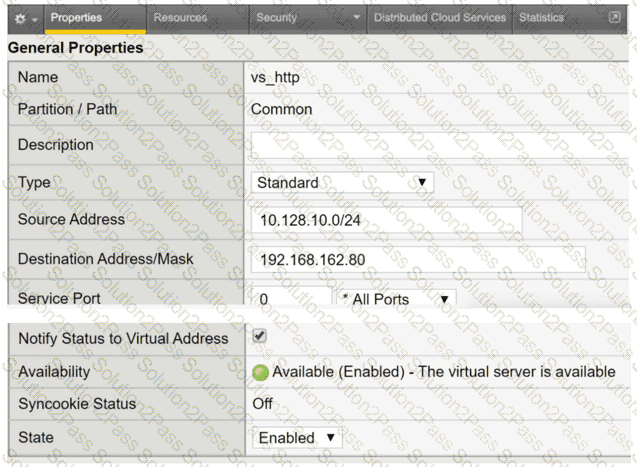

Analyzing the Exhibit: The provided configuration for vs_http shows the Source Address is set to 10.128.10.0/24. This means the Virtual Server will only accept connections from the subnet ranging from 10.128.10.1 to 10.128.10.254.

Identifying the Conflict: The user trying to connect has the IP address 192.168.162.70. Since 192.168.162.70 does not fall within the allowed 10.128.10.0/24 range, the BIG-IP system will not match this traffic to the Virtual Server, effectively blocking the connection attempt.

Evaluation of Other Options:

All Ports (Option A): Configuring a Virtual Server for "All Ports" (port 0) allows it to handle traffic for any destination port, which would not block a standard HTTP application.

Destination Address (Option B): The destination address 192.168.162.80 is the Virtual IP (VIP) users should be connecting to; this is a standard configuration and not the cause of the failure for a user reaching out to it.

Standard Type (Option C): A "Standard" Virtual Server is the most common type used for HTTP applications as it allows for Layer 7 profiles and full proxy capabilities.

The issue is caused by the Source Address restriction configured on the virtual server.

Source Filter: The configuration contains the line source 192.168.0.0/16. This acts as an implicit Access Control List (ACL). The virtual server will only accept and process TCP connections if the client's source IP address falls within the 192.168.x.x range.

Why Ping Works: ICMP (Ping) is handled by the Virtual Address object, not the Virtual Server object. Unless ICMP is specifically disabled on the Virtual Address, it will respond to pings from any subnet, even if the Virtual Server itself is restricted by a source filter or is even disabled.

Evaluation of Other Options:

Disabled (Option A): If the VS were disabled, the configuration would typically show disabled or state down, and the symptoms would be similar, but the source filter is a more specific "misconfiguration" in this context.

Port 80 (Option C): The configuration destination 10.99.20.50:http explicitly confirms it is listening on port 80.

Unallowed Subnet: If a client from a different network (e.g., 10.10.1.5) tries to connect, the BIG-IP will silently drop the connection or send a reset because it does not match the defined source criteria.

When a BIG-IP system experiences high overall CPU usage, troubleshooting requires identifying which specific application or service is the primary consumer of resources. While the system-wide performance graphs provide a global view, the granular data necessary to isolate a "top talker" is found in the "Local Traffic" statistics. Navigating to Statistics > Module Statistics > Local Traffic > Virtual Servers allows the administrator to see specific metrics for each configured virtual server, including the number of packets processed, current connections, and critical CPU cycles consumed. This is essential for troubleshooting performance issues where an inefficient iRule, high SSL handshake volume, or complex L7 profiles (like Compression or ASM) might be overtaxing the Traffic Management Microkernel (TMM) for one specific application. By reviewing these basic stats, an administrator can determine if a performance bottle-neck is a system-wide h1ardware issue or if it is isolated to a single virtual server, enabling targeted remediation such as optimizing iRule logic or moving the high-load virtual server to a dedicated device.

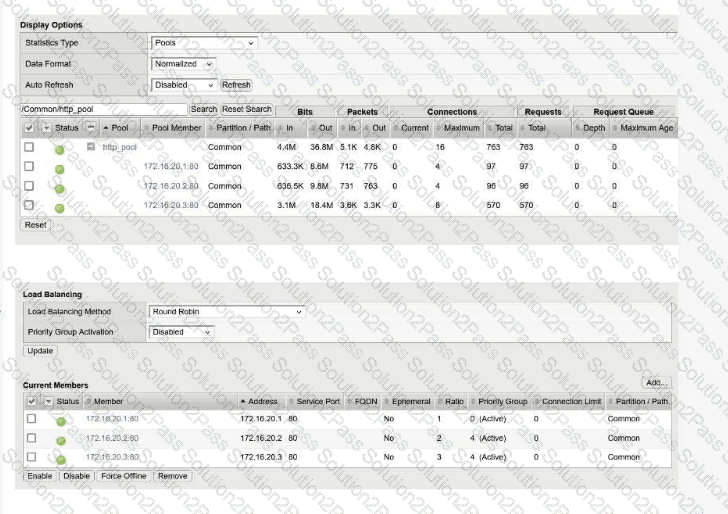

The primary reason for the uneven traffic distribution is the presence of a Persistence Profile in the virtual server configuration.

Load Balancing vs. Persistence: While the Round Robin method is designed to distribute new connections sequentially among pool members, Persistence overrides this logic for existing clients.

Source Address Persistence: The configuration shows source_addr persistence is enabled. This ensures that once a client (identified by their source IP) is mapped to a pool member, all subsequent connections from that same IP will be sent to the same member for the duration of the persistence record.

Uneven Distribution Logic: If one source IP address generates significantly more connections or longer-lived sessions than others—or if many clients appear behind a single NAT/Proxy IP—that specific pool member (in this case, 172.16.20.3) will receive a disproportionate amount of traffic compared to the others.

Evaluating Other Options:

Automap (Option A): SNAT Automap changes the source IP between the BIG-IP and the pool member. It does not impact the BIG-IP's ability to load balance incoming client requests.

Ratio Settings (Option B): In the provided exhibit, the pool members have a Ratio of 1, 2, and 3 respectively. While a higher ratio does direct more traffic to a member, the question asks for the "most likely cause" in the context of the provided ltm virtual configuration, which explicitly highlights the persistence override.

HTTP Profile (Option C): Round Robin is a Layer 4 load balancing algorithm and does not require a Layer 7 HTTP profile to function.
