When an SD-WAN member is deleted, FortiGate can also remove static routes that were tied to that interface. If those routes are needed for destinations not covered by SD-WAN rules, traffic to those networks becomes unreachable. This explains why flows not matching SD-WAN rules are interrupted after the member was removed.

The described design is a multi-region SD-WAN architecture, where:

Each region has its own dual-hub ADVPN domain

Most traffic is intra-region

Inter-region traffic is limited and controlled

Spokes can be single-hub or dual-hub, depending on size and redundancy requirements

According to Fortinet’s SD-WAN Architecture for Enterprise guidance, when deploying multiple ADVPN regions, eBGP is the recommended routing protocol between regions. Each region operates as an independent routing domain (typically iBGP within the region), while eBGP is used to exchange routes between regional hubs. This approach:

Prevents excessive route reflection and scaling issues

Provides clear administrative boundaries between regions

Improves stability and scalability in large global deployments

Matches the exact traffic pattern described (high intra-region, low inter-region traffic)

This is explicitly documented in Fortinet guidance for “Using eBGP between regions with intra-region ADVPN”, which confirms that the architecture described in the question is valid and recommended when eBGP is used between regions.

Why the other options are incorrect:

Option B is incorrect because FortiOS does not impose a hard “four-hub” architectural limit in the described regional model. Each region has its own hubs, not a single flat multihub domain.

Option C is incomplete. While FortiManager Overlay Orchestrator can help operationally, it is not the key architectural requirement that makes this design valid. The question asks what makes the plan correct from a design standpoint, not a tooling standpoint.

Option D is incorrect because FortiOS fully supports mixed spoke connectivity within the same region (some spokes single-hub, others dual-hub), which is a common enterprise SD-WAN design.

Therefore, the correct and documented conclusion is that the plan is possible and eBGP should be used as the routing protocol between regions, which corresponds to Answer A.

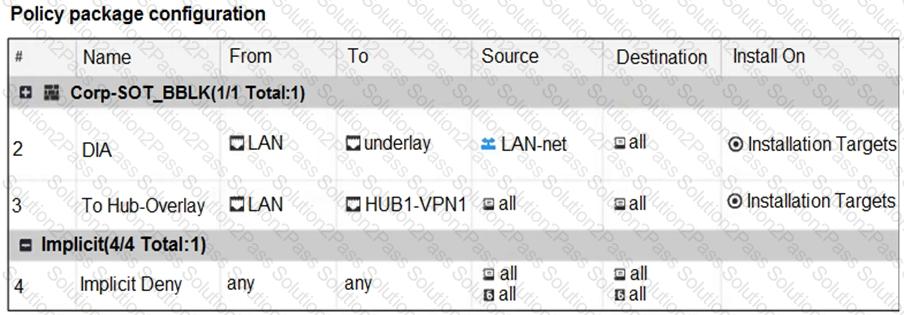

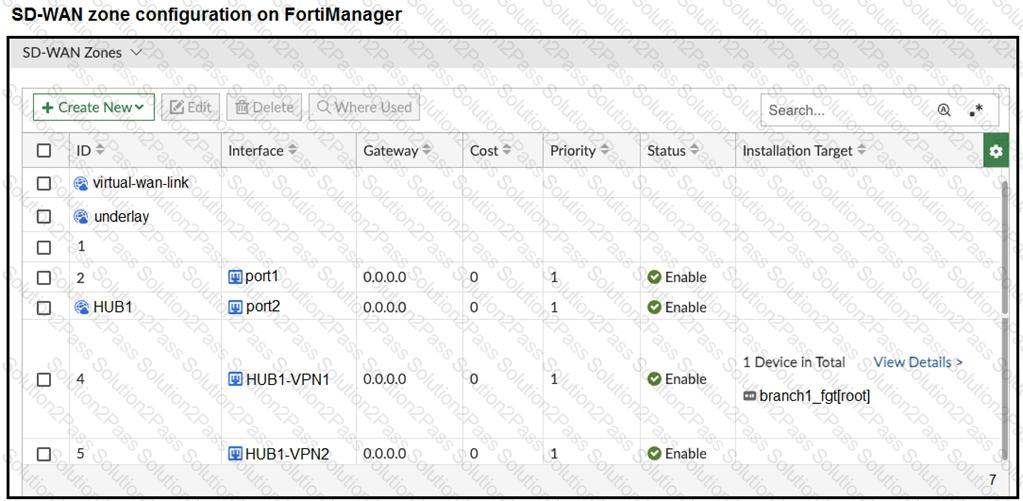

Policy 3 points traffic To = HUB1-VPN1, which is an SD-WAN member interface. In SD-WAN you must reference the SD-WAN zone (the logical interface) in policies, not its member tunnels. Change the policy’s To interface to the zone HUB1, and the install will succeed.

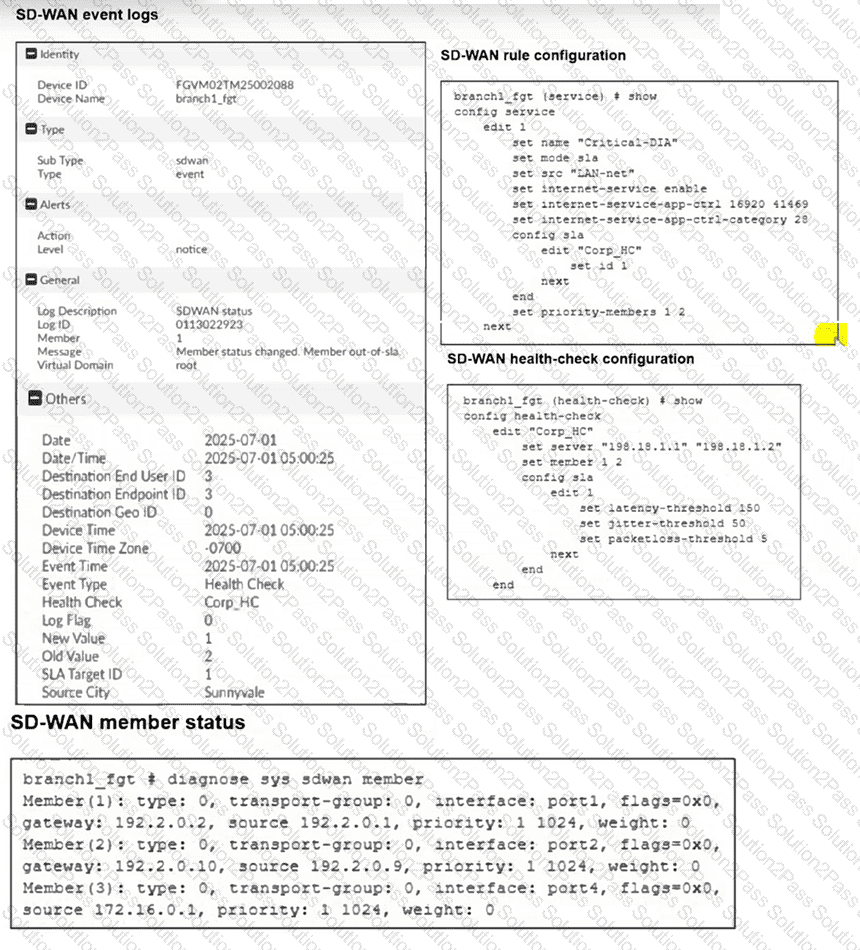

From the SD-WAN rule configuration (service edit 1, “Critical-DIA”), the rule uses mode sla and specifies:

set priority-members 1 2

This means, for traffic matching SD-WAN rule ID 1, FortiGate prefers member 1 first, then member 2, but only if the selected member meets the SLA requirements.

From the SD-WAN event log, the message explicitly states:

Member status changed. Member out-of-sla.

The log includes Member: 1

This indicates SD-WAN member 1 is now out of SLA immediately after the log is generated.

From the SD-WAN member status output:

Member(1) corresponds to interface port1

Member(2) corresponds to interface port2

Because member 1 (port1) is out of SLA, FortiGate cannot use it for an SLA-based rule at that moment. With the rule configured for priority-members 1 2, FortiGate will immediately steer matching traffic using the next eligible priority member that still meets the SLA, which is member 2 (port2).

Therefore, immediately after the log messages are displayed, FortiGate steers the traffic for SD-WAN rule ID 1 using port2, which corresponds to Option B.
