NSE5_SSE_AD-7.6 Fortinet NSE 5 - FortiSASE and SD-WAN 7.6 Core Administrator Free Practice Exam Questions (2026 Updated)

According to the FortiSASE 7.6 Administration Guide and Digital Experience Monitoring (DEM) documentation, the feature specifically designed to monitor SaaS application performance and connectivity to PoPs is Digital Experience Monitoring (DEM).

SaaS and Path Visibility: DEM assists administrators in troubleshooting remote user connectivity issues by providing enhanced health check visibility for SaaS applications, endpoint devices, and the network path. It provides real-time insights into application performance and latency issues.

PoP Connectivity: It monitors the digital journey from the end-user device through the Security Points of Presence (POPs) to the final application, identifying hops where degraded service (packet loss, delay, or jitter) is detected.

Proactive Management: By establishing thresholds and simulating user activities through Synthetic Transaction Monitoring (STM), DEM allows IT teams to identify performance problems before they impact the business.

Why other options are incorrect:

Option A: Operations widgets provide general status overviews but do not offer the granular per-hop path analysis or specific SaaS transaction monitoring found in DEM.

Option B: FortiView dashboards provide traffic visibility and session data but are not dedicated performance monitoring tools for end-to-end digital experience.

Option C: Event logs record system occurrences and security events but do not provide real-time performance metrics or health check probes for SaaS applications.

According to the FortiSASE 7.6 Architecture Guide and FCP - FortiSASE 24/25 Administrator materials, the solution is built around three primary use cases that support a hybrid workforce:

Secure Internet Access (SIA): This enables secure web browsing by applying security profiles such as Web Filter, Anti-Malware, and SSL Inspection in the SASE cloud. It protects remote users from internet-based threats regardless of their location.

Secure Private Access (SPA): This provides granular, explicit access to private applications hosted in data centers or the cloud. It is achieved through ZTNA (Zero Trust Network Access) for session-based security or through SD-WAN integration where FortiSASE acts as a spoke to an existing corporate SD-WAN hub.

SaaS Security: FortiSASE utilizes Inline-CASB and Shadow IT visibility to monitor and control the use of cloud applications. Data Loss Prevention (DLP) is integrated into these workflows to prevent sensitive corporate data from being uploaded to unauthorized SaaS platforms.

Why other options are incorrect:

Option A: While it mentions SD-WAN and Shadow IT, it misses the core definition of SIA (secure web browsing) which is the primary driver for SASE deployments.

Option B: Remote Browser Isolation (RBI) is typically applied to risky or uncategorized websites, not " all websites, " due to the high performance and resource overhead.

Option D: FortiSASE is designed to protect data in motion (via security profiles) as well as data stored in sanctioned cloud apps, not " at rest only " .

According to the FortiSASE 7.6 Administration Guide and the FCP - FortiSASE 24/25 Administrator training materials, the security dashboard is a centralized hub for monitoring and remediating security risks across the entire fleet of managed endpoints.

Vulnerability Summary: The dashboard includes a dedicated Vulnerability summary widget that categorizes risks by severity (Critical, High, Medium, Low) and by application type (OS, Web Client, etc.).

Identifying Affected Endpoints: The dashboard is fully interactive; an administrator can drill down into specific vulnerability categories to view a detailed list of CVE data and, most importantly, identify the specific affected endpoints that require attention.

Automatic Patching: FortiSASE supports automatic patching for eligible vulnerabilities (such as common third-party applications and supported OS updates). This feature is configured within the Endpoint Profile, allowing the FortiClient agent to remediate risks without requiring the user to manually run updates.

Why other options are incorrect:

Option A: While it supports automatic patching, it does not do so for all vulnerabilities (only eligible/supported ones), and it specifically does categorize them by severity.

Option B: The dashboard shows vulnerabilities for the Operating System as well as applications, and it allows the administrator to identify affected endpoints rather than requiring the end-user to check.

Option C: The dashboard displays all levels of severity (not just critical) and explicitly allows the viewing of affected endpoints.

According to the FortiSASE 7.6 Architecture Guide and Administration Guide, the Site-based remote user internet access use case is the only deployment model that completely eliminates the need for individual endpoint configuration.

Centralized Enforcement: In a site-based deployment, a " thin edge " device (such as a FortiExtender or a FortiGate in LAN extension mode) is installed at the remote site. This device establishes a secure tunnel to the FortiSASE Point of Presence (PoP).

Zero Endpoint Configuration: Because the traffic redirection happens at the network gateway level, individual devices (laptops, IoT devices, mobile phones) behind the site-based device do not require any specialized software or settings. They simply connect to the local network as they would normally, and their traffic is automatically secured by the SASE cloud.

Comparison with Other Modes:

Agent-based (Option B): Requires the installation and maintenance of FortiClient software on every device, often managed via MDM tools.

Agentless (Option A): While it doesn ' t need an agent, it typically requires the configuration of Explicit Web Proxy settings or the distribution of a PAC (Proxy Auto-Configuration) file via GPO or SCCM to each device ' s browser.

ZTNA (Option D): Generally requires an endpoint agent (FortiClient) to perform posture checks and identity verification, involving significant endpoint-level configuration.

Why other options are incorrect:

Option A: Agentless mode is often confused with being " configuration-free, " but it still requires endpoints to be pointed toward the FortiSASE proxy.

Option B: This is the most configuration-intensive mode, requiring full software lifecycles for every endpoint.

Option D: ZTNA is an access methodology that adds configuration complexity (tags, certificates, posture checks) rather than minimizing it.

The FortiSASE 7.6 Administration Guide outlines the standard onboarding procedures for deploying the FortiClient agent to remote endpoints. There are two primary user-facing delivery methods:

Download from the FortiSASE portal (Option B): Administrators can provide users with access to the FortiSASE portal where they can directly download a pre-configured installer. This installer is uniquely tied to the organization’s SASE instance, ensuring the client automatically registers to the correct cloud EMS upon installation.

Invitation Email (Option C): This is the most common administrative method. The FortiSASE portal (via its integrated EMS) allows administrators to send an invitation email to specific users or groups. This email contains direct download links for various operating systems (Windows, macOS, Linux) and the necessary invitation code for zero-touch registration.

Why other options are incorrect:

Option A: While third-party stores (like the App Store or Google Play) are used for mobile devices, " zero-touch installation through a third-party store " is not the standard curriculum-defined method for laptops (Windows/macOS) in a SASE environment.

Option D: FortiSASE does not use a direct " API to the user ' s laptop " for automatic installation. While MDM/GPO (centralized deployment) is supported, it is not described as an API-based auto-installation in the core curriculum.

Questions no: 9 Verified Answer: B

Comprehensive and Detailed Explanation with all FortiSASE and SD-WAN 7.6 Core Administrator curriculum documents: According to the SD-WAN 7.6 Core Administrator study guide and FortiOS 7.6 Administration Guide, the behavior for deleting an SD-WAN member from the GUI when it is the only member in its zone is governed by the following operational logic:

Reference Checks: Before allowing the deletion of any SD-WAN member, FortiOS performs a " check for dependencies. " If an interface is being used in an active Performance SLA or an SD-WAN Rule, the GUI will typically prevent the deletion or gray out the option until those references are removed. However, the question specifies that this member is no longer used in health-checks or rules.

Zone Integrity: Unlike some other network objects, an SD-WAN zone is permitted to exist without any members. When you delete the final member of a user-defined zone through the GUI, the zone itself remains in the configuration as an empty container.

Route Management: When an SD-WAN member is deleted, any static routes that were specifically tied to that interface ' s membership in the SD-WAN bundle are automatically updated or removed by the FortiGate to prevent routing loops or " black-holing " traffic. This is part of the automated cleanup process handled by the FortiOS management plane.

GUI vs. CLI: In the GUI, the process is streamlined to allow the removal of the member interface. Once the member is deleted, the interface returns to being a " regular " system interface and can be used for standard firewall policies or other functions.

Why other options are incorrect:

Option A: There is no requirement that a zone must contain at least one member; " empty " zones are valid configuration objects in FortiOS 7.6.

Option C: While the deletion is accepted, it is not with " no further action " —the system must still reconcile the routing table and interface status.

Option D: FortiGate does not automatically move deleted members into the default zone (virtual-wan-link). Once deleted, the interface is simply no longer an SD-WAN member.

According to the SD-WAN 7.6 Core Administrator study guide and FortiOS 7.6 Administration Guide, the " implicit rule " is the default rule at the bottom of the SD-WAN rule list (ID 0). It is only evaluated if traffic does not match any manually configured SD-WAN rules.

Policy Route Table Context (Option B): SD-WAN rules are technically a specialized form of policy-based routing. For a packet to match the implicit rule, it must first pass through the routing hierarchy. If traffic matches the implicit rule, it indicates that it did not match any higher-priority user-defined SD-WAN rules or any specific entries in the manual policy route table that would have intercepted the traffic earlier.

Session Information (Option E): When you use the CLI to inspect an active session (e.g., diagnose sys session list), the output contains a field for the SD-WAN Service ID. If traffic is steered by a user-defined rule, it displays the ID of that rule (e.g., service_id=1). However, when traffic falls through to the implicit rule, the session information displays no SD-WAN service ID (it often shows as 0 or is omitted), because the implicit rule does not function as a " service " in the same way user-defined rules do.

Routing Behavior: The implicit rule follows the standard routing table (RIB/FIB) logic. It uses the priority and distance of the static routes to determine the path. If multiple paths have the same distance and priority, it uses the algorithm set by v4-ecmp-mode, but this is a function of the routing engine, not the SD-WAN engine itself.

Why other options are incorrect:

Option A: While v4-ecmp-mode (e.g., source-ip-based) is used for ECMP routing, this is part of the general FortiOS routing behavior for equal-cost paths in the FIB, whereas the implicit rule simply " hands over " the decision to that routing table.

Option C: When traffic matches the implicit rule, the session is actually flagged with vwl_id=0 and potentially dirty if a route change occurs, but vwl_default is not the standard flag name used in this specific context in the curriculum.

Option D: This is incorrect because the implicit rule does respect weight, distance, and priority as defined in the static routes within the routing table; it does not distribute traffic " regardless " of these values.

According to the FortiSASE 7.6 Administration Guide and the FCP - FortiSASE 24/25 Administrator curriculum, the Agentless deployment mode—commonly referred to as Secure Web Gateway (SWG) mode—is a vital component of the Secure Internet Access (SIA) framework.

Deployment Mechanism: In an agentless deployment, FortiSASE functions as an explicit web proxy. This is achieved by distributing a PAC (Proxy Auto-Configuration) file to the user ' s browser, which instructs the device to send its web traffic to the nearest FortiSASE Point of Presence (PoP).

Target Use Case: This mode is specifically designed for unmanaged endpoints, such as those used by contractors, partners, or temporary workers, where the organization does not have the authority or capability to install the FortiClient agent.

Security Capabilities: Even without an agent, FortiSASE applies a full security stack to the redirected traffic. This includes Web Filtering, Anti-Malware, SSL Inspection, and Inline-CASB to secure HTTP and HTTPS sessions.

Protocol Limitations: Because it relies on proxy settings, this mode is limited to web protocols (HTTP/HTTPS) and does not inherently secure non-web traffic like ICMP, DNS, or custom TCP/UDP applications unless they are specifically proxied.

Why other options are incorrect:

Option A: While it provides secure browsing, session isolation (RBI) is a specific feature that can be used in either mode; the defining characteristic of the agentless use case is the proxy-based redirection for unmanaged devices.

Option C: A PAC file can only secure web traffic (protocols that support proxying), not non-web traffic protocols.

Option D: Agentless mode is the opposite of requiring FortiClient; ZTNA tags generally require the FortiClient agent to provide the necessary telemetry for tag evaluation.

The correct answer is B. SSO. The FortiSASE Administrator Study Guide explicitly states that enabling SSO authentication overrides any other previously created authentication methods, including the local user database, LDAP, and RADIUS.

FortiSASE implements SSO for endpoint users through SAML. In this design, FortiSASE functions as the service provider (SP), while authentication is performed by an external identity provider (IdP), such as Okta, FortiAuthenticator, or another supported IdP. The user database therefore does not need to be hosted directly on FortiSASE. Instead, FortiSASE redirects the user to the IdP and uses the resulting SAML assertion to establish the authenticated SSO session. The study guide confirms that SSO can be configured for both VPN users and Secure Web Gateway (SWG) users.

A. Local and C. RADIUS are authentication sources that SSO supersedes when SSO is enabled. D. MFA is an additional authentication-strength mechanism rather than the FortiSASE authentication mode described as overriding previously configured methods.

Study Guide Reference: User Onboarding and Additional Features > Configuring SSO > VPN User SSO / SWG User SSO, FortiSASE Administrator Study Guide, page 56.

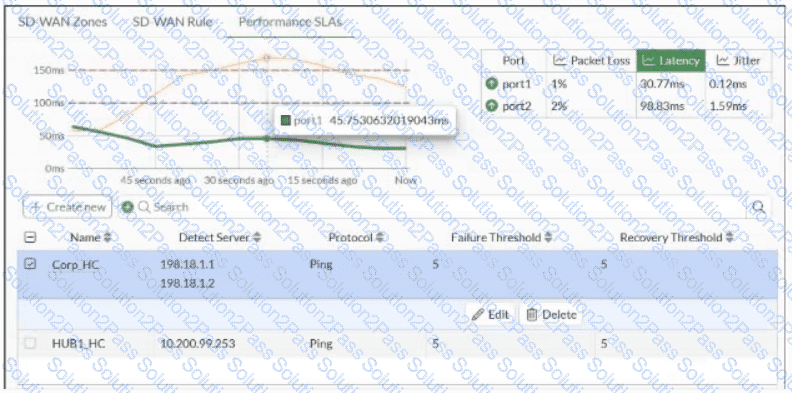

The selected performance SLA in the exhibit is Corp_HC , and the Latency view shows two configured latency criteria as horizontal threshold lines. Throughout the displayed 60-second interval, the green port1 latency remains below both thresholds, so port1 remains healthy against both Corp_HC latency criteria. Fortinet explains that the FortiGate GUI displays measured member performance and highlights when a member fails a configured SLA target; configured latency values can therefore be compared directly with measured latency. SD-WAN_7.6_Enterprise_Administr… Option A incorrectly associates the graph with HUB1_HC when Corp_HC is selected. Option B cannot be inferred merely because packet loss, latency, and jitter metrics are displayed; those metrics can be measured without all three being configured as SLA targets. Option D confuses the displayed failure/recovery threshold values of 5 with a 5% packet-loss SLA threshold .

================

According to the SD-WAN 7.6 Core Administrator study guide and the Fortinet Document Library, FortiOS maintains strict referential integrity for SD-WAN objects. An SD-WAN member interface cannot be deleted or removed from the configuration if it is still being " used " or referenced by other features.

Reference Locking: In the FortiOS GUI, the " Delete " button for an SD-WAN member is typically grayed out or an error message appears if the interface is part of an active service or monitoring tool.

Performance SLA Dependency: Performance SLAs (health checks) monitor specific member interfaces. If an interface is a participant in an SLA, it is considered " active " by the system. Therefore, a critical first step in the decommissioning process is to remove the member from all Performance SLA definitions. Once the health check is no longer polling that interface, one major reference lock is released.

Other Dependencies: While firewall policies and SD-WAN rules (service rules) also create references, the question specifies the member is " no longer used to steer traffic, " implying it may have already been removed from steering rules. However, Performance SLAs often remain active in the background, making their removal the essential next step to permit the deletion of the member itself.

Why other options are incorrect:

Option A: Moving a member between zones doesn ' t help you delete it; it just changes its logical grouping. It still remains an active SD-WAN member.

Option B: Disabling the physical interface does not remove the configuration references within the SD-WAN engine. The FortiGate will simply report the member as " Down, " but it will still exist in the configuration as a member.

Option D: In modern SD-WAN deployments, static routes usually point to the SD-WAN Zone (like virtual-wan-link) rather than individual physical interfaces. Therefore, you don ' t typically need to delete the static route to remove a single member from the zone.

According to the SD-WAN 7.6 Core Administrator curriculum, to implement an SD-WAN solution that ensures high network availability for business-critical applications while managing costs, the administrator must configure at least two WAN links.

SD-WAN Fundamentals: SD-WAN operates by creating a virtual overlay across multiple physical or logical transport links (e.g., broadband, LTE, MPLS). Without at least two links, the SD-WAN engine has no alternative path to steer traffic toward if the primary link fails or degrades.

Cost Management: By using multiple links, administrators can implement the Lowest Cost (SLA) or Maximize Bandwidth strategies. This allows the site to use a low-cost broadband connection for primary traffic and only failover to a " pay-per-use " backup (like LTE) when the primary link ' s quality falls below the defined SLA target.

High Availability (Link Level): While a " High Availability (HA) cluster " (Option C) provides device redundancy (protecting against a hardware failure of the FortiGate itself), it does not address link redundancy or steering, which are the core functions of SD-WAN for application uptime.

Why other options are incorrect:

Option A: Using a mid-range device refers to hardware capacity but does not solve the requirement for link-level redundancy and cost-steering logic.

Option B: Dynamic routing (like BGP or OSPF) is often used with SD-WAN in large topologies, but for a small site, the primary mechanism for meeting availability and cost goals is the configuration of the SD-WAN member links and rules themselves.

Option C: HA clusters protect against hardware failure, but the question specifically asks about ensuring availability for applications while limiting backup link costs, which is a traffic-steering (SD-WAN) requirement rather than a hardware-redundancy requirement.

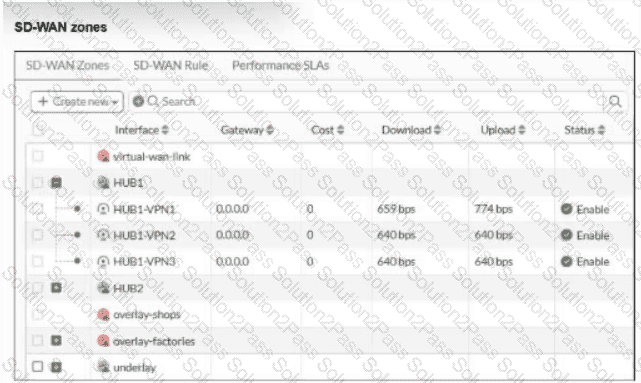

The exhibit indicates that the overlay-factories zone currently contains no SD-WAN member. In the GUI, zones containing members can be expanded to display their member interfaces; for example, HUB1 is expanded and shows HUB1-VPN1, HUB1-VPN2, and HUB1-VPN3. The overlay-factories entry does not display any member beneath it. The SD-WAN study material explains that an SD-WAN zone uses one or more interface members and that a zone used for traffic steering must contain at least one member. SD-WAN_7.6_Enterprise_Administr… The exhibit alone does not establish that overlay-factories can safely be deleted because other configuration references can prevent deletion. Likewise, virtual-wan-link is the default SD-WAN zone and cannot simply be treated as a removable user-created zone. Therefore, the directly supported conclusion is that overlay-factories has no member .

================

According to the SD-WAN 7.6 Core Administrator study guide and the FortiOS 7.6 Administration Guide, configuring load balancing within SD-WAN rules requires an understanding of how the engine selects and distributes sessions across multiple links.

SLA Target Logic (Option A): In FortiOS 7.6, the Lowest Cost (SLA) strategy has been enhanced. When the load-balance option is enabled for this strategy, the FortiGate does not just pick a single " best " link; it identifies all member interfaces that currently meet the configured SLA target (e.g., latency < 100ms). It then load balances the traffic across all those healthy links to maximize resource utilization.

Hash Modes (Option D): When an SD-WAN rule is configured for load balancing (valid for Manual and Lowest Cost (SLA) strategies in 7.6), the administrator must define a hash mode to determine how sessions are distributed. While " outsessions " in the question is a common exam-variant typo for outbandwidth (or sessions-based hashing), the core principle remains: you can select the specific load-balancing algorithm (e.g., source-ip, round-robin, or bandwidth-based) for all strategies where load-balancing is enabled.

Why other options are incorrect:

Option B and C: These options are too restrictive. In FortiOS 7.6, load balancing is not limited to only " manual and best quality " or " manual and lowest cost " in a singular way. The documentation highlights that Manual and Lowest Cost (SLA) are the primary strategies that support the explicit load-balance toggle to steer traffic through multiple healthy members simultaneously.
