According to theSD-WAN 7.6 Core Administratorstudy guide and theFortiOS 7.6 Administration Guide, configuring load balancing within SD-WAN rules requires an understanding of how the engine selects and distributes sessions across multiple links.

SLA Target Logic (Option A): In FortiOS 7.6, theLowest Cost (SLA)strategy has been enhanced. When the load-balance option is enabled for this strategy, the FortiGate does not just pick a single "best" link; it identifiesall member interfaces that currently meet the configured SLA target(e.g., latency < 100ms). It then load balances the traffic across all those healthy links to maximize resource utilization.

Hash Modes (Option D): When an SD-WAN rule is configured for load balancing (valid forManualandLowest Cost (SLA)strategies in 7.6), the administrator must define ahash modeto determine how sessions are distributed. While "outsessions" in the question is a common exam-variant typo foroutbandwidth(or sessions-based hashing), the core principle remains: you can select the specific load-balancing algorithm (e.g., source-ip, round-robin, or bandwidth-based) forall strategieswhere load-balancing is enabled.

Why other options are incorrect:

Option B and C: These options are too restrictive. InFortiOS 7.6, load balancing is not limited to only "manual and best quality" or "manual and lowest cost" in a singular way. The documentation highlights thatManualandLowest Cost (SLA)are the primary strategies that support the explicit load-balance toggle to steer traffic through multiple healthy members simultaneously.

According to theSD-WAN 7.6 Core Administratorstudy guide and theFortiOS 7.6 Administration Guide, the selection process for theBest Quality (priority)strategy depends on two primary factors: the measured link quality metric and the configured member priority order.

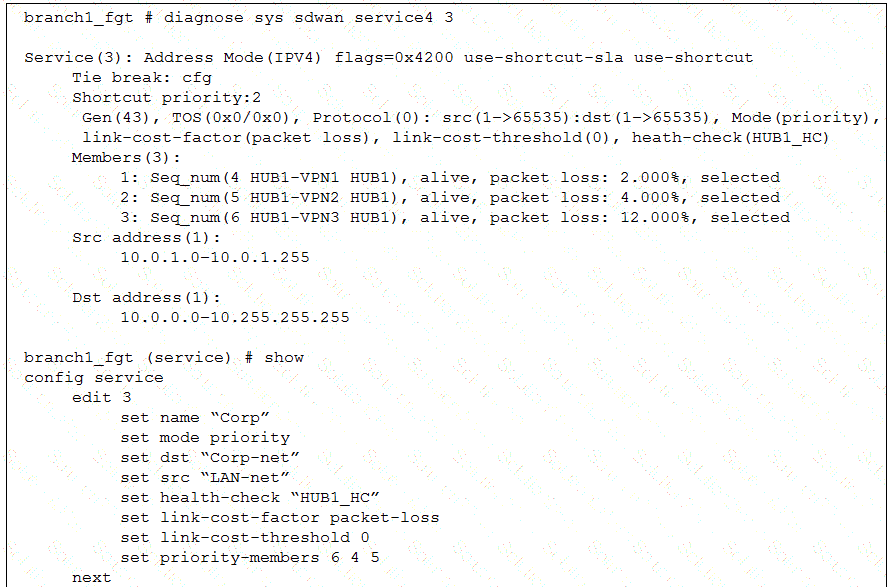

Based on the provided exhibit (image_b40dfc.png), we can determine the following:

Strategy and Metric: The rule is in Mode(priority) (Best Quality) using link-cost-factor(packet loss).

Strict Comparison: The link-cost-threshold is set to0. This means there is no "advantage" given to the current preferred link; the FortiGate performs a strict comparison where the link with the objectively best metric is chosen.

Tie-Breaker Logic: When multiple links have thesamepacket loss, the FortiGate uses theMember Priority Orderdefined in the rule (set priority-members 6 4 5) as the tie-breaker.

Member 6 (HUB1-VPN3)is the highest priority.

Member 4 (HUB1-VPN1)is the second priority.

Member 5 (HUB1-VPN2)is the lowest priority.

Current State: HUB1-VPN1 is currently selected because its packet loss (2.000%) is lower than HUB1-VPN2 (4.000%) and HUB1-VPN3 (12.000%). Even though HUB1-VPN3 has a higher configuration priority, its significantly higher packet loss prevents it from being chosen.

Evaluation of Options:

Option A (Verified): If all three members have thesame packet loss(e.g., they all show 2%), the quality metrics are equal. The SD-WAN engine then refers to the priority-members list. Since HUB1-VPN3 (Seq 6) is the first member in that list, it will immediately become the new preferred member.

Option B: If HUB1-VPN1 reaches 4%, it matches HUB1-VPN2 (4%). HUB1-VPN3 remains at 12%. The system will choose between VPN1 and VPN2. Since VPN1 (Seq 4) is higher in the priority list than VPN2 (Seq 5), HUB1-VPN1 stays preferred.

Option C: If HUB1-VPN1 reaches 12%, it matches HUB1-VPN3. However, HUB1-VPN2 is still better at4.000%. Therefore, HUB1-VPN2 would become the new preferred member, not HUB1-VPN3.

Option D: If HUB1-VPN3 drops to 4%, it matches HUB1-VPN2. However, HUB1-VPN1 is still the best link at2.000%, so it remains selected.

According to theSD-WAN 7.6 Core Administratorstudy guide and theFortinet Document Library, the interaction between SD-WAN rules and SLA targets is governed by specific selection and measurement logic:

Usage by Strategy (Option B): SLA targets are fundamentally used by theLowest Cost (SLA)strategy to determine which links are currently healthy enough to be considered for traffic steering. While other strategies likeBest Qualityuse a "Measured SLA" to monitor metrics, they do not typically use the "Required SLA Target" to disqualify links unless specifically configured in a hybrid mode. In most curriculum contexts, the "Required SLA Target" field is specifically associated with the Lowest Cost and Maximize Bandwidth strategies.

SLA Compliance Checking (Option D): SD-WAN rules utilize SLA targets as a "pass/fail" gatekeeper. The engine checks if thepreferred membersmeet the defined SLA requirements (latency, jitter, or packet loss thresholds). If a preferred member fails the SLA, the rule will move to the next member in the priority list that does meet the SLA.

Single SLA Binding (Option E): When configuring an SD-WAN rule, the GUI and CLI allow you to selectmultiple SLA targets, but they must all belong to thesame Performance SLAprofile. You cannot mix and match targets from different health checks (e.g., Target 1 from "Google_HC" and Target 2 from "Amazon_HC") within a single SD-WAN rule.

Why other options are incorrect:

Option A: This is incorrect because a single SD-WAN rule can only be associated with one specific Performance SLA profile at a time; therefore, you cannot select targets fromdifferentSLAs.

Option C: This is incorrect because member metrics (latency, jitter, packet loss) are measured by thePerformance SLAprobes regardless of whether an SD-WAN rule is currently using that SLA target for steering decisions. Measurement is a function of the health-check, not the rule matching process.

According to theSD-WAN 7.6 Core Administratorstudy guide and theFortiOS 7.6 Administration Guide, when you are migrating a production FortiGate to use SD-WAN, the most critical step involves reconfiguring how traffic is permitted and routed.

Reference Removal Requirement: Before an interface (such as wan1 or wan2) can be added as anSD-WAN member, it must be "unreferenced" in most parts of the FortiGate configuration. Specifically, if an interface is currently being used in an activeFirewall Policy, the system will prevent you from adding it to the SD-WAN bundle.

Firewall Policy Migration (Option A): In a production environment, you mustreplace the references to the physical interfacesin your firewall policies with the newSD-WAN virtual interface(or an SD-WAN Zone). For example, if your previous policy allowed traffic from internal to wan1, you must update that policy so theOutgoing Interfaceis now SD-WAN. This allows the SD-WAN engine to take over the traffic and apply its steering rules.

Modern Tools: While this used to be a purely manual process, FortiOS 7.x includes anInterface Migration Wizard(found underNetwork > Interfaces). This tool automates the "search and replace" function, moving all existing policy and routing references from the physical port to the SD-WAN object to ensure minimal downtime.

Why other options are incorrect:

Option B: While you do need to update your routing (e.g., creating a static route for 0.0.0.0/0 pointing to the SD-WAN interface), the curriculum specifically emphasizes the replacement of references infirewall policiesas the primary administrative hurdle, as policies are often more numerous and complex than the single static route required for SD-WAN.

Option C: You donotneed to disable the interface. It must be up and configured, just removed from other configuration references so it can be "absorbed" into the SD-WAN bundle.

Option D: SD-WAN is abase featureof FortiOS and doesnot require a separate licenseor a reboot to enable.
