Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

In an AWS SD-WAN Transit Gateway (TGW) Connect topology, traffic flow must be meticulously orchestrated through VPC route tables to ensure that the FortiGate-VM (Security VPC) can inspect traffic transitioning between spokes.

Spoke to TGW Redirection (Option E): For traffic to leave a Spoke VPC and reach the inspection hub, the Spoke VPC internal routing table must be configured to send all non-local traffic (0.0.0.0/0) to the Transit Gateway (TGW). This is the first step in the traffic chain.

TGW to FortiGate Redirection (Option A): Once the traffic arrives at the TGW and is forwarded to the Security VPC via a TGW attachment, it lands in the TGW subnet (or attachment subnet). To ensure this traffic is inspected, the Security VPC TGW subnet routing table must point the default route (0.0.0.0/0) to the FortiGate's internal network interface (ENI).

FortiGate Return/Egress Path (Option D): After the FortiGate processes the packet, it must be sent back to the TGW to reach its final destination in a different spoke or to exit via a different gateway. Therefore, the Security VPC FortiGate internal subnet routing table (the subnet where the FortiGate's internal leg resides) must have a default route (0.0.0.0/0) pointing back to the TGW.

Why other options are incorrect:

Option B: If the Security VPC TGW subnet routing table points to the TGW as the next hop, it creates a routing loop where traffic arrives from the TGW and is immediately sent back without being inspected by the FortiGate.

Option C: Pointing all traffic to an Internet Gateway (IGW) would bypass the Transit Gateway entirely and send traffic to the public internet rather than through the internal security fabric.

According to the FortiOS 7.6 AWS Administration Guide and the Fortinet Public Cloud Security 7.4 training materials regarding centralized security inspection:

Multiple Route Tables (Option B): A single AWS Transit Gateway is designed to support multiple TGW route tables. By default, there is a soft limit of 20 route tables per Transit Gateway, which allows administrators to implement sophisticated network segmentation and granular routing policies. In a FortiGate-centric "Security Hub" or "Transit VPC" architecture, multiple route tables are used to separate "Spoke" traffic from "Security" traffic, ensuring all inter-VPC traffic is forced through the FortiGate-VM for inspection.

Associations and Propagations: * Association: Each individual TGW attachment (VPC, VPN, or Direct Connect) can be associated with exactly one TGW route table at any given time. This table dictates where packets coming from that attachment will be sent. Because of this 1:1 relationship, Option C is incorrect.

Propagation: An attachment can propagate its routes to one or many TGW route tables. This flexibility allows a VPC's prefix to be known in multiple routing domains, meaning that association and propagation do not need to occur in the same table, making Option A incorrect.

Default Route Table Management: When creating an AWS Transit Gateway, the options for "Default route table association" and "Default route table propagation" are enabled by default, but they can be disabled during or after creation. Disabling these is a security best practice when deploying FortiGate-VMs to prevent the TGW from automatically creating a "full-mesh" connectivity that bypasses the firewall, making Option D incorrect.

According to the FortiOS 7.6 AWS Administration Guide and the Fortinet 7.4 Public Cloud Security study materials regarding infrastructure as code (IaC) for cloud deployments:

JSON Format Limitations (Option B): The exhibit shows an AWS CloudFormation template in JSON (JavaScript Object Notation) format. JSON, by its official specification, does not support comments. There is no native syntax (like // or /* */) to include remarks that are ignored by the CloudFormation parser.

YAML Support: To add descriptive comments—such as instructing other regional administrators to update the AMI ID—the administrator must convert the template into YAML format. YAML is a superset of JSON and specifically supports comments using the # character.

Best Practice for Multinational Deployments: For organizations operating across multiple AWS regions, using YAML is the recommended standard because it allows for inline documentation, making templates more maintainable and easier for different teams to understand regional requirements.

Why other options are incorrect:

Option A: Comments are part of the template file itself, not a parameter or flag within the aws cloudformation update-stack CLI command.

Option C: While # is the correct character for comments in YAML, it is invalid syntax in JSON and would cause the CloudFormation stack creation to fail with a parsing error.

Option D: The AWSTemplateFormatVersion "2010-09-09" is currently the only valid version for CloudFormation templates; updating it does not add JSON comment support.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiWeb 7.4 Administration Guide and the FortiWeb Ingress Controller Installation Guide, the status of backend servers in the FortiView Topology dashboard is a direct reflection of the health check results.

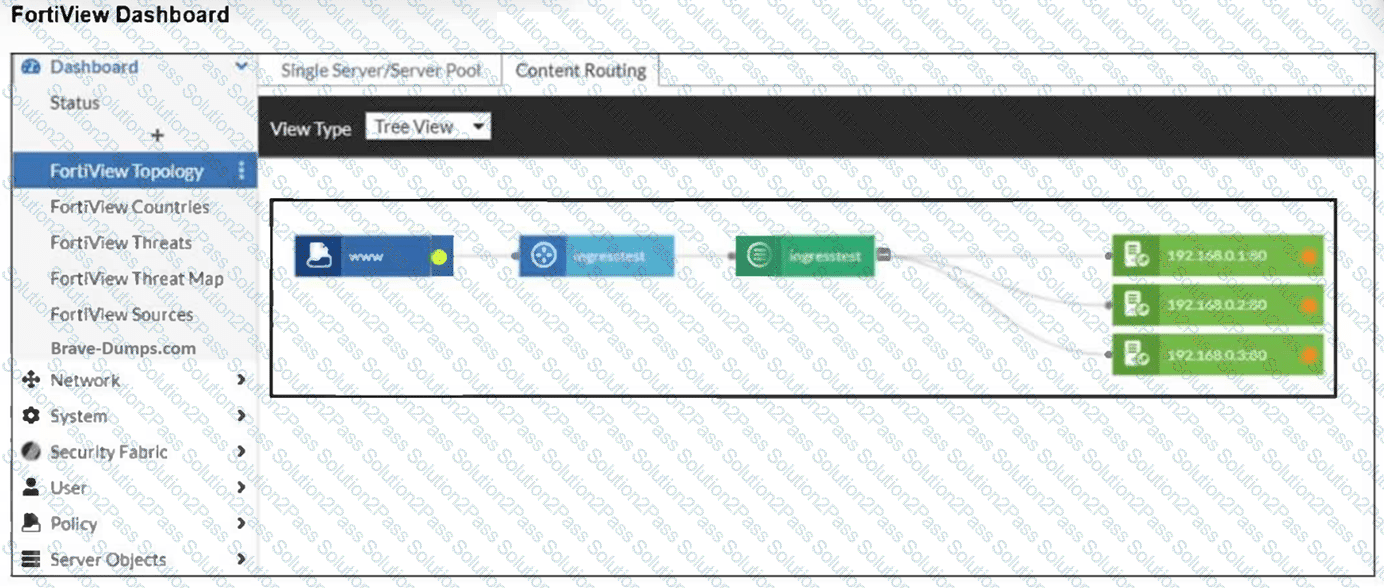

Interpreting the Status Icon (Orange): In the FortiView Topology view, a green circle indicates that the server is up and responding to health checks, while an orange circle indicates that the server is not running or is unreachable.

Connectivity and Routing (Option B): For the FortiWeb ingress controller to accurately monitor and protect a containerized application, it must have a valid network path to the Kubernetes (K8s) worker nodes. If the FortiWeb VM is missing a route to the specific subnet where the K8s nodes reside, the health check packets will fail to reach their destination. As a result, FortiWeb identifies the backend servers (192.168.0.1, 192.168.0.2, and 192.168.0.3) as "Down," leading to the orange status shown in the exhibit.

Health Check Failures: When the status is orange, it implies that the Server Health Check (configured in the server pool) is detecting that the web servers are not responsive to connections. While this could be caused by an application-level failure, in a fresh cloud deployment of an ingress controller, the most common underlying cause is a network routing misconfiguration preventing the FortiWeb appliance from reaching the node IPs.12

Why other options are incorrect:34

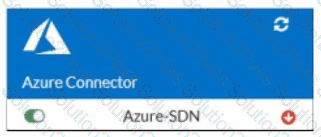

Option A: If the SDN connector were not authenticated correctly, FortiWeb would likely fail to discover the containerized resources entirely, rather than discovering them and repor5ting them as "Down".6

Option C: While wron7g IP addresses would cause a failure, the Ingress Controller's job is to dynamically sync these addresses from the K8s API; a manual configuration error in a manifest file regarding IP addresses is less likely in an automated ingress environment.

Option D: The load balancing algorithm (Round Robin, Least Connections, etc.) affects how traffic is distributed, but it does not influence the up/down health status of the individual backend servers.

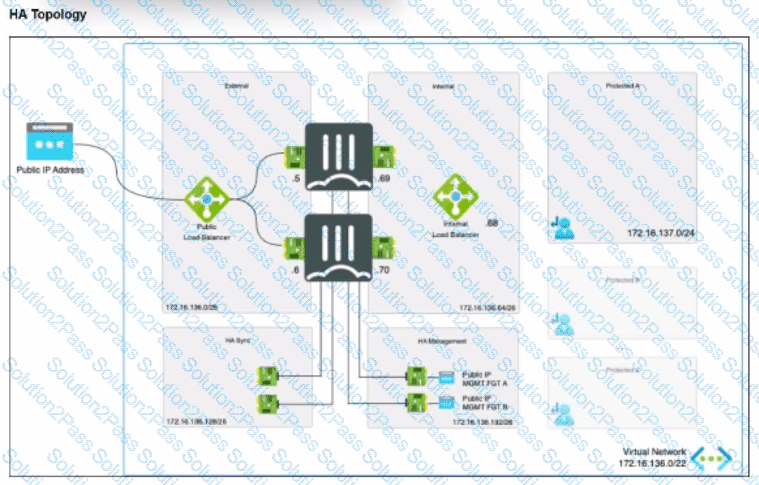

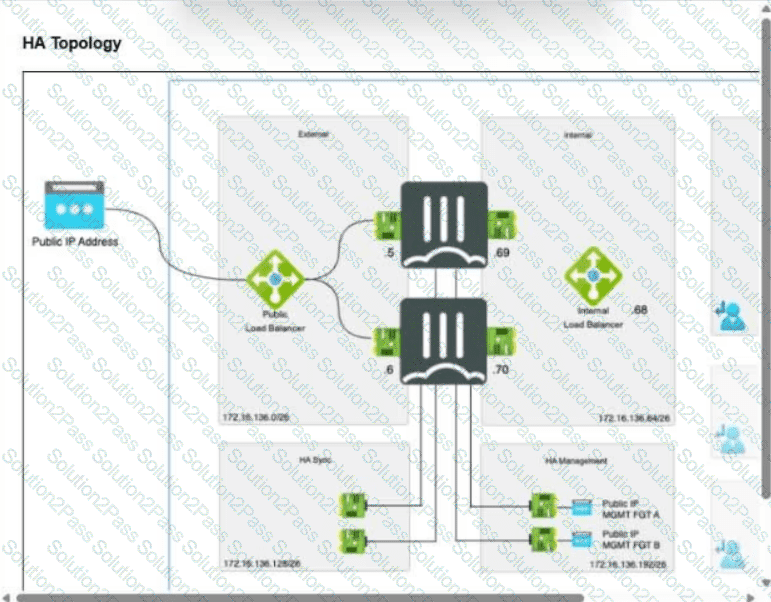

According to the FortiOS 7.6 Azure Administration Guide and the Cloud Security 7.4 Public Cloud Study Guide, the integration of FortiGate-VMs with an Azure Gateway Load Balancer (GWLB) requires specific network configurations to ensure packet transit:

IP Forwarding Requirement (Option A): By default, Azure Network Interfaces (NICs) drop any traffic that does not originate from or is not destined for the IP address assigned to that NIC. For a FortiGate to act as a "bump-in-the-wire" or transparent inspector, it must receive traffic destined for other IPs and forward it. This requires the IP Forwarding setting to be explicitly enabled on the FortiGate's network interfaces within the Azure portal. If this is disabled, the Azure fabric will discard the traffic being steered through the FortiGate HA cluster by the GWLB.

VXLAN Encapsulation: The Azure GWLB uses VXLAN to encapsulate traffic (adding a VXLAN header with a specific VNI) before sending it to the FortiGate. The FortiGate must terminate this VXLAN tunnel. While the VXLAN configuration is crucial, the underlying infrastructure check for IP Forwarding is the most common cause of traffic being blocked at the NIC level before the FortiOS stack can process the packet.

Why other options are incorrect:

Option B: If health probes fail, the GWLB will typically stop sending traffic to that specific instance. While this affects the HA cluster's availability, the question states traffic is not being routed correctly through the firewalls (implying an active flow issue), and the primary mechanism for allowing a VM to process third-party traffic in Azure is IP Forwarding.

Option C: NSGs are typically applied to the NIC or Subnet. While incorrect NSG rules can block traffic, "IP Forwarding" is a specific requirement for the FortiGate to function as a network appliance (NVA) regardless of the NSG state.

Option D: Azure GWLB supports cross-subscription and cross-tenant chaining. The consumer (protected VMs) and the provider (FortiGate HA cluster) do not need to be in the same subscription, provided the GWLB endpoint is correctly mapped.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiOS 7.6 Azure Administration Guide and the Fortinet 7.4 Public Cloud Security documentation regarding Azure Virtual WAN (vWAN) architectures, the choice of connectivity depends on the required performance, security, and scale:

ExpressRoute (Option D): For a large-scale enterprise deployment involving a company headquarters and multiple branch sites, ExpressRoute is the "best" and most robust solution. It provides a private, dedicated, and high-throughput connection (up to 100 Gbps) that bypasses the public internet entirely. This ensures predictable low latency and higher reliability compared to internet-based tunnels.

Virtual WAN Integration: Azure vWAN Standard SKU explicitly supports ExpressRoute gateways as a primary connectivity method for on-premises sites. This allows the vWAN hub to act as a global transit point, seamlessly connecting the ExpressRoute-linked headquarters to other branch sites and VNET spokes.

Scalability for Headquarters: While site-to-site IPsec VPNs are common for smaller branches, the "main company site" or headquarters typically requires the high bandwidth and SLA guarantees provided by ExpressRoute.

Why other options are incorrect:

Option A & B: L2TP and SSL VPN are primarily used for remote user access (Point-to-Site) rather than permanent site-to-hub infrastructure connections. vWAN uses OpenVPN or IKEv2 for user VPNs, not L2TP.

Option C: While GRE tunnels are used in some networking scenarios, they are not a native, primary gateway connectivity option for the Azure vWAN hub compared to the standardized Site-to-Site VPN (IPsec) and ExpressRoute.
