The transition from the first-generation HPE Synergy Composer (based on Gen9 technology) to the HPE Synergy Composer 2 (based on Gen10 technology) introduced a critical hardware advancement for system administrators and troubleshooting scenarios.

Integrated iLO 5 ASIC: Unlike the original Composer, which did not provide a user-accessible iLO interface for the appliance itself, the HPE Synergy Composer 2 is built with an integrated HPE iLO 5 management processor.

Remote Appliance Management: This allows administrators to connect directly to the iLO of the Composer 2 module via its own IP address. From this interface, you can perform tasks that were impossible on the first-generation hardware, such as:

Remote Console Access: View the startup sequence or the maintenance console of the management appliance even if the OneView software is not responding.

Power Management: Remotely reset or power cycle the management module without having to physically visit the data center to " reseat " the module.

Virtual Media: Mount an ISO to recover or re-image the appliance remotely.

Silicon Root of Trust: Being based on Gen10 architecture, the Composer 2 also brings the Silicon Root of Trust security feature to the management layer, providing hardware-level validation of the appliance firmware to protect against rootkits and compromised code.

Why other options are incorrect:

Option A: Both the original Composer and Composer 2 support a maximum of 21 frames in a single management ring (a single Logical Enclosure).

Option B: While the original Composer hardware is less powerful than Composer 2, HPE OneView 5.2 did not officially reduce the supported frame count to 12; the 21-frame limit remained standard for both, though performance is significantly better on Composer 2.

Option C: Both generations of Composers support the management of satellite frames (sometimes referred to in architectures as remote frames within the same rack/complex). " Remote frames " in the context of geographically distant frames is a function of the Global Dashboard, not a limitation of the local Composer hardware.

D. FC upgrade licenses for HPE Virtual Connect SE 100 GbF32 Module must be added: To enable Fibre Channel functionality on the HPE Virtual Connect SE 100Gb F32 Modules, it is necessary to add FC upgrade licenses. These licenses unlock the FC capabilities required for the proposed setup.

E. Remove 4 HPE Composer 2 modules from the design, as they are not required: The proposed design includes 6 HPE Composer 2 modules, but typically, only a pair of HPE Composer 2 modules is required to manage up to 21 frames. Therefore, the remaining 4 Composer 2 modules are not necessary and can be removed from the design.

The VMware vSphere Standard license does not include support for advanced features like Distributed Resource Scheduler (DRS) and Distributed Switches. These features are available only with the vSphere Enterprise Plus license. Therefore, to meet the customer ' s requirement of using Distributed Switches and a DRS cluster, the proposal should include vSphere Enterprise Plus licenses instead of Standard licenses.

Here are the correct matches for each HPE SimpliVity term with their respective definitions:

Arbiter Definition: Facilitates communication between nodes and resolves state conflicts to ensure service continuity.

Compute node Definition: Non-hyperconverged servers that can exist in an HPE SimpliVity environment and provide additional compute capacity while consuming the storage provided by the hyperconverged nodes.

Intelligent Workload Optimizer Definition: Integrates with VMware Distributed Resources Scheduler to ensure optimal placement of the VM compute resources.

Management Virtual Controller Definition: Provides centralized management and events end-point for vCenter.

Arbiter: The Arbiter in an HPE SimpliVity environment is responsible for ensuring communication between nodes and resolving any state conflicts, which is crucial for maintaining service continuity.

Compute node: In an HPE SimpliVity environment, a compute node refers to non-hyperconverged servers that provide additional compute capacity while utilizing the storage from hyperconverged nodes.

Intelligent Workload Optimizer: This component integrates with VMware ' s Distributed Resources Scheduler (DRS) to optimize the placement of virtual machine (VM) compute resources, ensuring they are efficiently distributed across the environment.

Management Virtual Controller: This controller provides centralized management and serves as the events end-point for vCenter, allowing for streamlined management and monitoring of the SimpliVity environment.

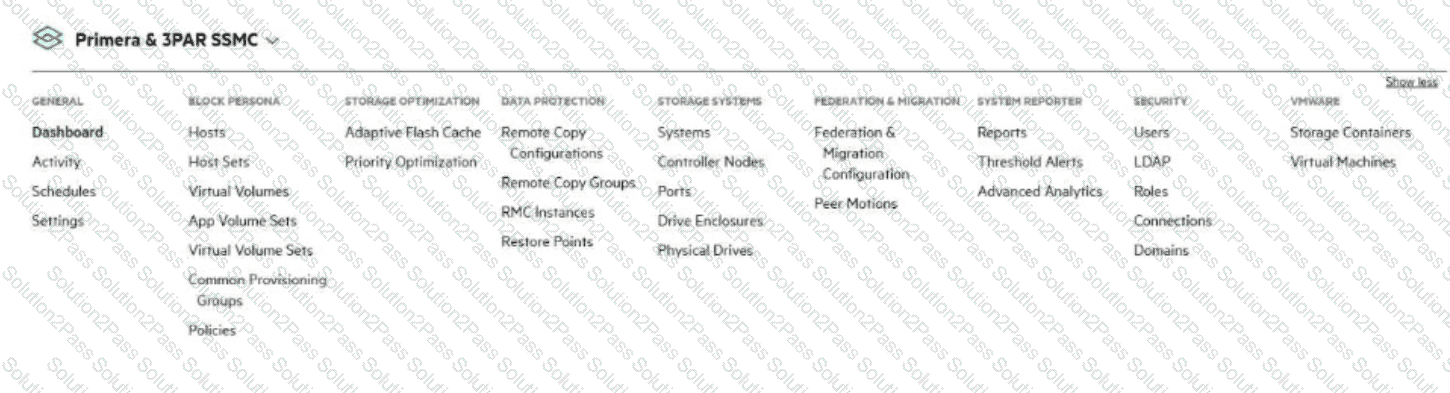

To verify whether a virtual storage operation is properly created on HPE Primera or 3PAR using the HPE Storage Integration Pack for VMware vCenter, you would click on the " Virtualization " option in the SSMC (StoreServ Management Console) main menu. This option allows you to manage and monitor storage operations related to virtual environments, including VMware integration.

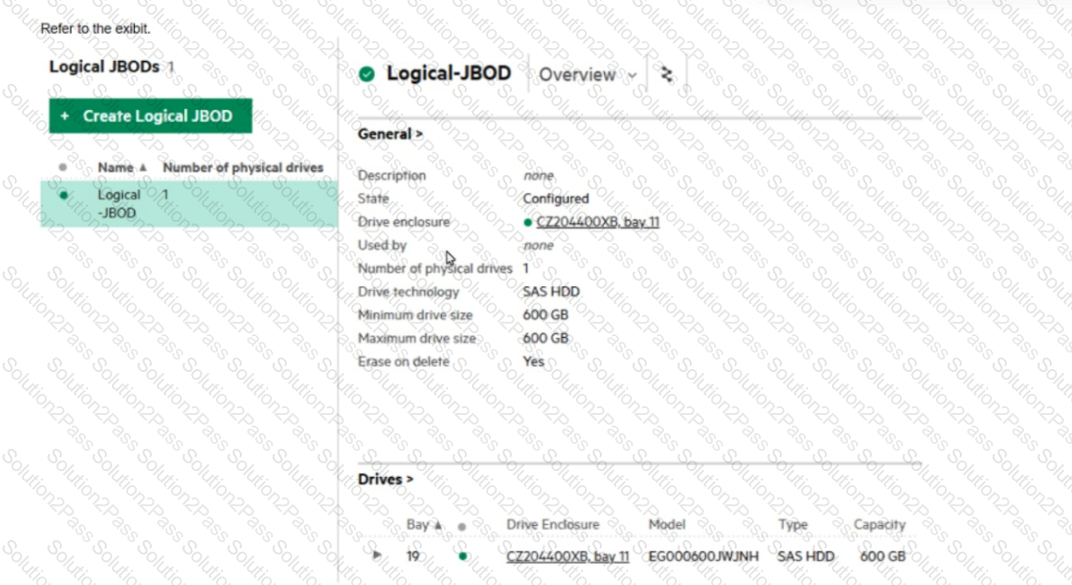

In HPE Synergy, logical JBODs (Just a Bunch of Disks) can be configured to be accessible by compute nodes across different frames. This flexibility allows for the logical JBOD to be pre sented to compute nodes that are not in the same frame as the storage module, facilitating better resource utilization and workload management.

One of the key benefits of using HPE Composer 2 is its enhanced scalability. A pair of HPE Composer 2 modules can manage up to 42 frames, which is double the capacity managed by the previous generation HPE Composer (which manages up to 21 frames). This increased capacity allows for more efficient and large-scale management of HPE Synergy environments.

The area to check for the HPE OneView SSO certificate is under Security , then HPE SSO .

Here ' s why:

Security: This section deals with all security-related settings, including certificates.

HPE SSO: This stands for " Single Sign-On " and is the specific technology that HPE OneView uses for integrated authentication. The certificate will be listed here if it ' s properly applied.

To get to this section, you would click on " Security " in the left-hand navigation menu, and then " HPE SSO " in the main content area.

Here are the correct matches for each HPE SimpliVity term with their respective definitions:

Arbiter Definition: Facilitates communication between nodes and resolves state conflicts to ensure service continuity.

Compute node Definition: Non-hyperconverged servers that can exist in an HPE SimpliVity environment and provide additional compute capacity while consuming the storage provided by the hyperconverged nodes.

Management Virtual Controller Definition: Provides centralized management and events end-point for vCenter.

Intelligent Workload Optimizer Definition: Integrates with VMware Distributed Resources Scheduler to ensure optimal placement of the VM compute resources.

Arbiter: This component is essential for ensuring that the HPE SimpliVity nodes communicate properly and that any state conflicts are resolved, which is critical for maintaining service continuity.

Compute node: These are non-hyperconverged servers that add additional compute capacity to the HPE SimpliVity environment. They utilize the storage resources provided by the hyperconverged nodes.

Management Virtual Controller: This controller is responsible for centralized management and acts as the events end-point for vCenter, allowing for streamlined management of the SimpliVity environment.

Intelligent Workload Optimizer: This tool integrates with VMware ' s Distributed Resources Scheduler (DRS) to ensure that virtual machine (VM) compute resources are placed optimally across the infrastructure.

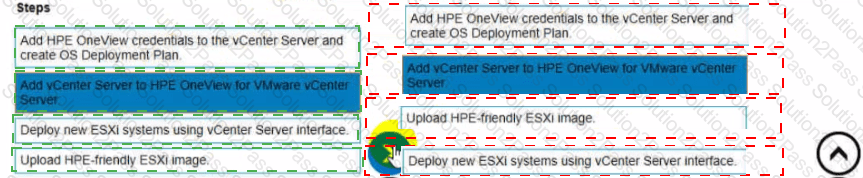

To configure HPE OneView for VMware vCenter Server to deploy ESXi systems, follow these steps in the correct order:

Add HPE OneView credentials to the vCenter Server and create OS Deployment Plan.

Add vCenter Server to HPE OneView for VMware vCenter Server.

Upload HPE-friendly ESXi image.

Deploy new ESXi systems using vCenter Server interface.

Add HPE OneView credentials to the vCenter Server and create OS Deployment Plan: Integrate HPE OneView with vCenter Server by adding the necessary credentials and setting up the OS Deployment Plan.

Add vCenter Server to HPE OneView for VMware vCenter Server: Ensure that vCenter Server is added to HPE OneView for VMware vCenter Server to enable communication and management.

Upload HPE-friendly ESXi image: Upload an ESXi image that is optimized for HPE hardware to the vCenter Server for use in the deployment process.

Deploy new ESXi systems using vCenter Server interface: Use the vCenter Server interface to deploy new ESXi systems based on the created server profile template and the uploaded ESXi image.

These steps ensure a seamless deployment and management of ESXi systems using HPE OneView integrated with VMware vCenter Server.

HPE MSA 2062 Storage Array is not supported in HPE OneView: HPE OneView does not provide management capabilities for the HPE MSA series, which includes the MSA 2062. These arrays must be managed using their dedicated management tools.

HPE Primera 650 can be managed using HPE OneView: HPE OneView supports the management of HPE Primera storage arrays, including the Primera 650, allowing for integrated management and monitoring within the OneView environment.

HPE Compute Ops Management (COM) integrates deeply with the iLO 6 Security Dashboard to provide centralized security posture monitoring for a fleet of servers.

Security Risk Monitoring: COM monitors specific configuration parameters on the iLO management processor that are considered " risky " by modern security standards. One of the primary risks identified is the use of legacy, insecure protocols for management and alerting.

SNMPv1 Risk (Option A): SNMPv1 is an inherently insecure protocol because it sends community strings (passwords) in cleartext across the network. In the iLO 6 Security Dashboard, if the setting " SNMPv1 Request " is set to Enabled , iLO will flag this as an " At risk " security status. HPE Compute Ops Management surfaces these alerts in its cloud console, allowing administrators to identify servers where insecure management protocols are active.

Scope of Management: COM focuses on hardware, firmware, and management-level security . It evaluates settings such as:

Minimum Password Length and complexity.

Secure Boot status.

Authentication requirements for host-based tools.

Global Component Integrity (via SPDM).

Protocol status (disabling IPMI/DCMI or SNMPv1).

Why other options are incorrect:

Option B: Monitoring for varying traffic patterns is typically a function of Network Detection and Response (NDR) or Intrusion Detection Systems (IDS) , such as those found in the Aruba networking portfolio. COM does not perform deep packet inspection or behavioral analysis of production network traffic.

Option C: Antivirus software is an Operating System (OS) level application. Since iLO and COM operate at the " below-the-OS " management layer, they do not have visibility into which software packages (like antivirus or EDR) are installed or running within the server ' s OS.

Option D: While iLO can manage Self-Encrypting Drives (SEDs) and display their encryption status, the presence of " unencrypted data " on a standard drive is an OS/Filesystem-level attribute. The security risks reported by the COM dashboard specifically target the management interface ' s vulnerabilities rather than the data residency state of the local storage.

When the iLO interface prompts for a login instead of automatically logging in via HPE OneView, a common issue is that the Single Sign-On (SSO) certificate might have been removed or is not properly configured on the iLO. Verifying the presence and validity of the SSO certificate on the iLO interface is a critical step in troubleshooting this issue.

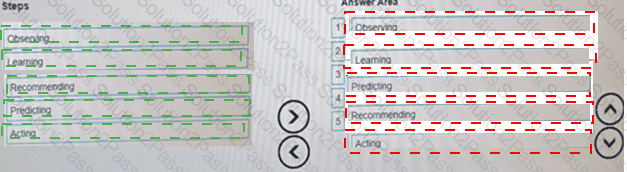

(observing, learning, predicting, recommending, acting)

Observing: The first step involves collecting and monitoring data from the infrastructure. HPE InfoSight continuously gathers telemetry data from various components, including storage, compute, and networking devices.

Learning: In this step, the collected data is analyzed to identify patterns and trends. Machine learning algorithms process the data to understand the normal behavior of the system and detect anomalies.

Predicting: Based on the learned patterns, HPE InfoSight can predict potential issues before they occur. This predictive analysis helps in identifying areas that might cause problems in the future.

Recommending: After predicting potential issues, HPE InfoSight provides actionable recommendations to prevent or resolve these issues. These recommendations are based on best practices and the vast amount of data analyzed by InfoSight.

Acting: Finally, the recommendations are implemented to optimize the performance and reliability of the infrastructure. This step may involve configuring settings, applying updates, or other actions to maintain the health of the system.

The issue of seeing multiple instances of an FC boot volume in Disk Management, with one online and three offline, is typically caused by the lack of Multi-Path I/O (MPIO) configuration. Installing and configuring MPIO on the Windows system will enable the operating system to recognize multiple paths to the same storage volume and manage them correctly, presenting only one online instance of the volume.
