HPE Synergy allows scaling of logical enclosures up to 5 frames. Given the current setup of three frames fully populated with HPE Synergy 480 Gen10 Plus modules and other specified components, the customer can add another frame to the existing logical enclosure. This flexibility in scaling ensures that the logical enclosure can be expanded without the need to create a new logical enclosure, provided that the necessary interconnect modules are in place.

The HPE Compute Ops Management (COM) service is a cloud-native management platform delivered through HPE GreenLake . To manage a physical server directly from the cloud using the activation key method , the following architectural hierarchy must be followed:

HPE GreenLake Inventory: Before a server can be successfully " activated " or managed by a specific service like COM, the HPE GreenLake platform must first recognize the hardware. This is achieved by adding the server ' s Serial Number (SN) and Product ID (PID) to the workspace ' s Device Inventory . This step " claims " the device for that specific customer workspace and proves ownership.

Activation Key Generation: Once the workspace is established, an administrator generates an Activation Key from within the Compute Ops Management console. This key is often associated with specific settings like server groups, locations, or subscription tiers.

iLO Integration: The activation key is then entered into the server ' s iLO (HPE Integrated Lights-Out) web interface (specifically iLO 5 v3.09+, iLO 6 v1.64+, or iLO 7). When the iLO initiates an outbound connection to the HPE GreenLake cloud, it presents its unique hardware identity (SN/PID) and the activation key. If the SN/PID matches an entry in the GreenLake inventory for that workspace, the onboarding process is finalized, and the server appears as " Connected " in COM.

Network Flexibility: While iLO requires internet access to reach the cloud endpoints, it can use either the Dedicated iLO Network Port or the Shared Network Port (LOM/FlexibleLOM). There is no requirement to use only the dedicated port, making Option B incorrect.

OS Independence: One of the primary benefits of COM is that it operates at the " out-of-band " management level. It does not require an operating system to be installed or even for the server to be powered on (as long as auxiliary power is available to the iLO), making Option A incorrect.

Key Technical Takeaway:

The HPE GreenLake Inventory serves as the foundational " Source of Truth " for all cloud-managed hardware. Without the serial number and product ID being registered in the inventory, the cloud gateway will reject the activation attempt from the iLO for security and multi-tenancy reasons.

In the HPE Synergy architecture, Logical Interconnect Groups (LIGs) define the connectivity patterns for the frames. The ability of an LIG to span multiple frames depends entirely on the interconnect technology being used:

Ethernet Virtual Connect (Options A & D): The HPE Virtual Connect SE 40 Gb F8 and 100 Gb F32 modules are designed for Multi-Frame Link Aggregation . Using a Master/Satellite architecture, these LIGs can span up to five Synergy frames, allowing a single logical management point for the entire fabric.

Fibre Channel Switches (Option B): The Brocade 32GB Fibre Channel Switch Module is a traditional " managed switch " persona. Unlike Virtual Connect, which acts as a fabric extender/aggregator, the Brocade module operates as a standalone switch within the frame ' s backplane. In HPE OneView, an LIG containing traditional Fibre Channel switches is strictly limited to a single frame . You cannot " stack " or span a Brocade switch LIG across multiple frames in the same way you do with Ethernet VC modules.

Virtual Connect FC (Option C): While Virtual Connect Fibre Channel modules also generally operate within a frame context for their uplinks, the question specifically targets the " Switch Module " (Brocade) which, as a standard industry switch, does not participate in the proprietary Synergy multi-frame horizontal stacking architecture.

The HPE OneView Update Readiness Checker (URC) is a specialized utility designed to ensure a smooth transition during the appliance update process. Its primary and specific function is as follows:

Pre-Update Health Validation: The tool is designed to evaluate the internal health of the HPE OneView appliance (whether it is a VM or a Synergy Composer) for a set of known conditions that could potentially cause an update to fail. This includes checking database integrity, filesystem space, and internal service states.

Appliance-Centric Analysis: According to official HPE documentation, the checker evaluates conditions only on the appliance itself and not the managed environment (such as individual compute node firmware or interconnect modules). This makes it a " safety net " for the management layer specifically.

Deployment: It runs on a client system (Windows or Linux) outside the appliance and connects via the API to perform these health checks. It is recommended to run this tool immediately before any major or minor appliance update.

Why other options are incorrect:

Option A: Compatibility between Synergy Service Packs (SSPs) and OneView versions is typically checked via the HPE Synergy Software Releases documentation or the Synergy Management Combination matrix, not the URC utility.

Option C: Firmware compliance of compute nodes is handled by the HPE OneView Firmware Compliance reports and Server Profiles within the main OneView UI, not by the external Update Readiness Checker.

Option D: While milestone releases are critical for the update path, the URC checks for health and readiness rather than just identifying the current version number or milestone status, which is easily visible on the " About " page of the appliance.

This scenario tests your knowledge of HPE Synergy Master/Satellite architecture and Management Ring requirements. Based on the requirements provided, the design has two primary issues that must be addressed:

Management Redundancy (HPE Composer 2):

The requirement states that all frames must formulate a single management entity. In a Synergy environment, this is achieved by linking the Frame Link Modules (FLM) of the three frames together to form a management ring.

Within a single management ring (one Logical Enclosure), only two (2) HPE Synergy Composer 2 modules are required to provide a highly available, redundant management cluster.

The architect ' s proposal included 6 Composers (2 per frame). This is incorrect for a single management entity design; therefore, 4 Composers are unnecessary and should be removed (Option C).

Fibre Channel Connectivity Licensing:

The HPE Virtual Connect SE 100Gb F32 Module is a converged interconnect. While it physically supports Fibre Channel (FC) and FCoE, the Fibre Channel uplink functionality is not enabled by default.

According to HPE QuickSpecs, a specific FC Upgrade License must be purchased and applied via HPE OneView to enable the use of the QSFP28 ports as native Fibre Channel uplinks to a SAN. Without these licenses, the customer cannot meet the requirement for connectivity to an FC array (Option A).

Analysis of other options:

Option B is incorrect: In a 3-frame setup, you only need one pair of " Master " modules (the F32s). The other frames are correctly equipped with Interconnect Link Modules (ILMs) which act as satellites to extend the Master ' s fabric.

Option D is incorrect: Virtual Connect technology is explicitly designed to provide MAC and WWN virtualization (often called " Server-Side Networking " ), allowing identities to be assigned to server profiles rather than being hardcoded to hardware.

Option E is incorrect: A 3-frame Synergy setup provides a total of 36 half-height slots (12 per frame). Since the HPE Synergy 480 Gen10 Plus is a half-height module, the physical infrastructure can support up to 36 modules, easily meeting the " at least 30 " requirement. There is no architectural limitation in this specific F32/ILM combination that restricts it to only 18 modules.

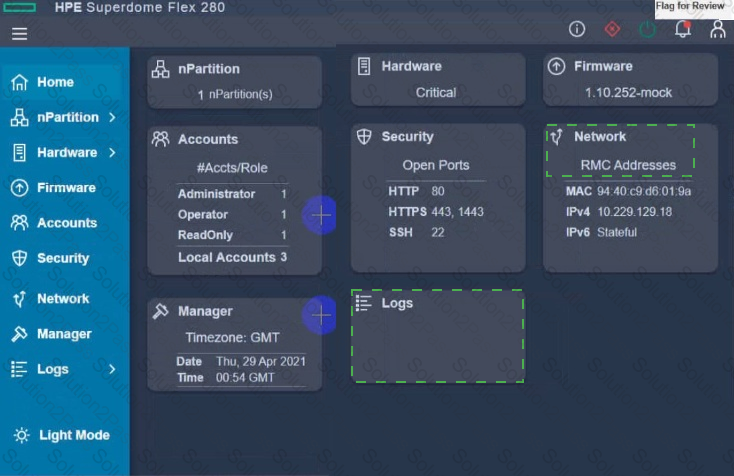

The HPE Superdome Flex system supports configurations of up to 32 sockets and 48TB of memory, making it suitable for extremely large-scale and demanding workloads. In contrast, the HPE Superdome Flex 280 has a lower maximum configuration limit, making it more suited for smaller-scale deployments compared to the full Superdome Flex.

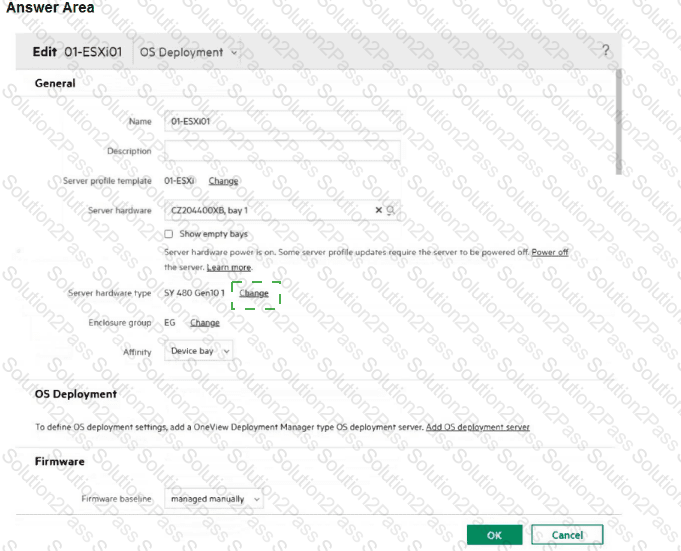

Click the Change link located next to Server hardware type .

In HPE OneView, a Server Profile is a logical software-defined representation of a server. A key component of its definition is the Server Hardware Type , which acts as a " schema " describing the physical characteristics of the server (such as the number of processors, drive bays, and mezzanine slots).

Hardware Incompatibility: Because the HPE Synergy 480 and Synergy 660 have different physical architectures, they are classified as different Server Hardware Types. You cannot simply assign a profile created for a 480 directly to a 660 blade; the " Server hardware " dropdown would show the 660 blades as incompatible.

The Migration Path: To perform this migration, the profile must first be unassigned from its current physical hardware. Once unassigned, clicking the Change link next to Server hardware type allows the administrator to select the hardware type that matches the Synergy 660.

Identity Preservation: By changing the hardware type within the existing profile rather than creating a new one, the profile retains its Virtual Identities (WWNs, MAC addresses, and Serial Number). This is critical in environments with manual storage zoning or strict network security, as it ensures the " new " physical server is recognized by the fabric as the " old " logical server.

Validation: After changing the type, HPE OneView performs a validation check to ensure the existing settings (like Mezzanine card mappings) are compatible with the new hardware layout before allowing the profile to be assigned to the new 660 compute module.

To expand an existing logical enclosure based on a single HPE Synergy frame to include a second frame and ensure a highly available master setup, the following steps should be performed:

Modify an existing logical interconnect to include the second HPE Synergy frame: This step involves updating the logical interconnect configuration to encompass the new frame, ensuring network connectivity and consistency across both frames.

Move one of the master modules to the appropriate interconnect bay in the second frame: To achieve a highly available master setup, one of the master modules should be relocated to the second frame, providing redundancy and high availability for the management components.

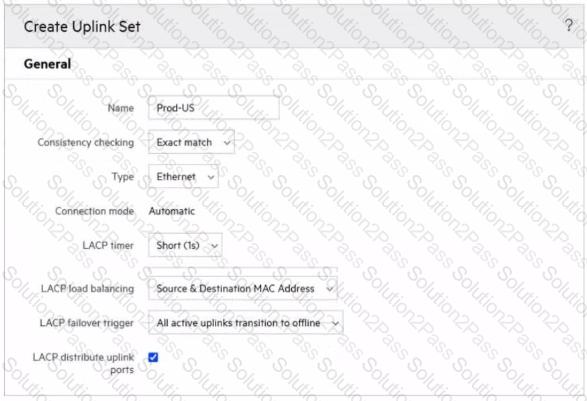

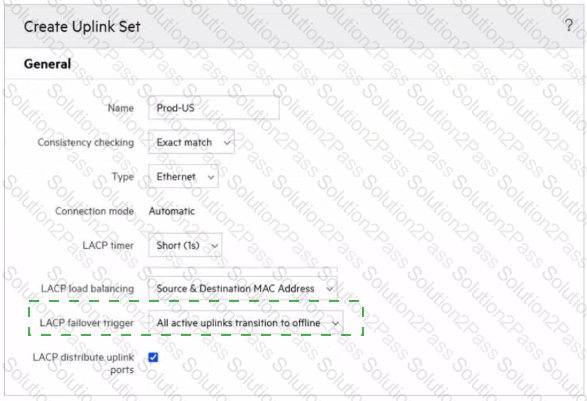

To prevent a timeout and loss of communication during an external switch firmware upgrade, the customer should configure the LACP failover trigger within the uplink set. By setting the LACP failover trigger to " All active uplinks transition to offline, " the configuration ensures that the traffic will be redirected to available uplinks in the event of an uplink failure or during the upgrade process, maintaining communication and preventing timeouts.

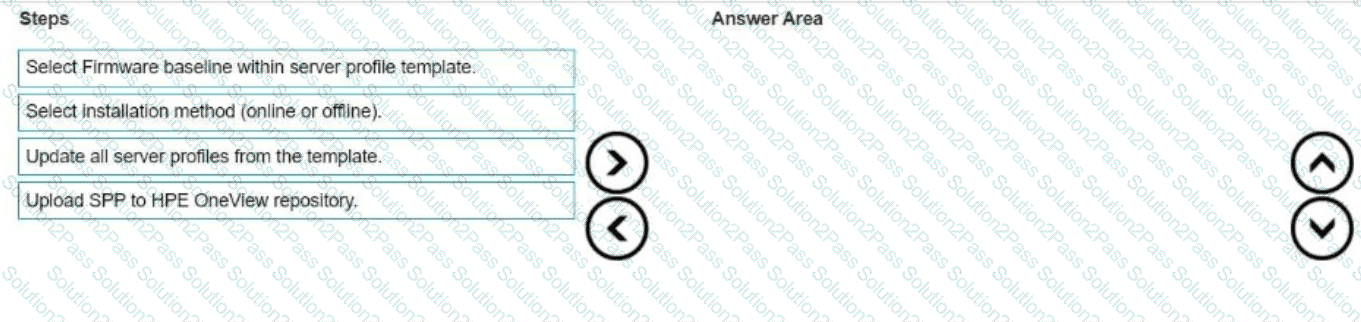

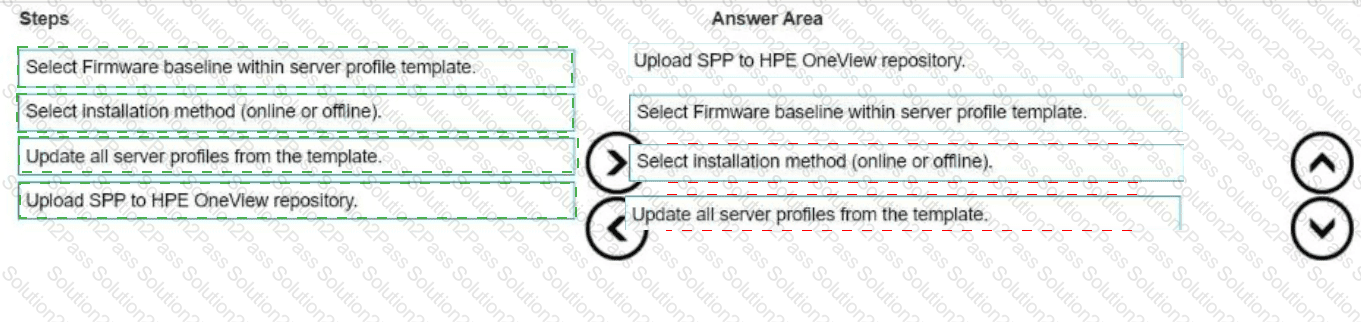

To update the firmware for the HPE Synergy 480 Gen 10 compute modules with a server profile assigned from a server profile template, the steps should be performed in the following order:

Upload SPP to HPE OneView repository. (First, the Service Pack for ProLiant (SPP) containing the firmware updates must be uploaded to the HPE OneView repository.)

Select Firmware baseline within server profile template. (Next, you need to select the desired firmware baseline in the server profile template.)

Select installation method (online or offline). (Choose whether the firmware updates will be installed online or offline.)

Update all server profiles from the template. (Finally, update all server profiles from the modified template to apply the firmware updates to the compute modules.)

HPE OneView allows for several storage management tasks when managing HPE Primera, including volume provisioning. This task involves creating and managing storage volumes that can be allocated to compute nodes and applications within the environment. HPE OneView streamlines this process, providing a centralized management interface.
